AW20 Series Roll Pin Yoke

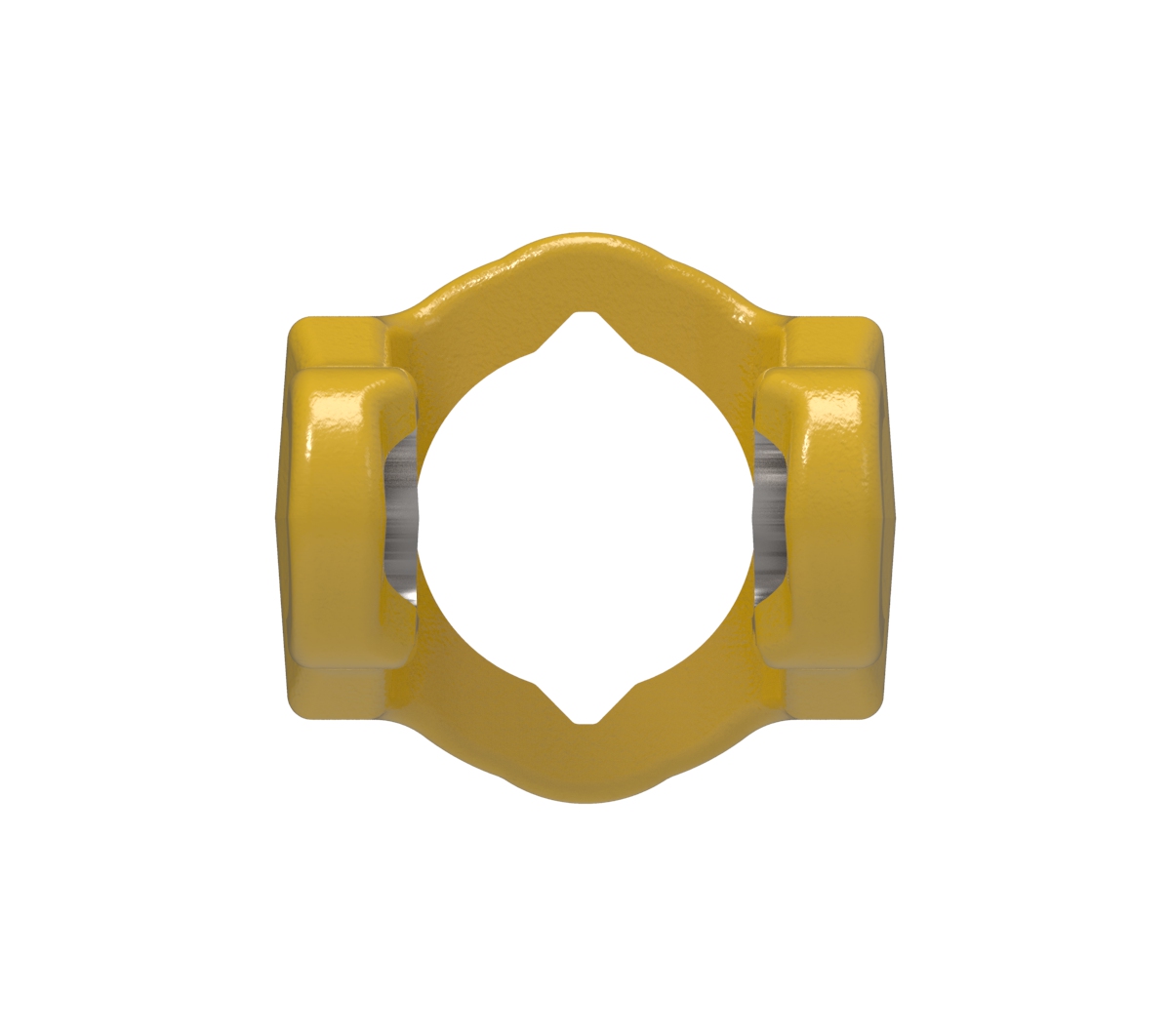

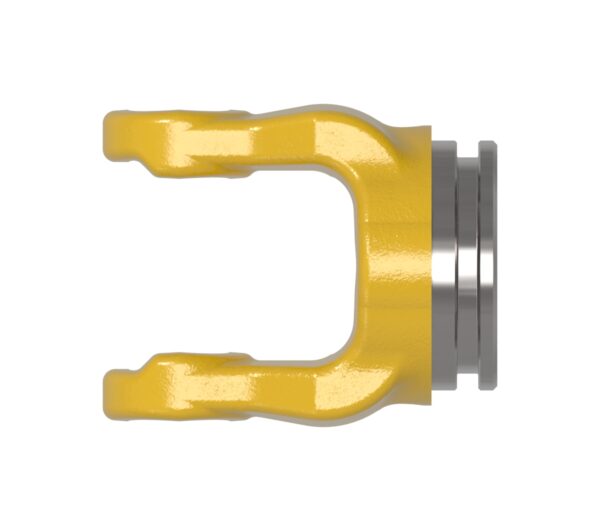

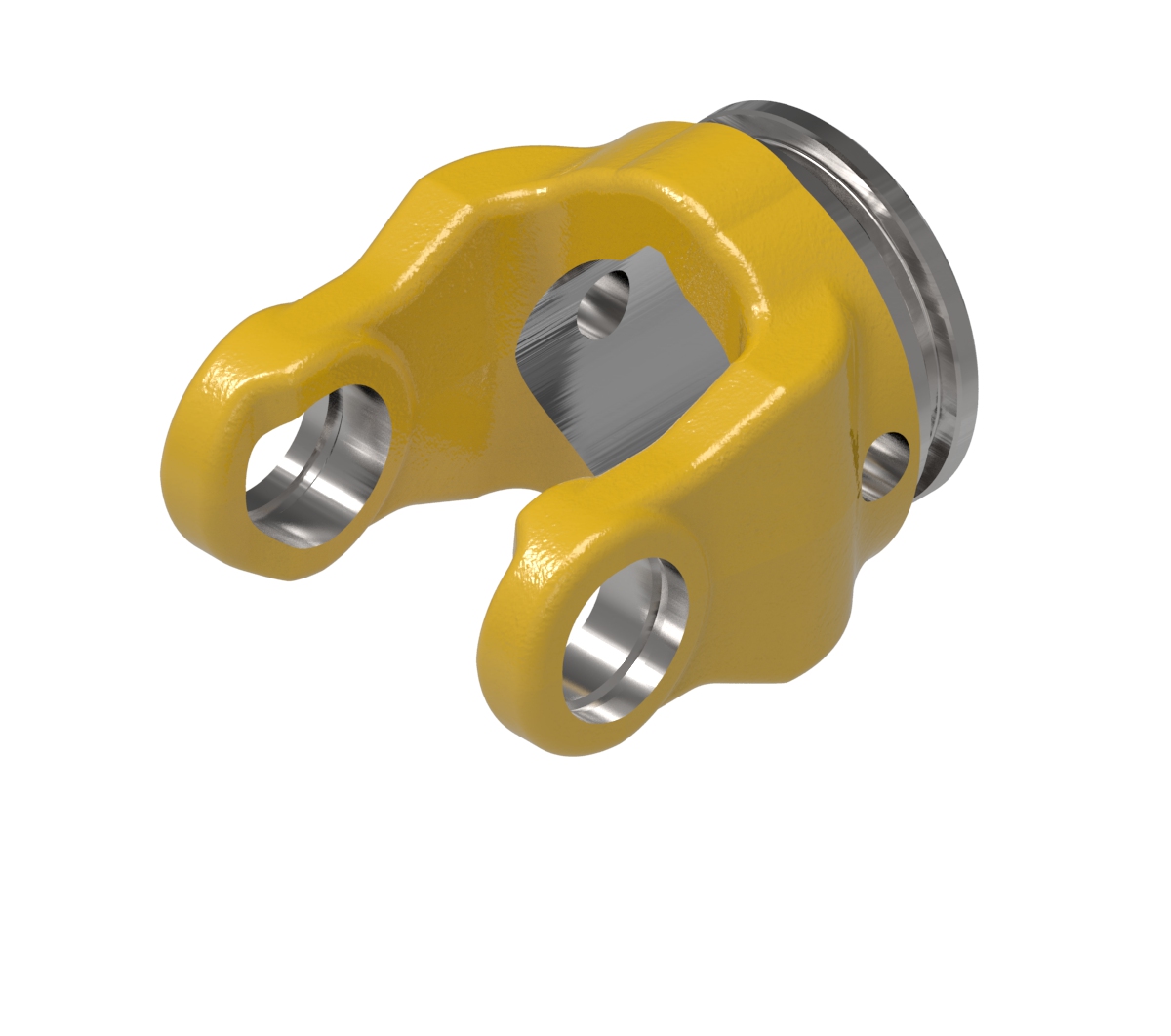

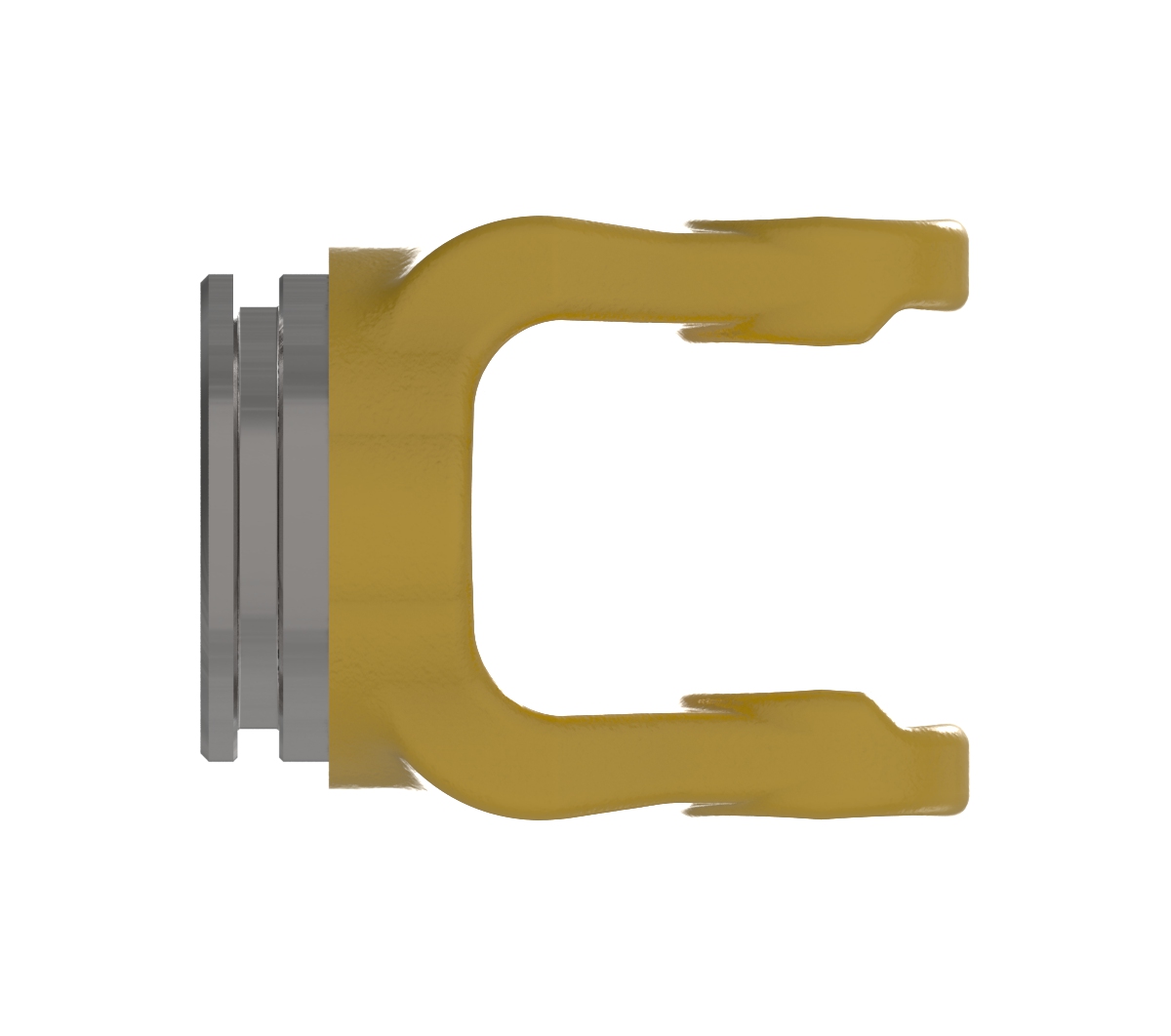

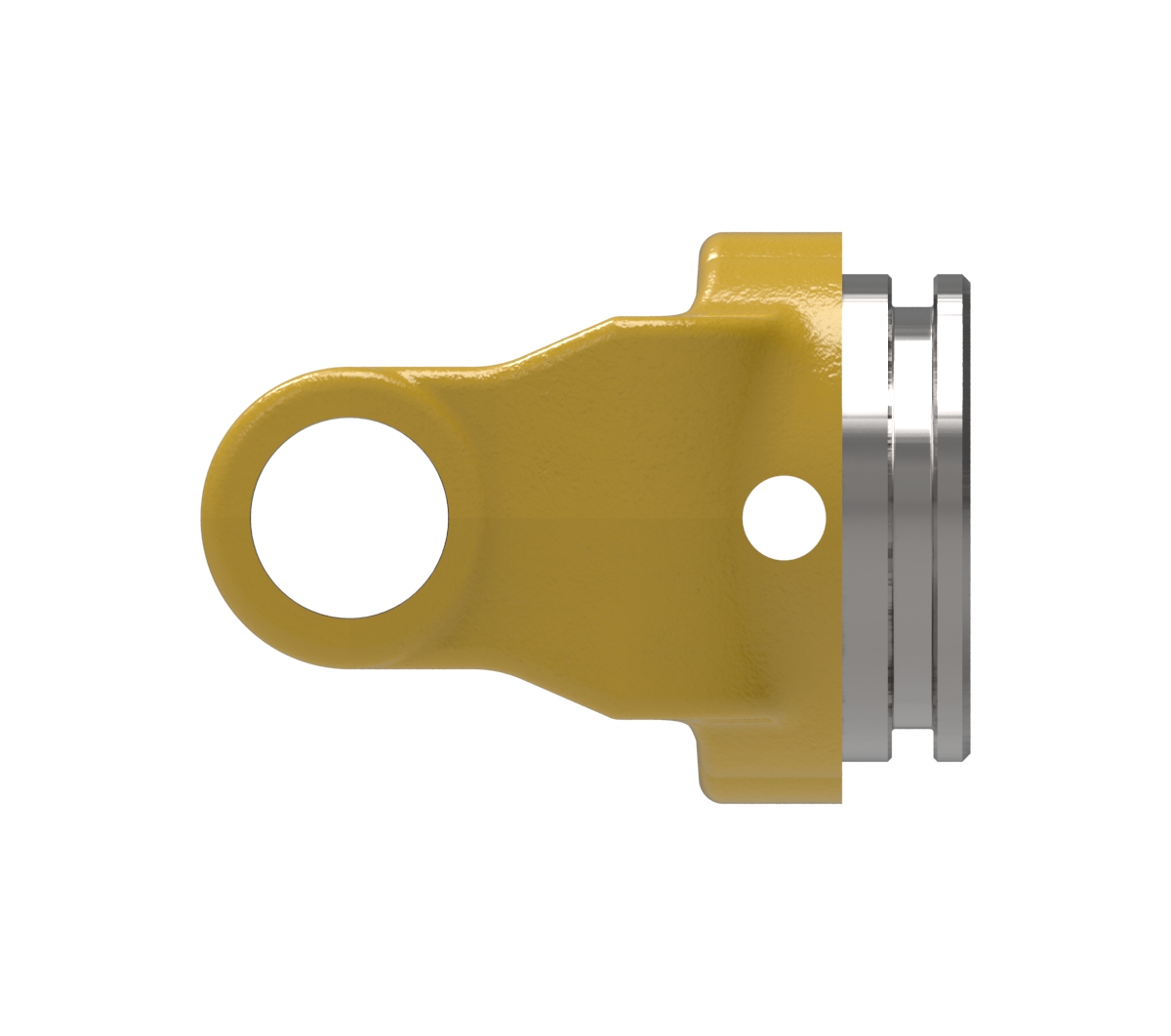

AW20 series yoke with 41 mm lemon bore and roll pin connection. Note: Image color may not represent actual part.
Shaft yokes (or inner profile yokes) connect the cross and bearing kits to the telescoping shaft or inner tube. Tube yokes (or outer profile yokes), connect the other cross and bearing kits to the opposite side of the telescoping shaft or outer tube. Weasler provides both domestic (North American) and Weasler Profile metric shaft and tube yoke connection options. Domestic yokes are provided as square, rectangle, hexagon or splined in shape. Weasler Profile metric yokes are provided as lemon, star, or trilobe in shape.
PERFORMANCE BENEFITS
Specifications
Product Series: AW20
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter (Ear Hole) | 0.93 (15/16) in | 24 mm |
| Bearing Cap to Cap Span | 2.40 (2 13/32) in | 61 mm |
| Bore | 1.61 (1 39/64) in | 41 mm |
| Bore Description | 41 MM LEMON | |
| Connection 1 Type | ROLL PIN | |
| HP@1000RPM | 38 HP | 28 kilowatts |
| HP@540RPM | 25 HP | 19 kilowatts |
| Centerline to End Dim | 2.95 (2 61/64) in | 75 mm |
| Bore | 1.61 (1 39/64) in | 41 mm |
| Bore Description | 41 MM LEMON | |
