3002-7806-00
UNIVERSAL JOINTAW12 Series Universal Joint

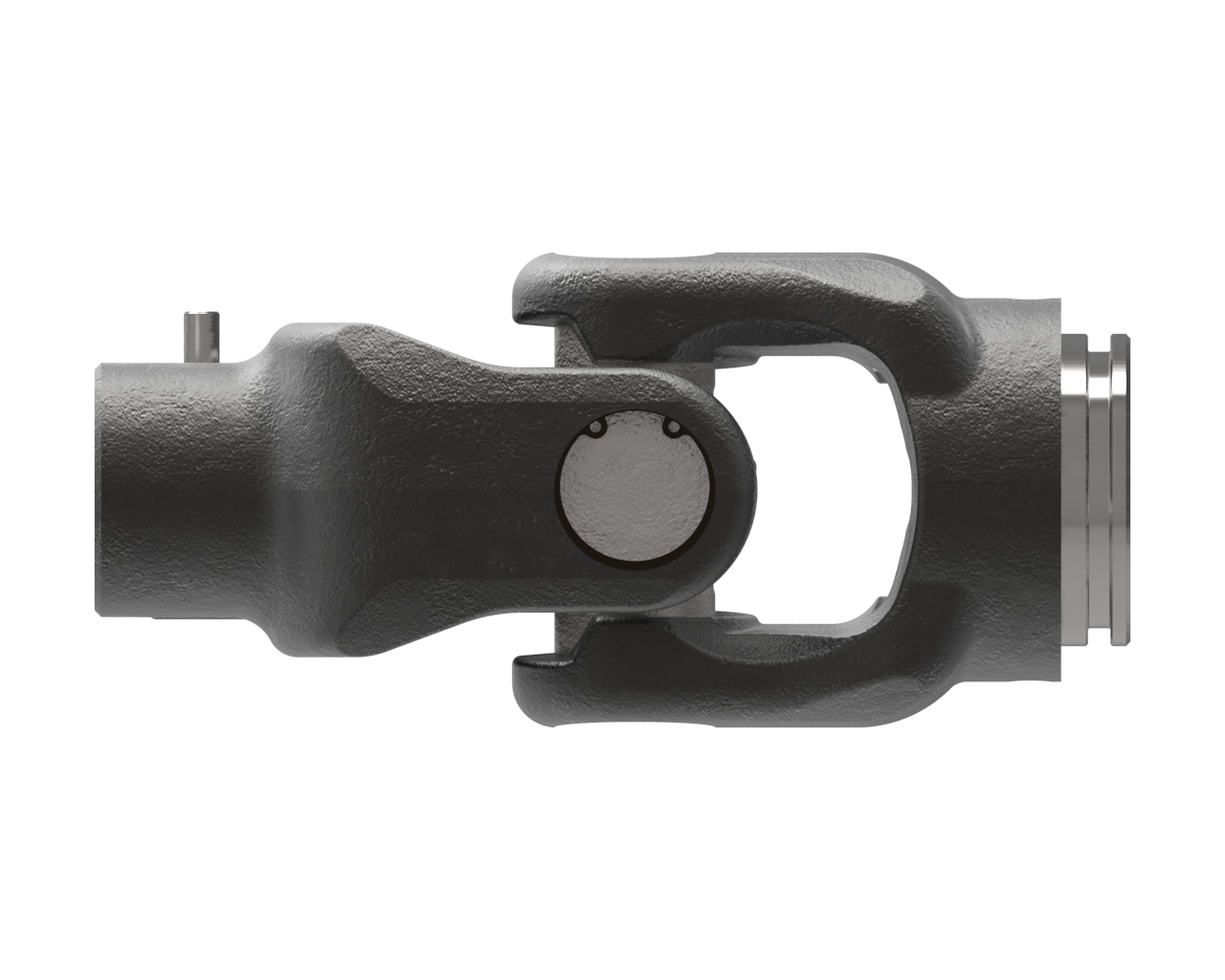

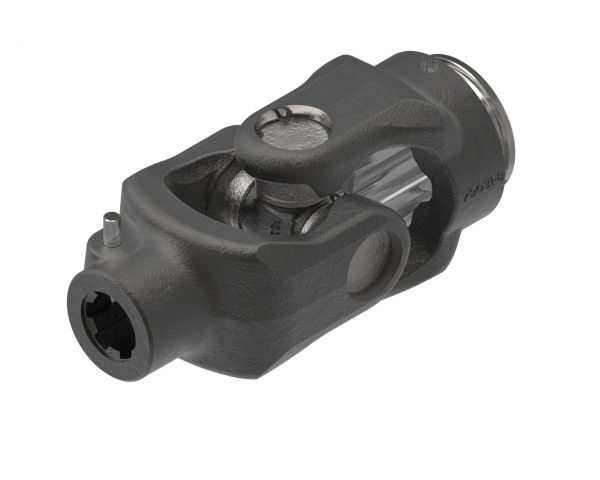

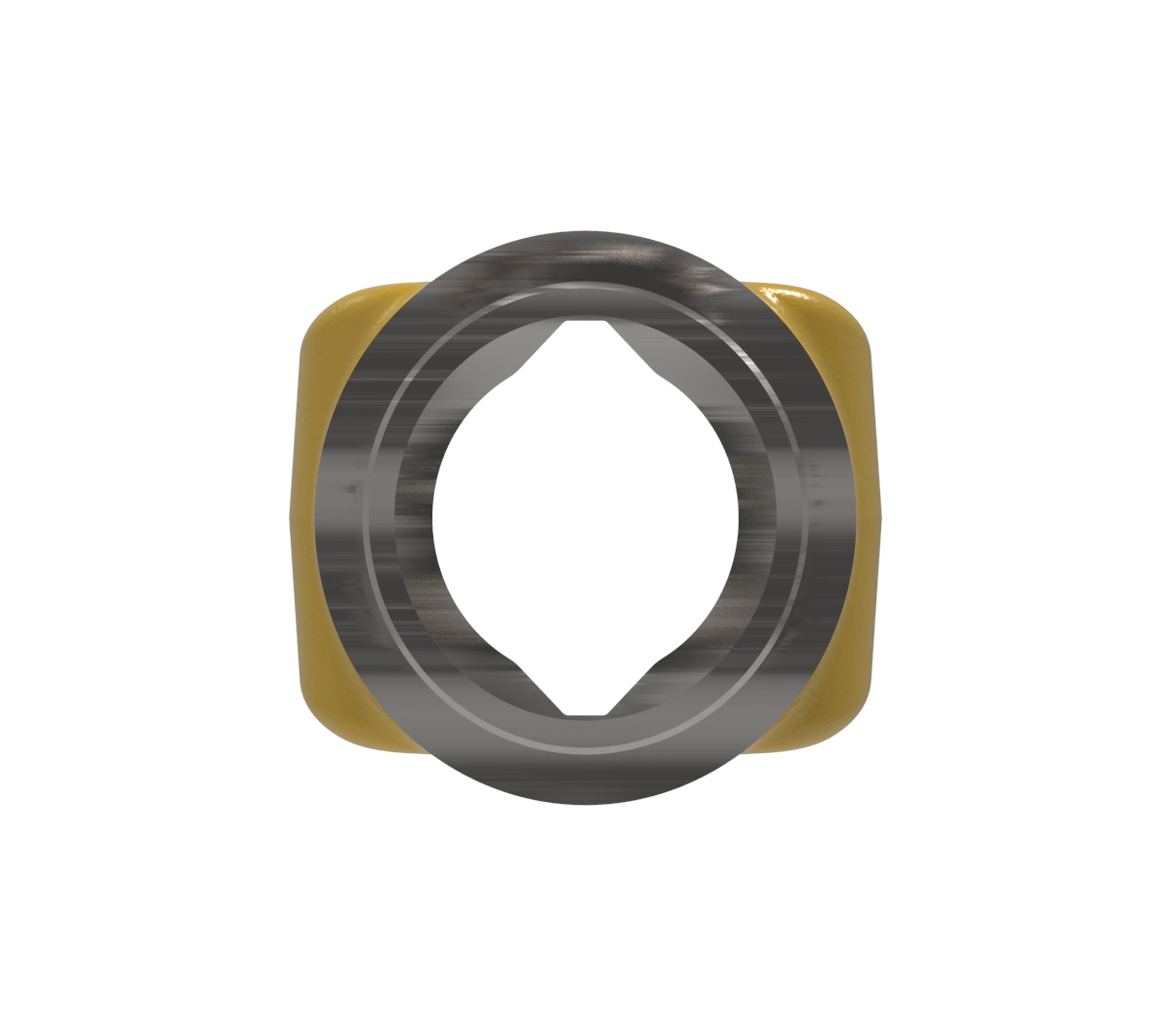

AW12 series universal joint with 1 3/8-6 spline, quick disconnect connection and 48 mm lemon, telescoping connection. Note: Image color may not represent actual part.
The Weasler Cardan type Universal Joints are robust, engineered and produced for high power density and long life. Produced to exact tolerances they provide for simple, easy service and tight bearing fits. The universal joints can be used alone, or as a component of a drive shaft system.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.37 inches | 35 mm |
| Bore 1 | 1 3/8-6 SPLINE | |
| Bore 2 | 1.95 inches | 50 mm |
| Bore 2 | 48 MM LEMON | |
| Connection 1 | QUICK DISCONNECT | |
| Connection 2 | TELESCOPING | |
| Length | 8.89 inches | 226 mm |
| Shipping Dimensions | 8.898" L × 4.09" H × 4.09" W | 23cm L × 10cm H × 10cm W |
| Shipping Volume | 148.85 in3 | 2439 cm3 |
| Shipping Weight | 0.00 pounds | 0 kilograms |
| Weight | 0.00 pounds | 0 kilograms |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service-Instructions-Lubricating-PTO-Drive-Shaft.pdf | Maintenance Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
| WE0101011_0817_USL_EasyLockGuard.pdf | Performance Benefits Document | English |
