802-7108

AW10 Series Pin Yoke

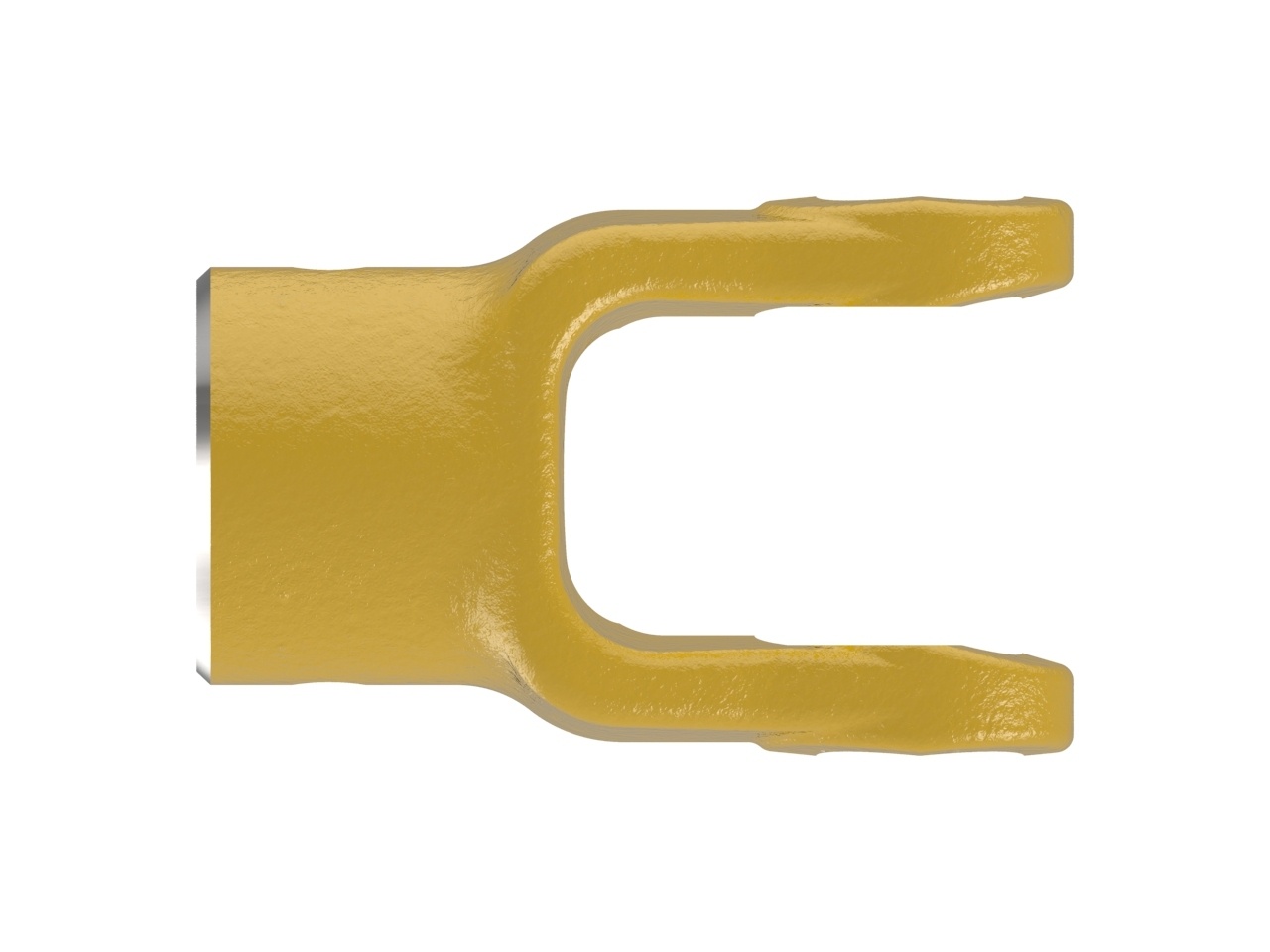

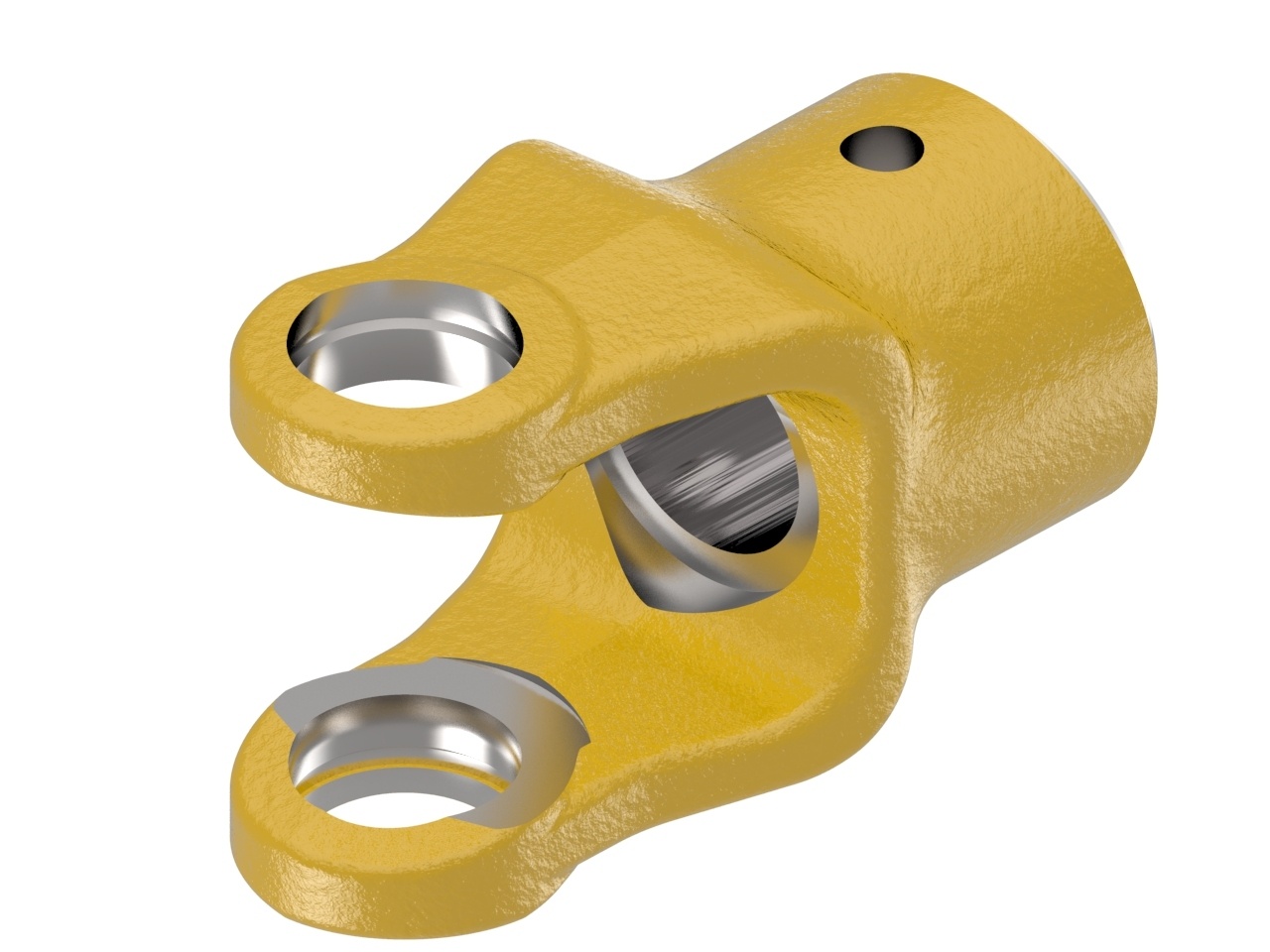

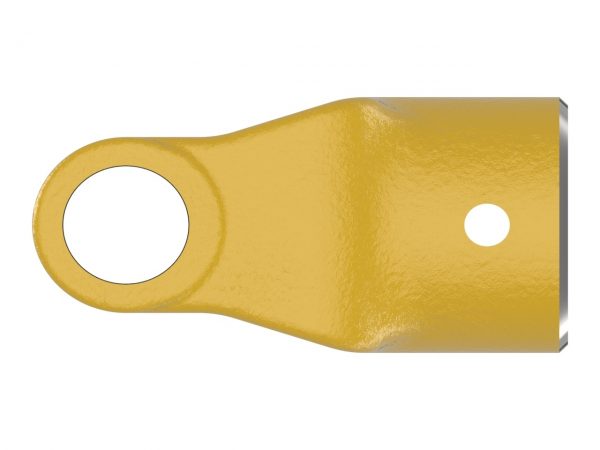

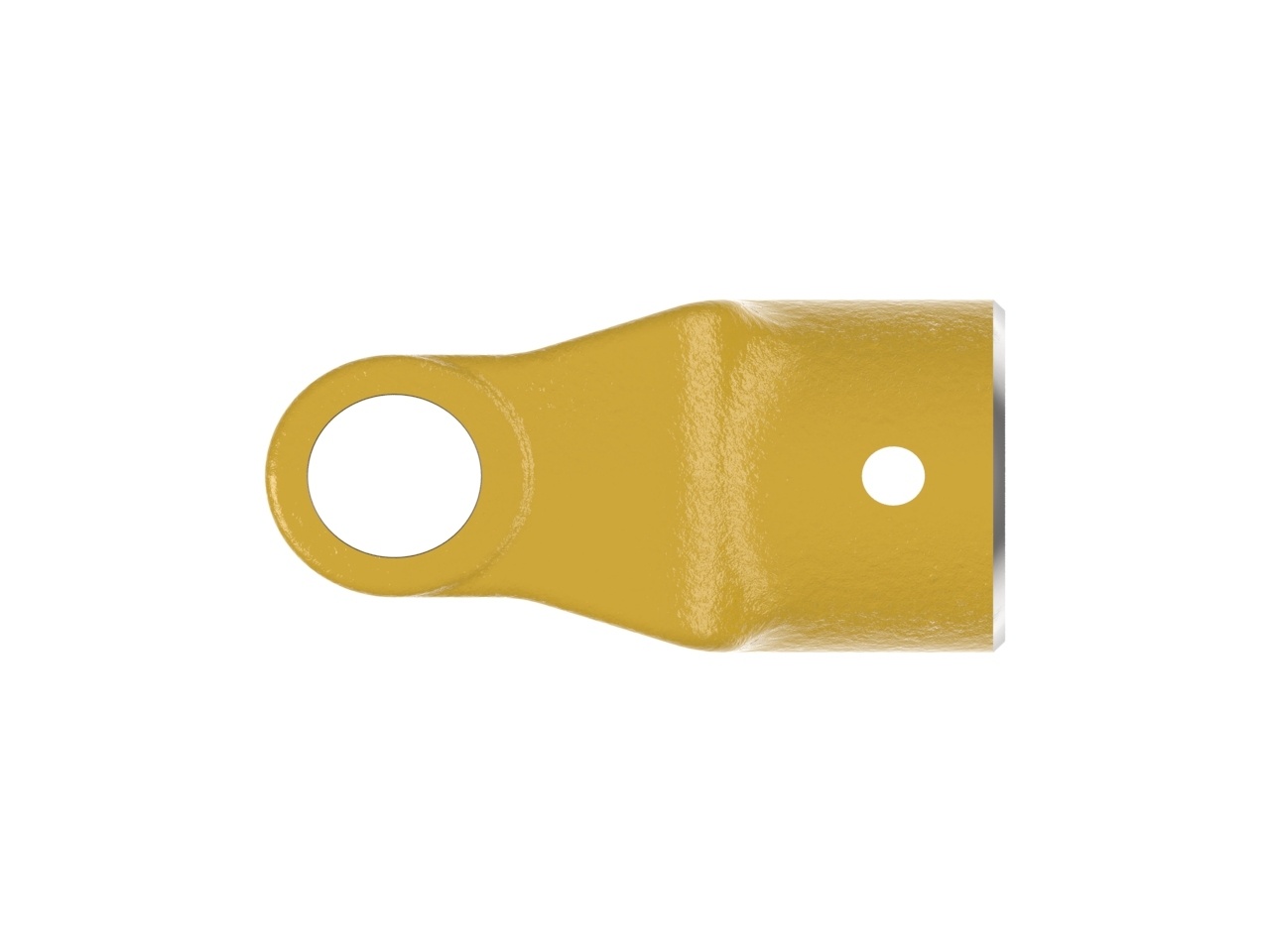

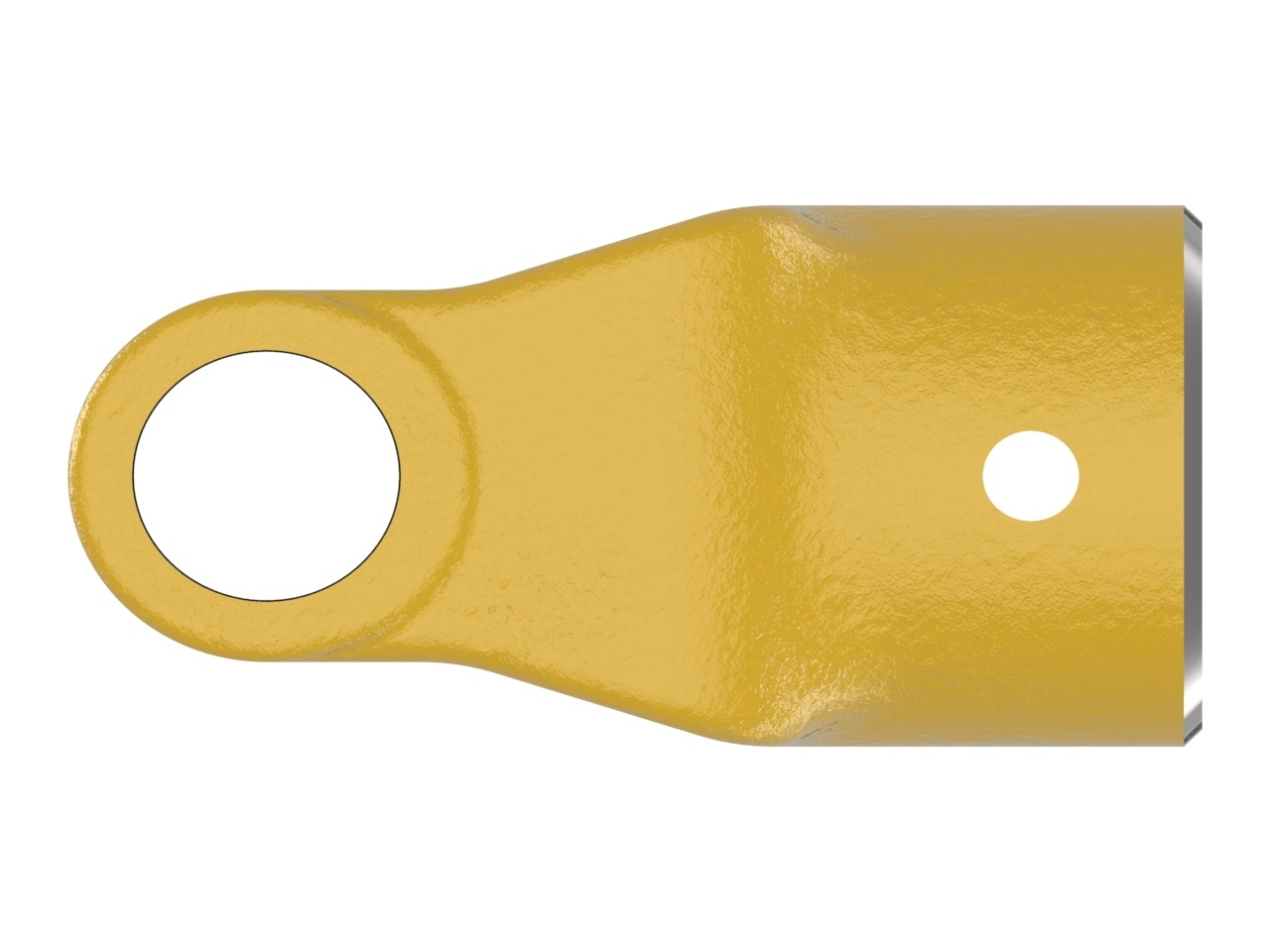

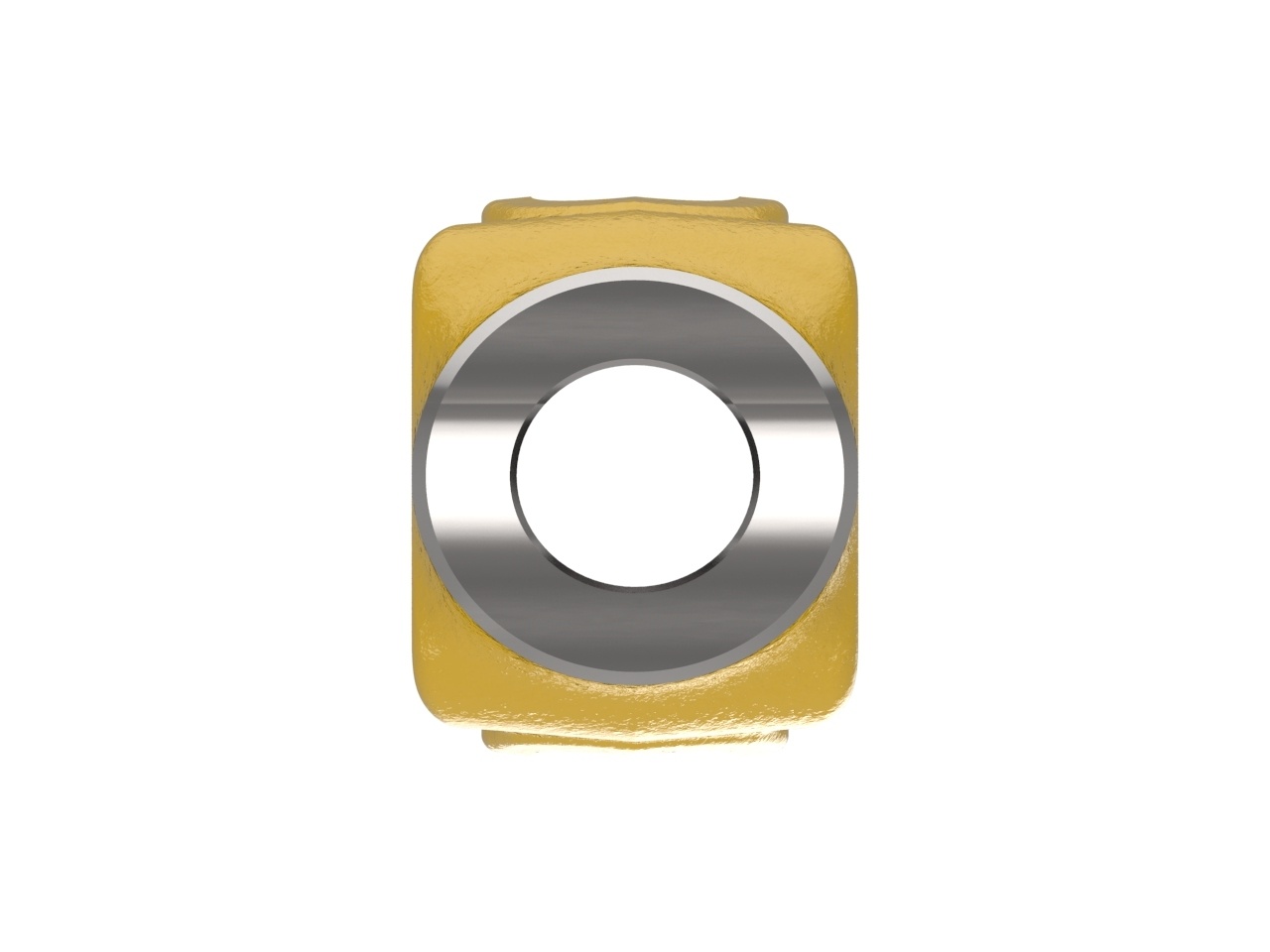

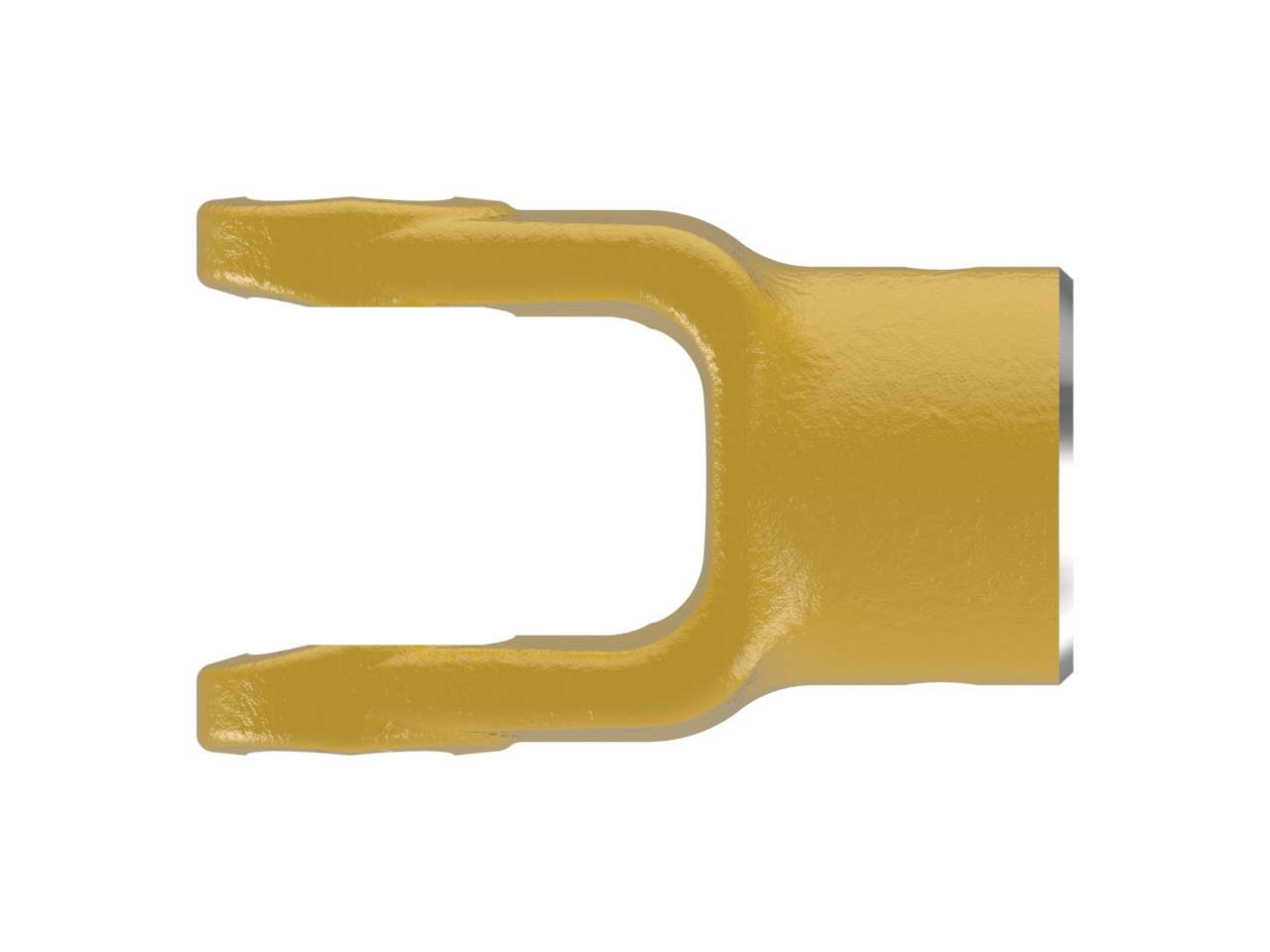

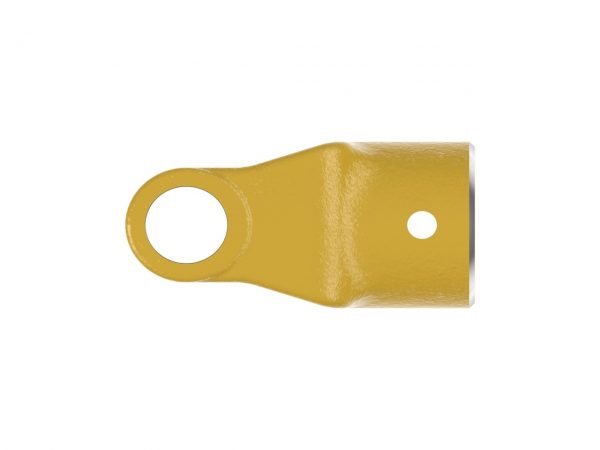

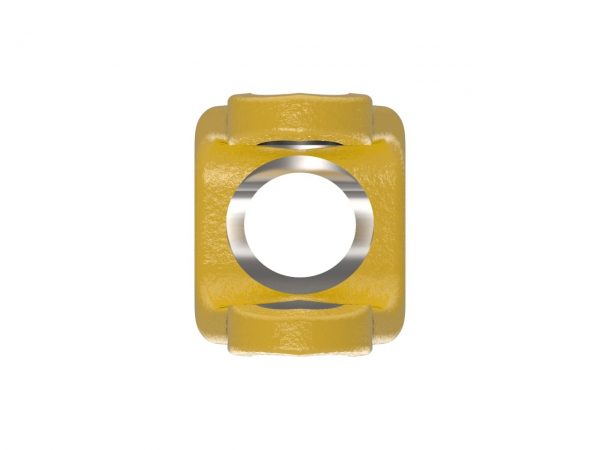

AW10 series yoke with round bore and pin connection. Note: Image color may not represent actual part.

View My List

Weasler yokes are made to withstand robust conditions, and engineered for a precise fit. Weasler’s Shear Pin Yoke features a pin (bolt) that extends through the yoke and if broken during operation will spin. The compact, efficient design disconnects the power source from the drivetrain when overload occurs and helps prevent the generatation of damaging torque spikes or heat. Once the operator replaces the bolt, the machine can be restarted.

PERFORMANCE BENEFITS
• Implement overload protection.
• Minimal maintenance.
• No damaging heat generation for higher productivity.
• Repeatable overload disengagement setting.
• Smooth disengaged operation, no damaging torque spikes.
• Reduces possibility of damage.

Specifications

Spec. Imperial Metric
Bore 11.00 inches25 mm
Bore 1 ROUND
Connection 1 PIN
Height2.80 inches71 mm
HP@1000RPM29 HP22 kilowatts
HP@540RPM19 HP14 kilowatts
Length3.06 inches78 mm
Pin Hole0.31 inches8 mm
Shear Bolt (1) 5/16 Grade 2
Shipping Dimensions3.69" L  ×  2.8" H  ×  2.32" W9cm L  ×  7cm H  ×  6cm W
Shipping Volume23.97 in3393 cm3
Shipping Weight1.46 pounds1 kilograms
Torque73007300
Weight1.46 pounds1 kilograms
Width2.32 inches59 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
