Part Number: 803-7106
FLANGE YOKE
AW10 Series Flange Yoke

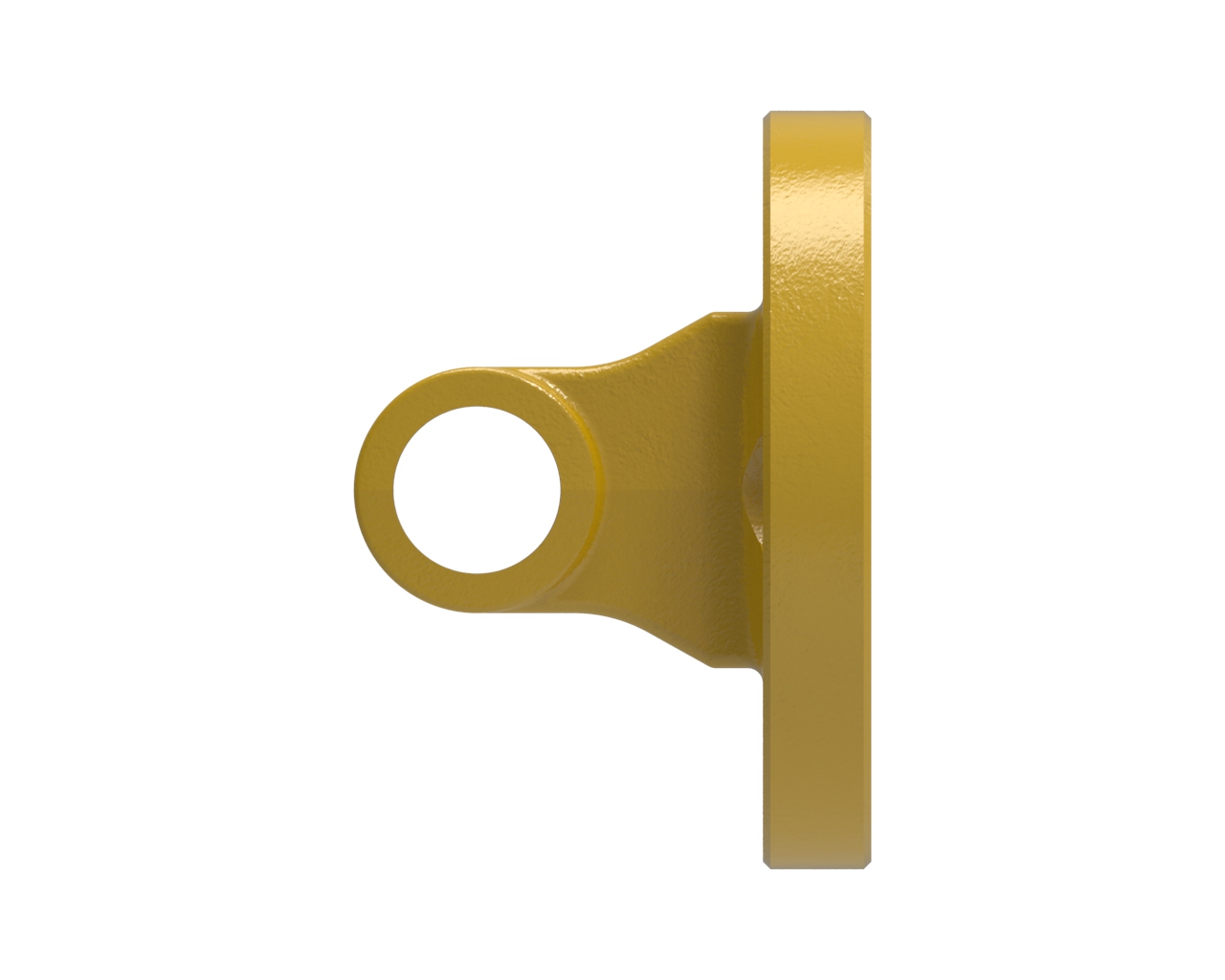

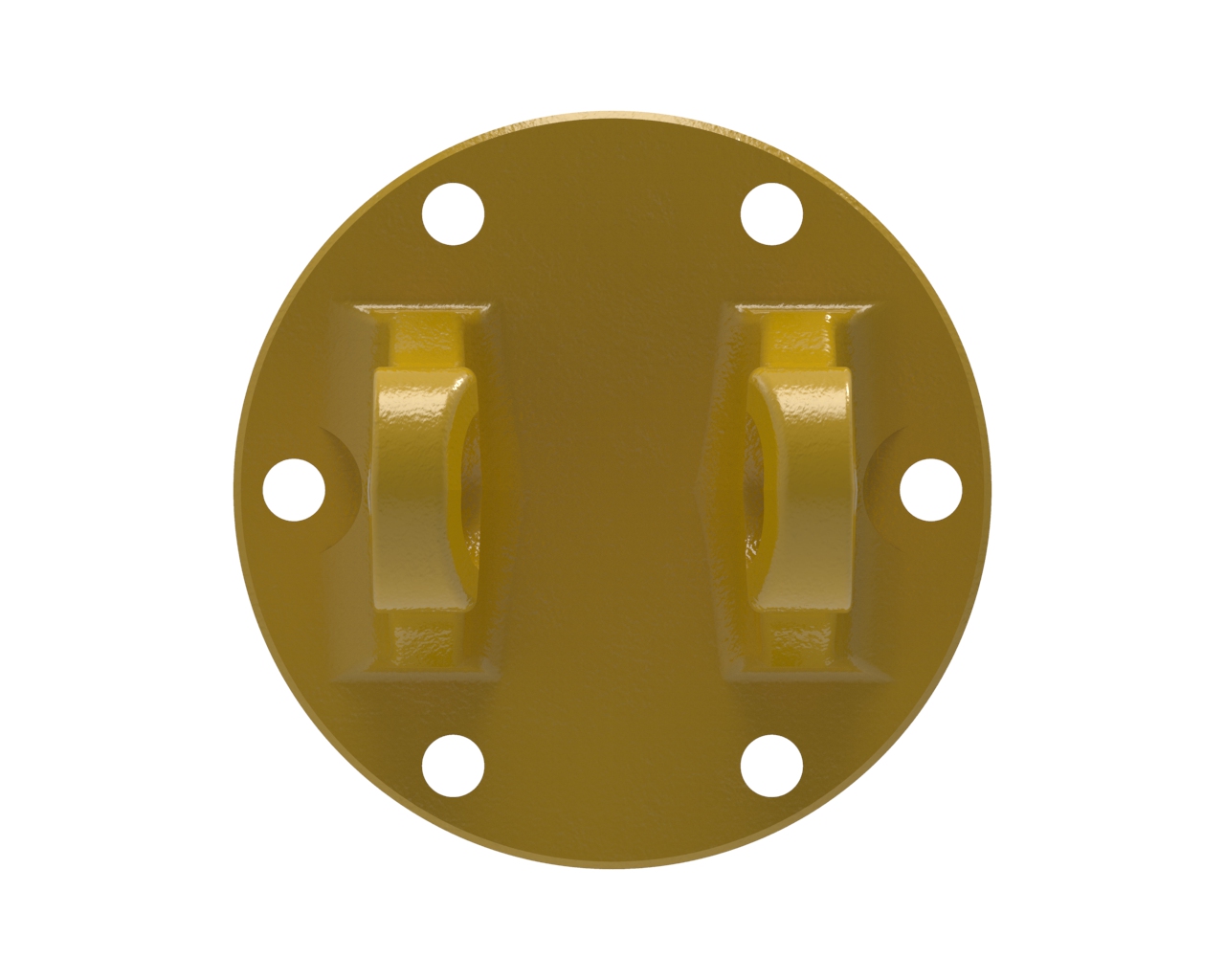

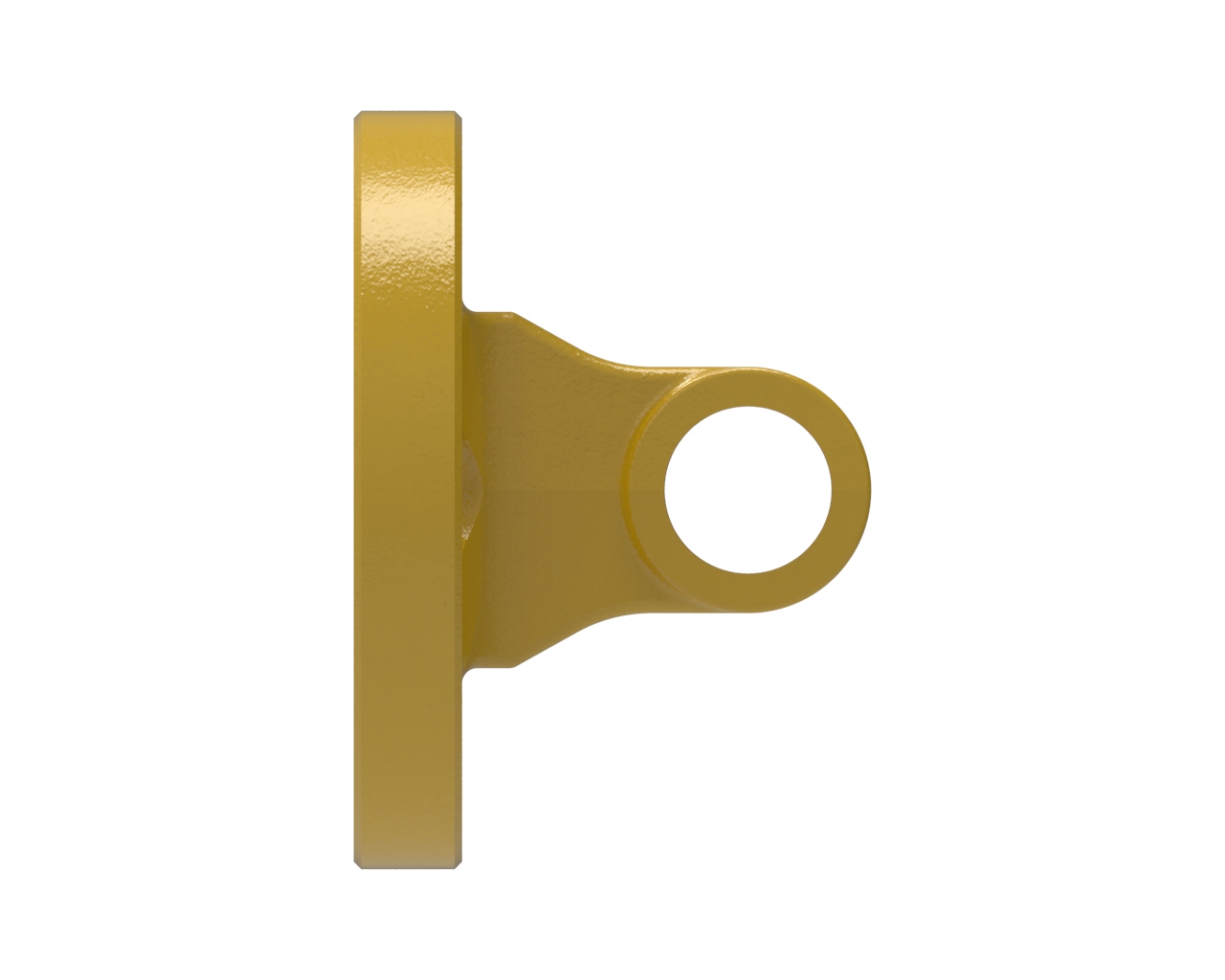

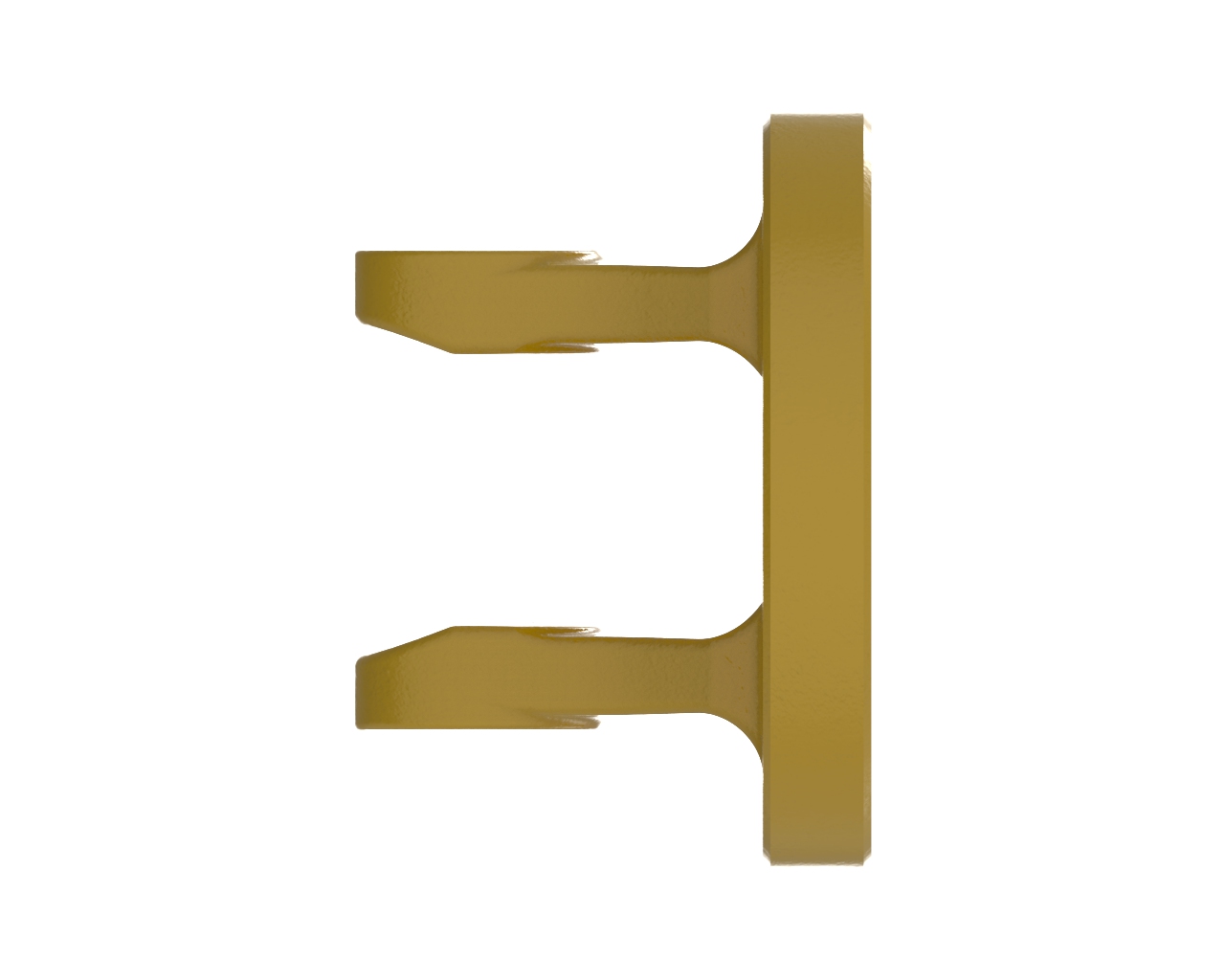

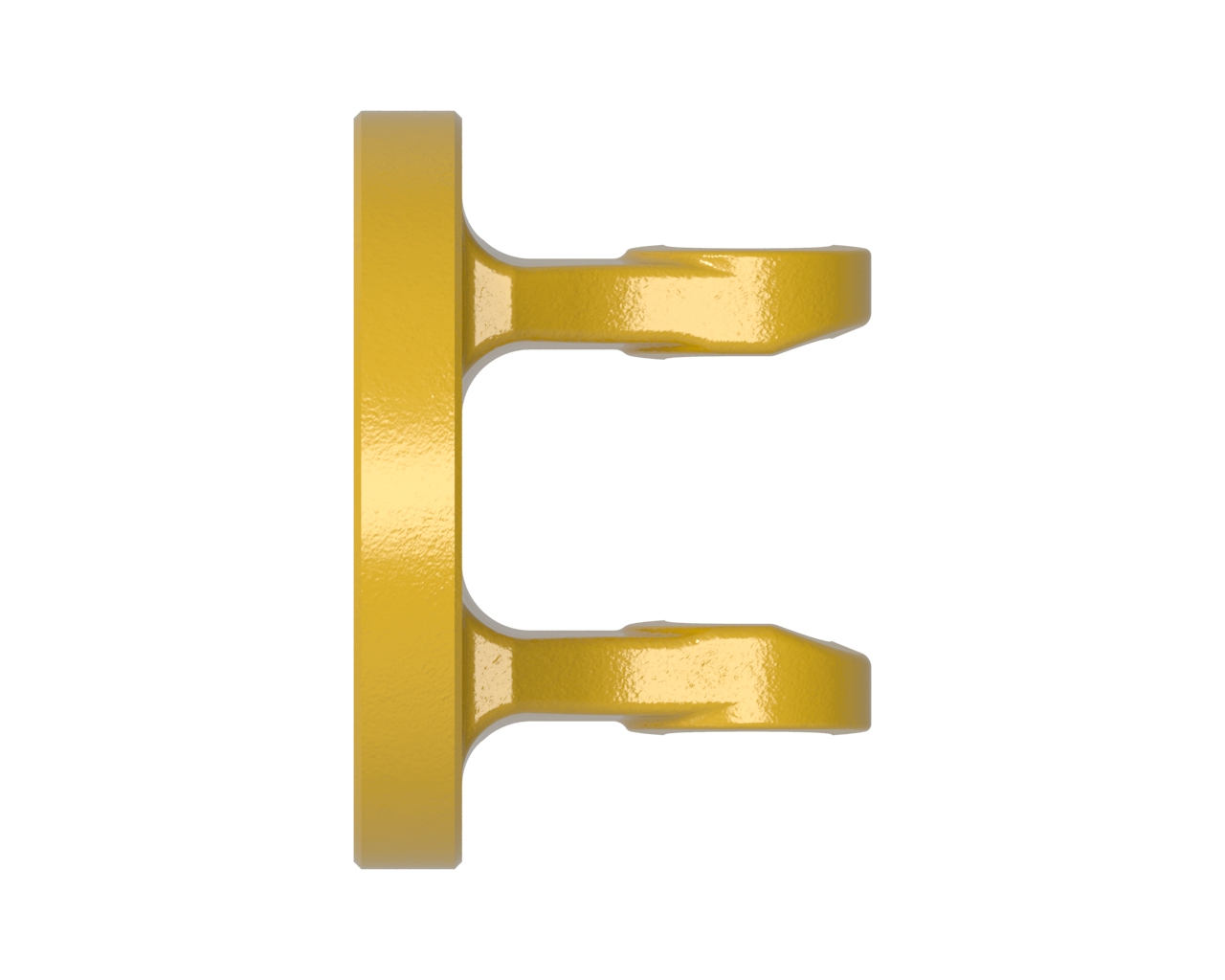

AW10 series yoke with 6 x 8 mm bolt circle bore and flange connection. Note: Image color may not represent actual part.
The flange yoke allows for a bolted connection to a mating flange to eliminate fretting corrosion and wear, using standard hardware.
PERFORMANCE BENEFITS
Specifications
Product Series: AW10
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter (Ear Hole) | 0.86 (55/64) in | 22 mm |
| Bearing Cap to Cap Span | 2.12 (2 1/8) in | 54 mm |
| Bore | 3.31 (3 5/16) in | 84 mm |
| Bore Description | 6 X 8 MM BOLT CIRCLE | |
| Connection 1 Type | FLANGE | |
| Centerline to End Dim | 2.05 (2 3/64) in | 52 mm |
| Weight | 2.32 pounds | 1 kilograms |
