Part Number: 807-6828
CLAMP YOKE
AB8,AW24 Series Clamp Yoke

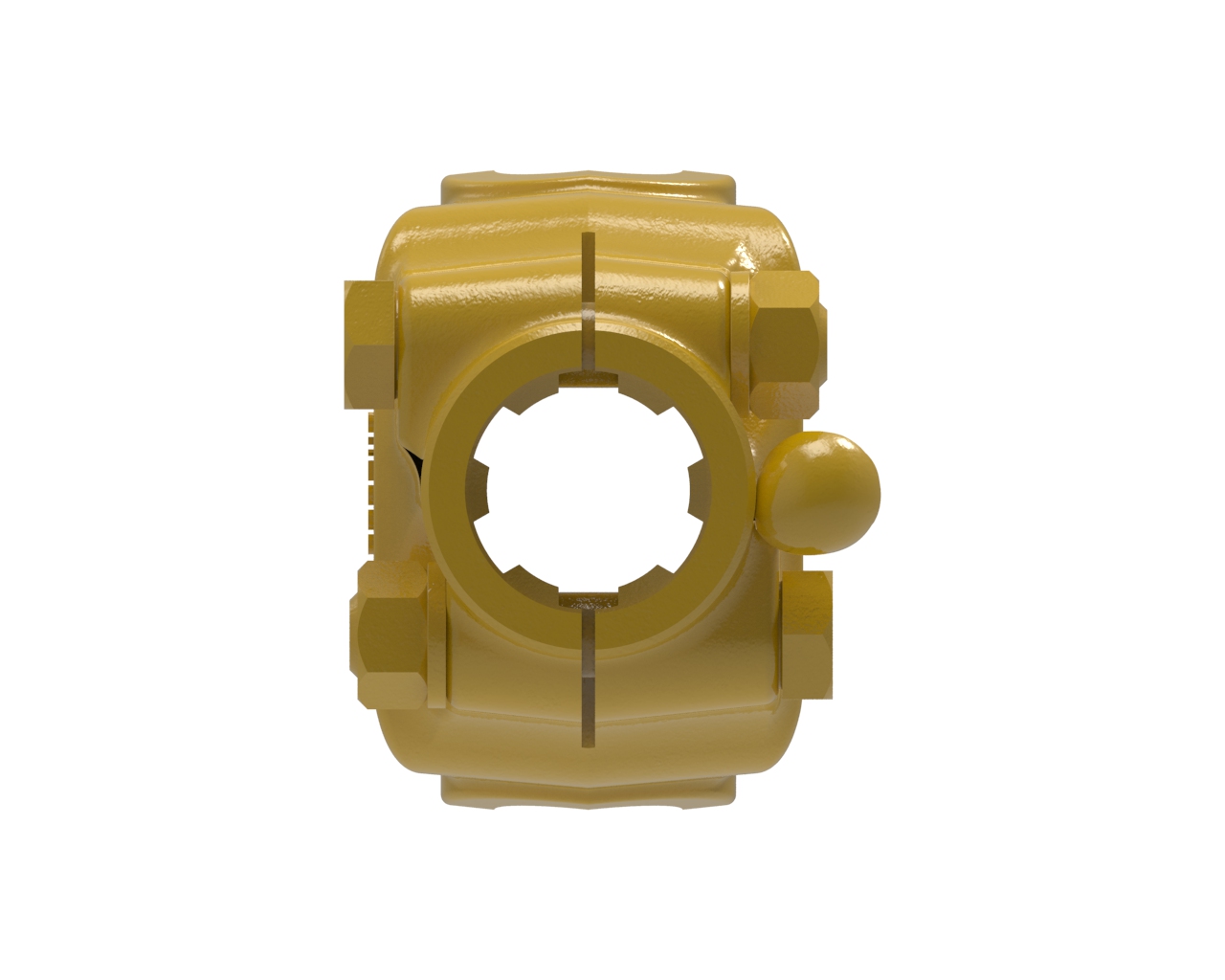

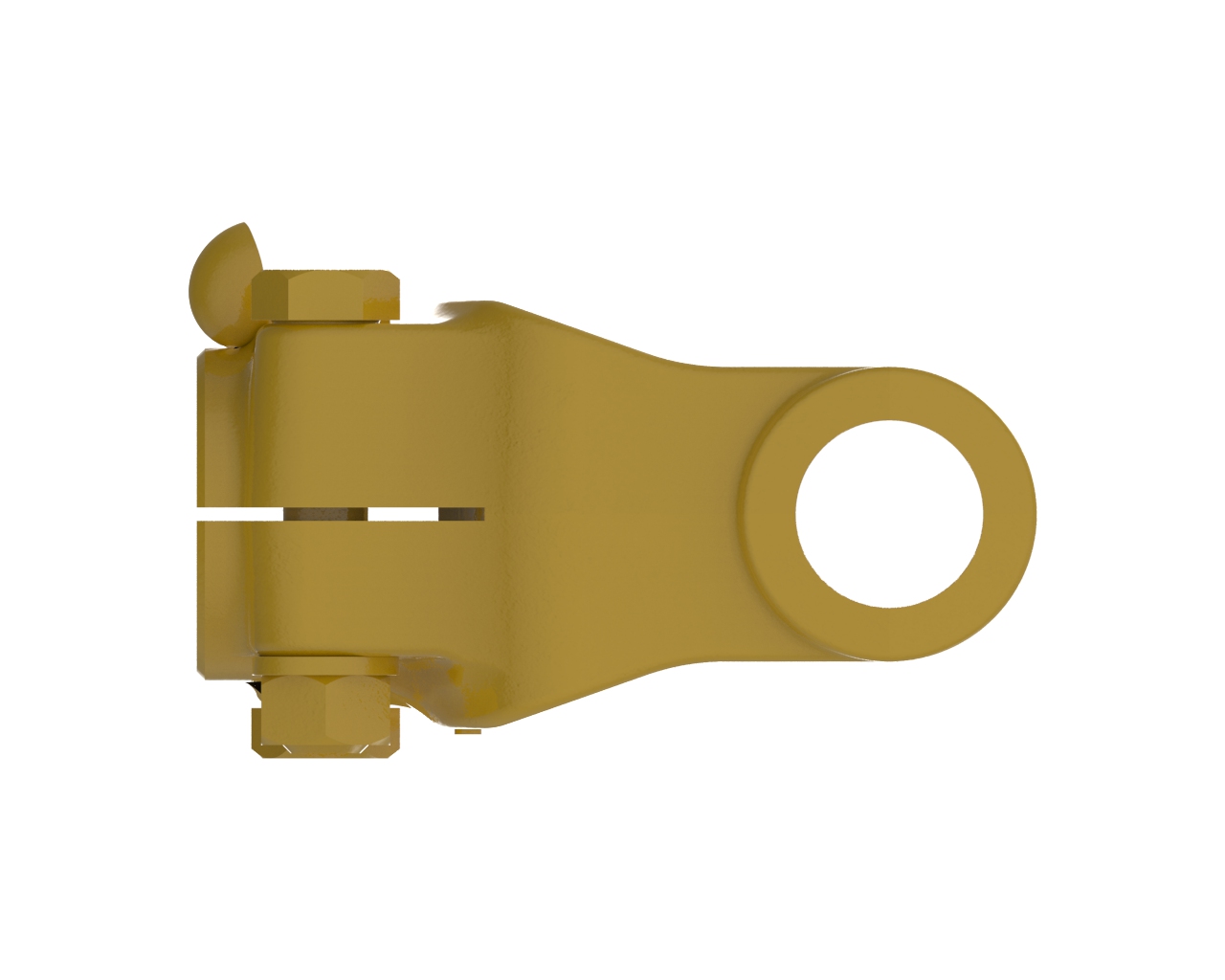

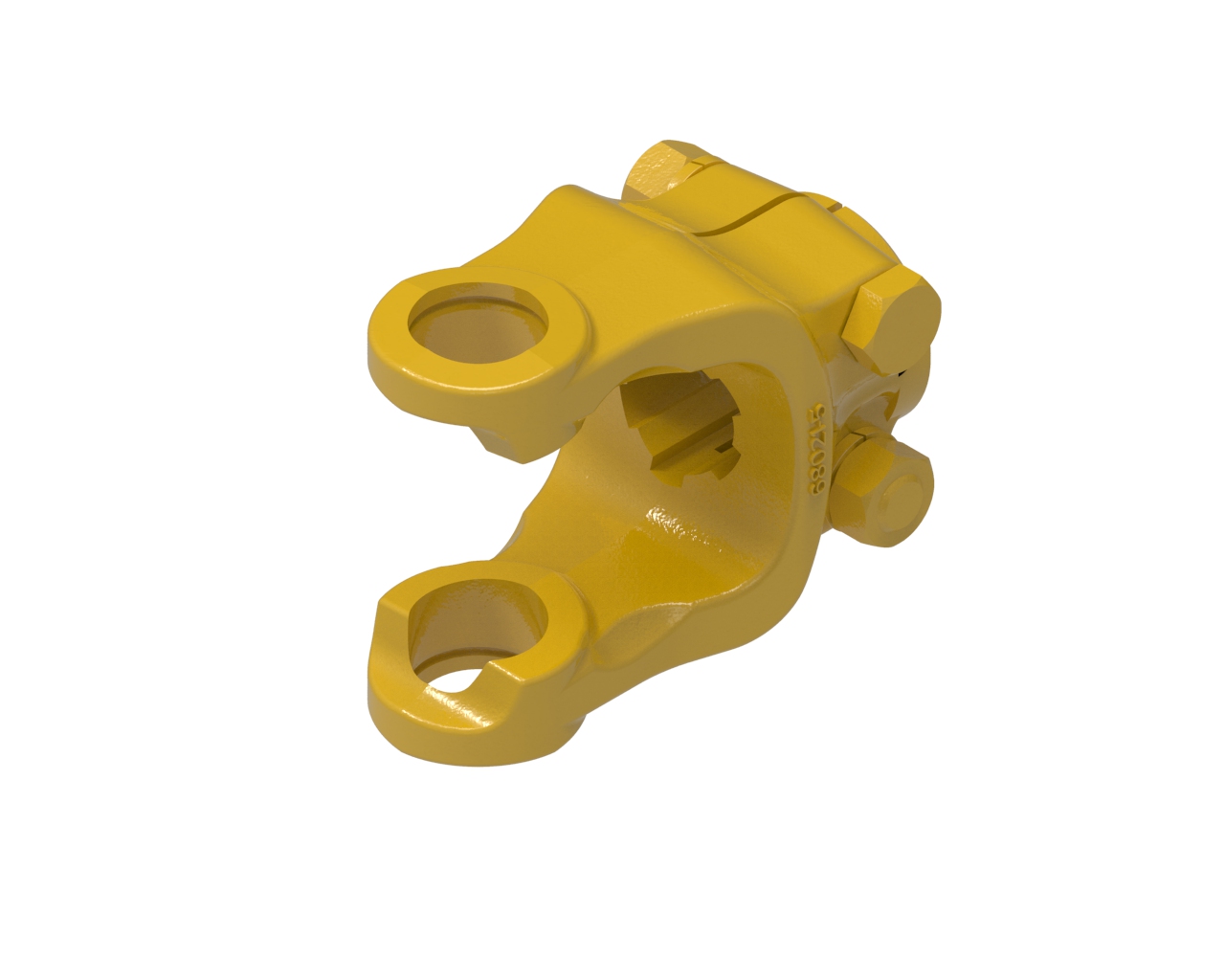

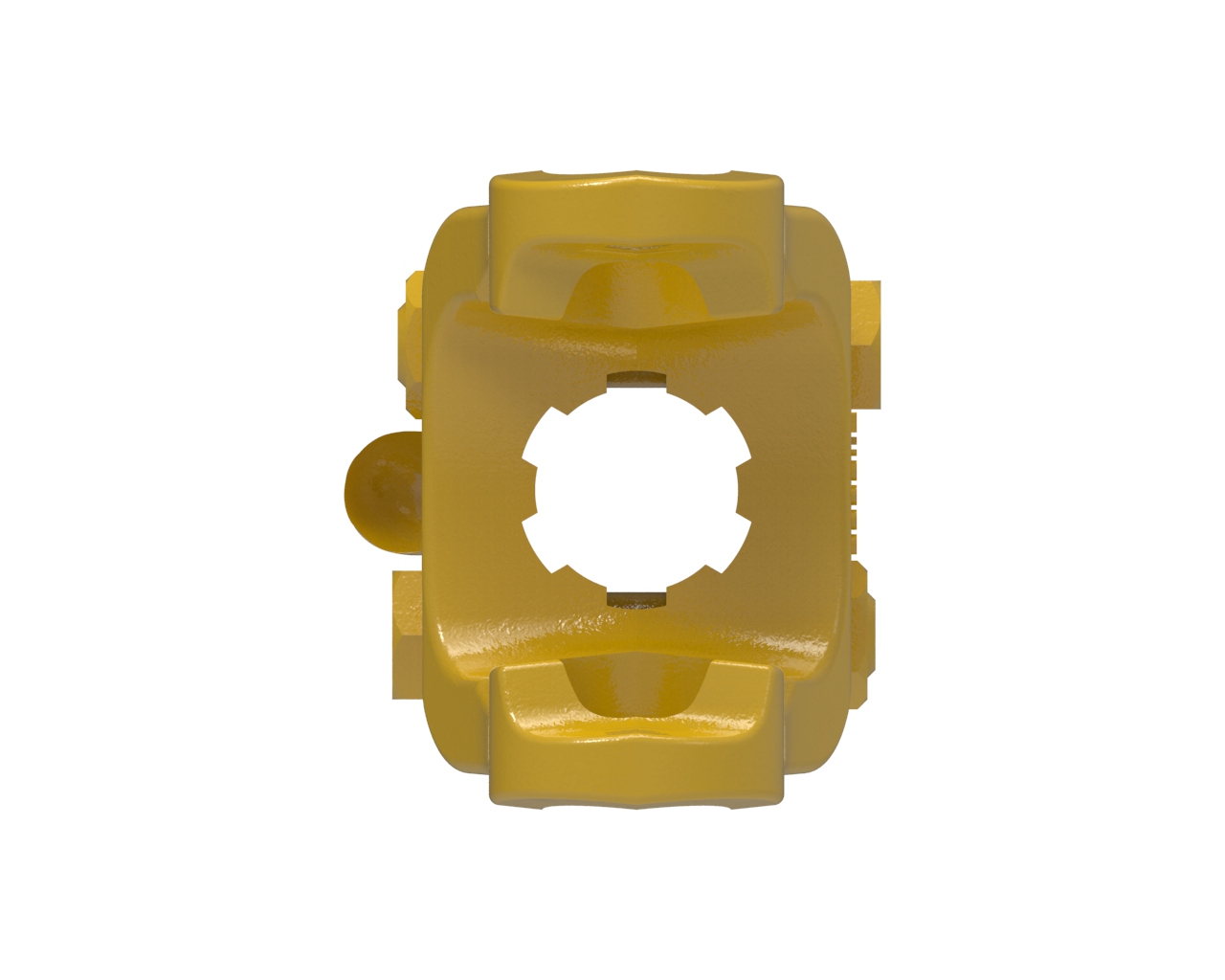

AB8,AW24 series yoke with 1 3/4-6 spline bore and clamp connection. Note: Image color may not represent actual part.
The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.
PERFORMANCE BENEFITS
Specifications
Product Series: AB8, AW24
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter (Ear Hole) | 1.37 (1 3/8) in | 35 mm |
| Bearing Cap to Cap Span | 4.18 (4 3/16) in | 106 mm |
| Bore | 1.81 (1 13/16) in | 46 mm |
| Bore Description | 1 3/4-6 SPLINE | |
| Connection 1 Type | CLAMP | |
| Centerline to End Dim | 5.08 (5 5/64) in | 129 mm |
| Weight | 6.94 pounds | 3 kilograms |
