Part Number: 803-8604
FLANGE YOKE

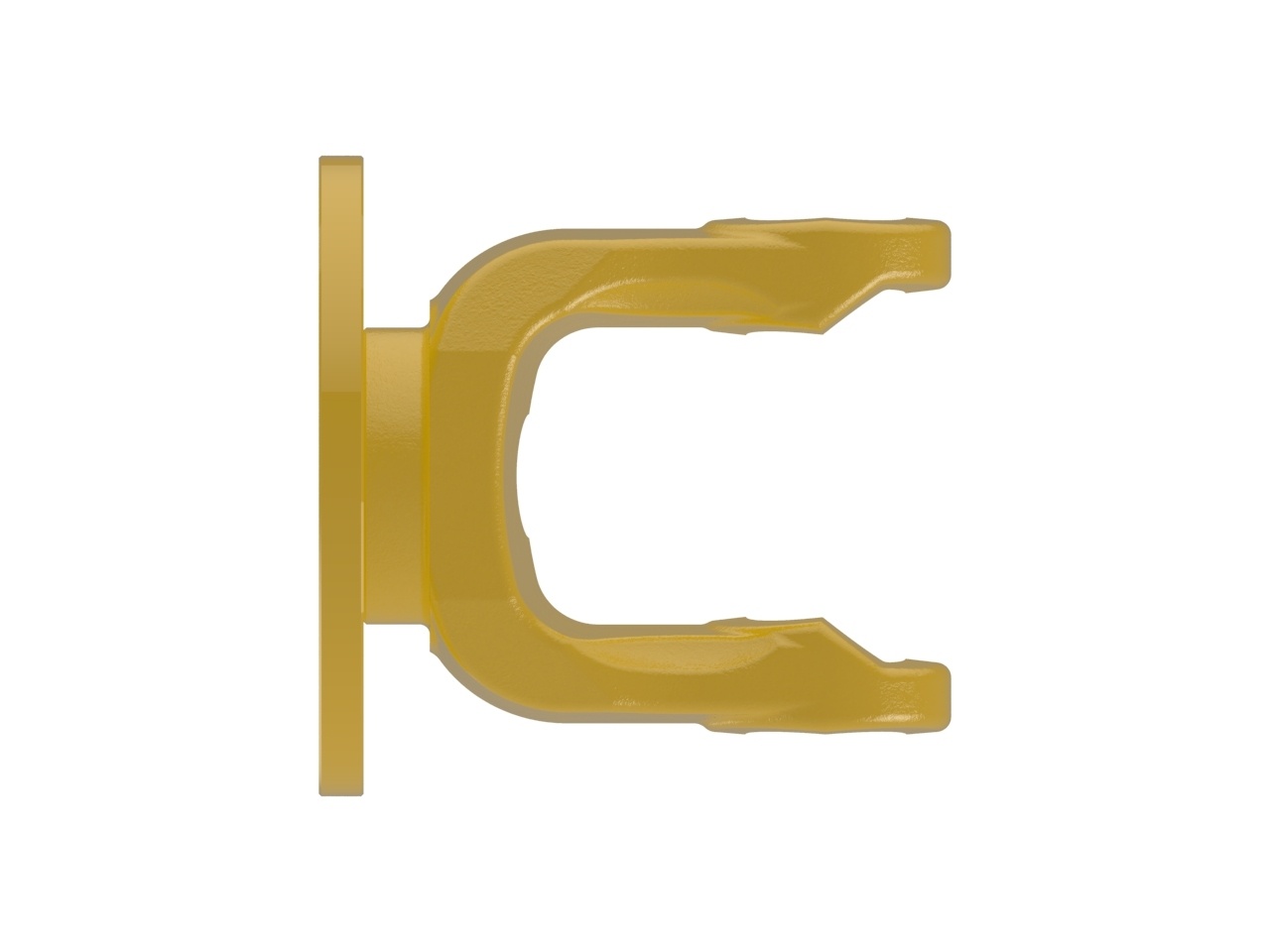

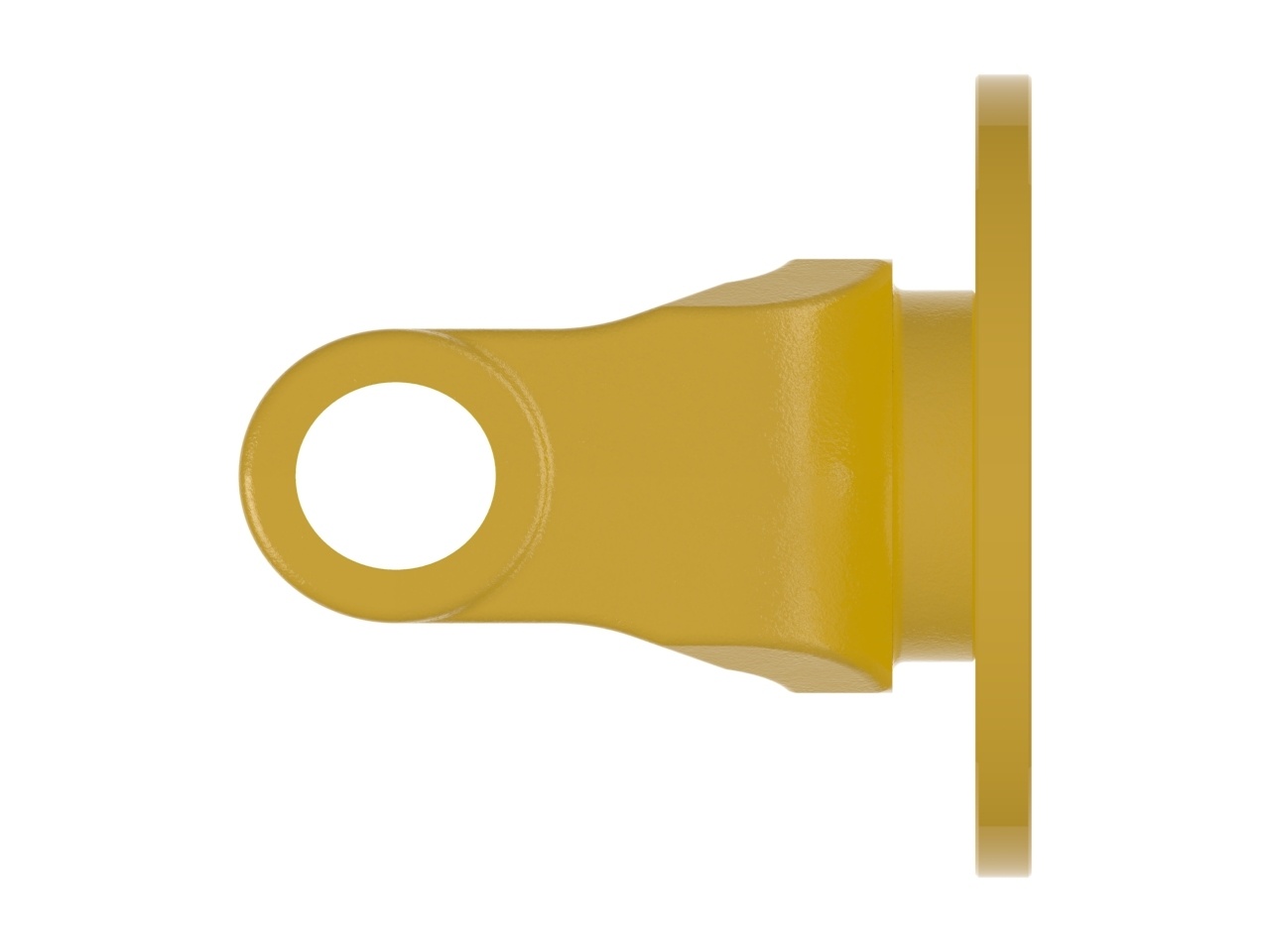

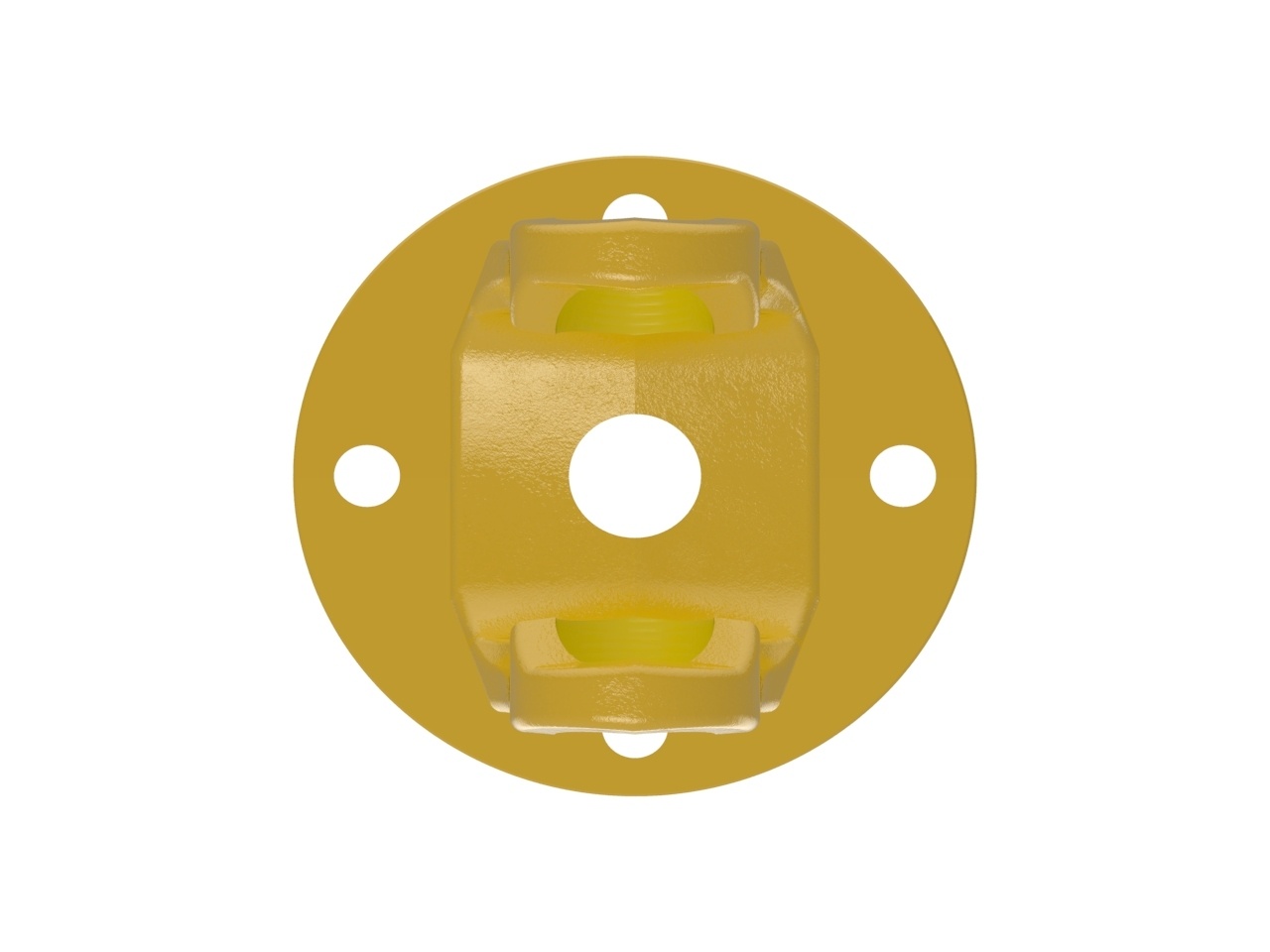

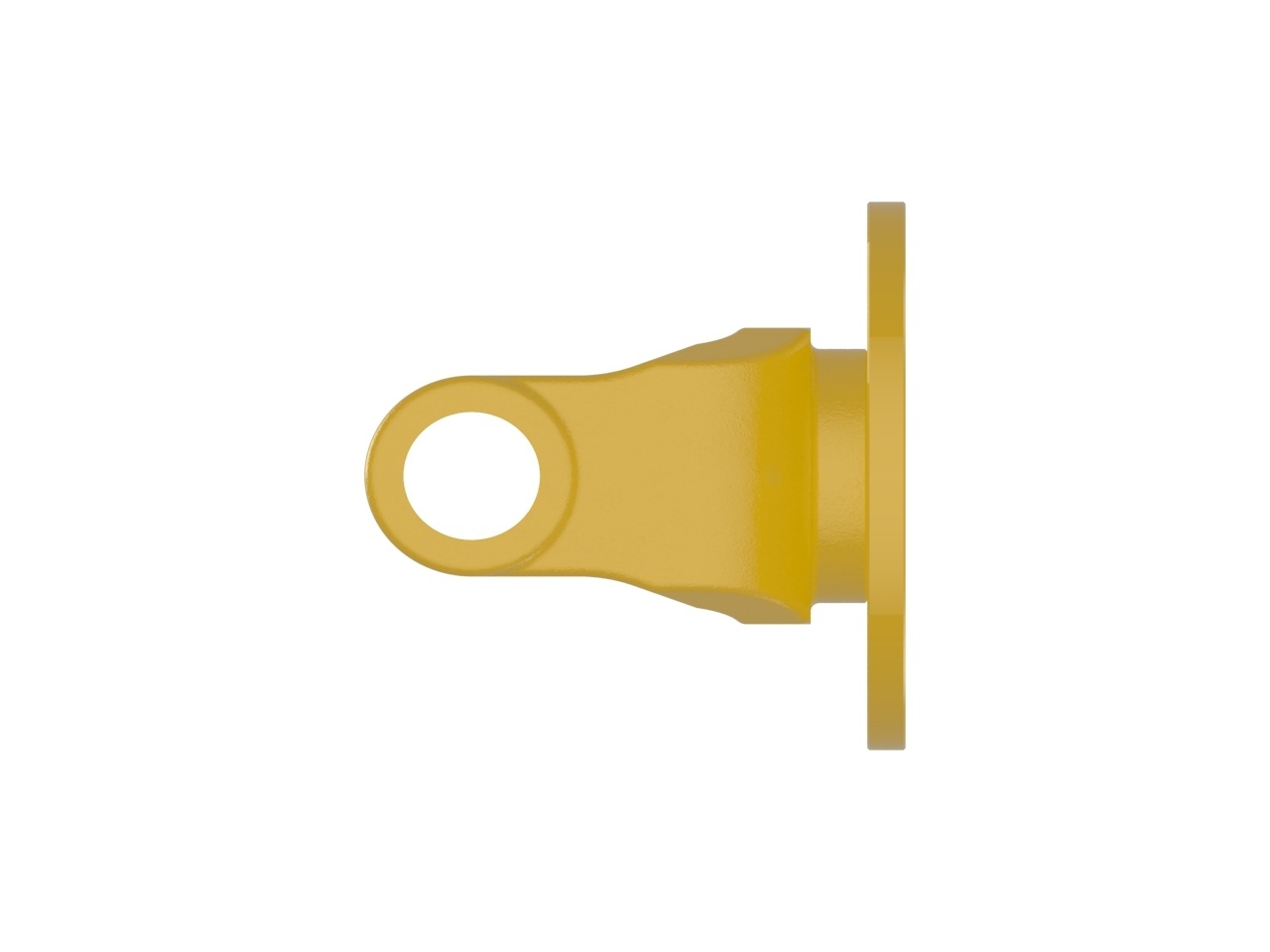

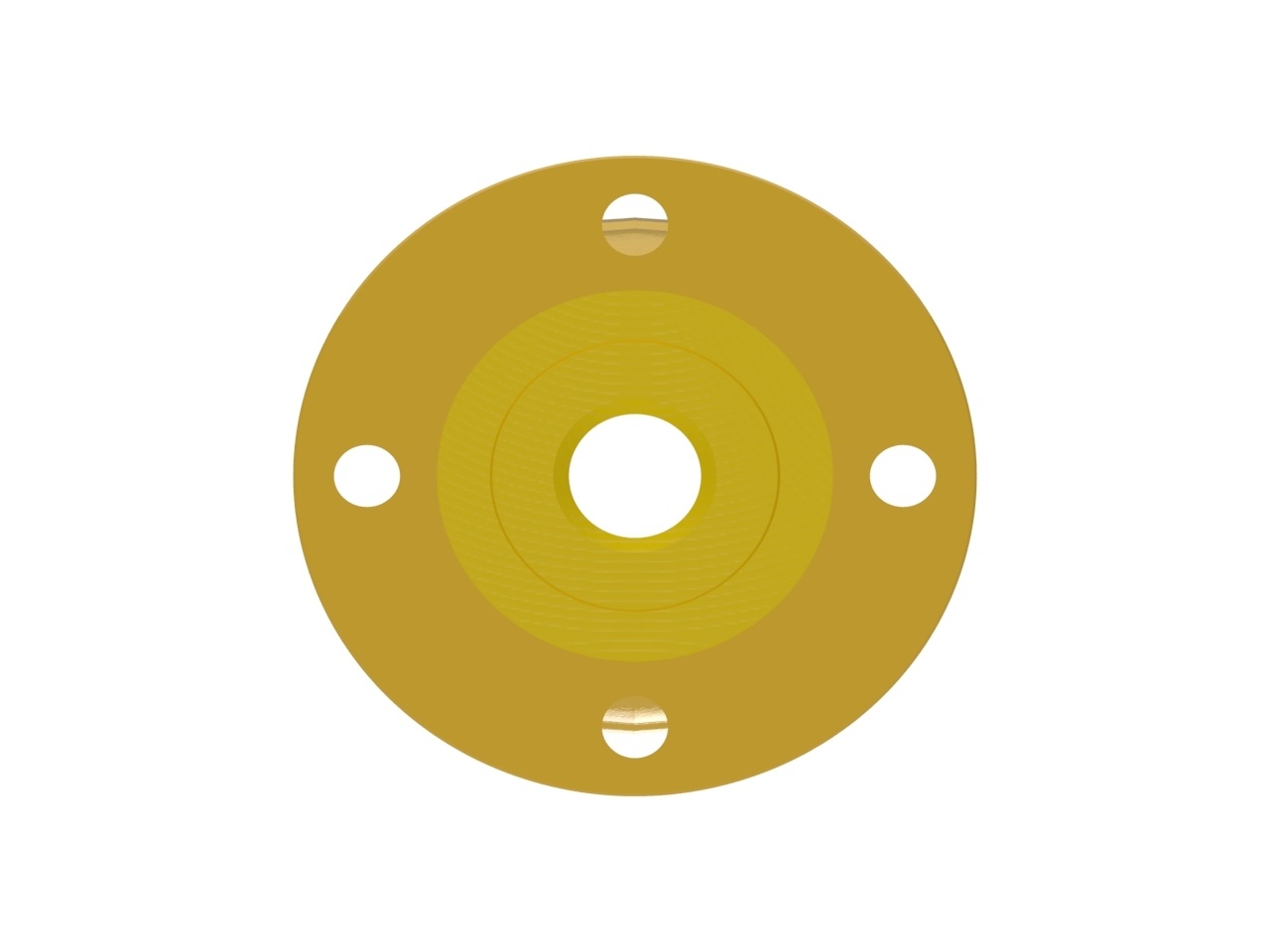

AB6,AW22 Series Flange Yoke
AB6,AW22 series yoke with 4 x 12 mm bolt circle bore and flange connection. Note: Image color may not represent actual part.
The flange yoke allows for a bolted connection to a mating flange to eliminate fretting corrosion and wear, using standard hardware.
PERFORMANCE BENEFITS
Specifications
Product Series: AB6, AW22
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter (Ear Hole) | 1.18 (1 3/16) in | 30 mm |
| Bearing Cap to Cap Span | 3.61 (3 39/64) in | 92 mm |
| Bore | 4.00 (4) in | 102 mm |
| Bore Description | 4 X 12 MM BOLT CIRCLE | |
| Connection 1 Type | FLANGE | |
| Centerline to End Dim | 3.78 (3 25/32) in | 96 mm |
| Weight | 5.72 pounds | 3 kilograms |
