Part Number: 831-8640
CLAMP YOKE

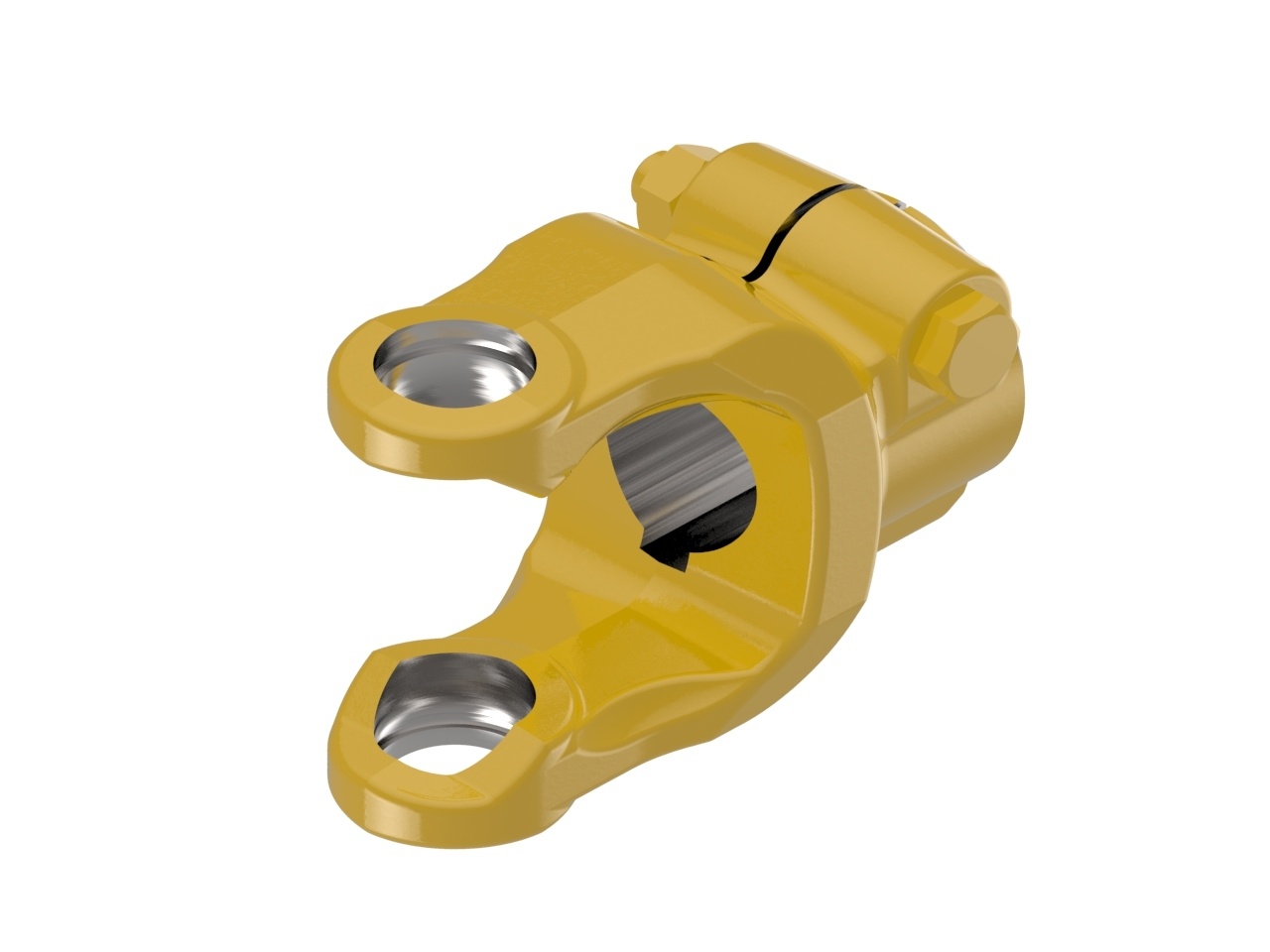

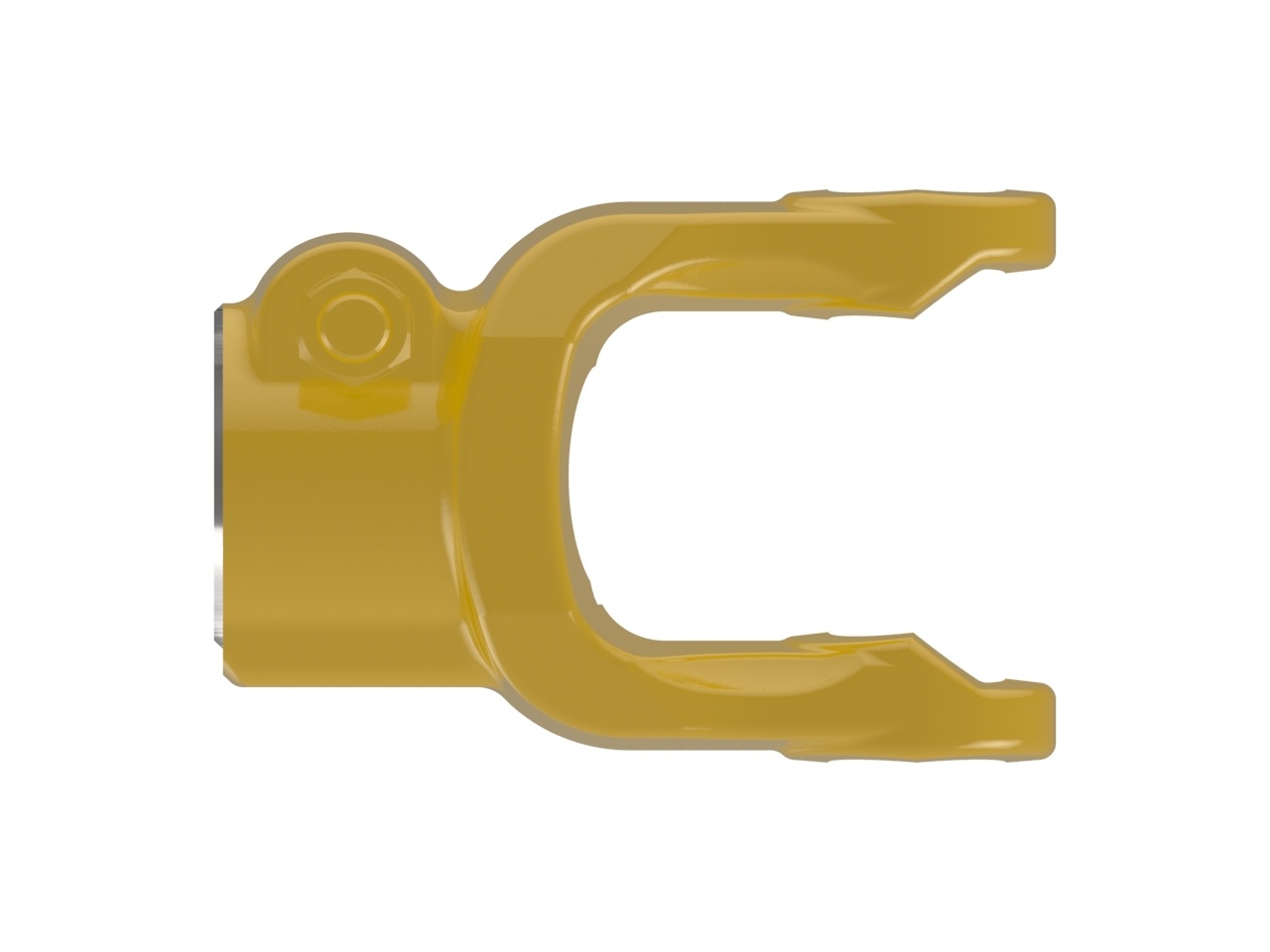

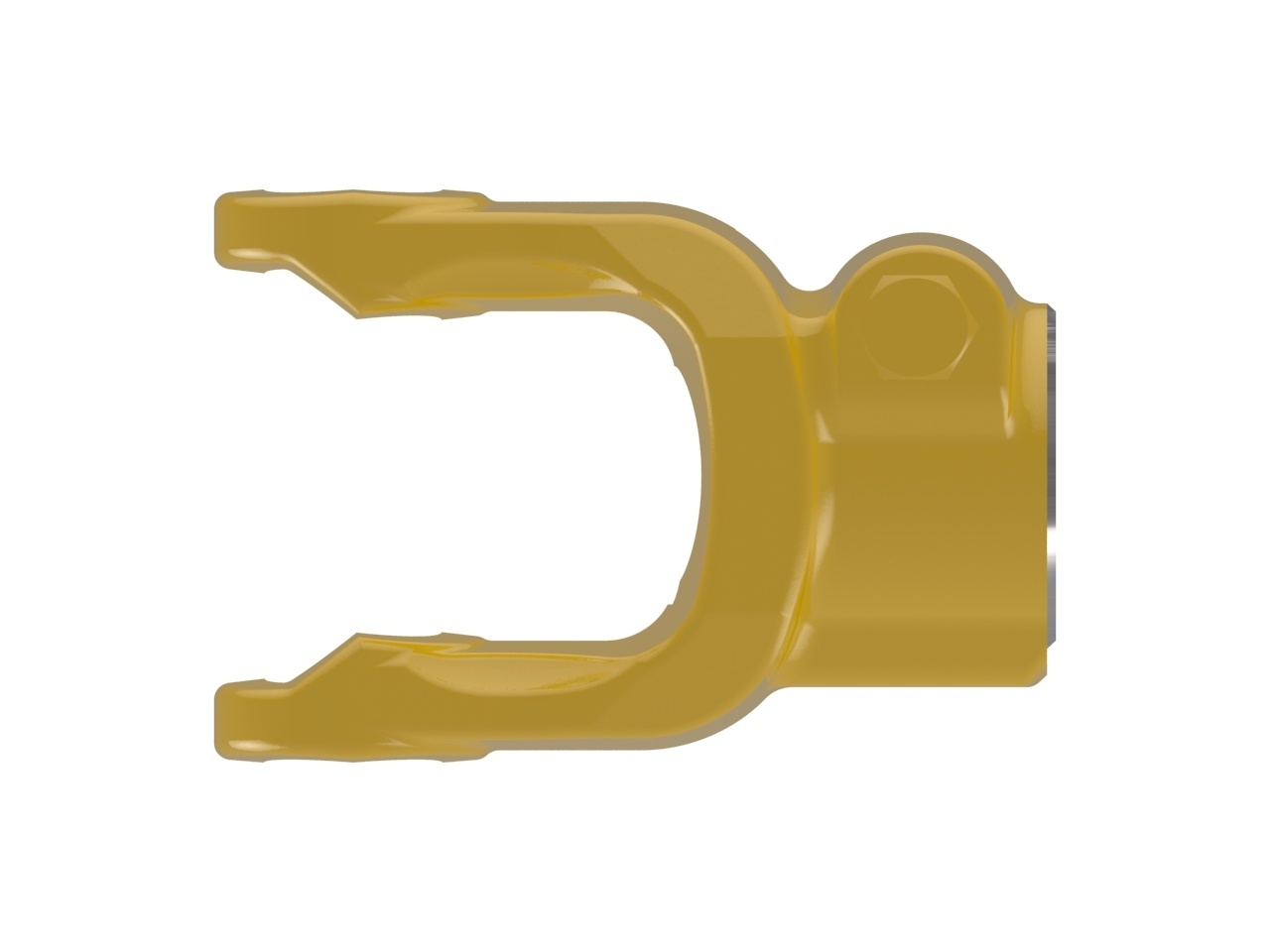

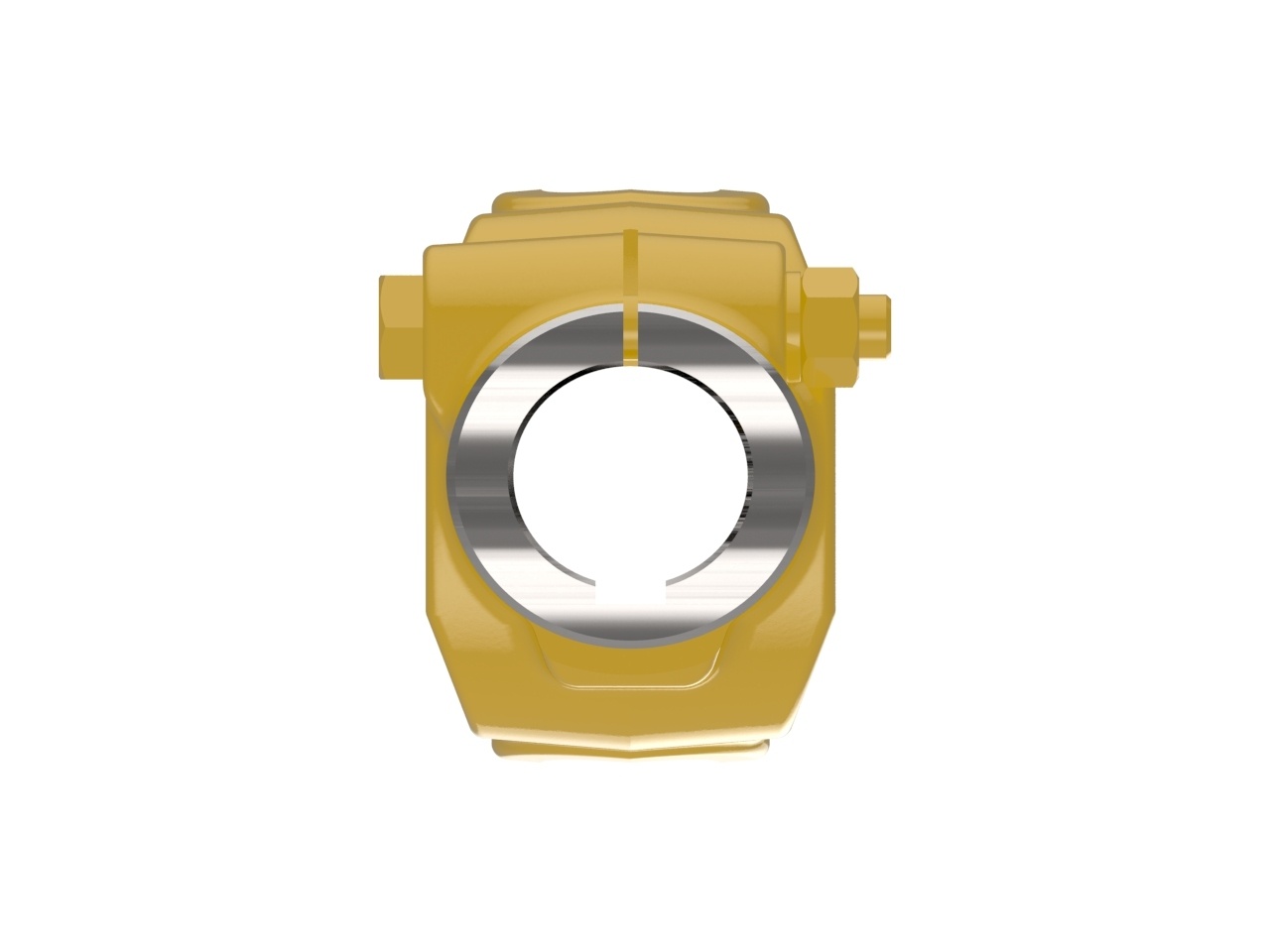

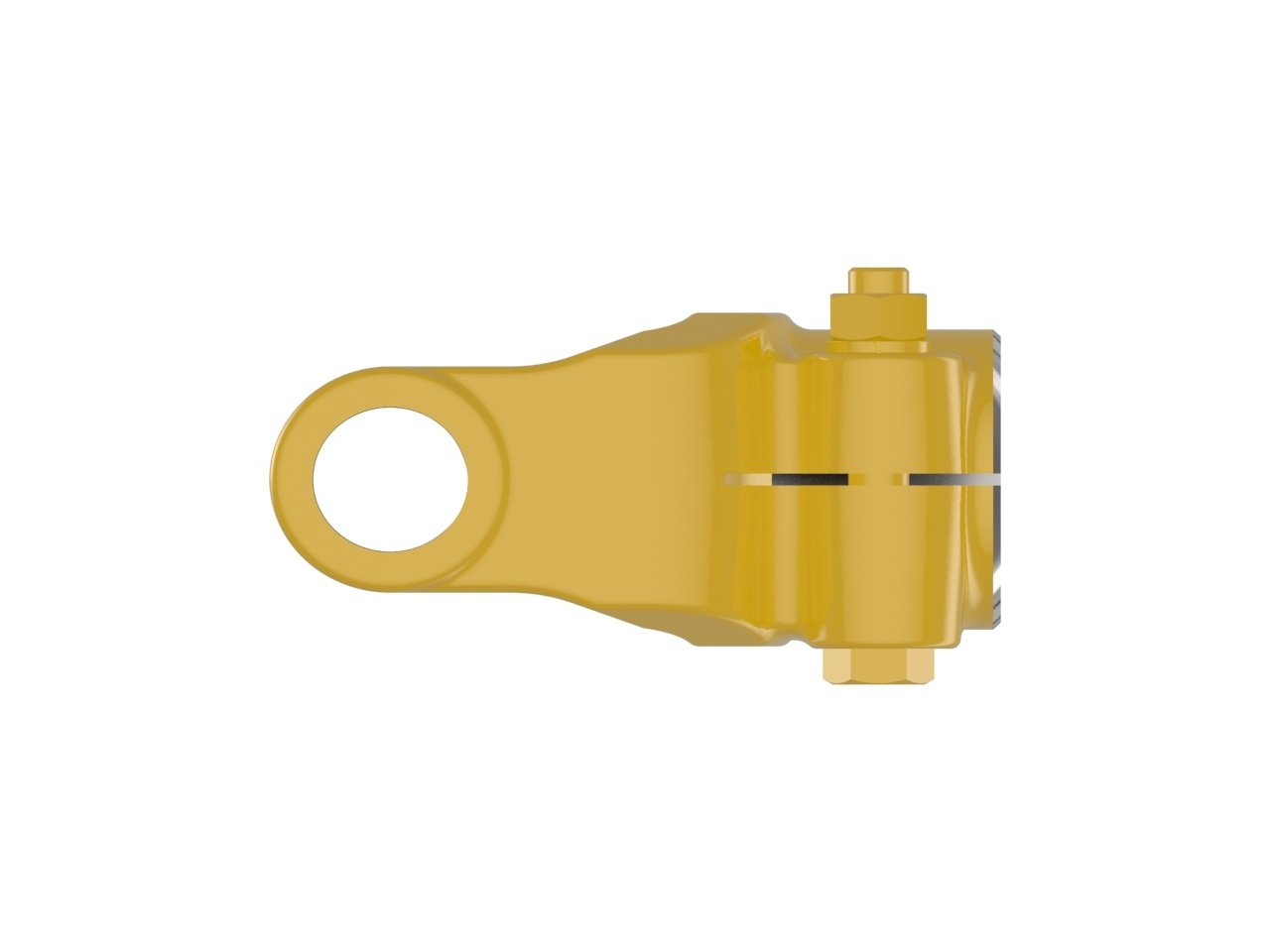

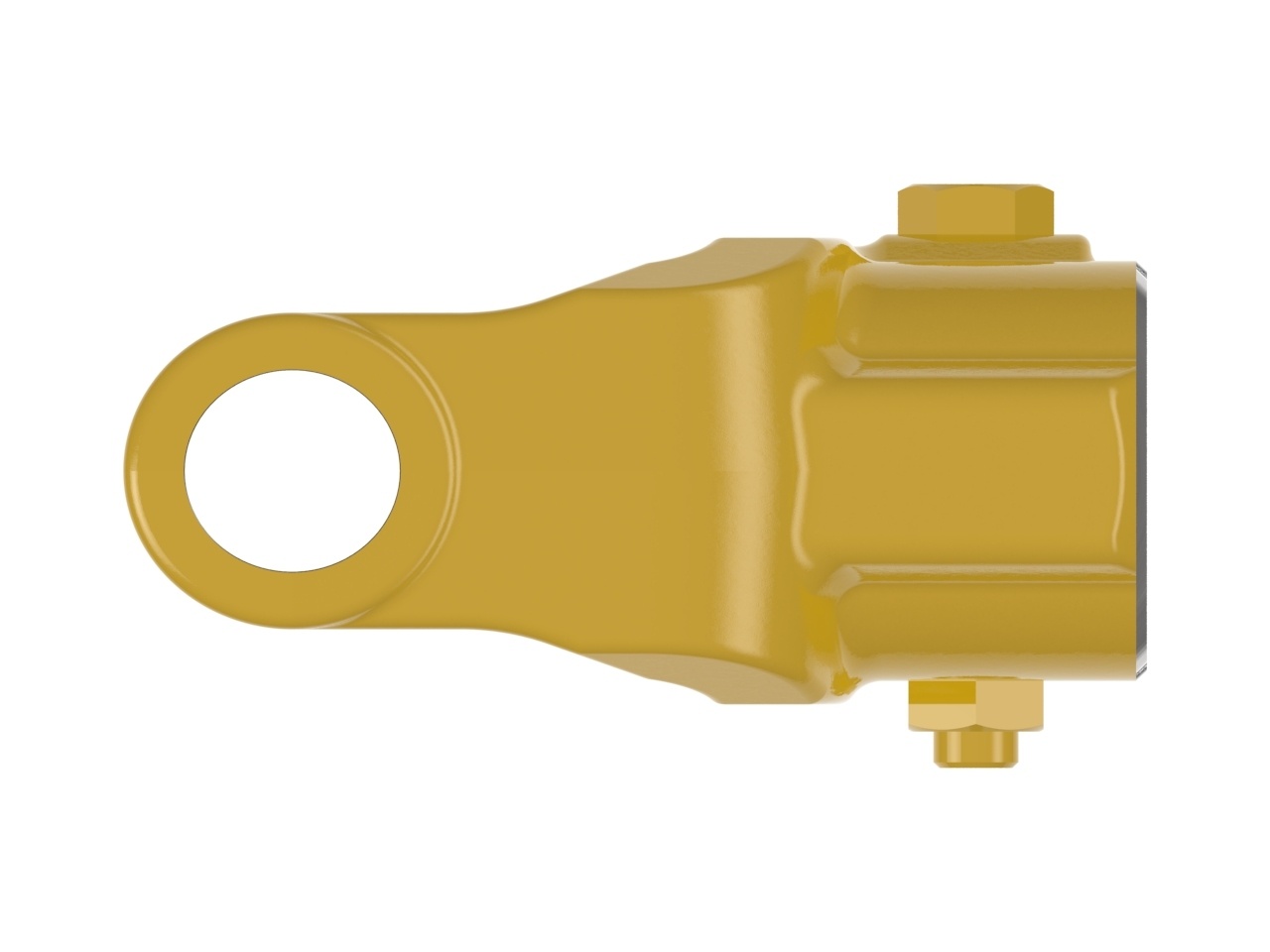

AB6,AW22 Series Clamp Yoke
AB6,AW22 series yoke with round with keyway bore and clamp connection. Note: Image color may not represent actual part.
The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.
PERFORMANCE BENEFITS
Specifications
Product Series: AB6, AW22
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter (Ear Hole) | 1.18 (1 3/16) in | 30 mm |
| Bearing Cap to Cap Span | 3.61 (3 39/64) in | 92 mm |
| Bore | 1.57 (1 9/16) in | 40 mm |
| Bore Description | ROUND WITH KEYWAY | |
| Connection 1 Type | CLAMP | |
| Keyway 1 | 0.47 (15/32) in | 12 mm |
| Centerline to End Dim | 4.72 (4 23/32) in | 120 mm |
| Weight | 4.57 pounds | 2 kilograms |
