AB5 Series Ratchet Clutch Spring-lok Yoke

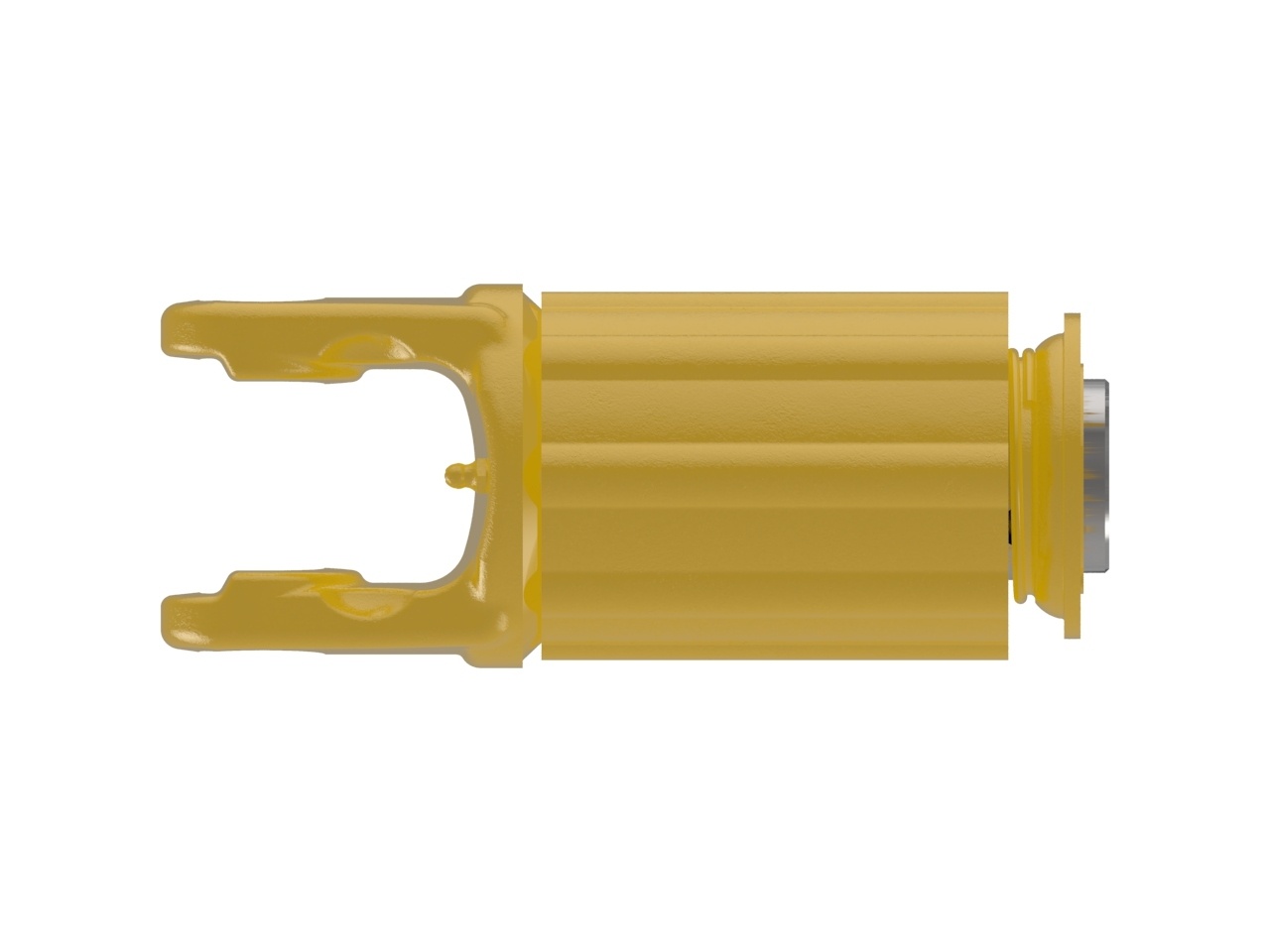

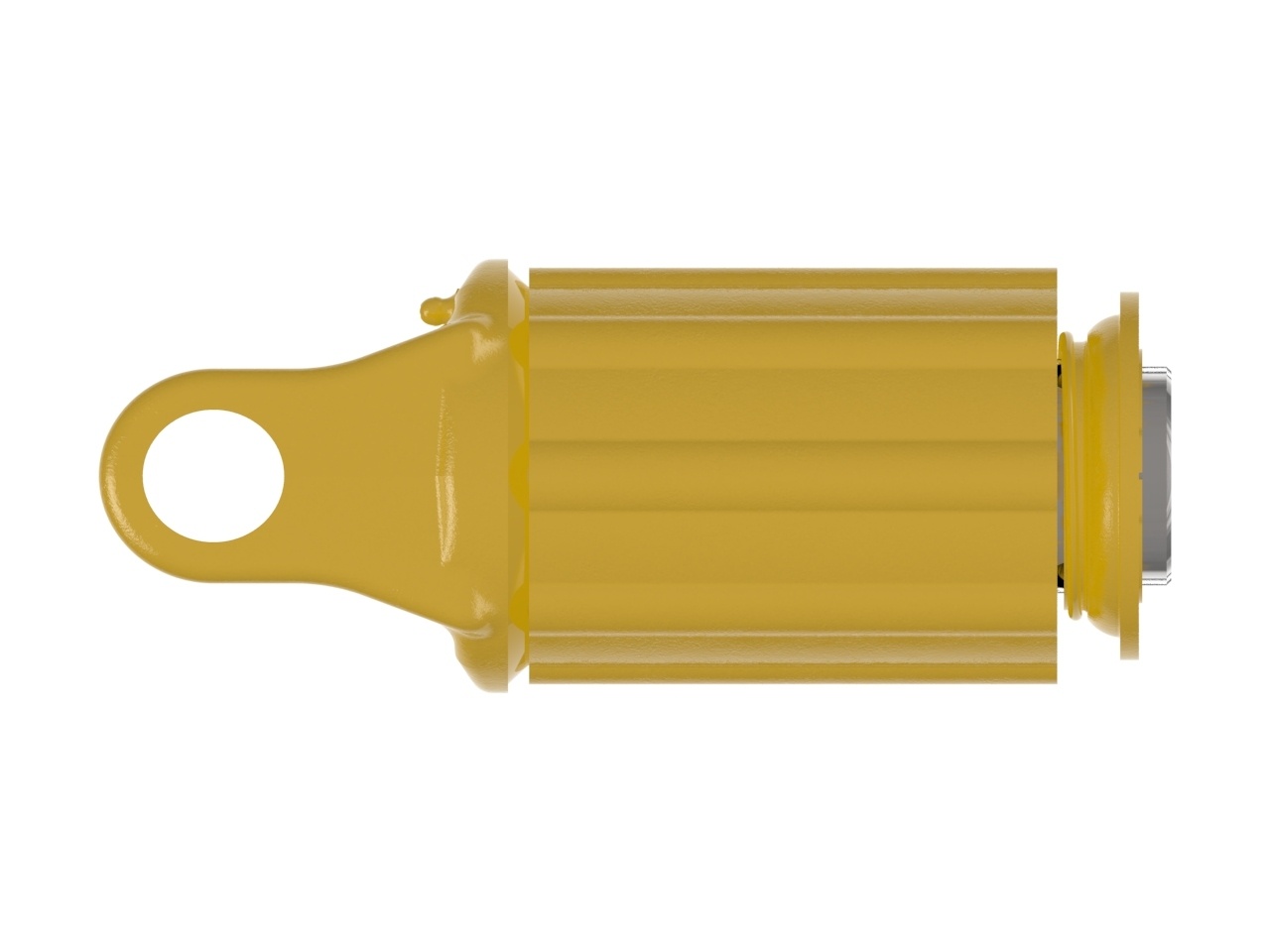

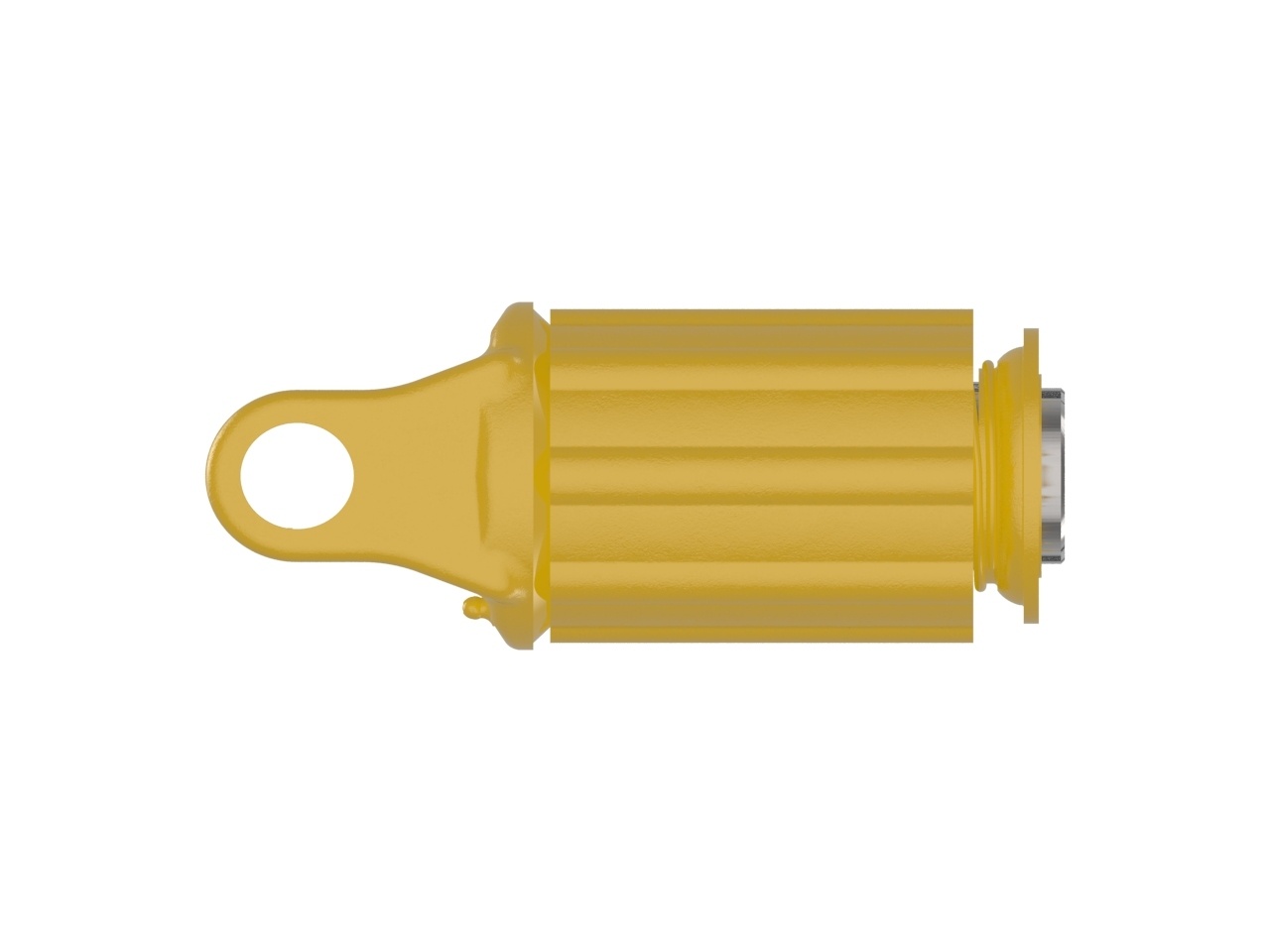

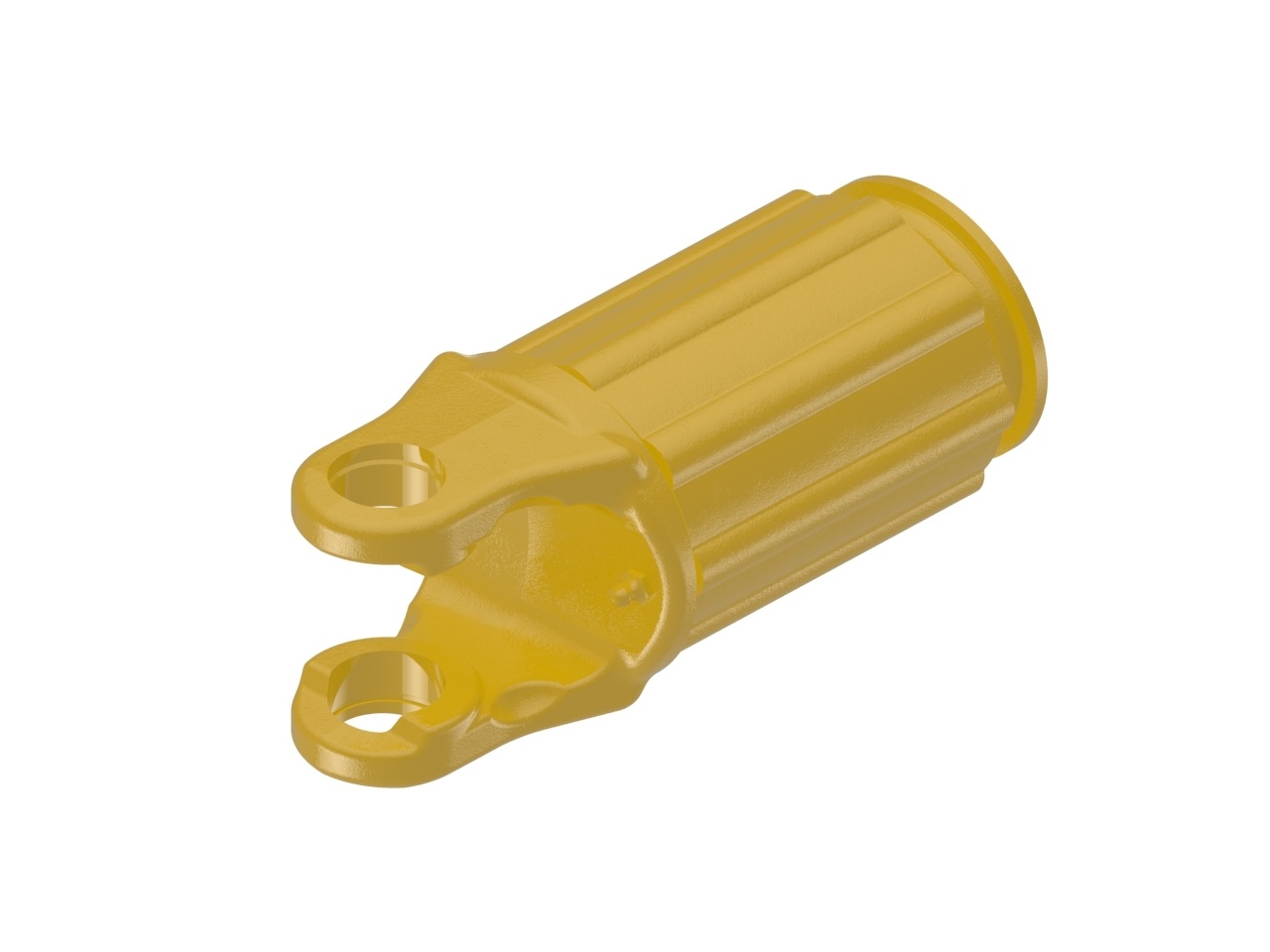

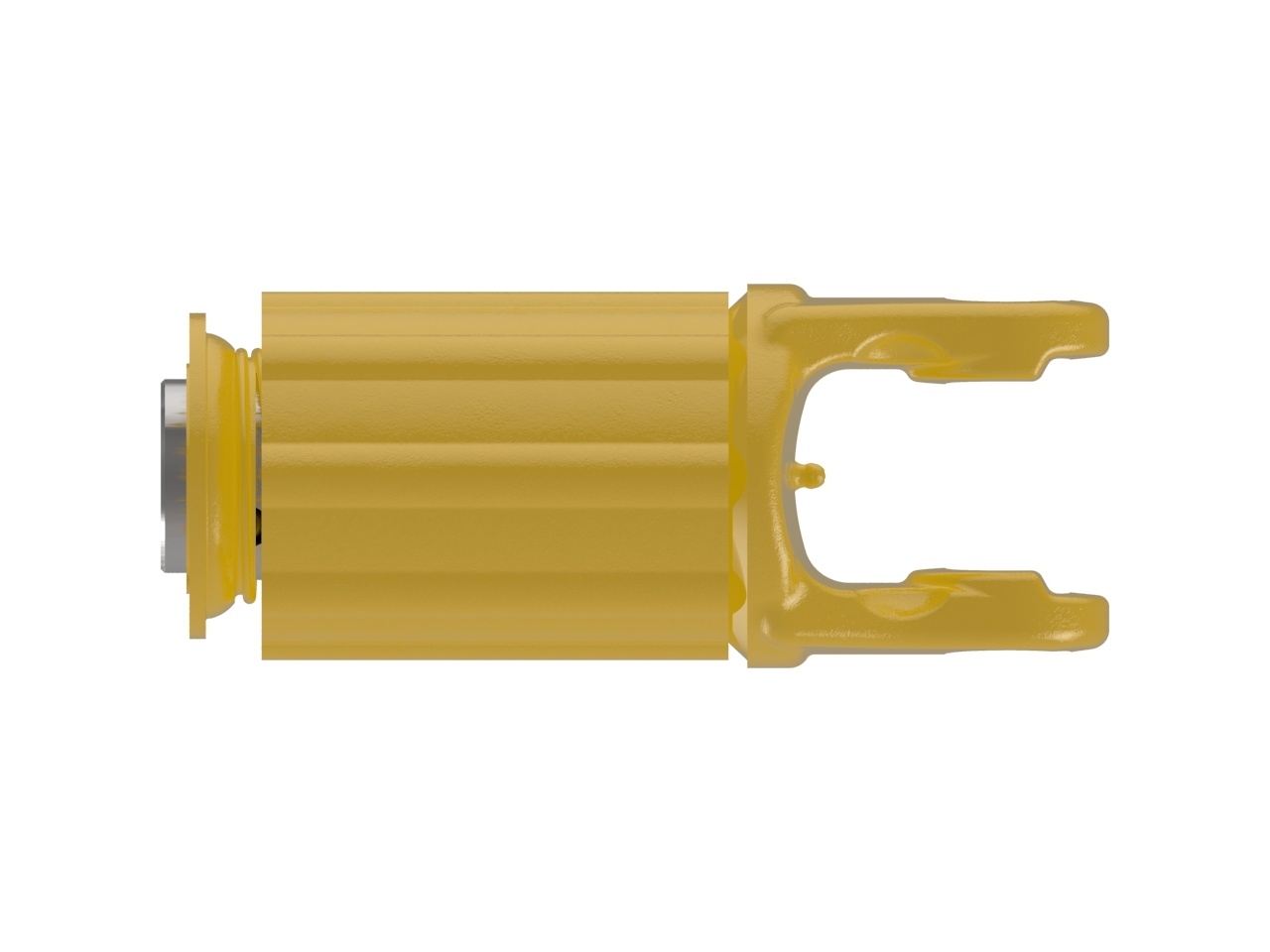

AB5 series ratchet clutch yoke with 1 3/8-6 spline bore and spring-lok connection. Note: Image color may not represent actual part.
The ratchet clutch allows implement overload protection with a unique pulsating torque while disengaged. When the overload occurs, the torque is transmitted in pulses accompanied by an audible sound. This pulsation aids in pushing clearing the blockage. Therefore, the operator may not need to leave the operator seat or even slow down to clear the blockage. The clutch will re-engage when the transmitted torque drops below the calibrated torque value.
PERFORMANCE BENEFITS
Specifications
Product Series: AB5
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter (Ear Hole) | 1.18 (1 3/16) in | 30 mm |
| Bearing Cap to Cap Span | 3.12 (3 1/8) in | 79 mm |
| Bore | 1.37 (1 3/8) in | 35 mm |
| Bore Description | 1 3/8-6 SPLINE | |
| Connection 1 Type | SPRING-LOK | |
| Centerline to End Dimension | 8.05 (8 3/64) in | 204 mm |
| Outside Diameter | 3.81 (3 13/16) in | 97 mm |
| Torque Rating in/lbs | 13300 | 13300 |
| Weight | 10.99 pounds | 5 kilograms |
