Part Number: 803-8404
FLANGE YOKE
AB4,AW21 Series Flange Yoke

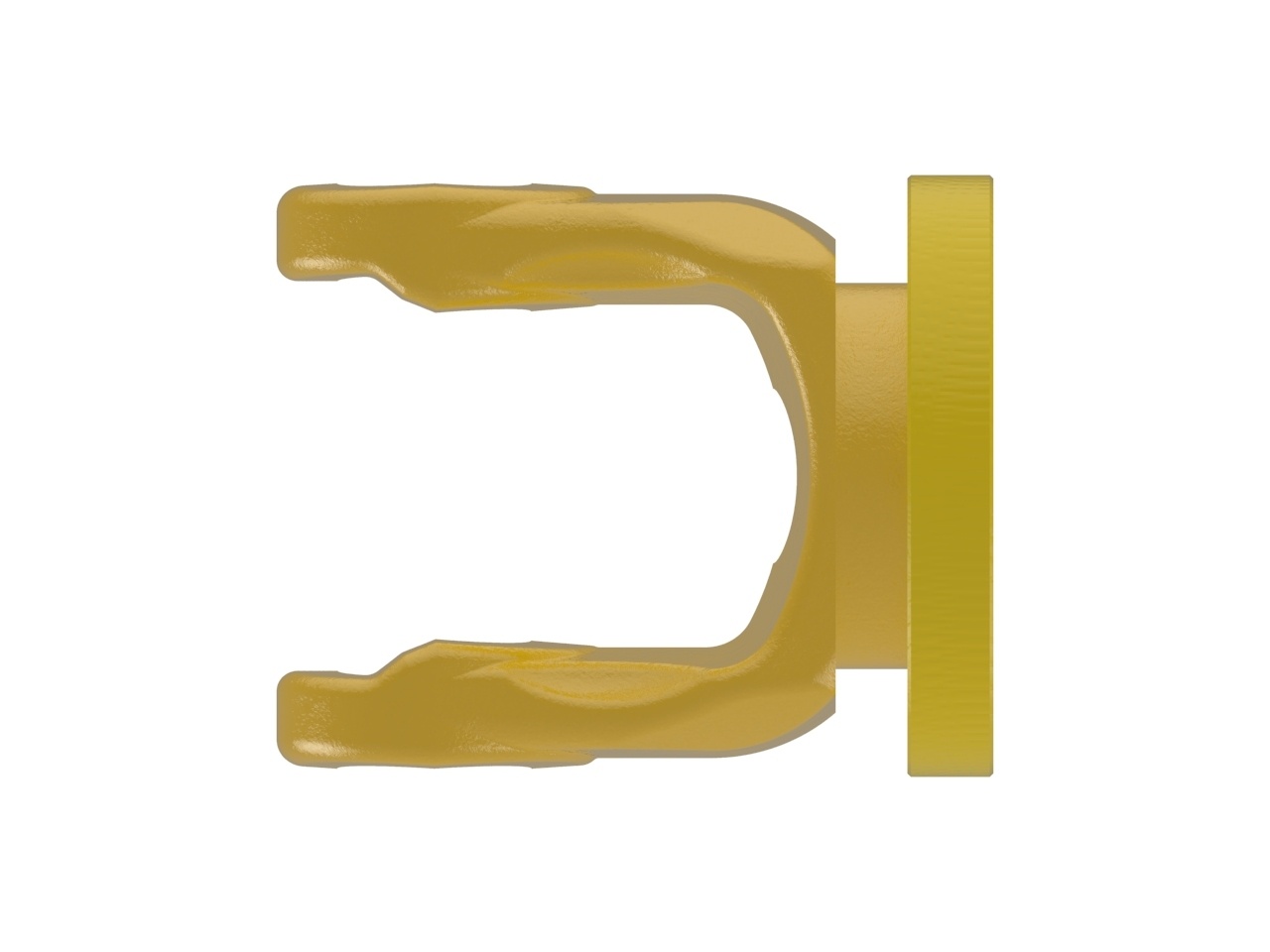

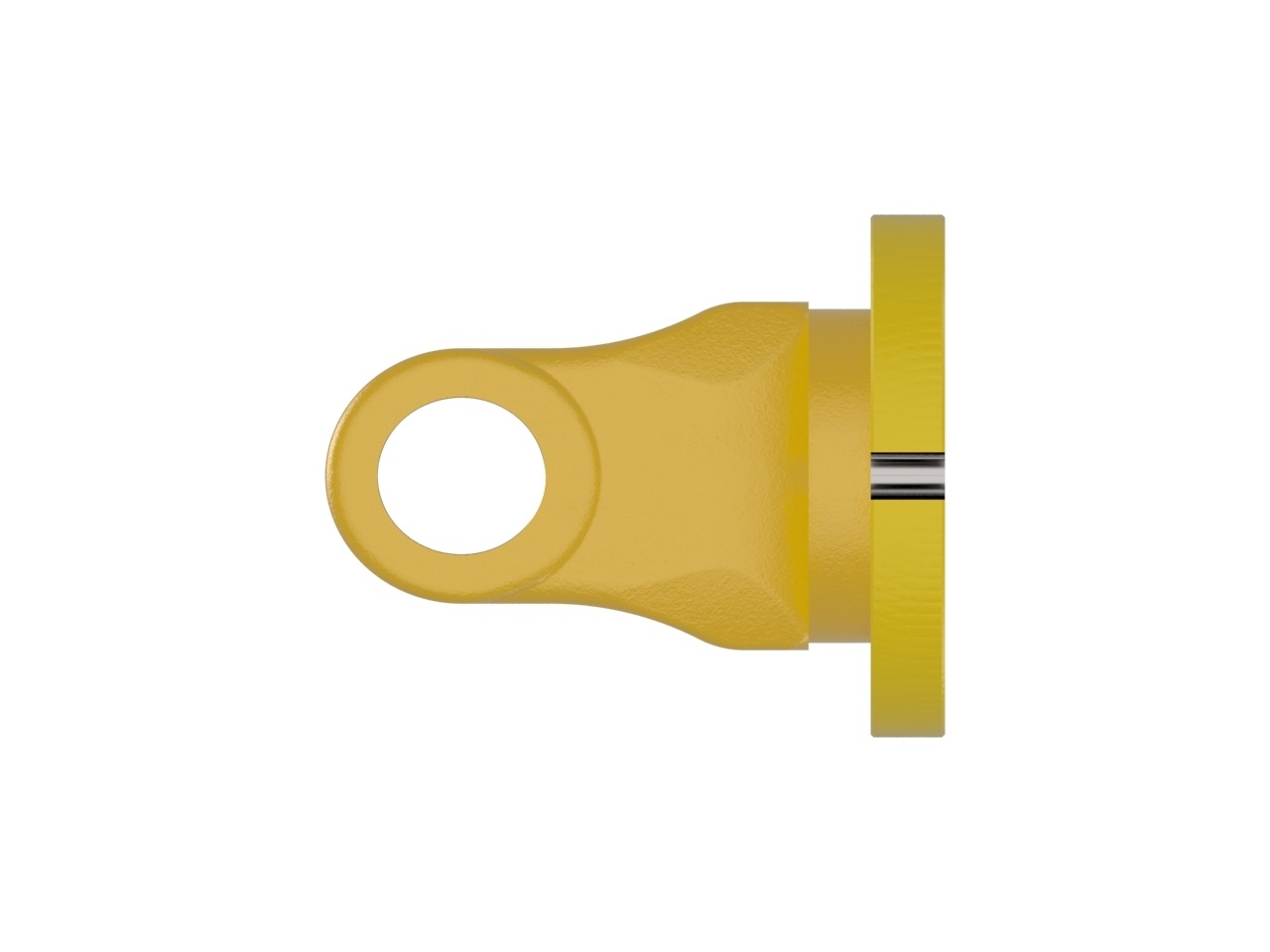

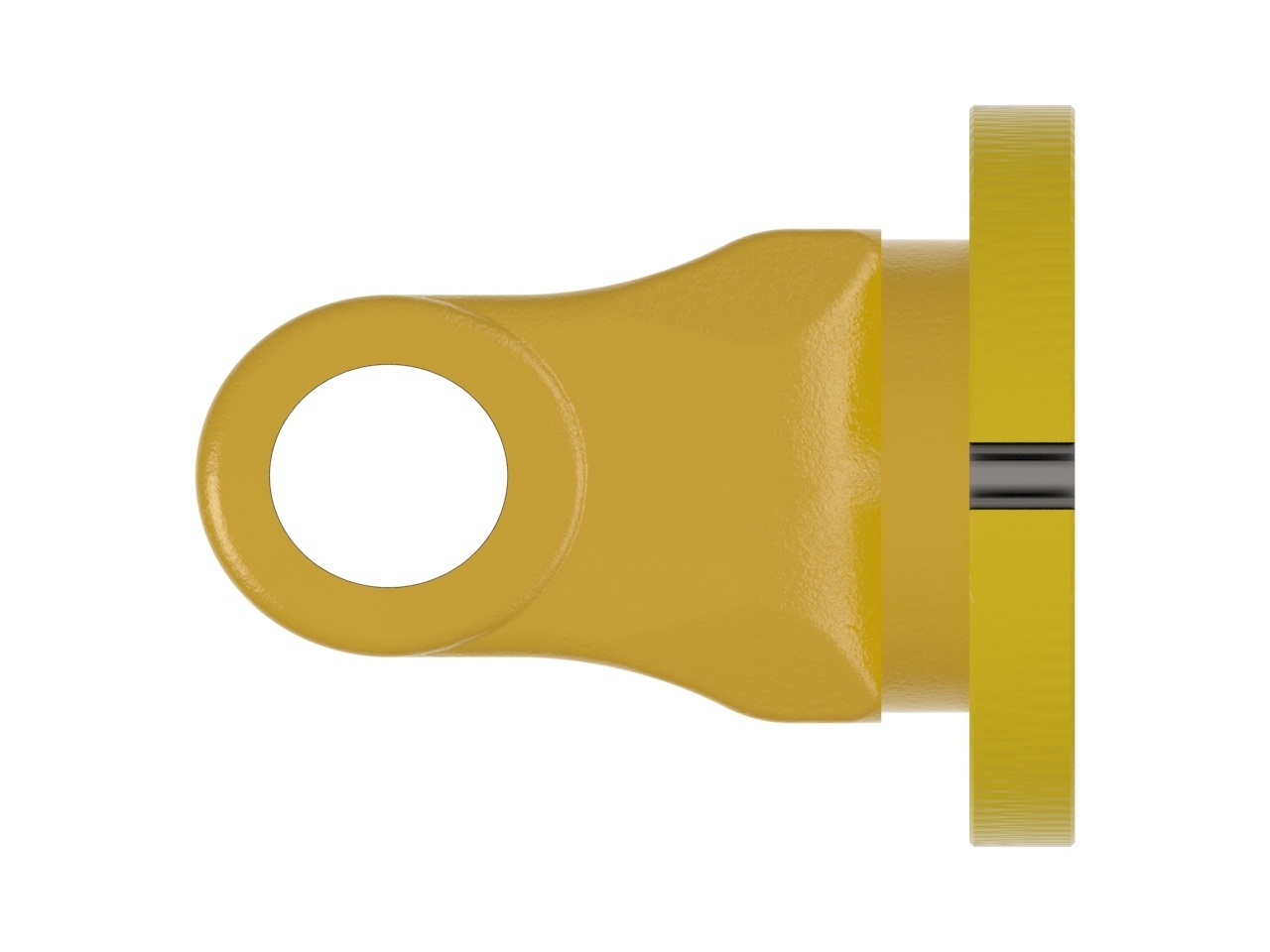

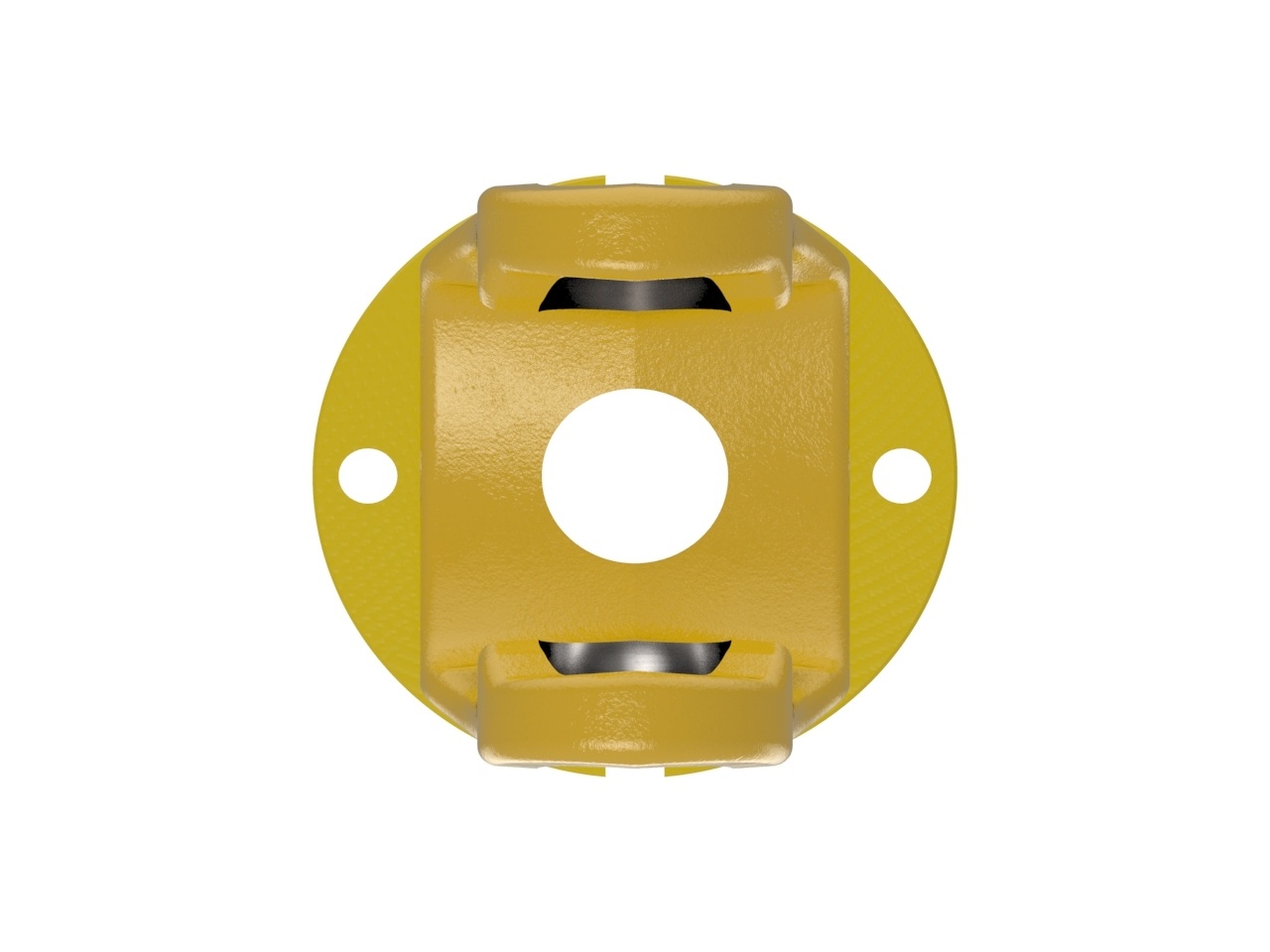

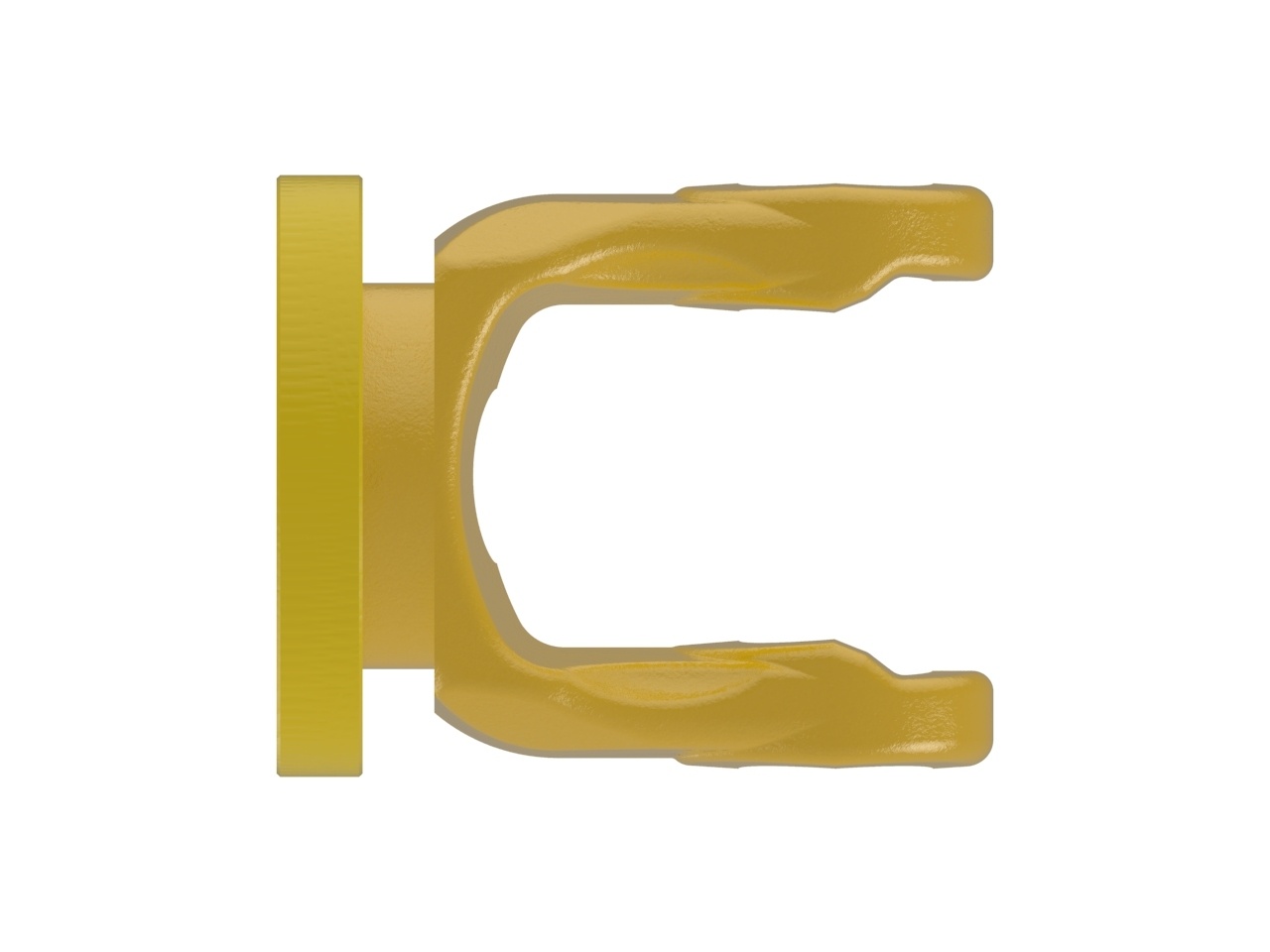

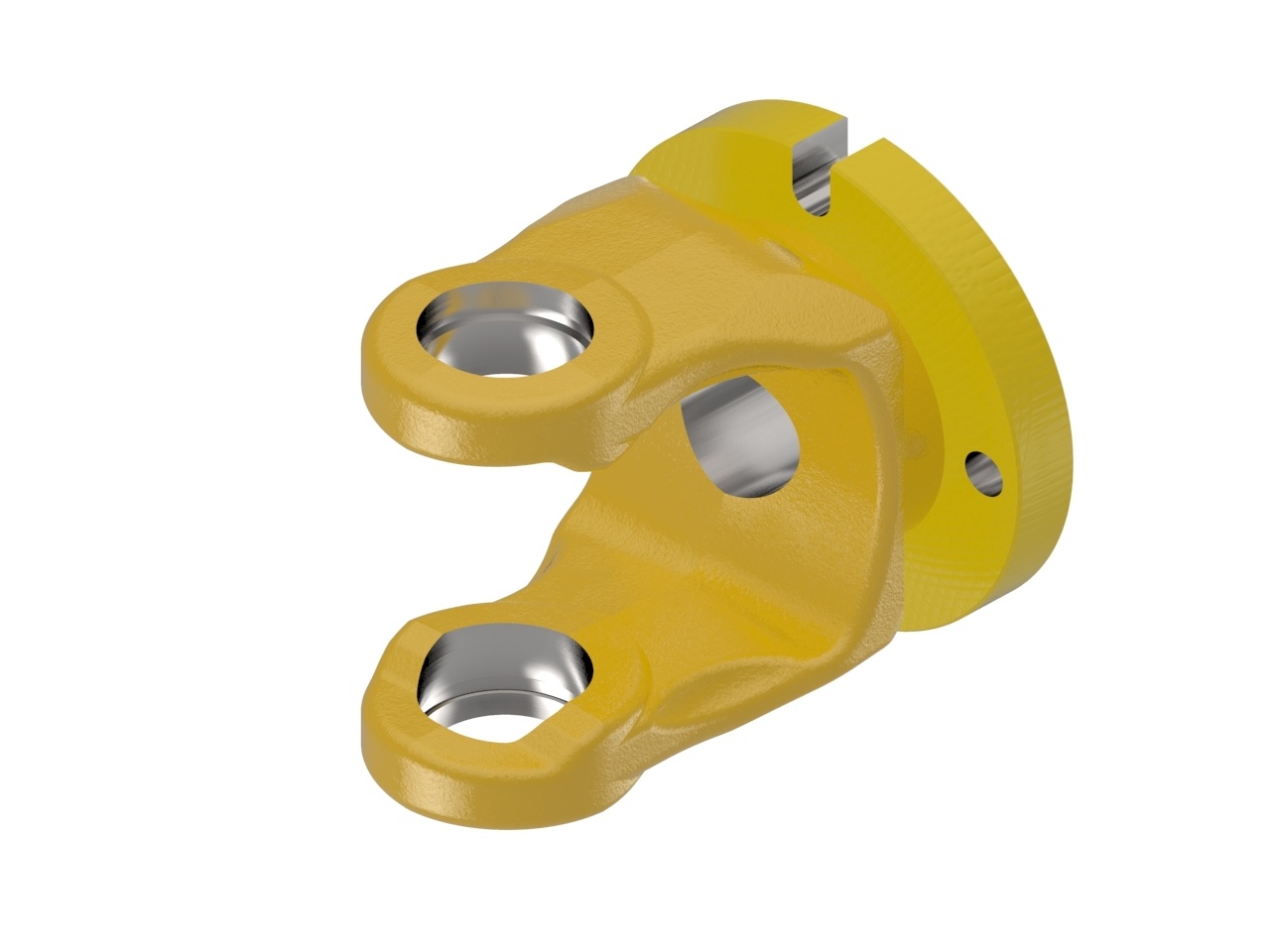

AB4,AW21 series yoke with 4 x 8 mm bolt circle bore and flange connection. Note: Image color may not represent actual part.
The flange yoke allows for a bolted connection to a mating flange to eliminate fretting corrosion and wear, using standard hardware.
PERFORMANCE BENEFITS
Specifications
Product Series: AB4, AW21
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter (Ear Hole) | 1.06 (1 1/16) in | 27 mm |
| Bearing Cap to Cap Span | 2.93 (2 15/16) in | 74 mm |
| Bore | 2.93 (2 15/16) in | 74 mm |
| Bore Description | 4 X 8 MM BOLT CIRCLE | |
| Connection 1 Type | FLANGE | |
| Centerline to End Dim | 3.07 (3 1/16) in | 78 mm |
| Weight | 3.18 pounds | 1 kilograms |
