Part Number: 847-8230
CLAMP YOKE

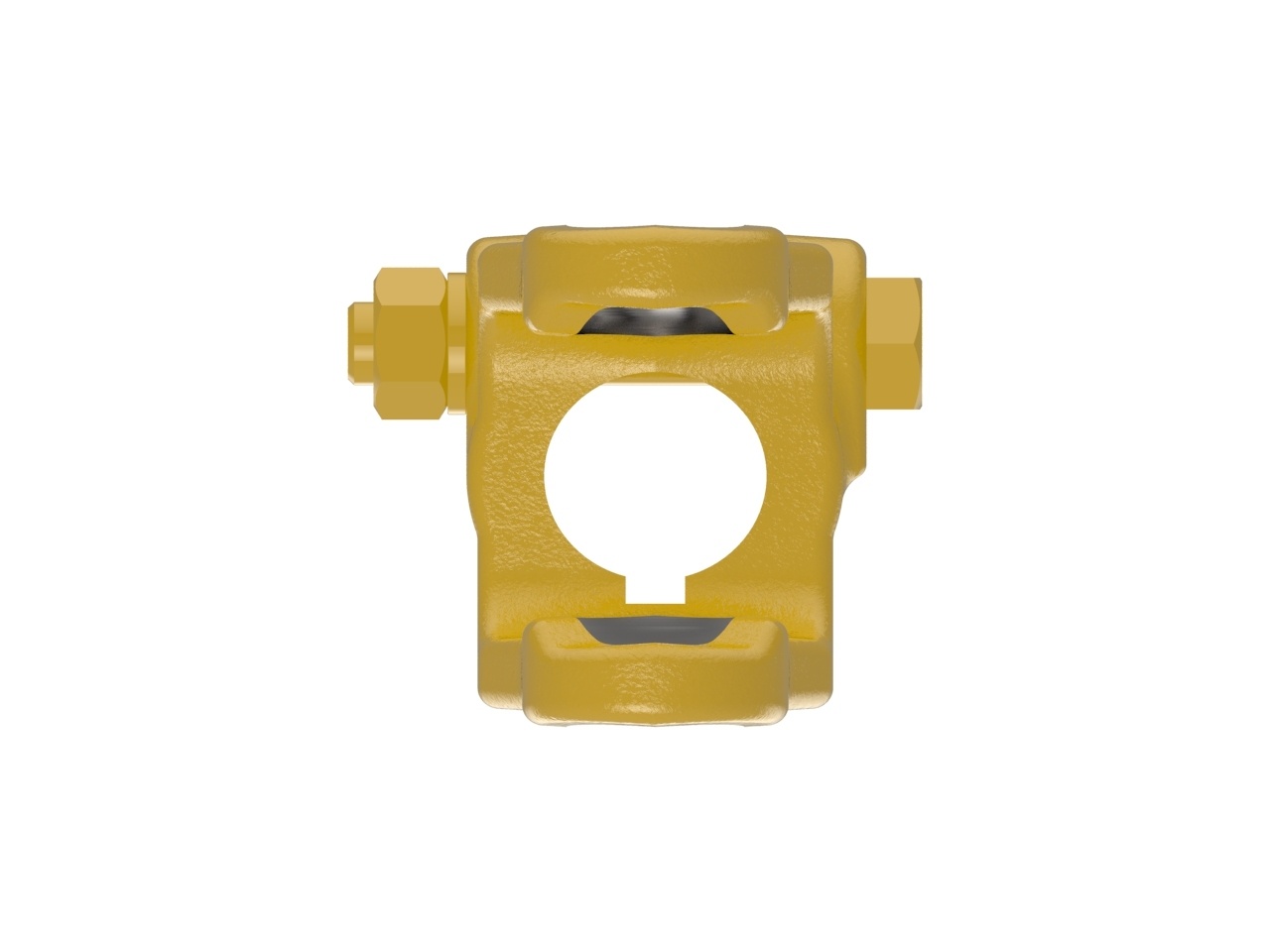

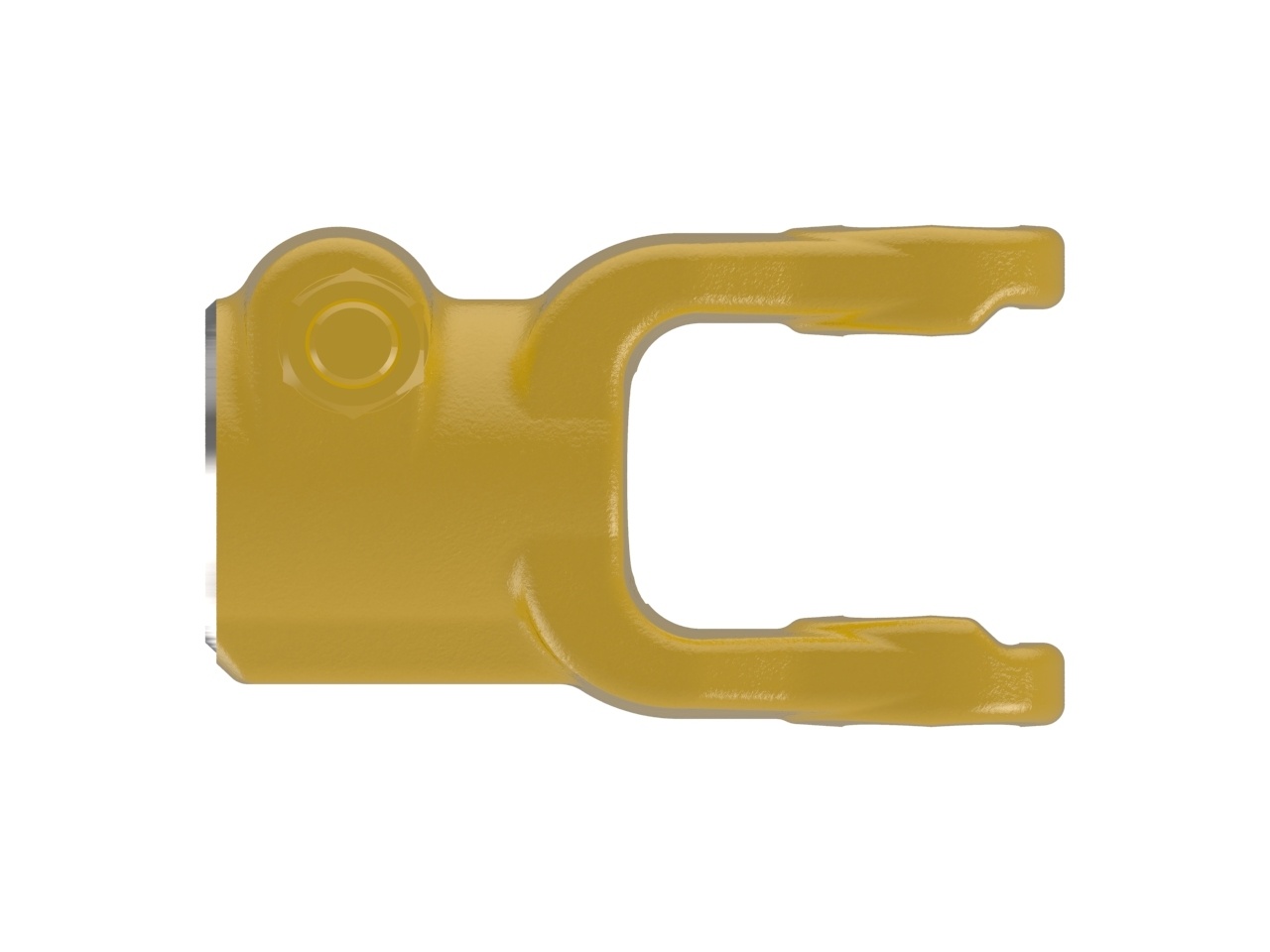

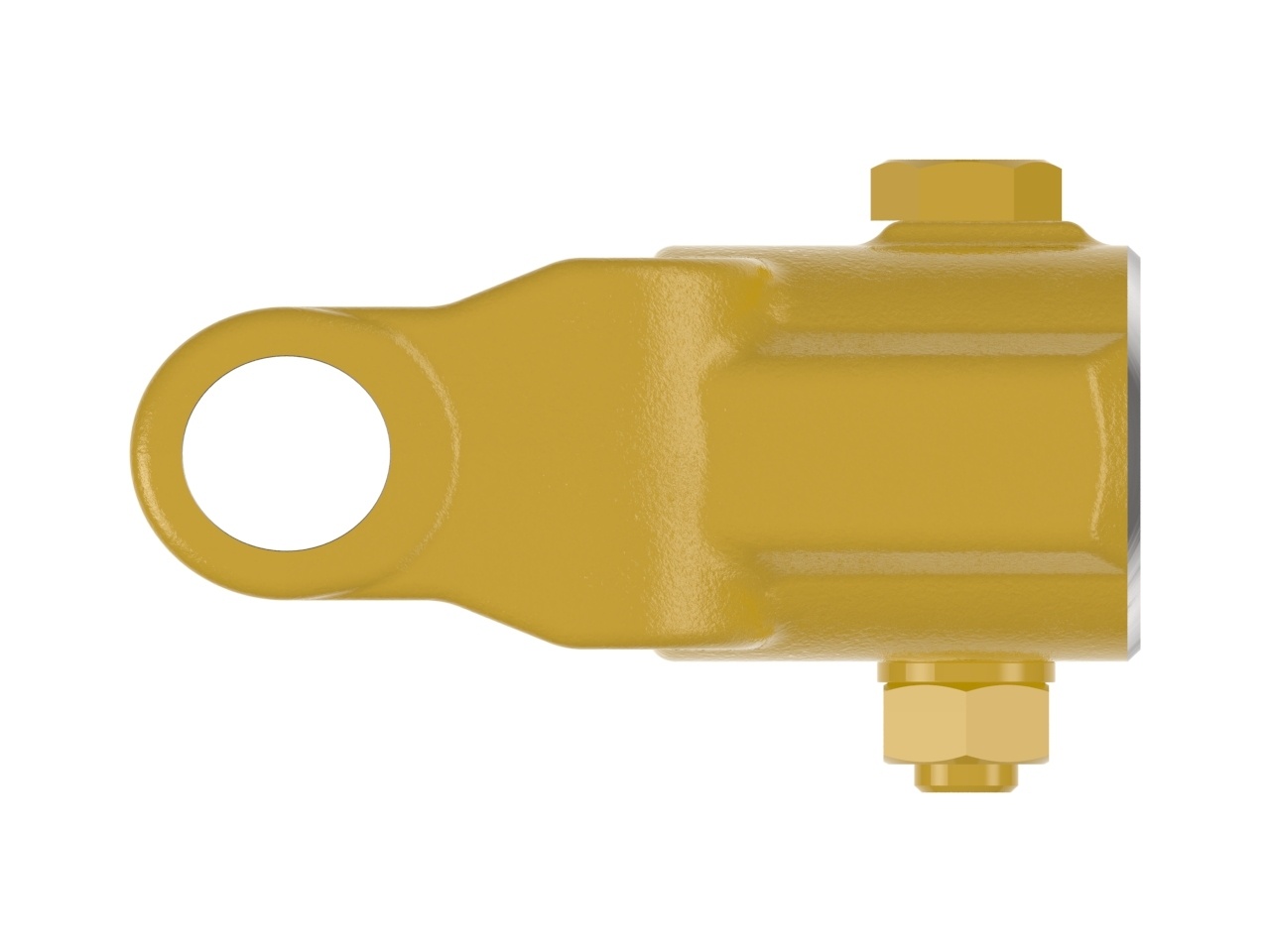

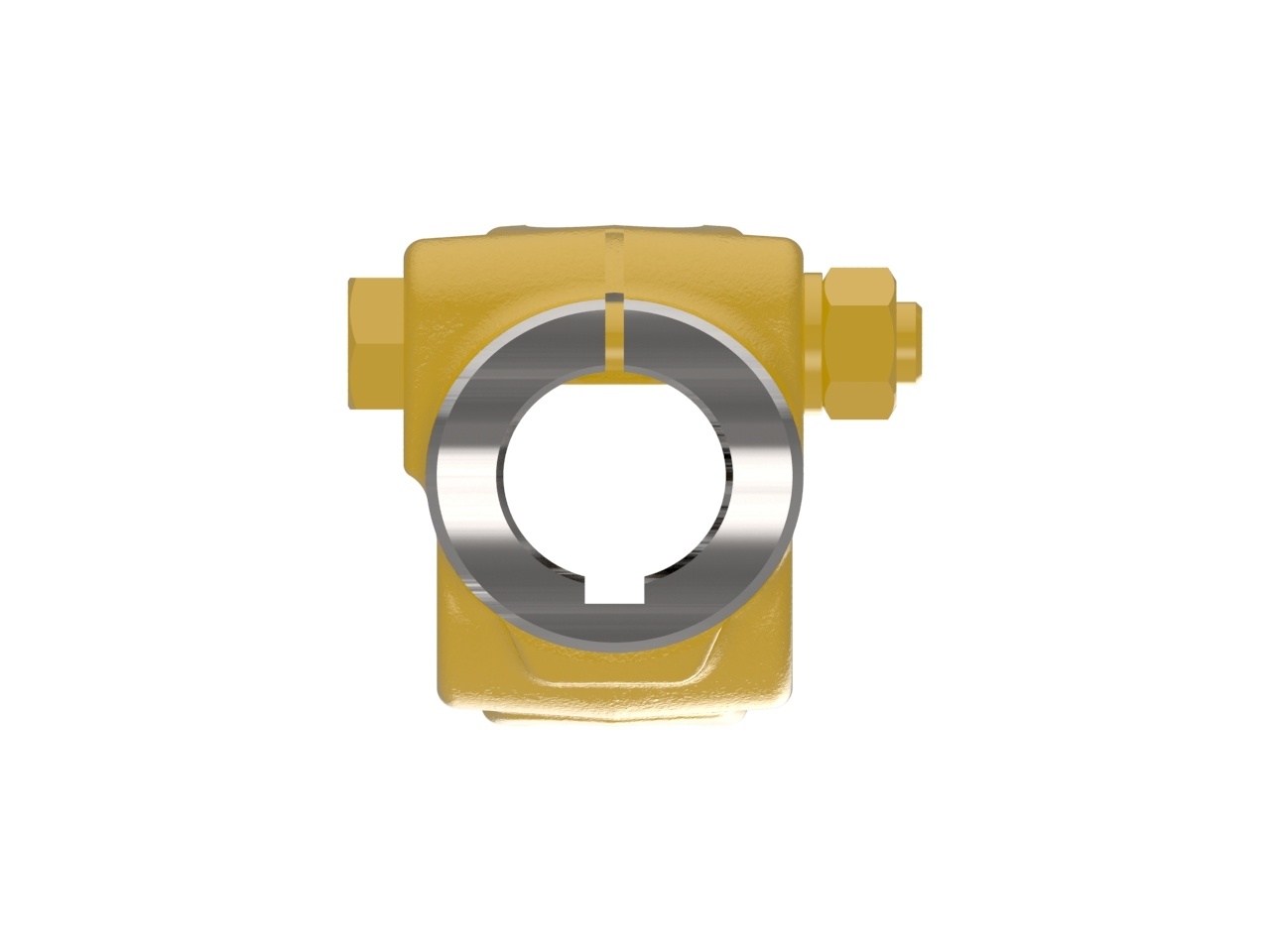

AB2,AW20 Series Clamp Yoke
AB2,AW20 series yoke with round with keyway bore and clamp connection. Note: Image color may not represent actual part.
The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.
PERFORMANCE BENEFITS
Specifications
Product Series: AB2, AW20
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter (Ear Hole) | 0.93 (15/16) in | 24 mm |
| Bearing Cap to Cap Span | 2.40 (2 13/32) in | 61 mm |
| Bore | 1.18 (1 3/16) in | 30 mm |
| Bore Description | ROUND WITH KEYWAY | |
| Connection 1 Type | CLAMP | |
| Keyway 1 | 0.31 (5/16) in | 8 mm |
| Centerline to End Dim | 3.86 (3 55/64) in | 98 mm |
| Weight | 2.39 pounds | 1 kilograms |
