Part Number: 837-8206
CLAMP YOKE

AB2,AW20 Series Clamp Yoke

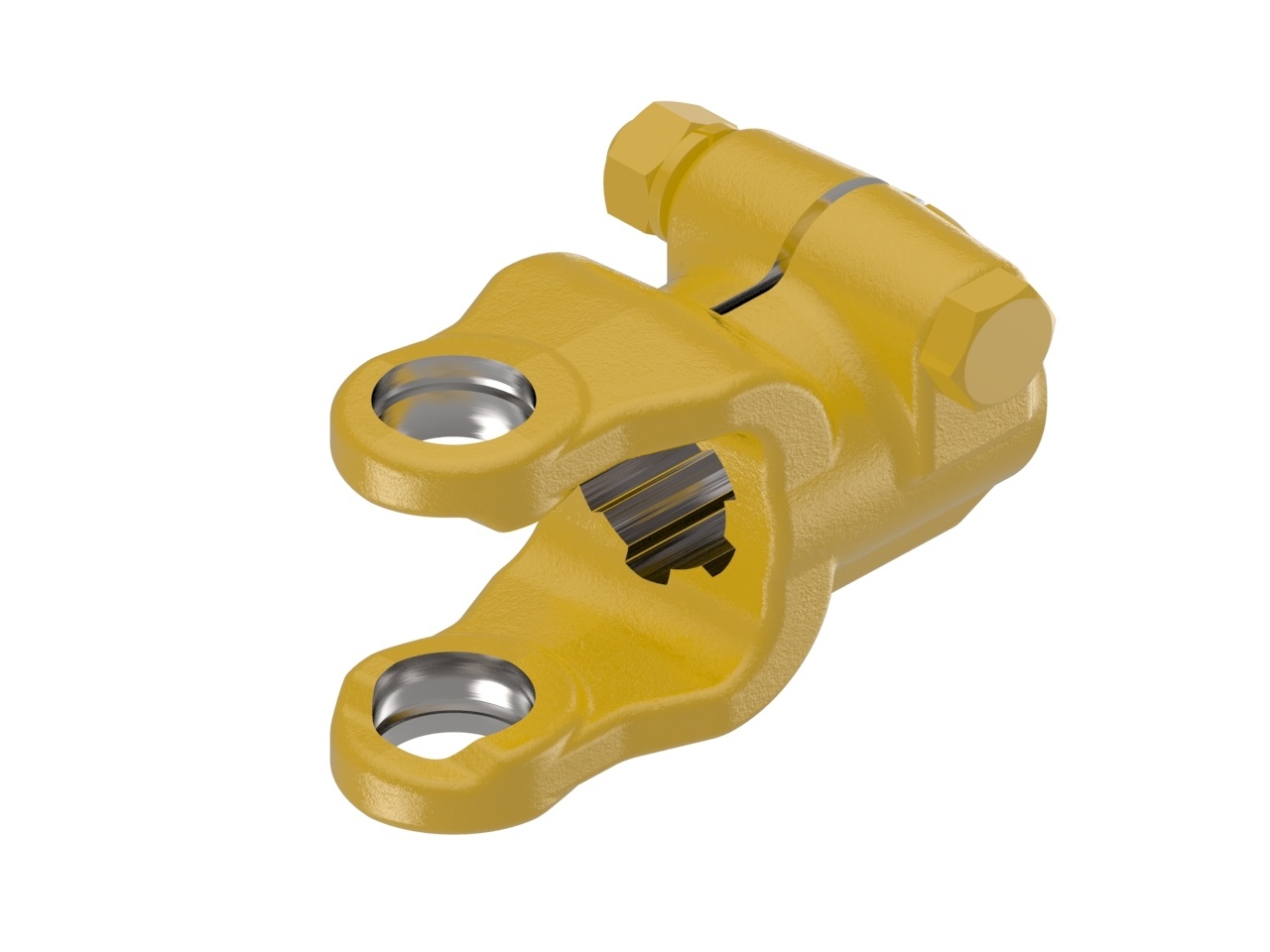

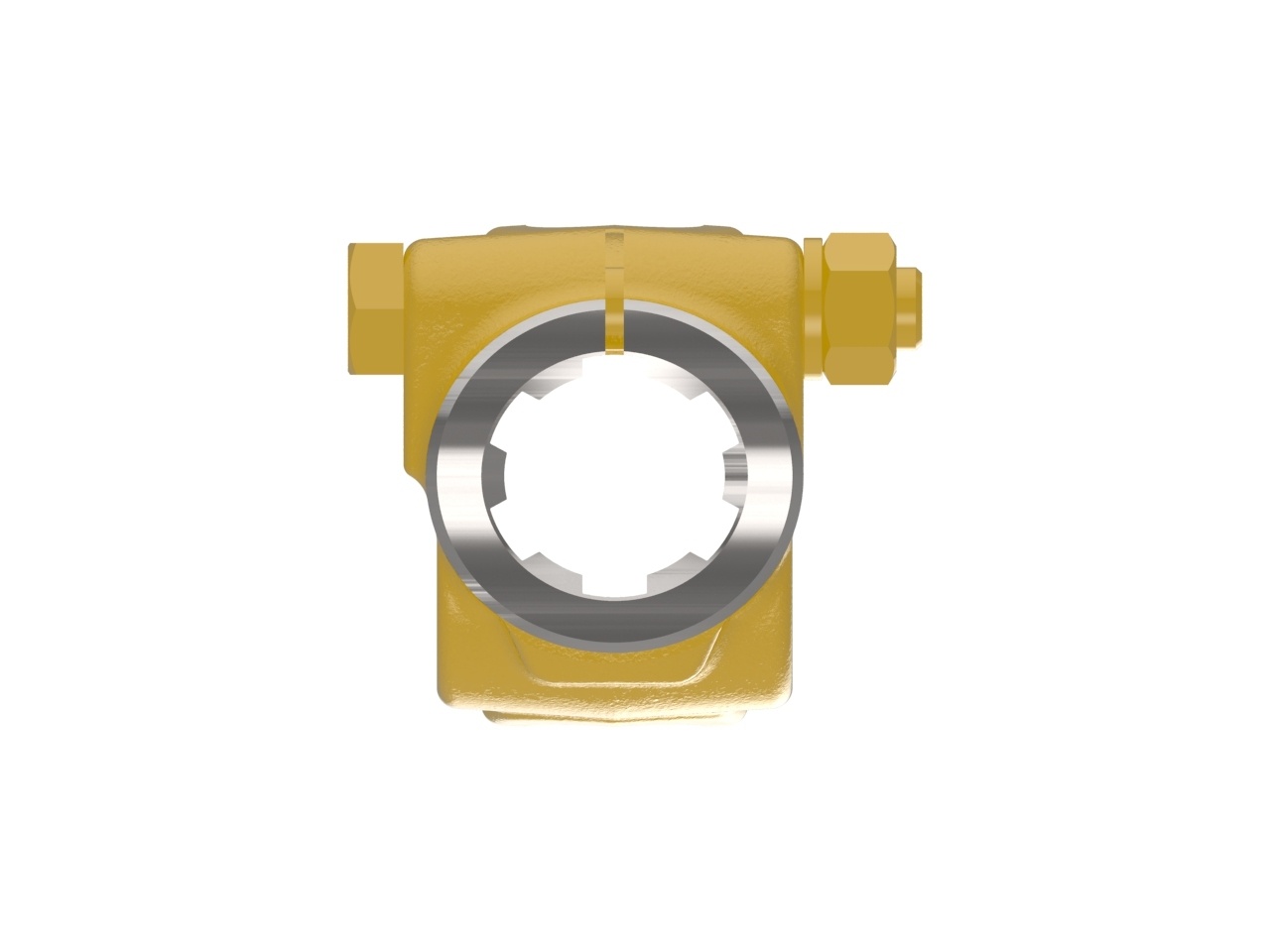

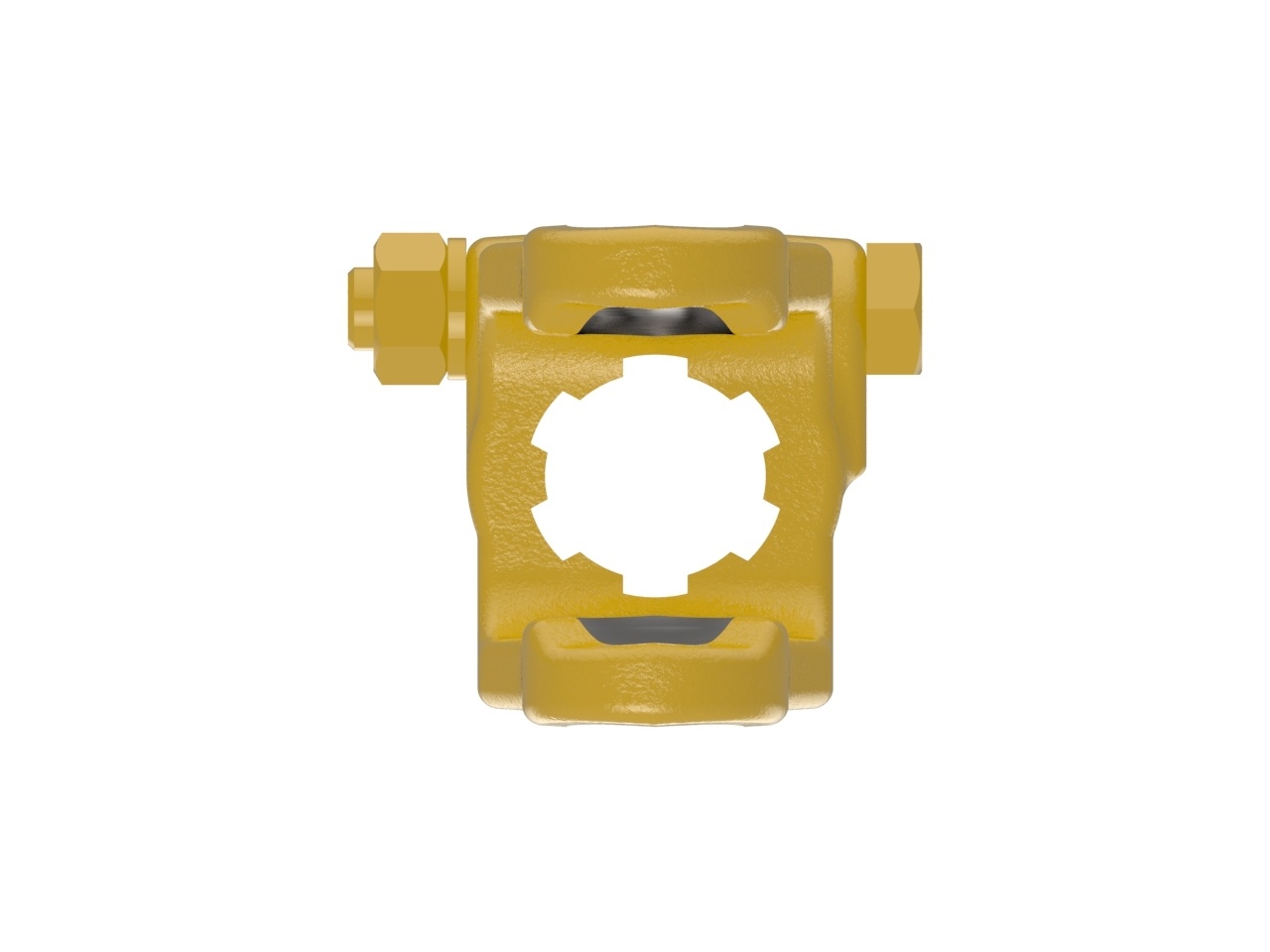

AB2,AW20 series yoke with 1 3/8-6 spline bore and clamp connection. Note: Image color may not represent actual part.

The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.

PERFORMANCE BENEFITS

Specifications

Product Series: AB2, AW20

Spec. Imperial Metric
Bearing Diameter (Ear Hole)0.93 (15/16) in24 mm
Bearing Cap to Cap Span2.40 (2 13/32) in61 mm
Bore1.37 (1 3/8) in35 mm
Bore Description 1 3/8-6 SPLINE
Connection 1 Type CLAMP
Centerline to End Dim3.86 (3 55/64) in98 mm
Weight2.29 pounds1 kilograms
