Part Number: 302-7700

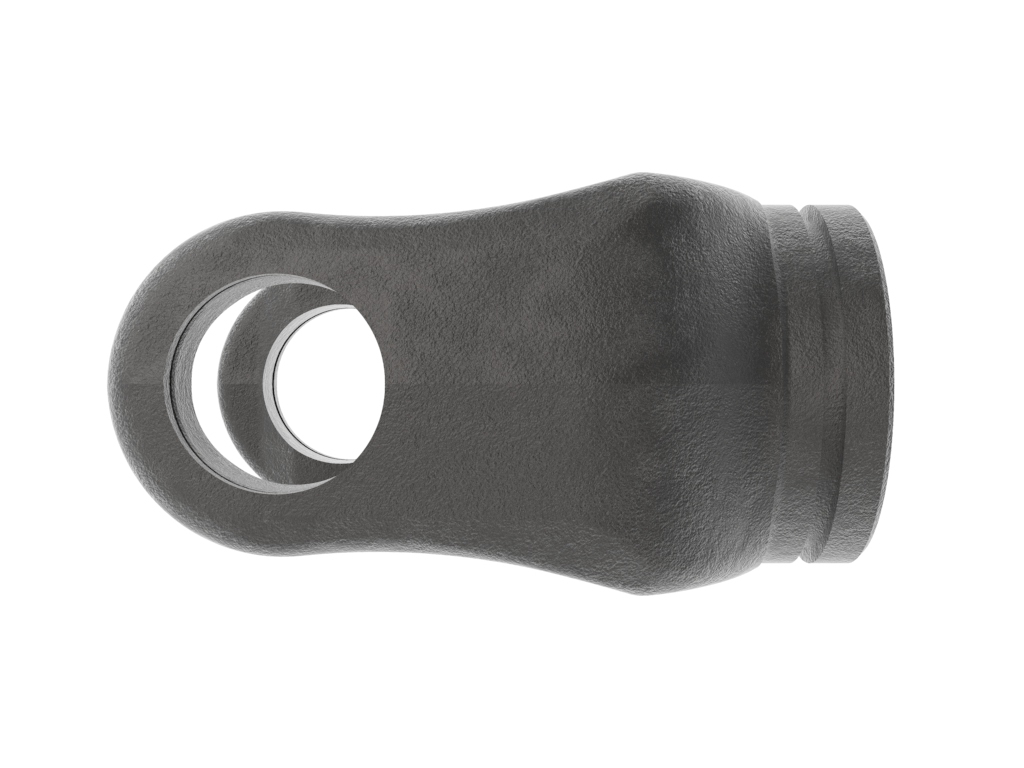

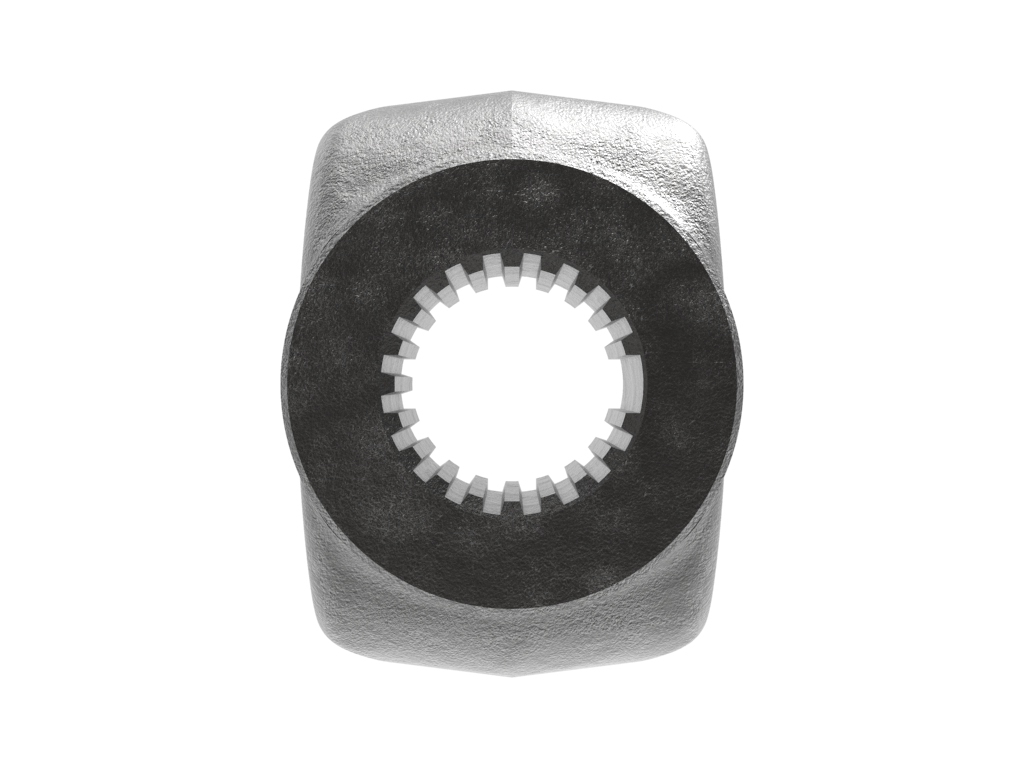

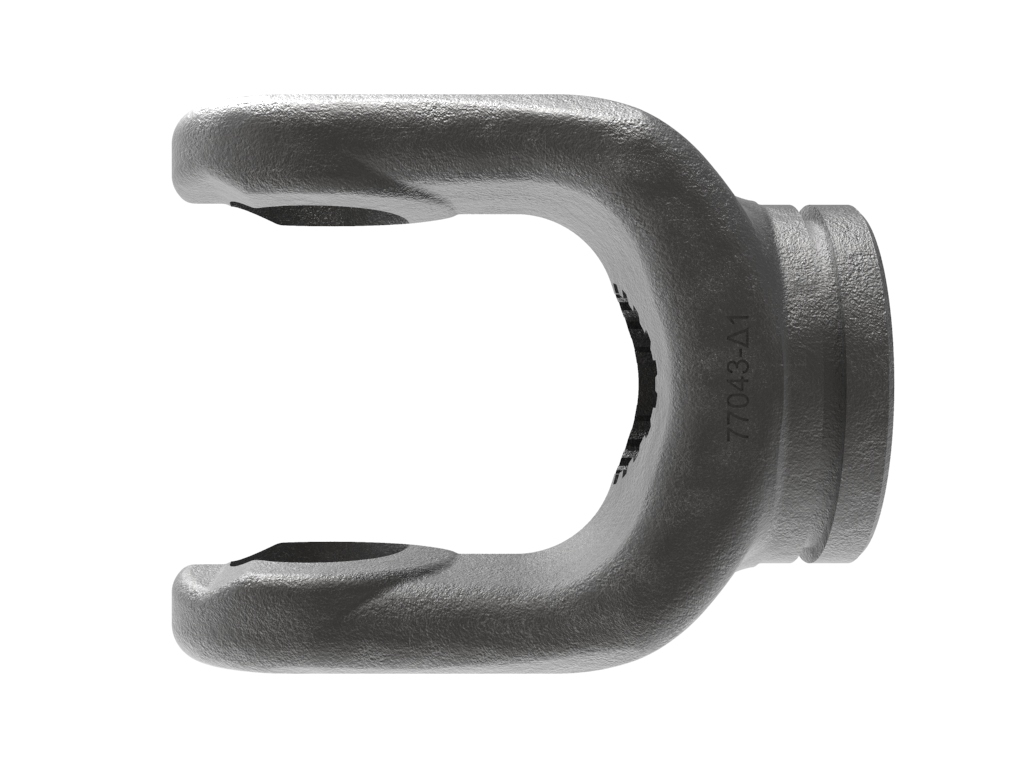

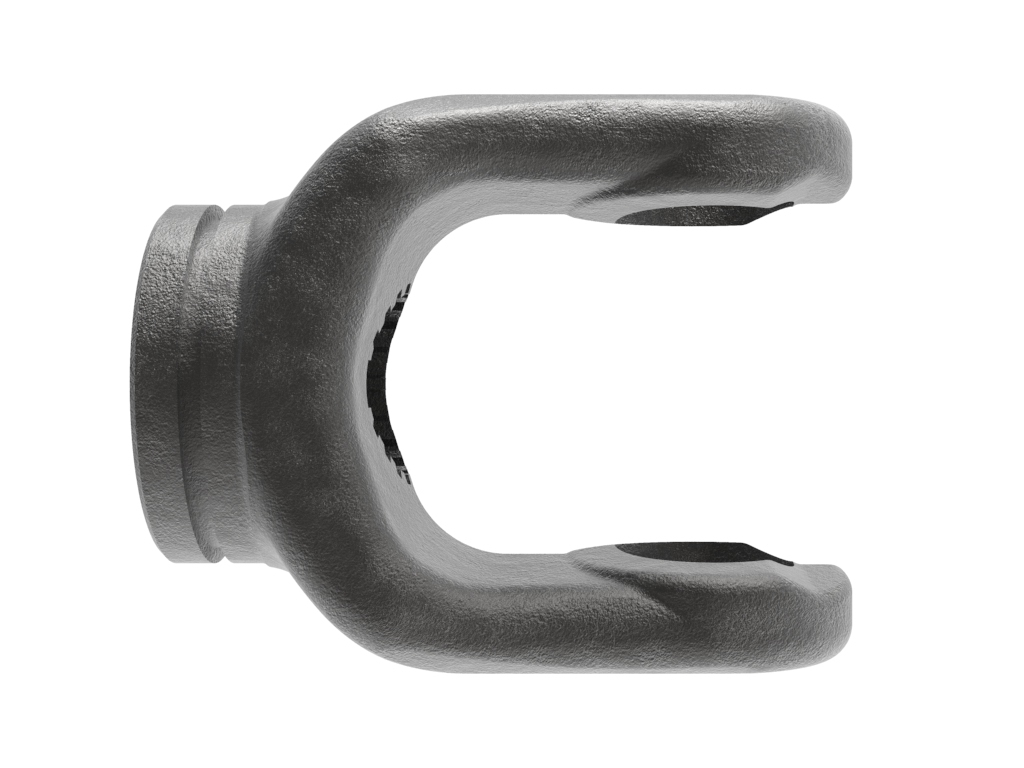

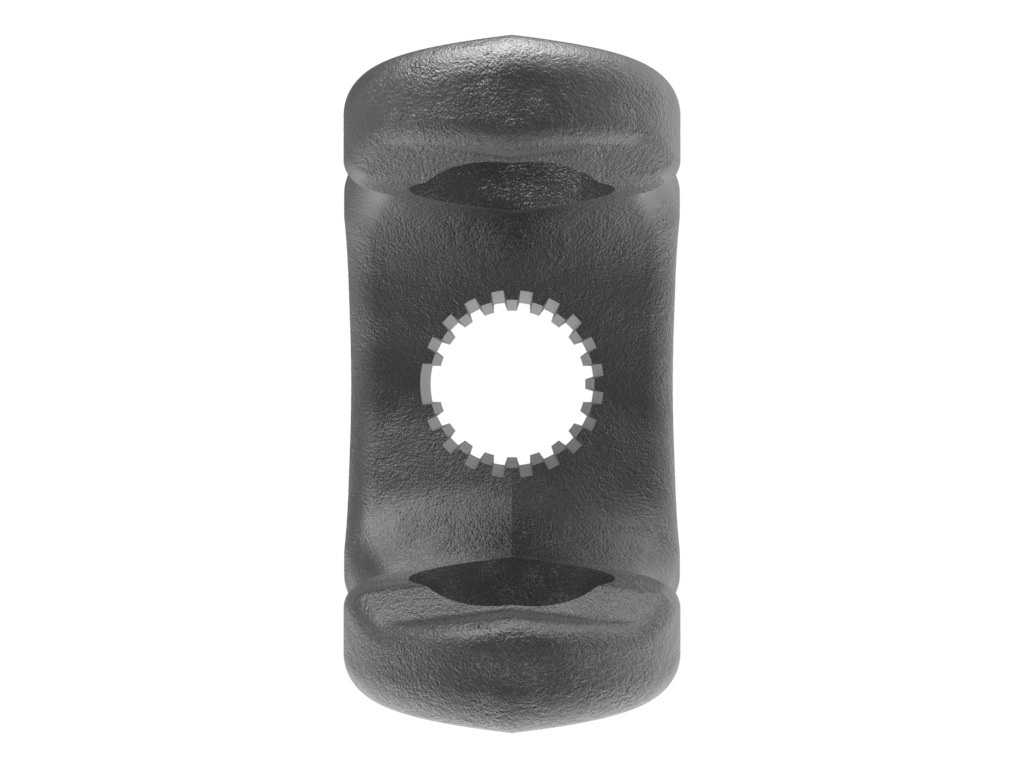

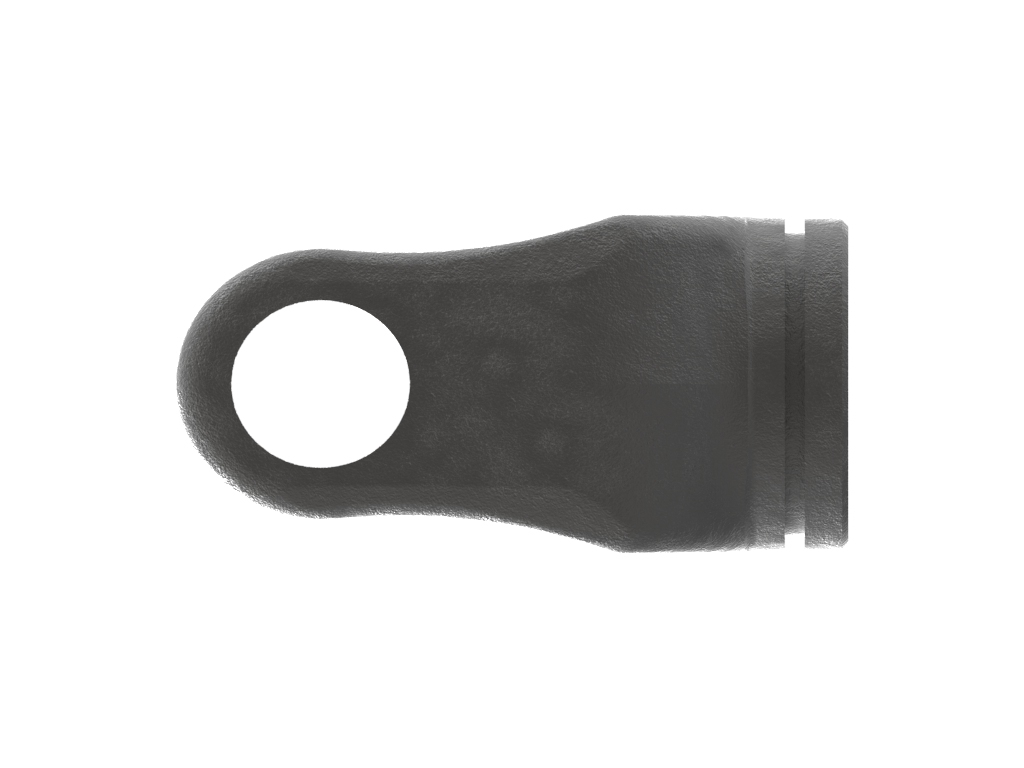

SHAFT WELD YOKE
77 Series Weld Yoke
77 series yoke with 1 7/8-20 spline bore and weld connection
Weasler yoke weldment assemblies provide yoke to shaft and yoke to tube weldment options that are offered in both North American (domestic) , German, and Italian shaft and tube shapes.
PERFORMANCE BENEFITS
Specifications
Product Series: 77
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter (Ear Hole) | 1.77 (1 49/64) in | 45 mm |
| Bearing Cap to Cap Span | 4.95 (4 61/64) in | 126 mm |
| Bore Description | 1 7/8-20 SPLINE | |
| Connection 1 Type | WELD | |
| HP@1000RPM | 264 HP | 197 kilowatts |
| HP@540RPM | 172 HP | 128 kilowatts |
| Centerline to End Dim | 5.25 (5 1/4) in | 133 mm |
| Bore 1 | 2.00 (2) in | 51 mm |
| Bore Description | 1 7/8-20 SPLINE | |
Related Products
| Product | Part Number |
|---|---|
| Cross & Bearing Kit | 201-7700 |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service-Instructions-Lubricating-PTO-Drive-Shaft | Maintenance Document | English |
| Service-Instructions-Universal-Joint | Service Document | English |
| Lack-of-Grease-Cross-Brg-Kit | Troubleshooting Document | English |
