6-50 Series Auto-lok Yoke

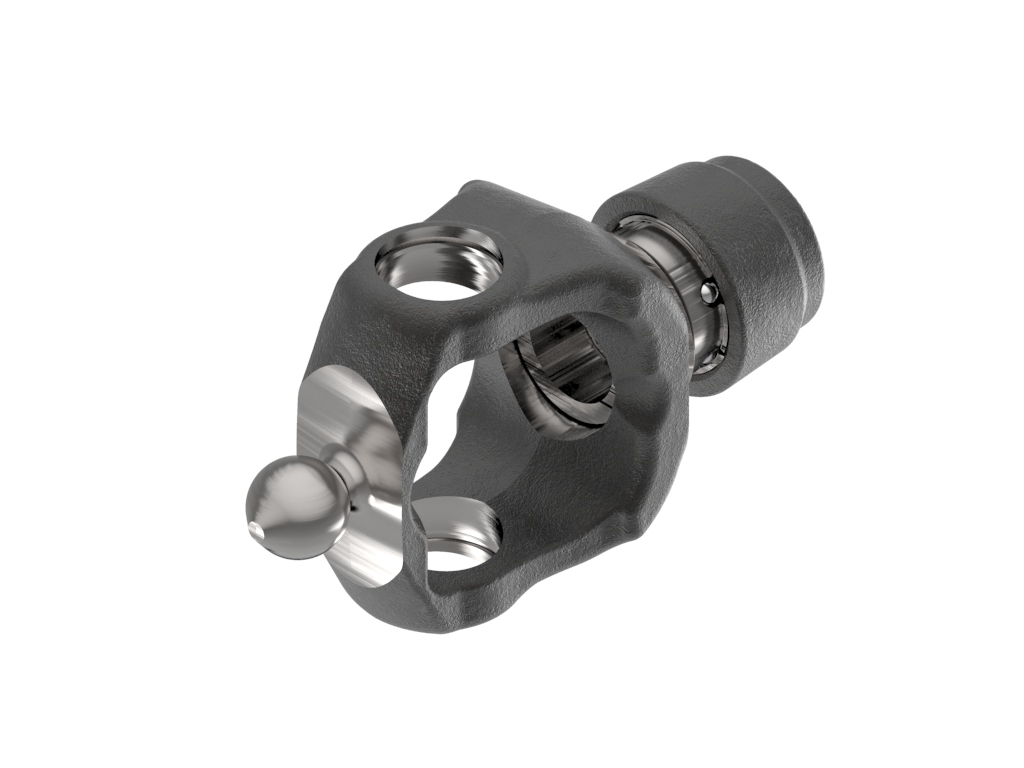

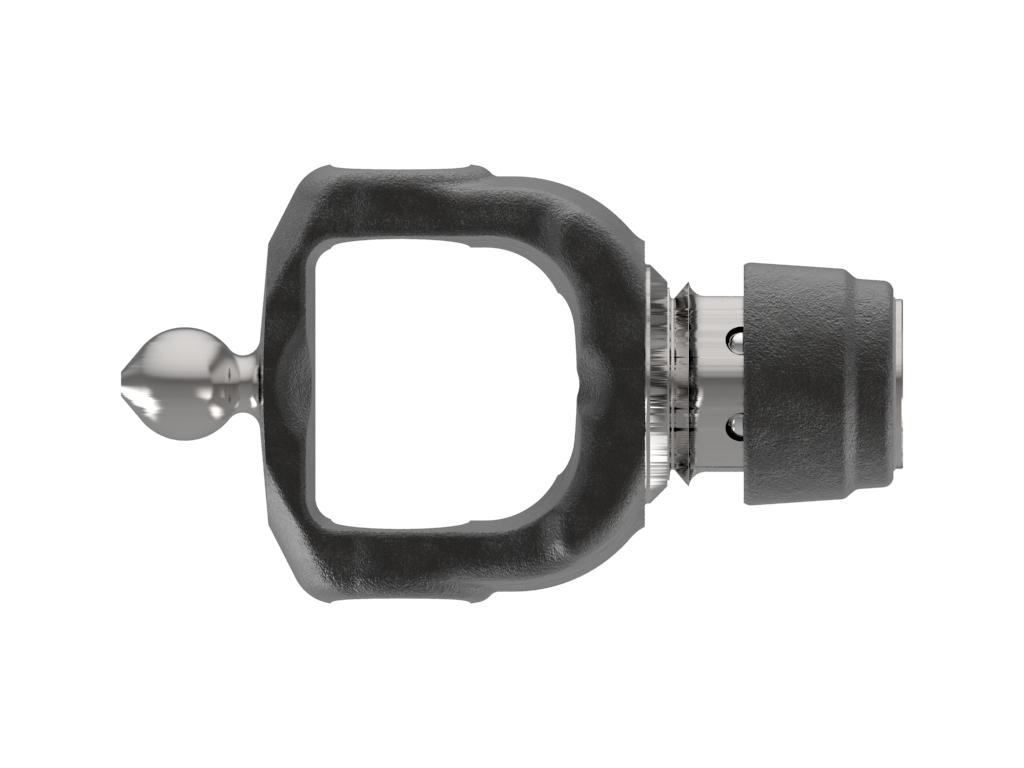

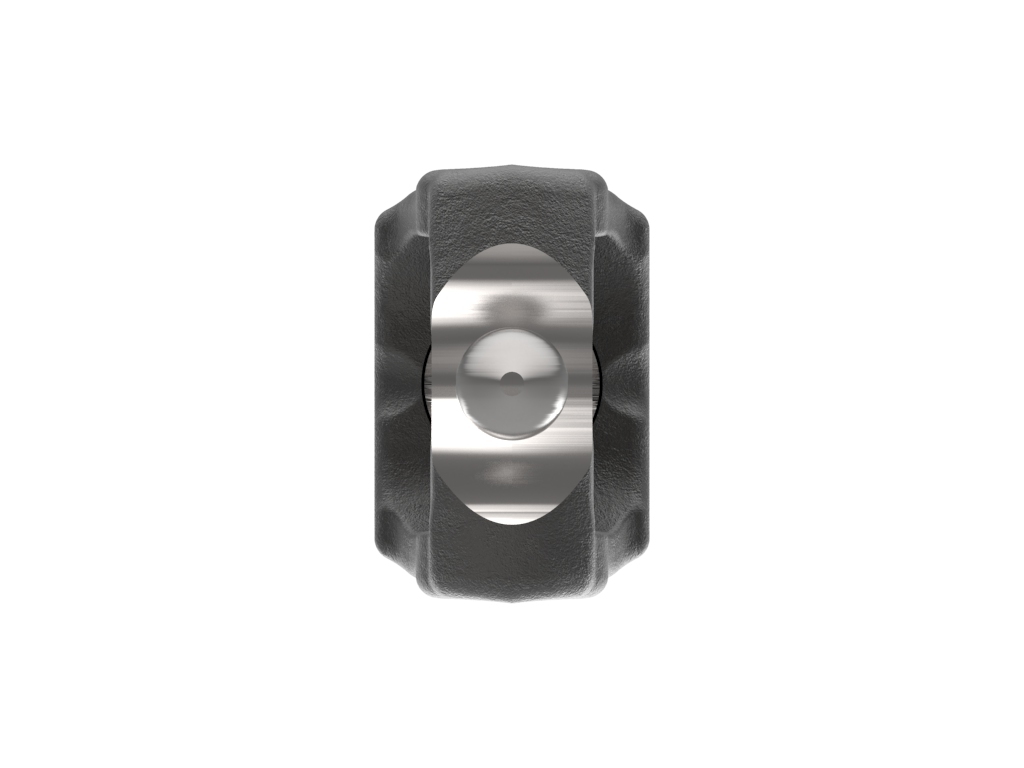

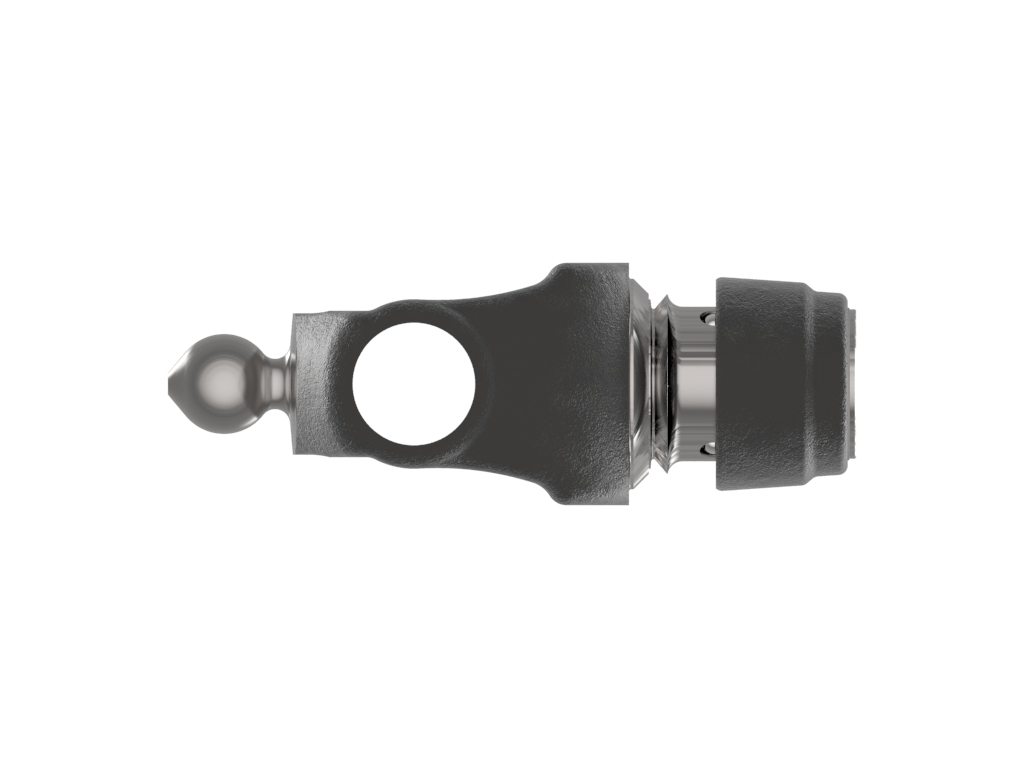

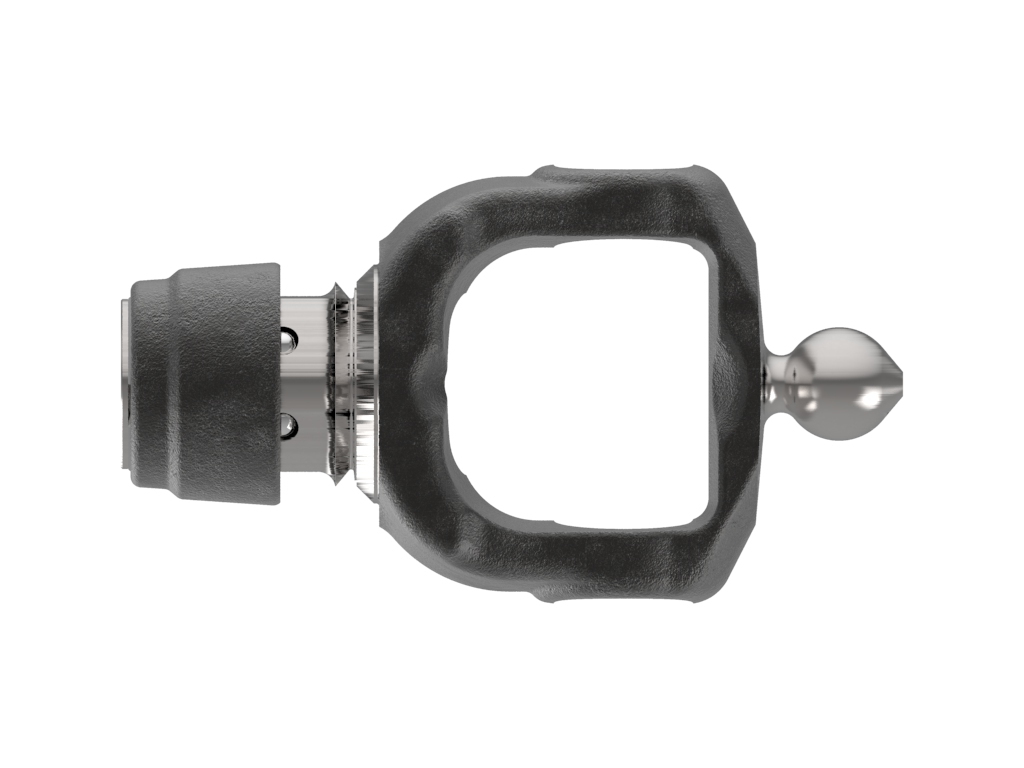

6-50 series yoke with 1 3/8-6 spline bore and auto-lok connection
PTO drive shafts begin with a tractor yoke, it is the leading connection between the the tractor and the driveline. Weasler provides the CV wide angle tractor yokes with auto-lok or safety slide lock connections, and all connection types can be included on a 50° CV or 80° CV drive shaft or assembly. All yokes are compliant with, ANSI/ASABE AD5673, ANSI/ASABE S604 and EN1265. Agricultural CV wide angle tractor yokes are offered in 1 3/8″ 6-spline (type 1), 1 3/8″ 21-spline (type 2), and 1 3/4″ 20-spline (type 3) options to fit the specific tractor connection needed.
PERFORMANCE BENEFITS
Specifications
Part Number: 151-5506
Product Series: 6-50
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter (Ear Hole) | 1.53 (1 17/32) in | 39 mm |
| Bearing Cap to Cap Span | 4.30 (4 19/64) in | 109 mm |
| Bore | 1.37 (1 3/8) in | 35 mm |
| Bore Description | 1 3/8-6 SPLINE | |
| Centerline to End Dim. | 5.53 (5 17/32) in | 140 mm |
| Weight | 7.17 pounds | 3 kilograms |
| Width | 3.00 (3) in | 76 mm |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service-Instructions-Lubricating-50-Deg-CV | Maintenance Document | English |
| Service-Instructions-CV-Joint | Service Document | English |
| Service-Instructions-Universal-Joint | Service Document | English |
| Lack-of-Grease-Cross-Brg-Kit | Troubleshooting Document | English |
| Lack-of-Grease-50-deg-Ball-Socket | Troubleshooting Document | English |
| 50-deg-CV-Joint-Over-Angle | Troubleshooting Document | English |
| WE0101001_0118_USL_50DegConstantVelocityJoint | Performance Benefits Document | English |
