Part Number: 302-5500

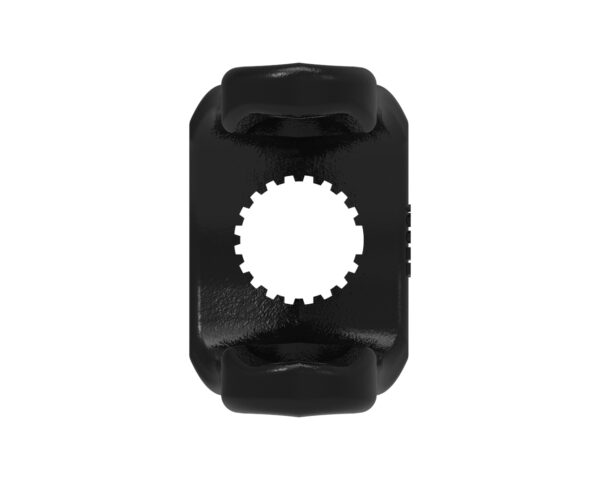

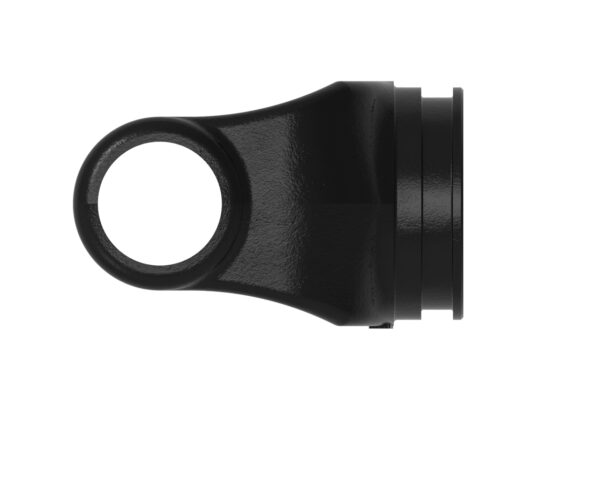

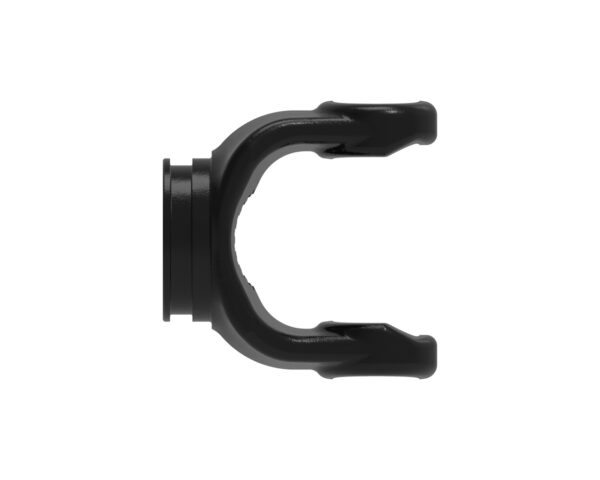

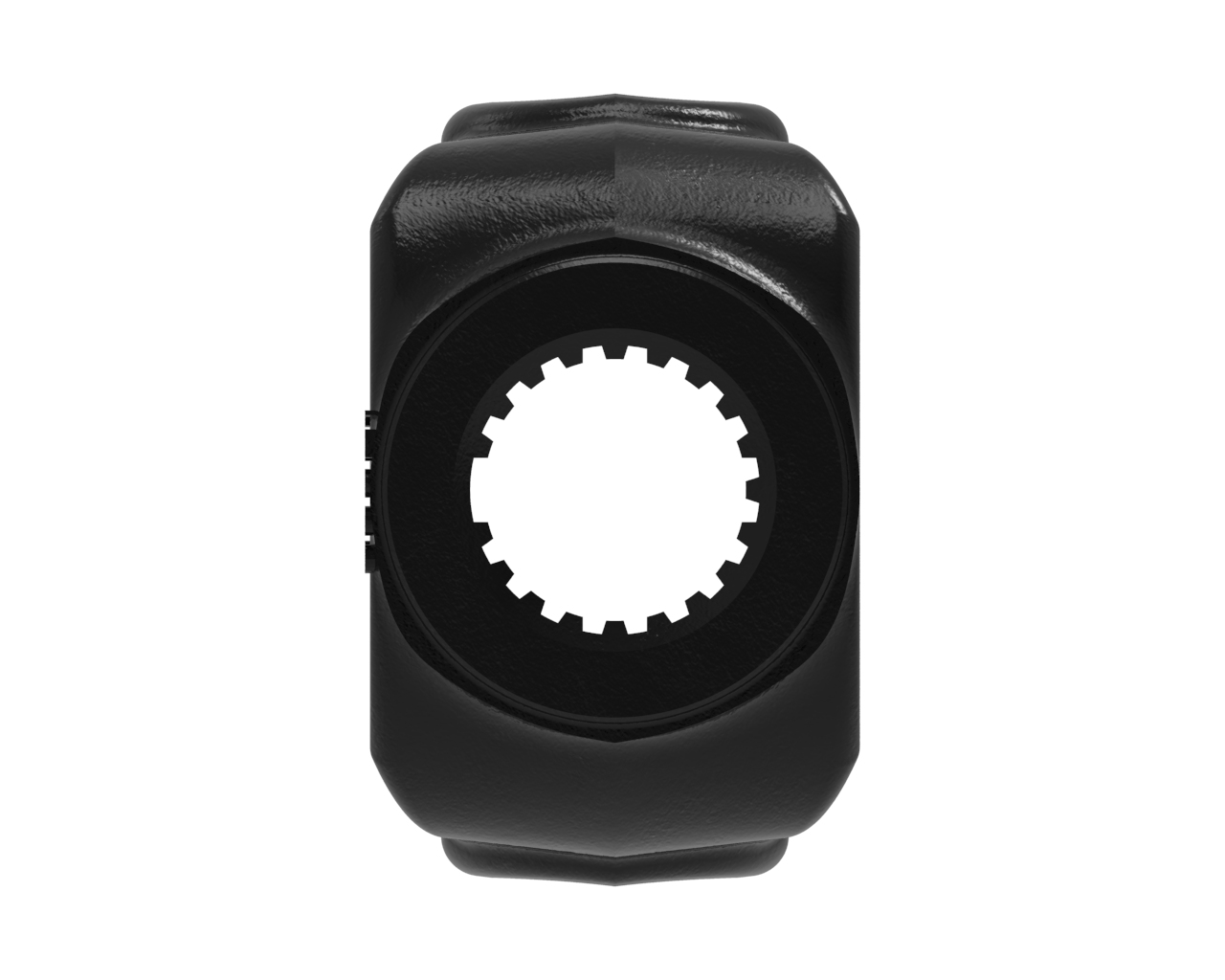

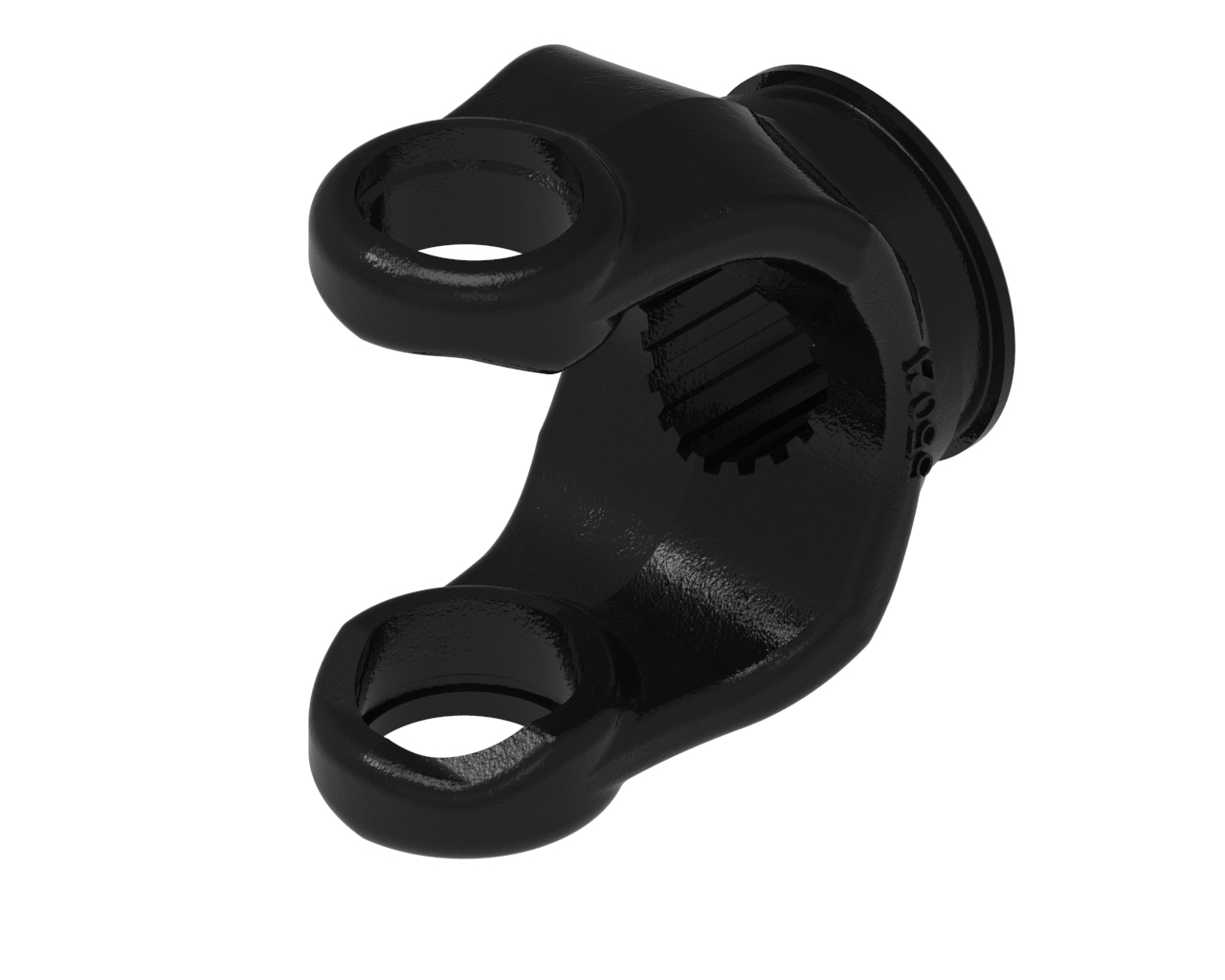

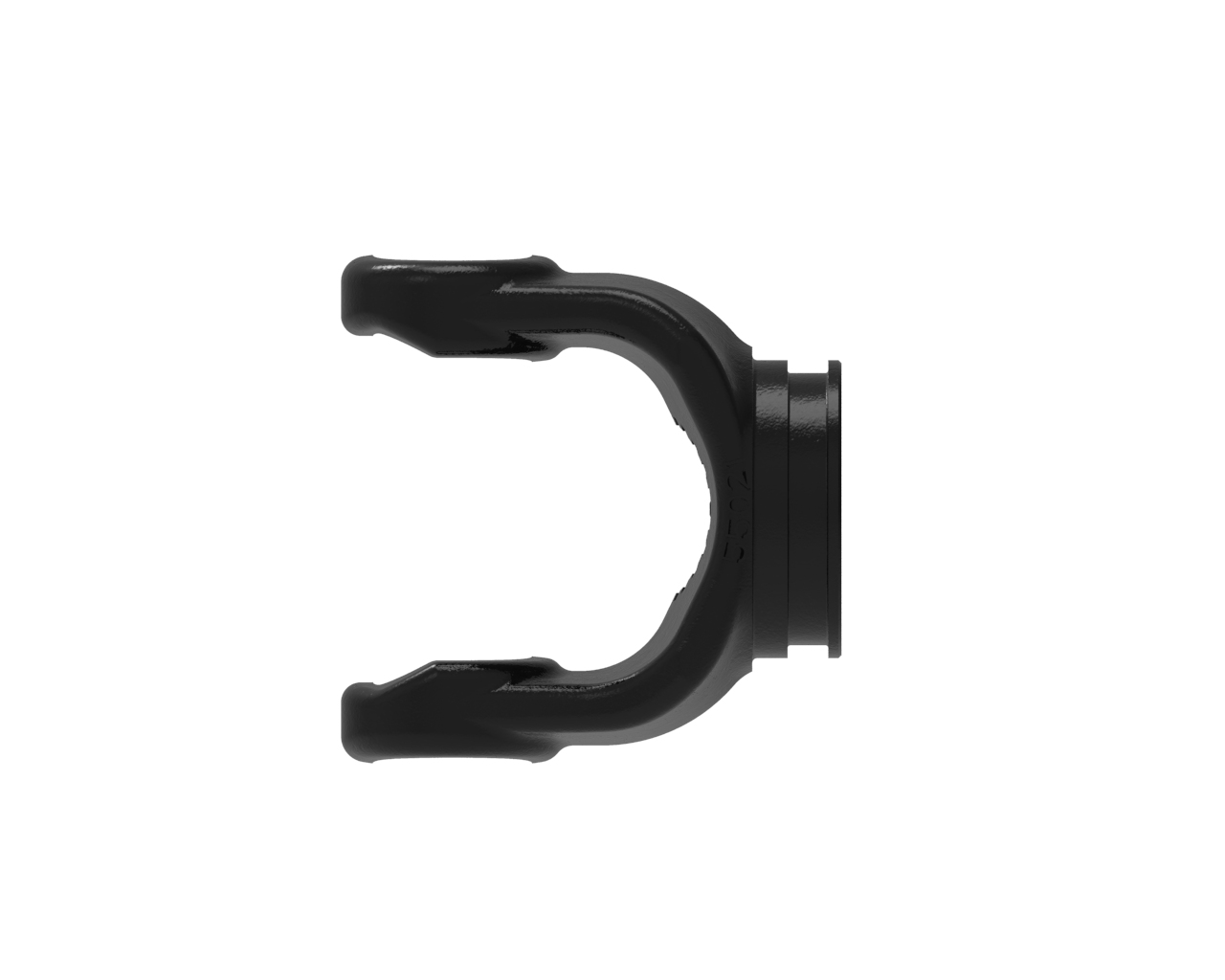

SHAFT WELD YOKE
55 Series Weld Yoke
55 series yoke with 1 11/16-20 spline bore and weld connection
Weasler yoke weldment assemblies provide yoke to shaft and yoke to tube weldment options that are offered in both North American (domestic) , German, and Italian shaft and tube shapes.
PERFORMANCE BENEFITS
Specifications
Product Series: 55
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter (Ear Hole) | 1.53 (1 17/32) in | 39 mm |
| Bearing Cap to Cap Span | 4.30 (4 19/64) in | 109 mm |
| Bore Description | 1 11/16-20 SPLINE | |
| Connection 1 Type | WELD | |
| HP@1000RPM | 211 HP | 157 kilowatts |
| HP@540RPM | 137 HP | 102 kilowatts |
| Centerline to End Dim | 3.75 (3 3/4) in | 95 mm |
| Weight | 4.98 pounds | 2 kilograms |
| Bore 1 | 1.75 (1 3/4) in | 44 mm |
| Bore Description | 1 11/16-20 SPLINE | |
Related Products
| Product | Part Number |
|---|---|
| Cross & Bearing Kit | 200-5500 |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service-Instructions-Lubricating-PTO-Drive-Shaft | Maintenance Document | English |
| Service-Instructions-Universal-Joint | Service Document | English |
| Lack-of-Grease-Cross-Brg-Kit | Troubleshooting Document | English |
