807-5520
CLAMP YOKE55 Series Clamp Yoke

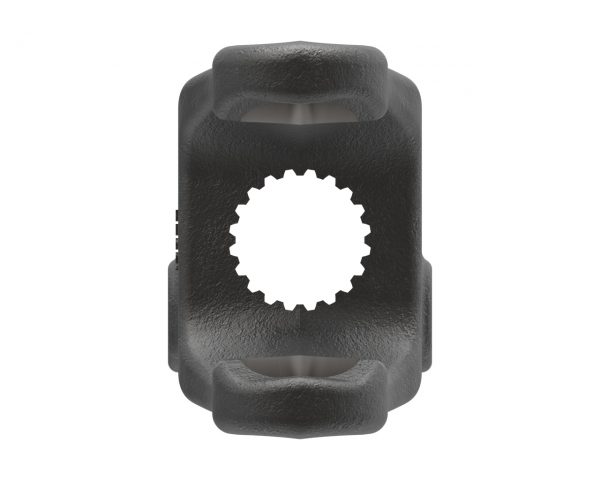

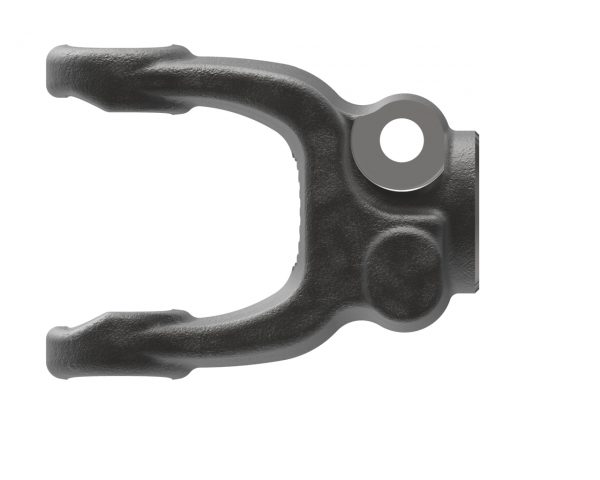

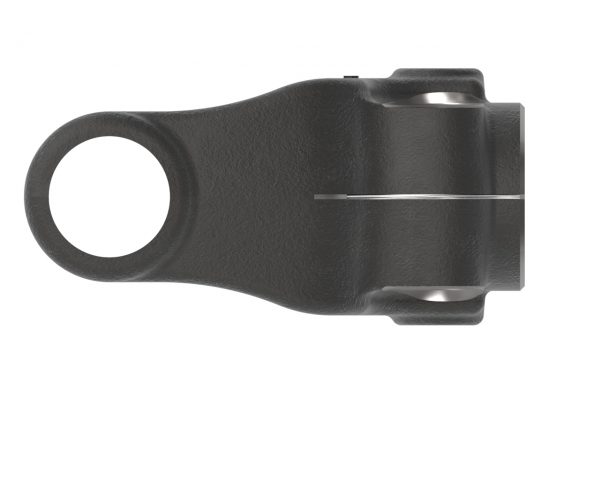

55 series yoke with 1 3/4-20 spline bore and clamp connection
The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.75 inches | 44 mm |
| Bore 1 | 1 3/4-20 SPLINE | |
| Connection 1 | CLAMP | |
| Height | 5.12 inches | 130 mm |
| HP@1000RPM | 211 HP | 157 kilowatts |
| HP@540RPM | 137 HP | 102 kilowatts |
| Length | 5.25 inches | 133 mm |
| Shipping Dimensions | 6.33" L × 5.125" H × 2.63" W | 16cm L × 13cm H × 7cm W |
| Shipping Volume | 85.32 in3 | 1398 cm3 |
| Shipping Weight | 5.31 pounds | 2 kilograms |
| Weight | 5.31 pounds | 2 kilograms |
| Width | 2.63 inches | 67 mm |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
