203-3540

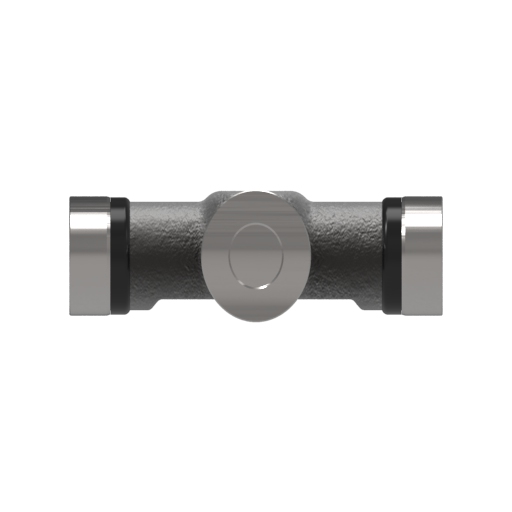

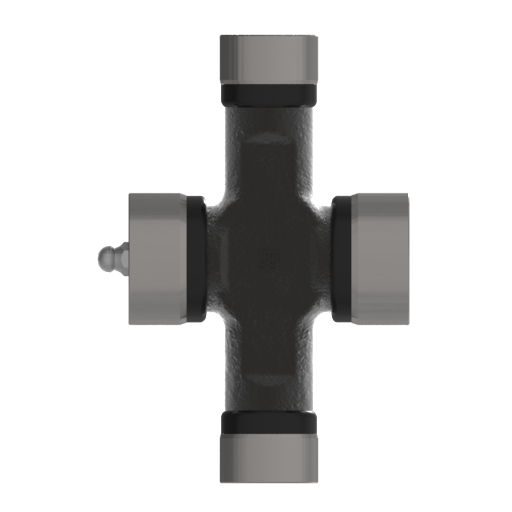

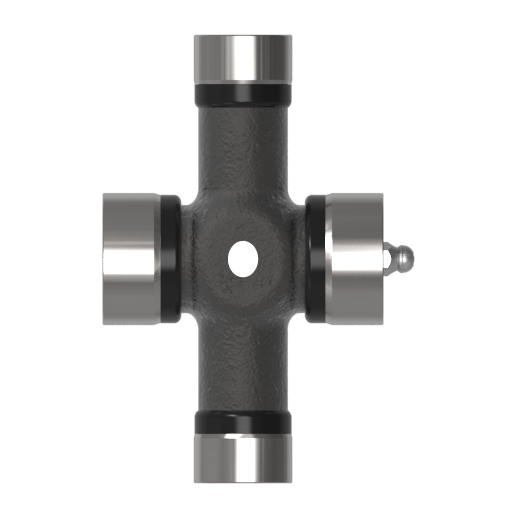

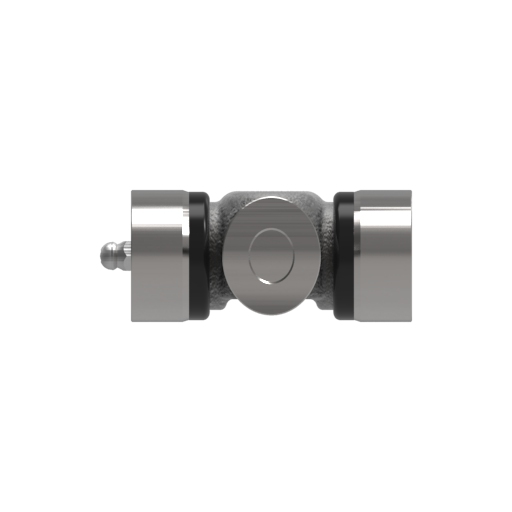

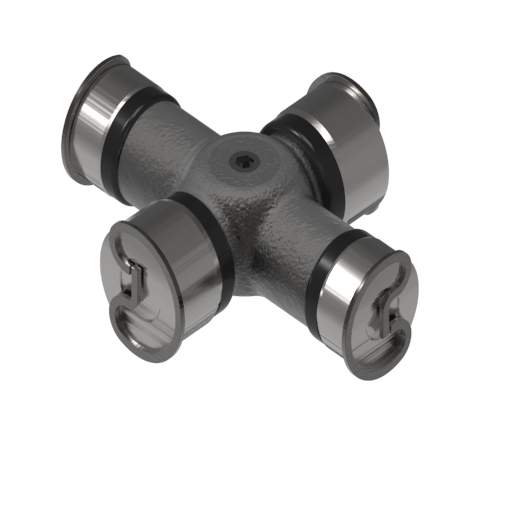

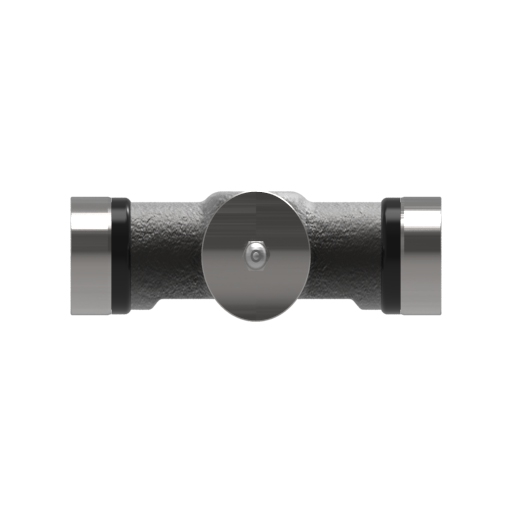

4-80 Series Cross And Bearing Kit

4-80 series cross and bearing kit, r standard, cup grease fitting

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

R-Kits are standard and offer a high quality lube cycle of 8 hours which is acceptable for many applications. R-kits, E-kits, and M-kits are interchangeable for all available Weasler series as well as with standard cross and bearing sets in the market. This means that a Weasler PTO drive shaft with R-kits can still be upgraded to E-kits or M-kits.

PERFORMANCE BENEFITS
• Lubrication cycle of up to 8 hours.
• Interchangeable with standard North American cross and bearing kits available in the market.
• Easier grease access through the guard, no need to remove guard.

DESIGN FEATURES
• A black seal with grease fitting makes it fast and easy to find a P-Kit.

Specifications

Spec. Imperial Metric
Bearing Diameter1.18 inches30 mm
Bearing Span3.61 inches92 mm
Bearing Diameter1.12 inches28 mm
Bearing Span4.24 inches108 mm
Height1.26 inches32 mm
HP@1000RPM99 HP74 kilowatts
HP@540RPM64 HP48 kilowatts
Kit Type R
Length3.18 inches81 mm
Lubrication Interval 8.00
Shipping Dimensions3.189" L  ×  1.26" H  ×  4.248" W8cm L  ×  3cm H  ×  11cm W
Shipping Volume17.07 in3280 cm3
Shipping Weight1.68 pounds1 kilograms
Snap Ring Location External
Weight1.68 pounds1 kilograms
Width4.24 inches108 mm

Downloads

Document Name Type Language
Service-Instructions-Lubricating-PTO-Drive-Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
WE0101007_0118_USL_EKit.pdf Performance Benefits Document English
