Part Number: 850-3520

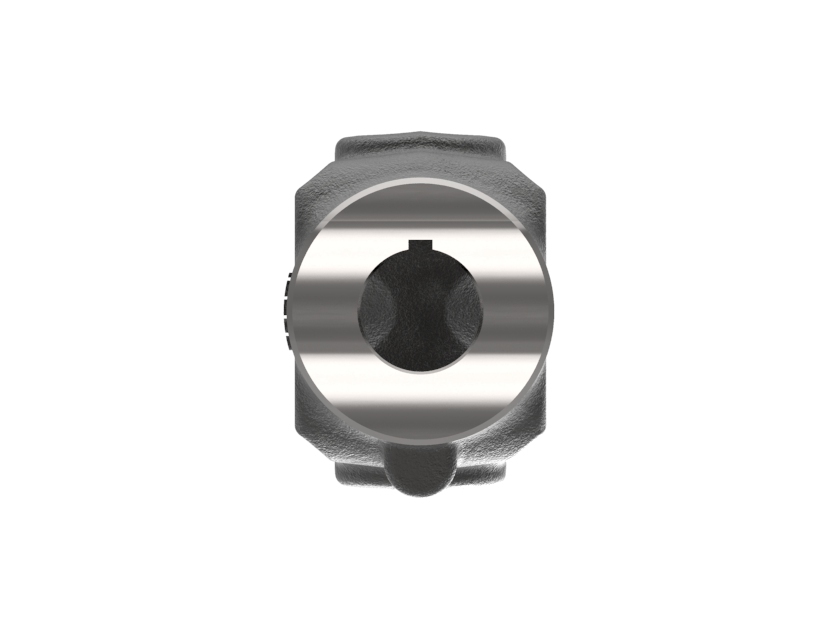

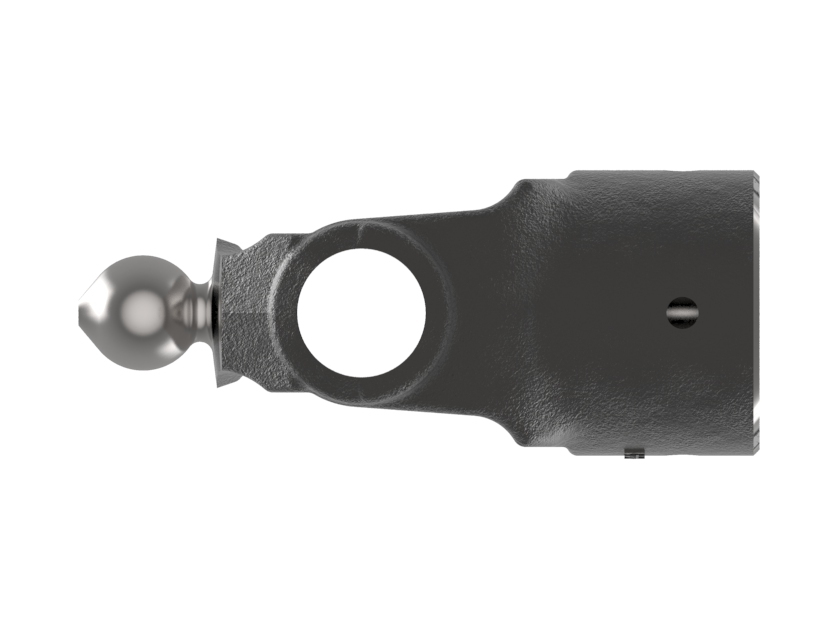

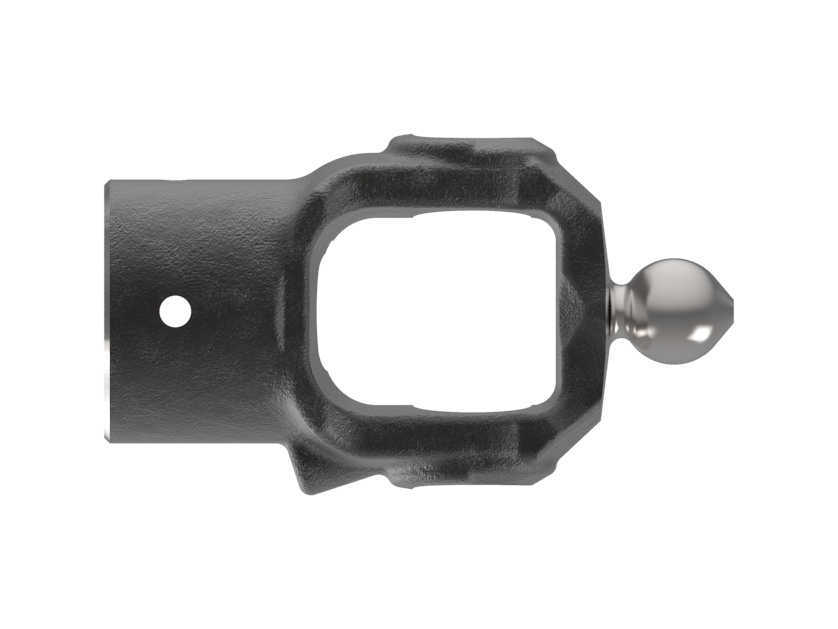

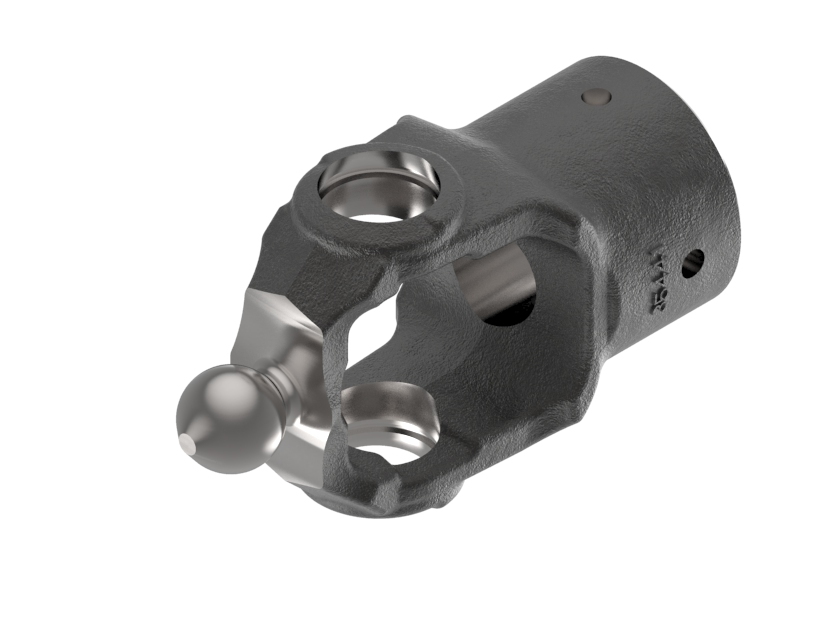

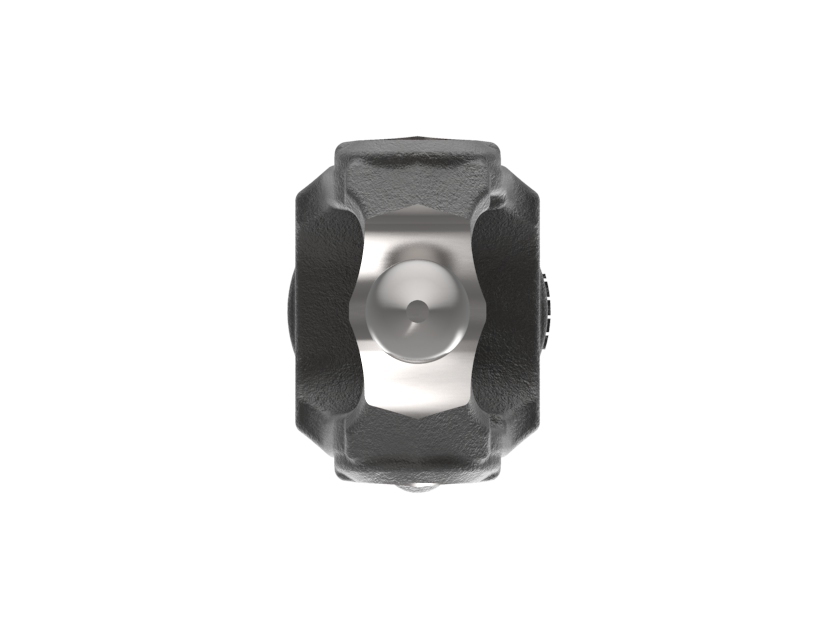

CV WIDE ANGLE IMPLEMENT YOKE
4-50 Series Pin, Setscrew Yoke
4-50 series yoke with round with keyway bore and pin, setscrew connection
PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler CV wide angle implement yokes are provided in a variety of bore and mounting options.
PERFORMANCE BENEFITS
Specifications
Part Number: 850-3520
Product Series: 4-50
| Spec. | Imperial | Metric |
|---|---|---|
| Connection | PIN, SETSCREW | |
| Centerline to End Dim. | 3.87 (3 7/8) in | 98 mm |
| Pin Hole | 0.33 (21/64) in | 8 mm |
| Setscrew | 3/8-16 | |
| Bearing Diameter (Ear Hole) | 1.25 (1 1/4) in | 32 mm |
| Bearing Cap to Cap Span | 3.20 (3 13/64) in | 81 mm |
| Bore | 1.75 (1 3/4) in | 44 mm |
| Bore Description | ROUND WITH KEYWAY | |
| Connection | PIN, SETSCREW | |
| Keyway | 0.25 (1/4) in | 6 mm |
| Weight | 0.00 pounds | 0 kilograms |
Related Products
| Product | Part Number |
|---|---|
| Cross & Bearing Kit | 200-3500 |
| Setscrew | 3/8-16 |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service-Instructions-Lubricating-50-Deg-CV | Maintenance Document | English |
| Service-Instructions-CV-Joint | Service Document | English |
| Service-Instructions-Universal-Joint | Service Document | English |
| Lack-of-Grease-Cross-Brg-Kit | Troubleshooting Document | English |
| Lack-of-Grease-50-deg-Ball-Socket | Troubleshooting Document | English |
| 50-deg-CV-Joint-Over-Angle | Troubleshooting Document | English |
| WE0101001_0118_USL_50DegConstantVelocityJoint | Performance Benefits Document | English |
