Part Number: 302-3500

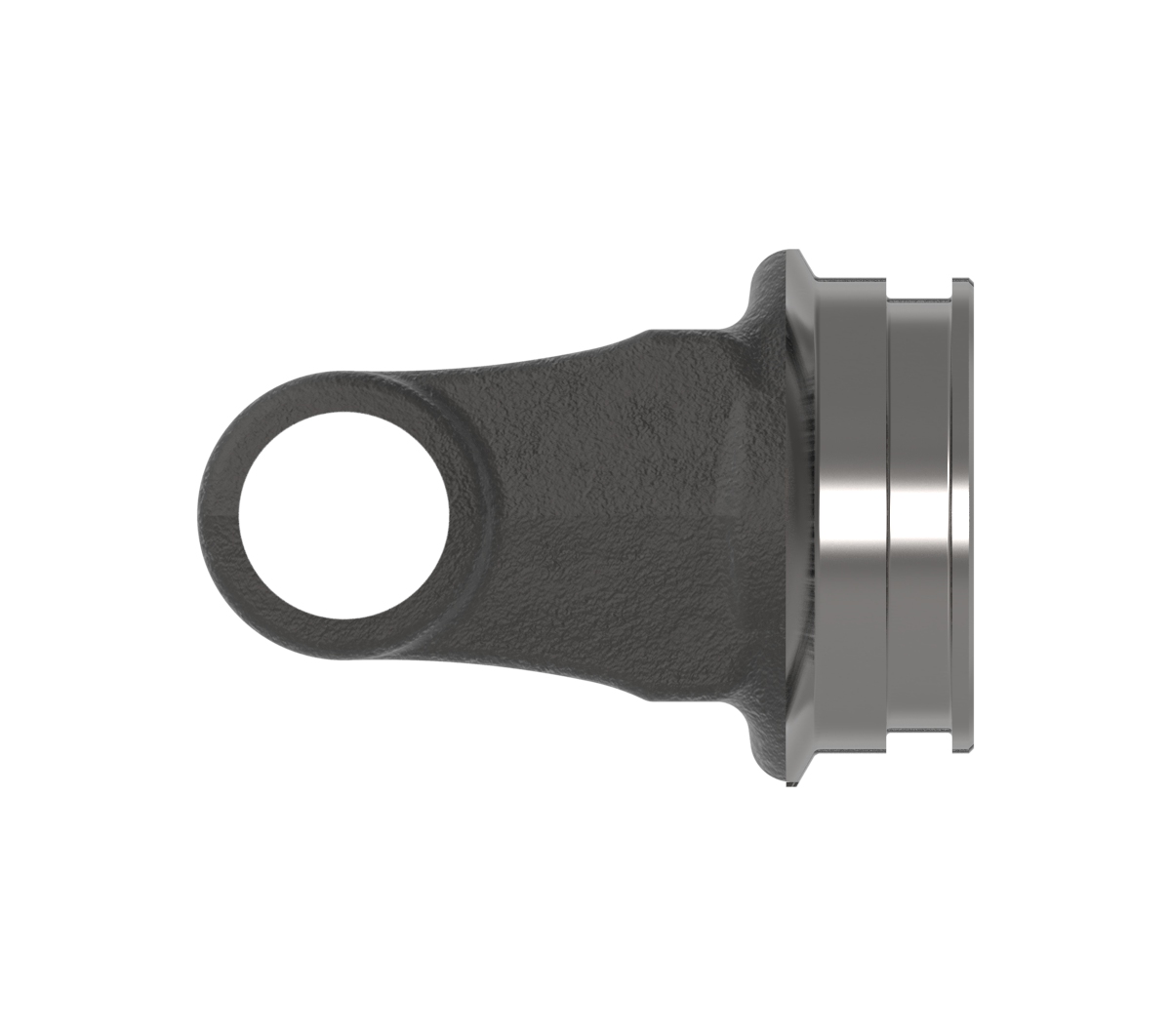

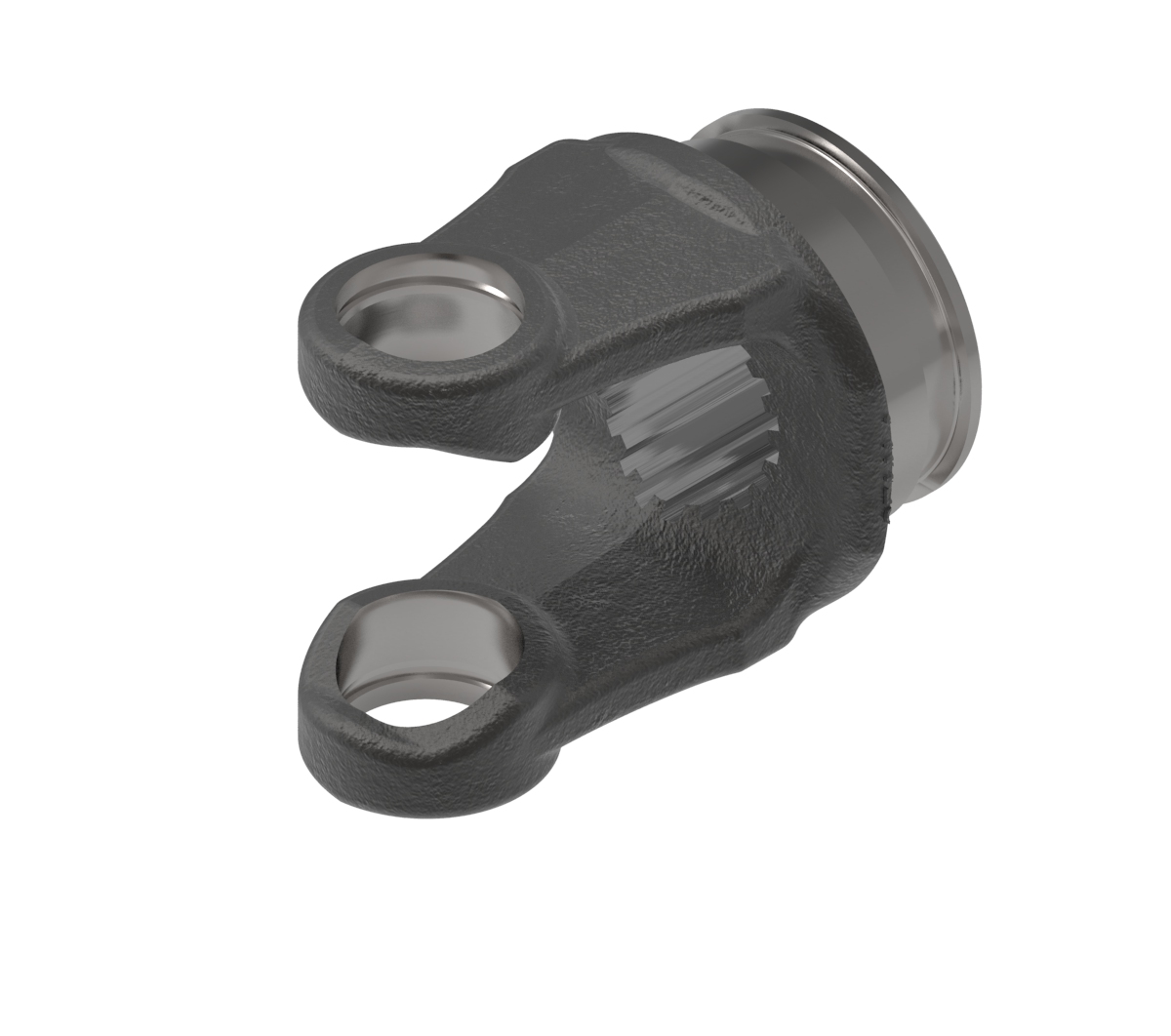

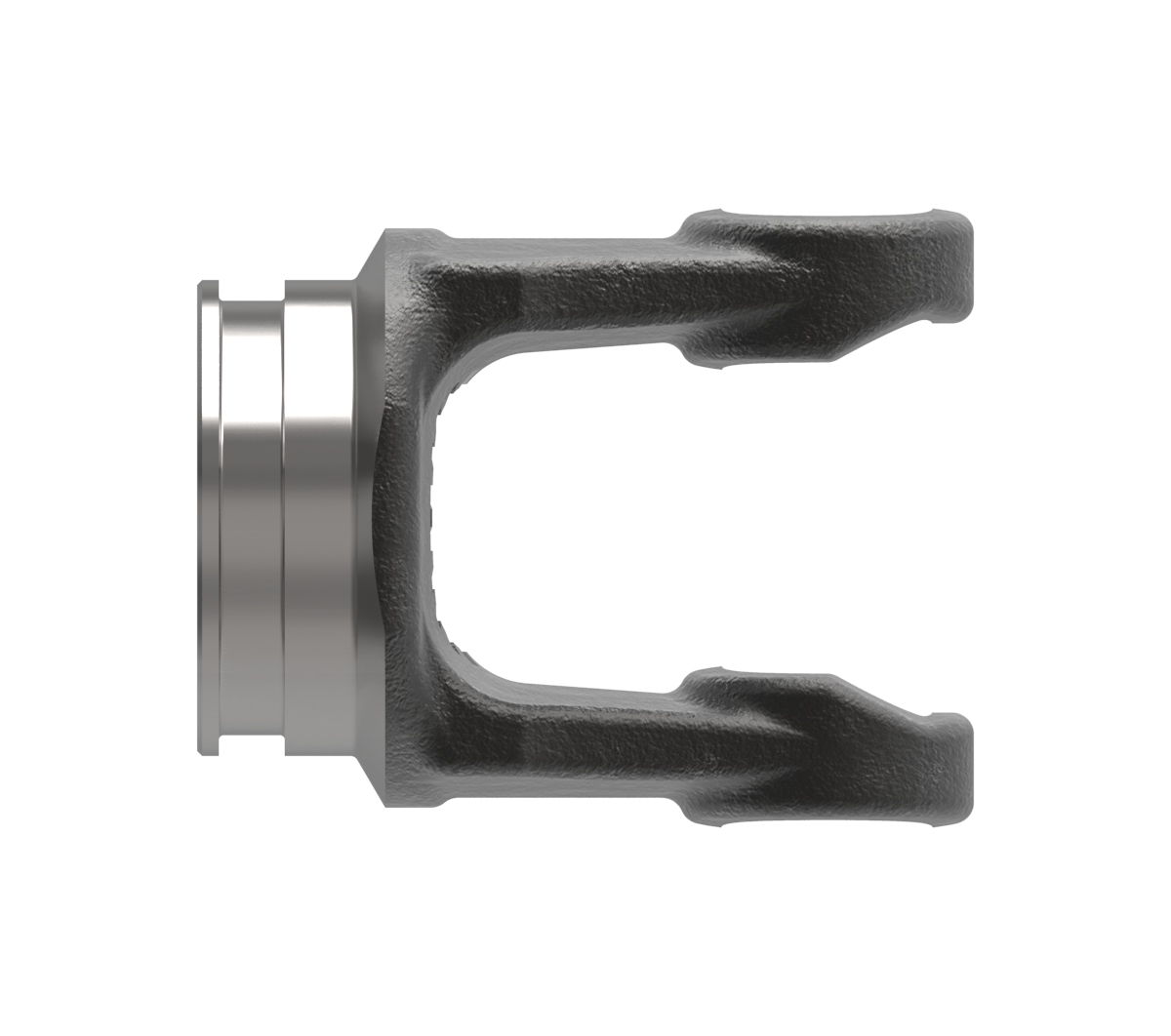

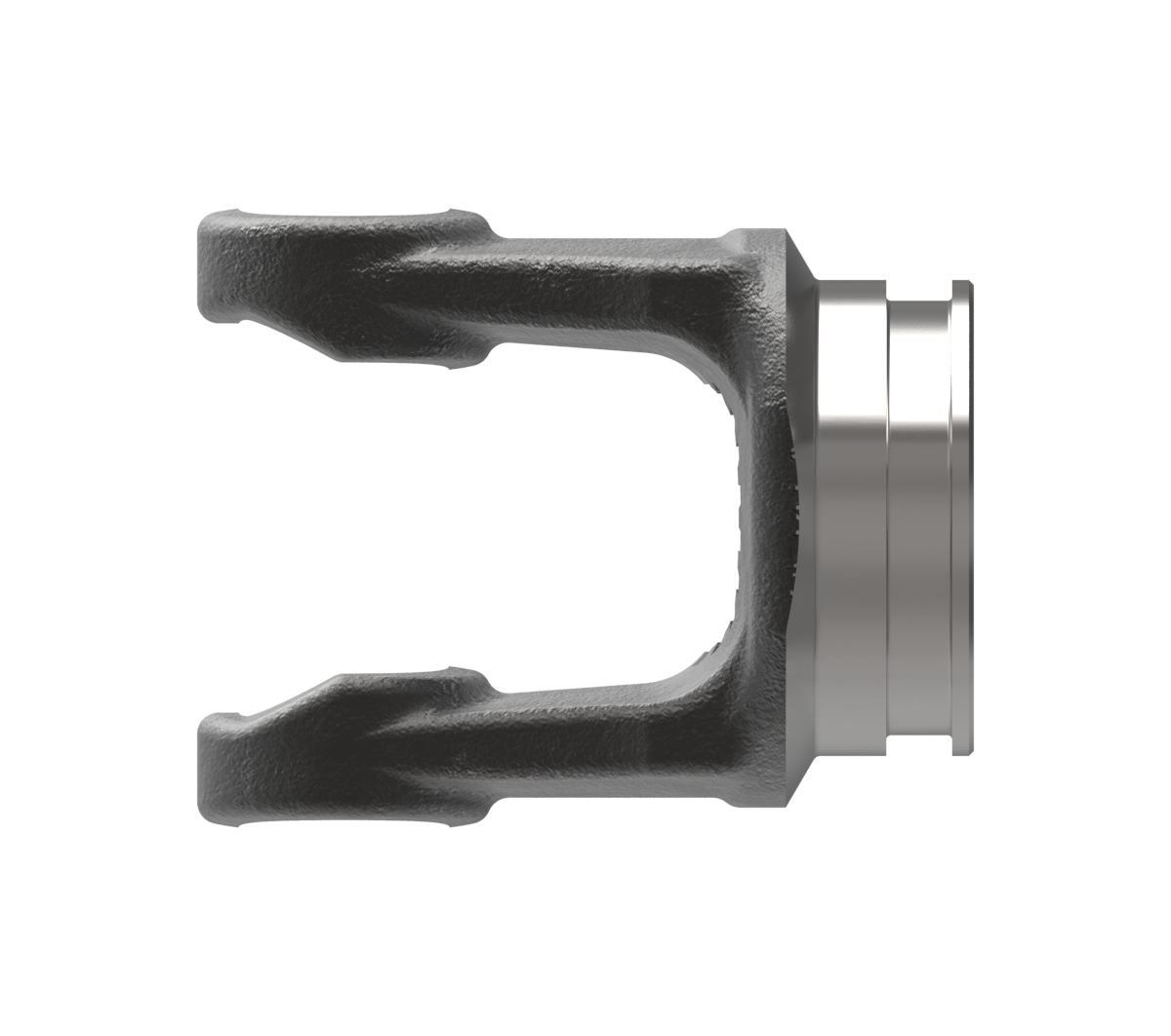

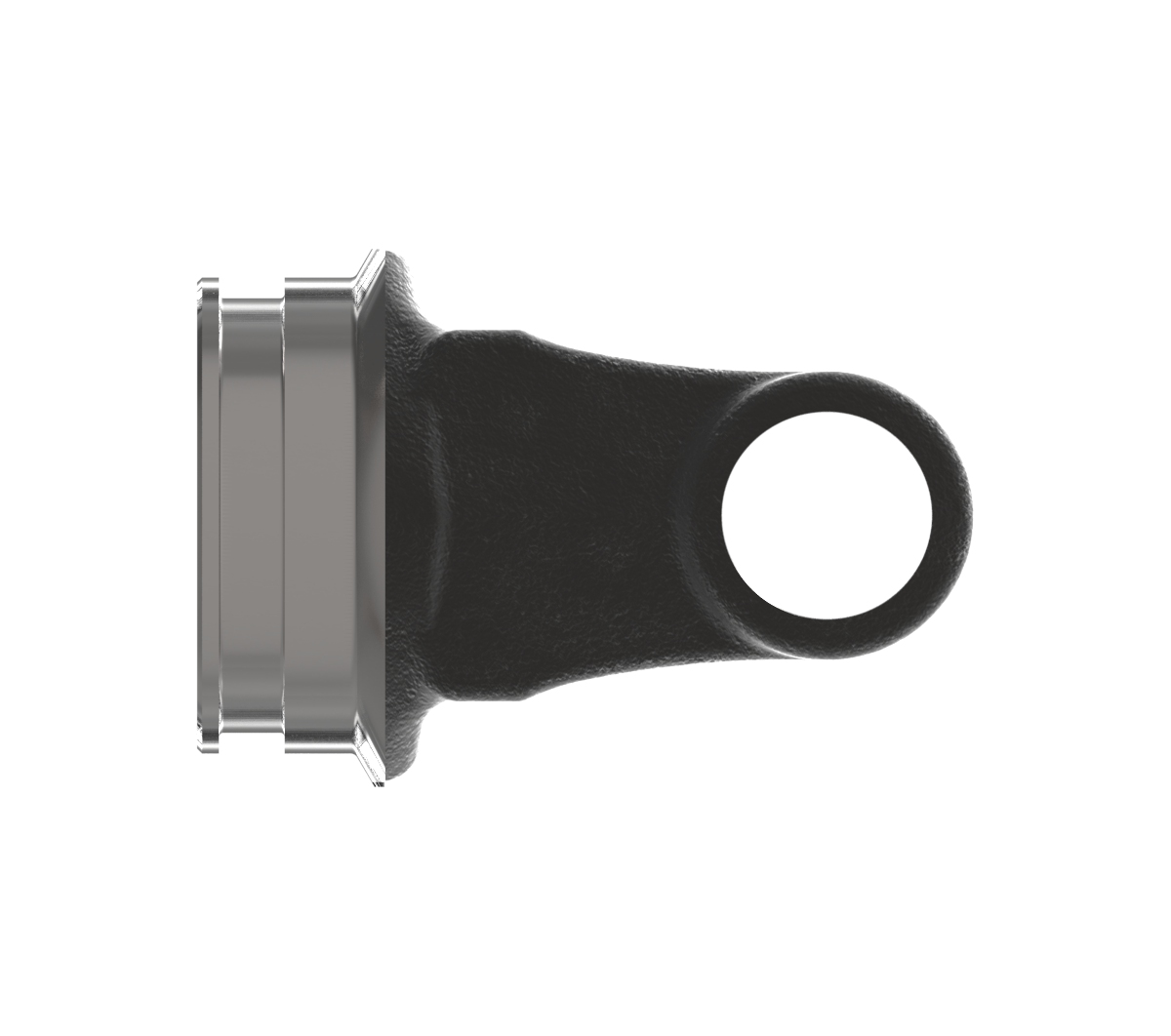

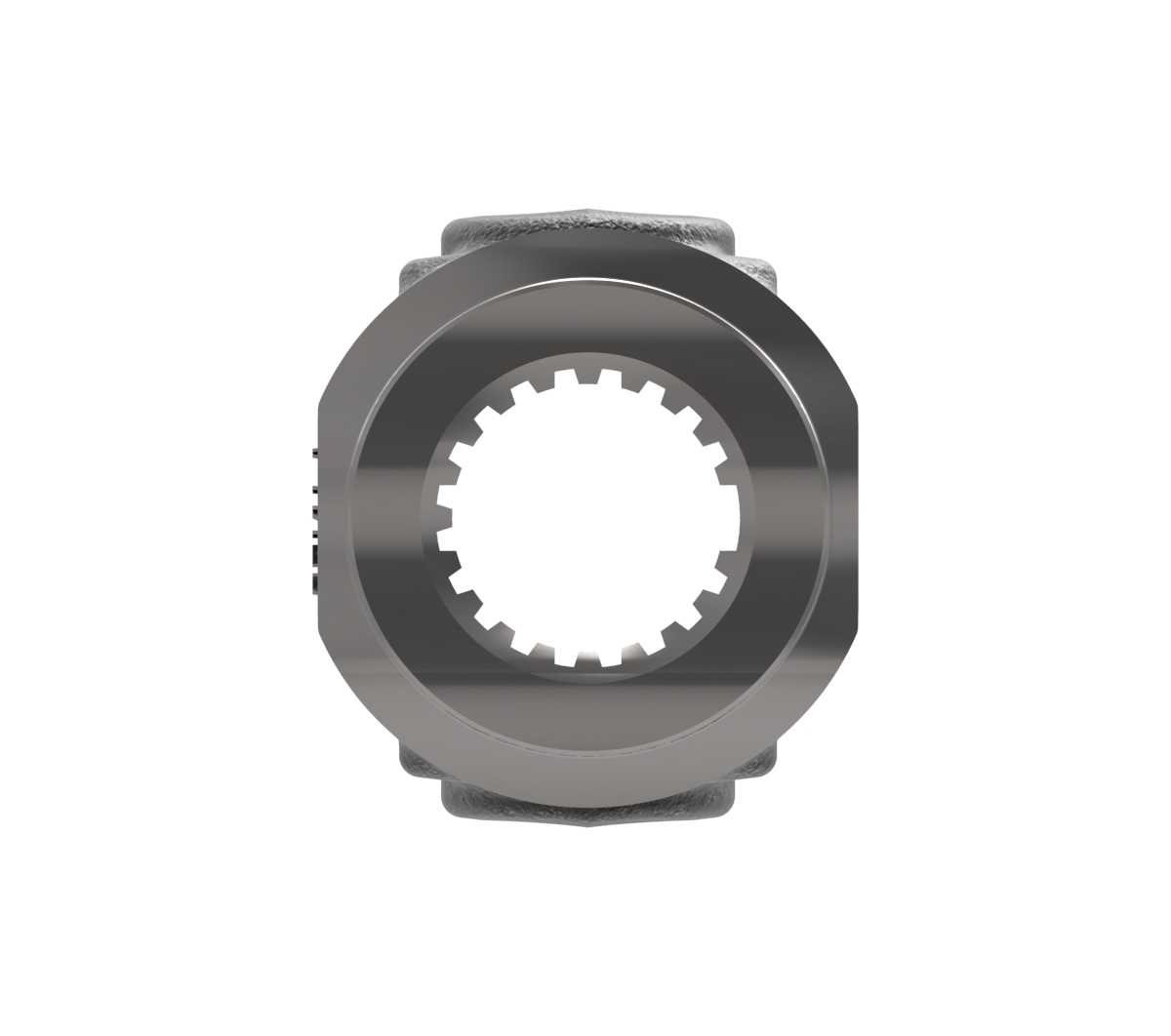

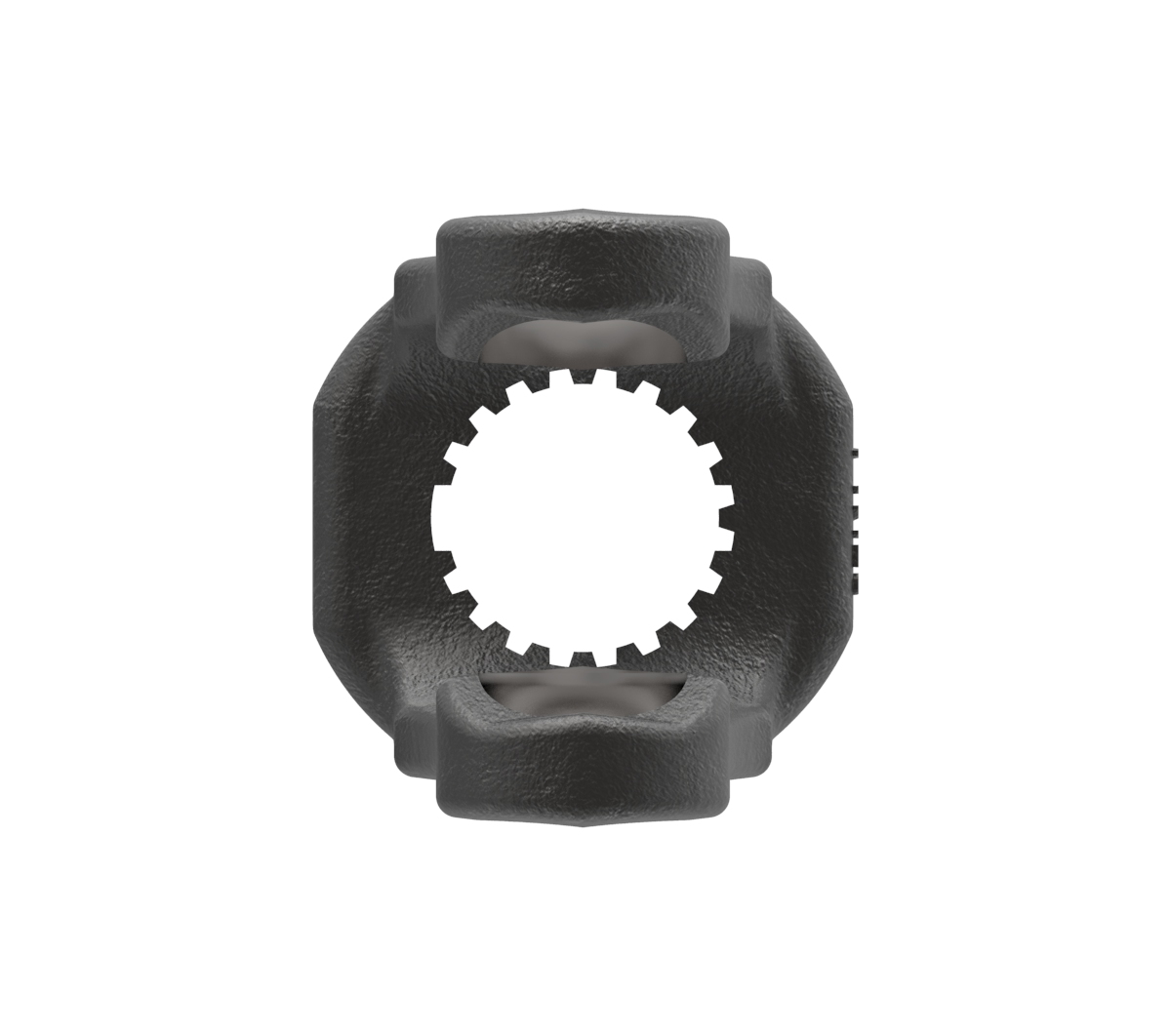

SHAFT WELD YOKE
35 Series Weld Yoke
35 series yoke with 1 11/16-20 spline bore and weld connection
Weasler yoke weldment assemblies provide yoke to shaft and yoke to tube weldment options that are offered in both North American (domestic) , German, and Italian shaft and tube shapes.
PERFORMANCE BENEFITS
Specifications
Product Series: 35
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter (Ear Hole) | 1.25 (1 1/4) in | 32 mm |
| Bearing Cap to Cap Span | 3.20 (3 13/64) in | 81 mm |
| Bore Description | 1 11/16-20 SPLINE | |
| Connection 1 Type | WELD | |
| HP@1000RPM | 108 HP | 81 kilowatts |
| HP@540RPM | 70 HP | 52 kilowatts |
| Centerline to End Dim | 3.75 (3 3/4) in | 95 mm |
| Weight | 3.36 pounds | 2 kilograms |
| Bore 1 | 1.75 (1 3/4) in | 44 mm |
| Bore Description | 1 11/16-20 SPLINE | |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service-Instructions-Lubricating-PTO-Drive-Shaft | Maintenance Document | English |
| Service-Instructions-Universal-Joint | Service Document | English |
| Lack-of-Grease-Cross-Brg-Kit | Troubleshooting Document | English |
