Part Number: 301-3500

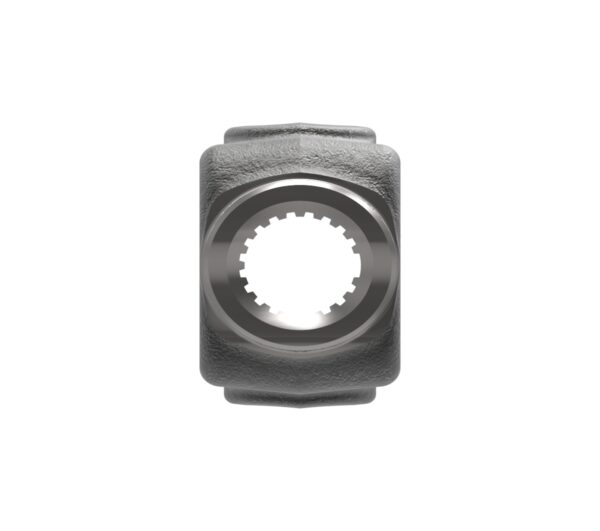

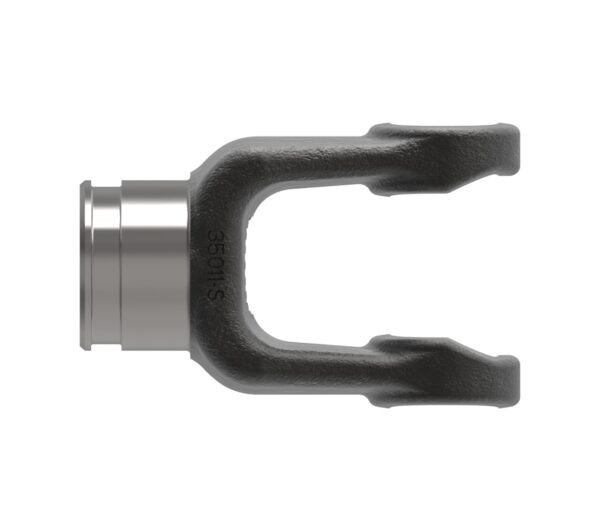

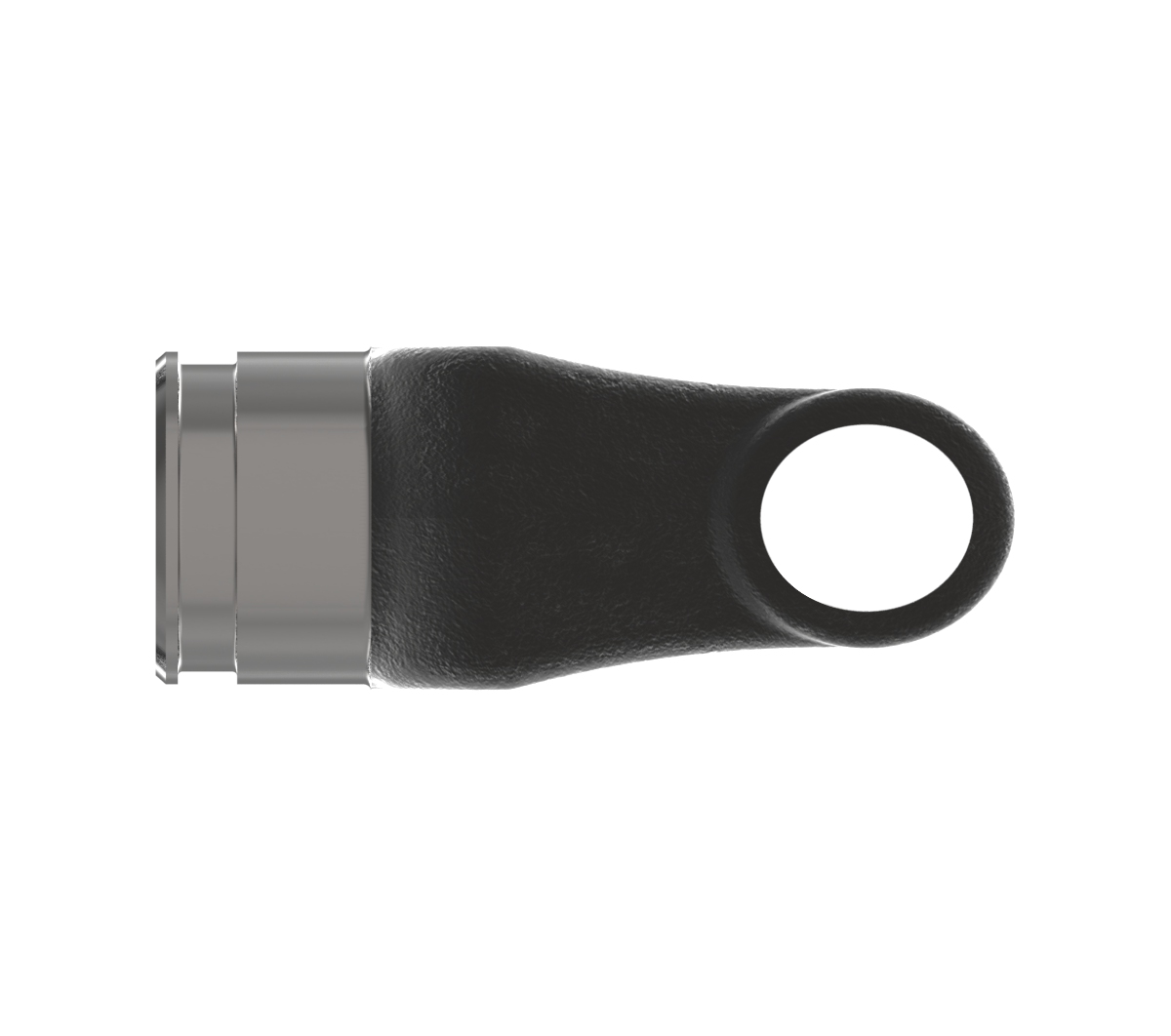

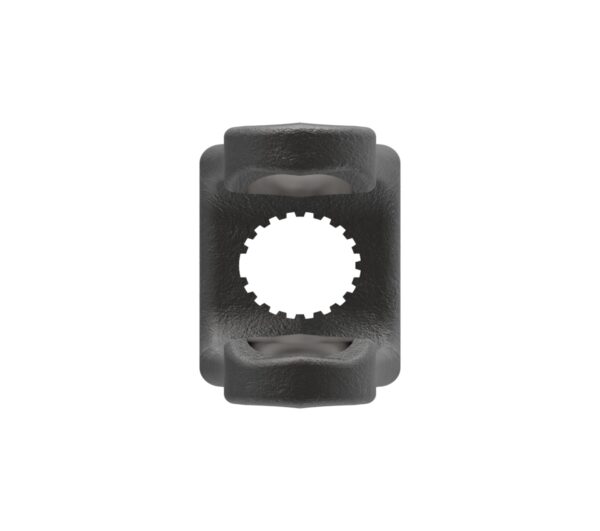

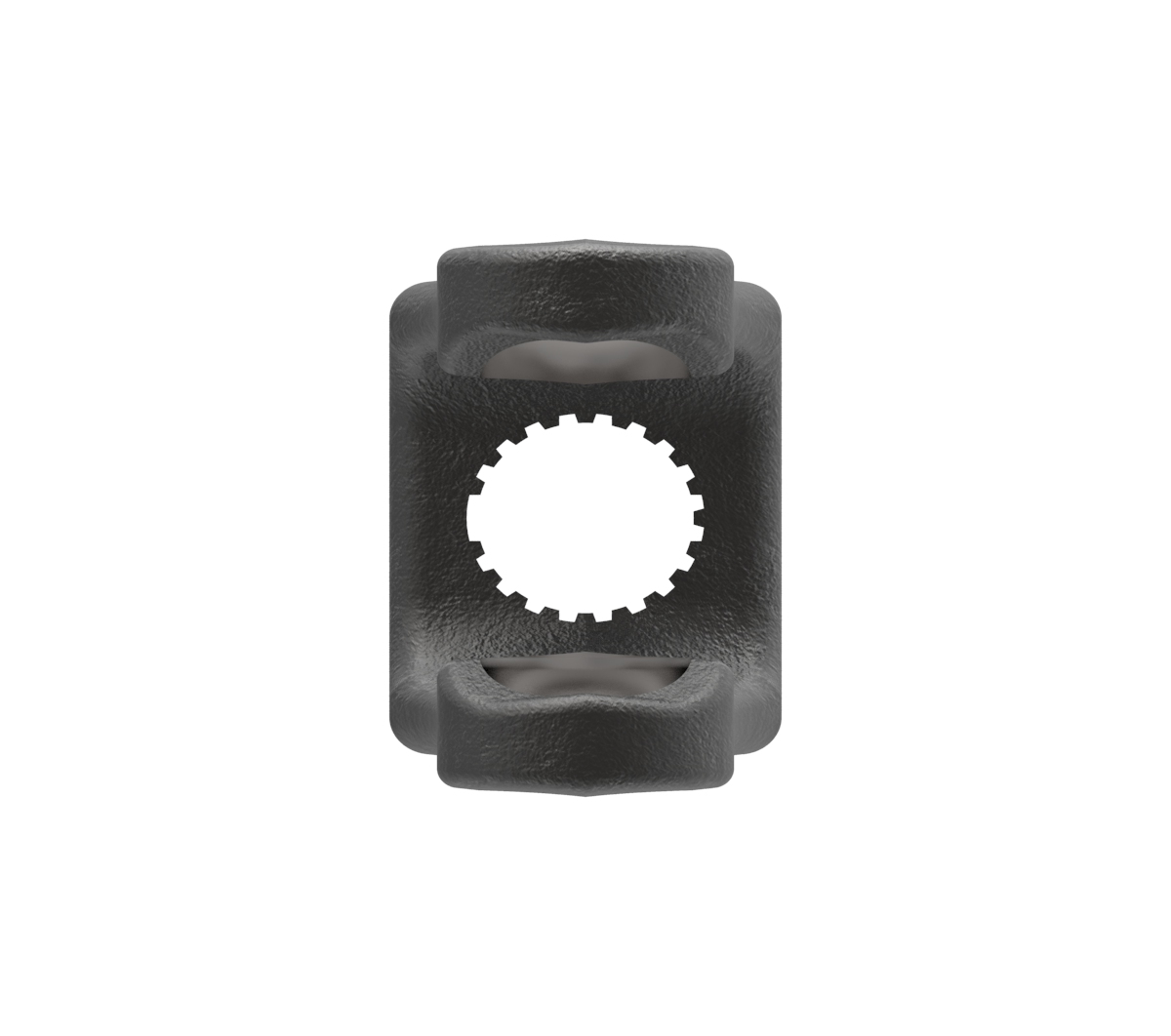

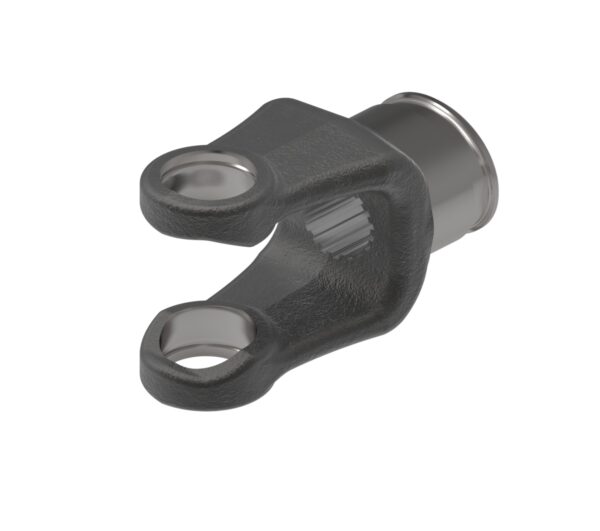

SHAFT WELD YOKE
35 Series Weld Yoke
35 series yoke with 1 5/16-20 spline bore and weld connection
Weasler yoke weldment assemblies provide yoke to shaft and yoke to tube weldment options that are offered in both North American (domestic) , German, and Italian shaft and tube shapes.
PERFORMANCE BENEFITS
Specifications
Product Series: 35
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter (Ear Hole) | 1.25 (1 1/4) in | 32 mm |
| Bearing Cap to Cap Span | 3.22 (3 7/32) in | 82 mm |
| Bore Description | 1 5/16-20 SPLINE | |
| Connection 1 Type | WELD | |
| HP@1000RPM | 108 HP | 81 kilowatts |
| HP@540RPM | 70 HP | 52 kilowatts |
| Centerline to End Dim | 4.18 (4 3/16) in | 106 mm |
| Weight | 3.16 pounds | 1 kilograms |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service-Instructions-Lubricating-PTO-Drive-Shaft | Maintenance Document | English |
| Service-Instructions-Universal-Joint | Service Document | English |
| Lack-of-Grease-Cross-Brg-Kit | Troubleshooting Document | English |
