807-3521

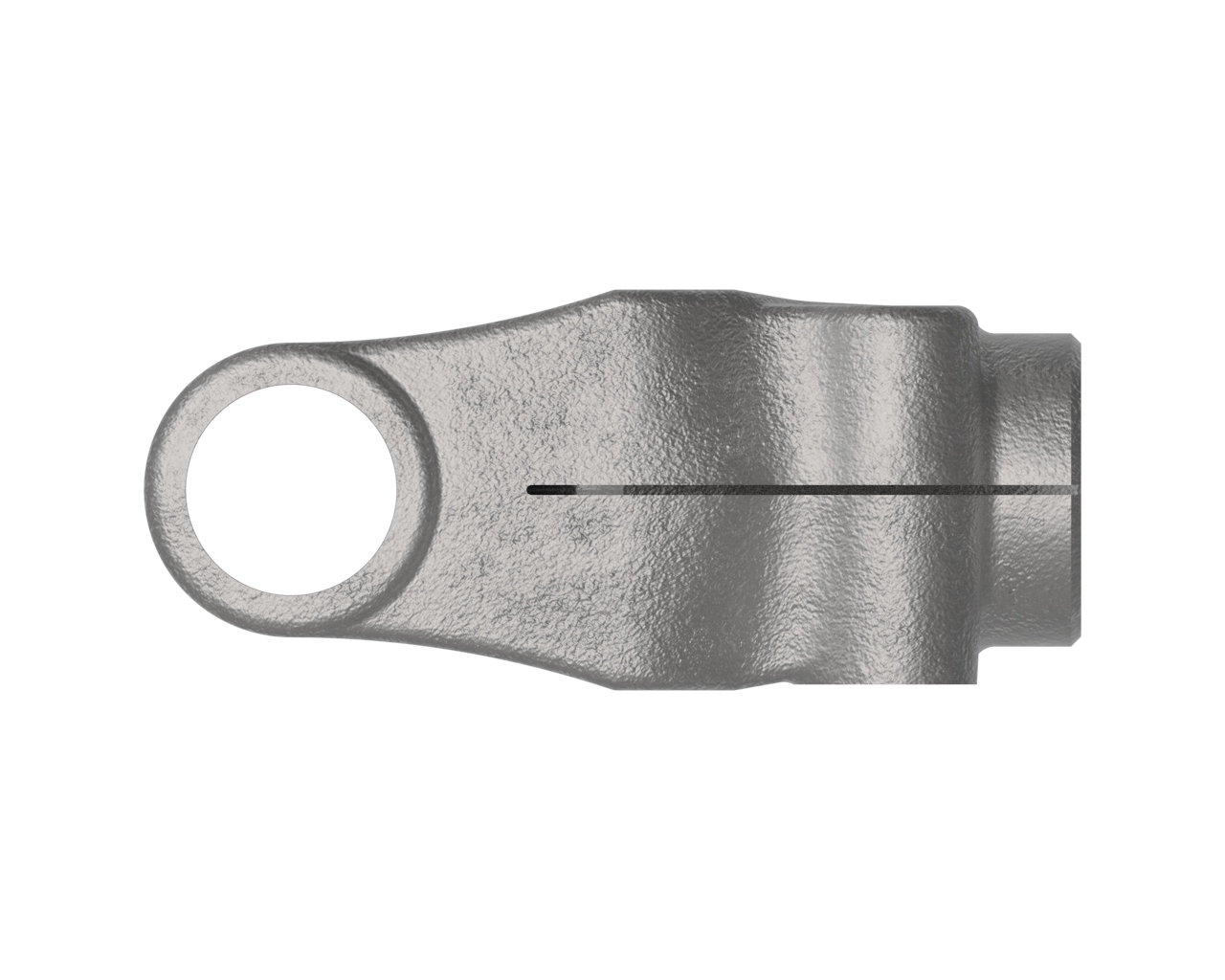

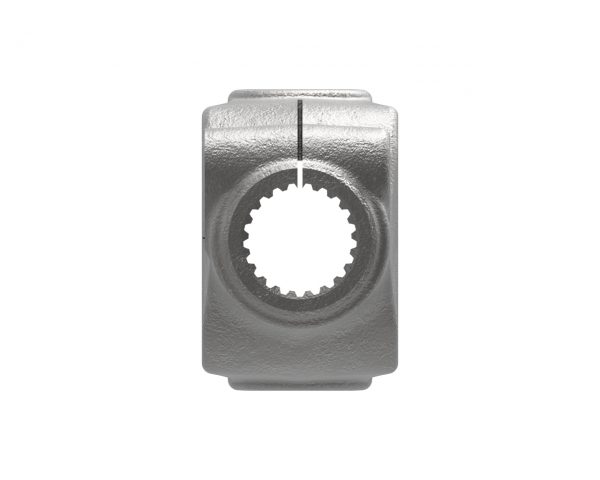

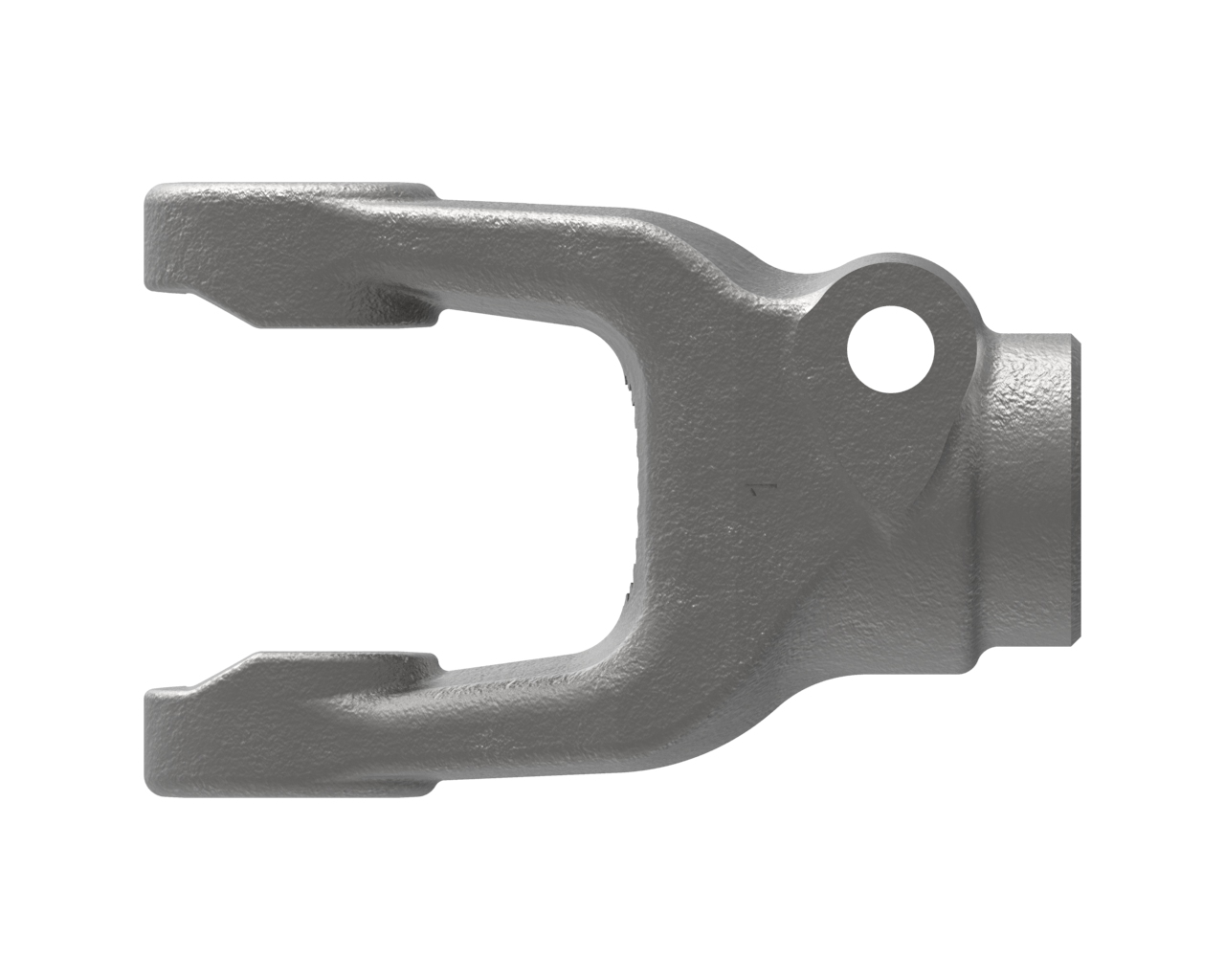

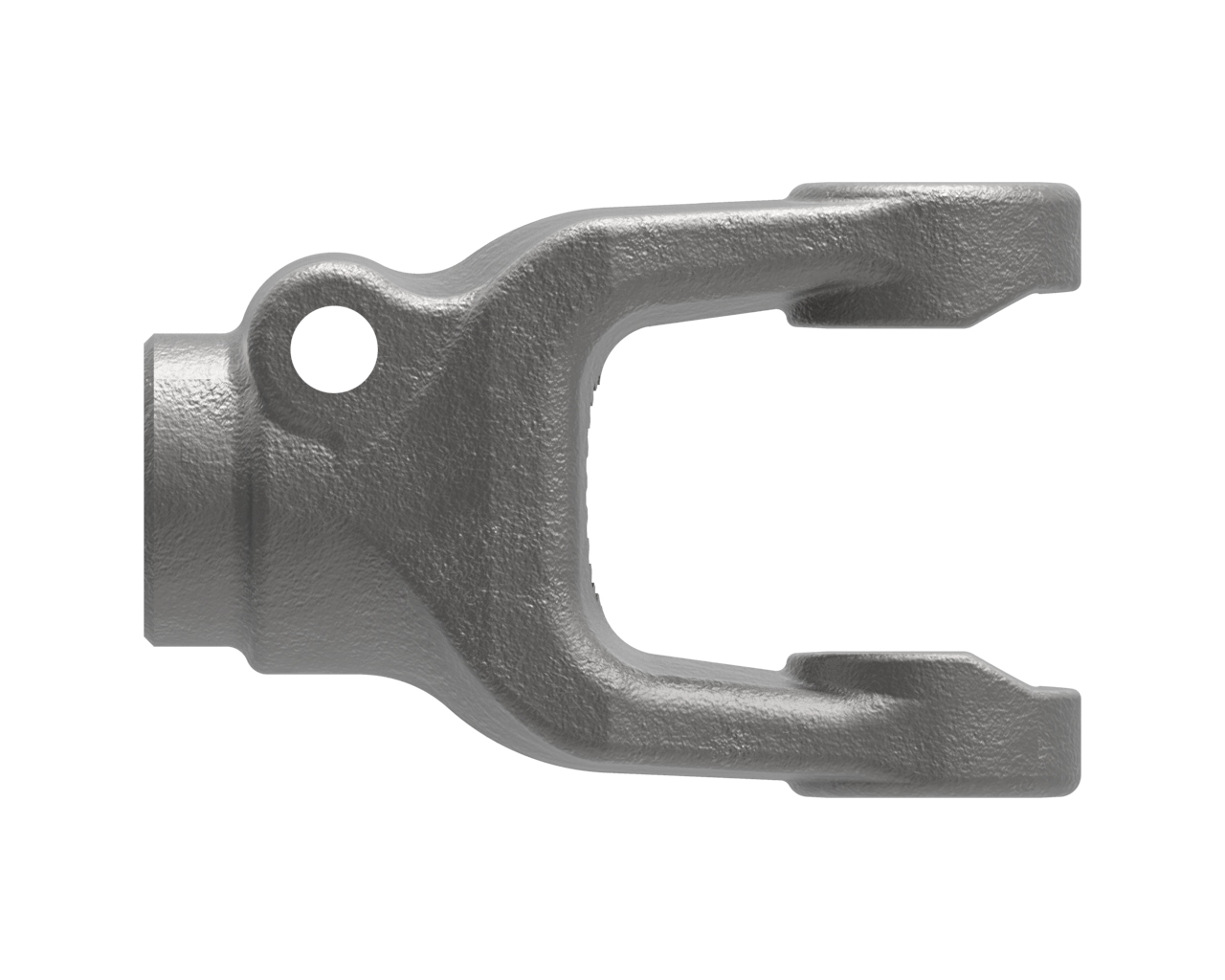

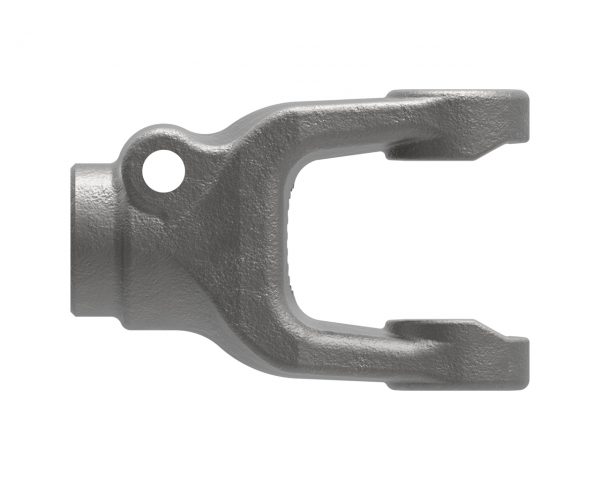

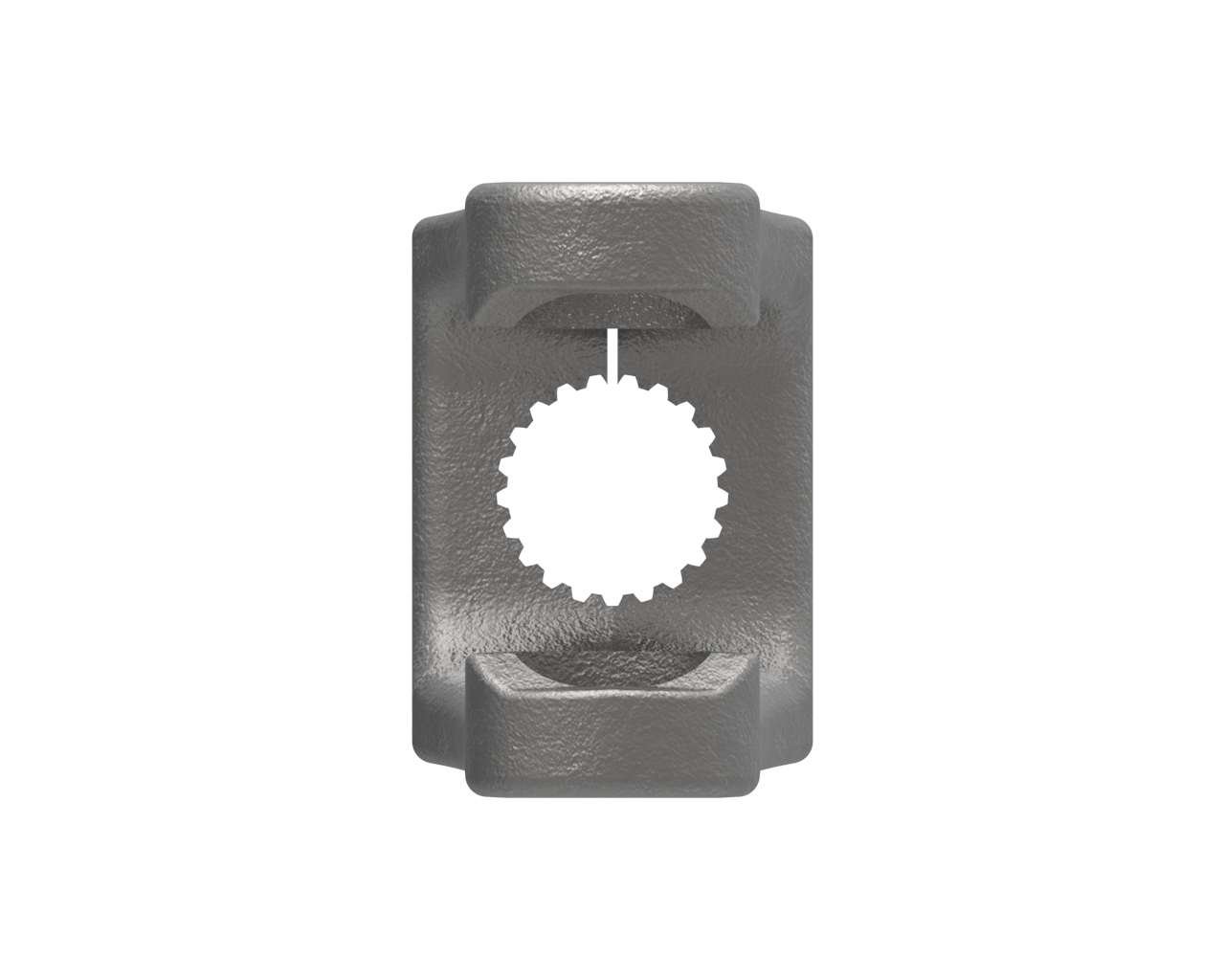

35 Series Clamp Yoke

35 series yoke with 1 3/8-21 spline bore and clamp connection

View My List

The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 1 3/8-21 SPLINE
Connection 1 CLAMP
Height4.00 inches102 mm
HP@1000RPM108 HP81 kilowatts
HP@540RPM70 HP52 kilowatts
Length4.69 inches119 mm
Shipping Dimensions5.57" L  ×  4" H  ×  2.51" W14cm L  ×  10cm H  ×  6cm W
Shipping Volume55.92 in3916 cm3
Shipping Weight5.00 pounds2 kilograms
Weight5.00 pounds2 kilograms
Width2.51 inches64 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
