807-3520

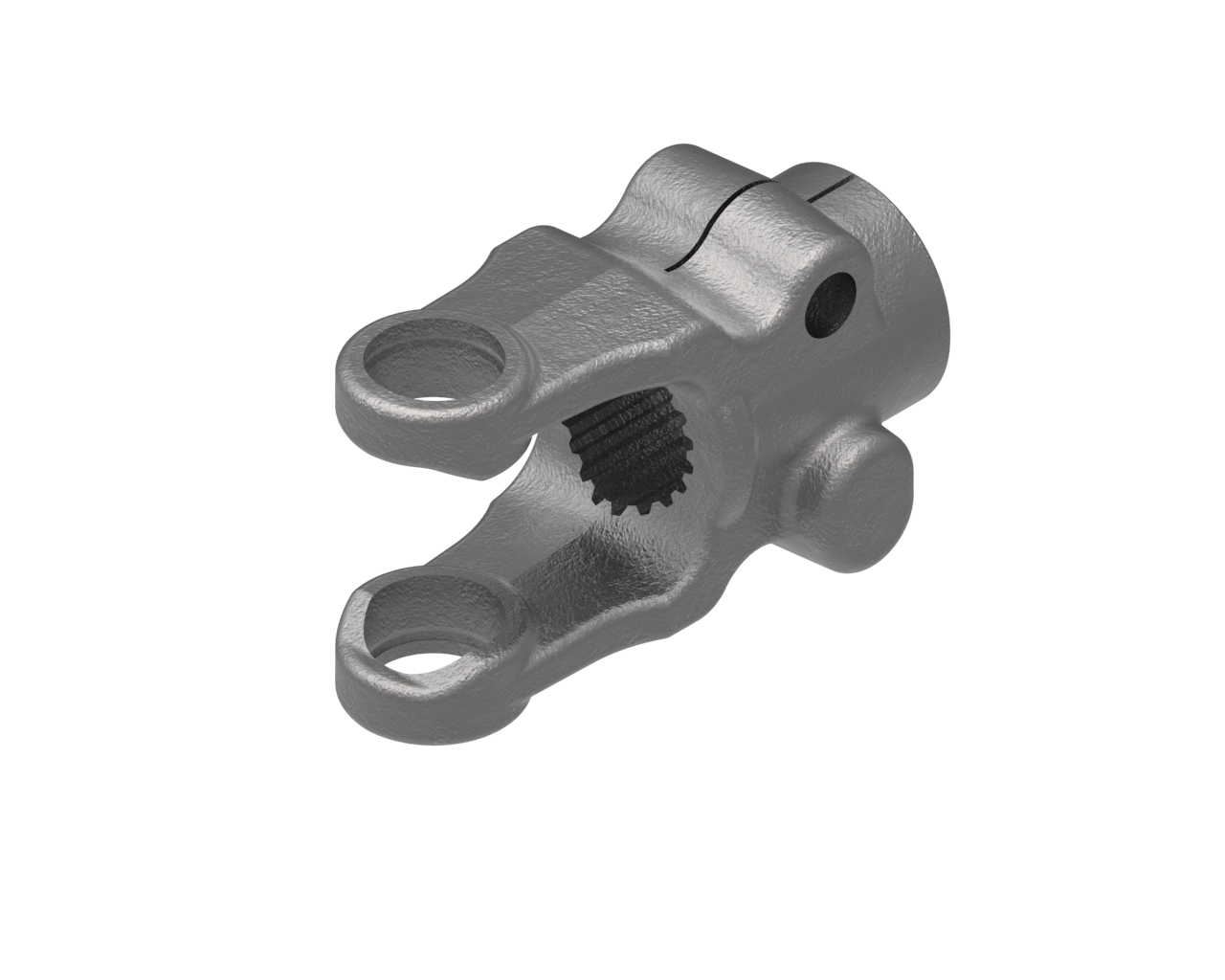

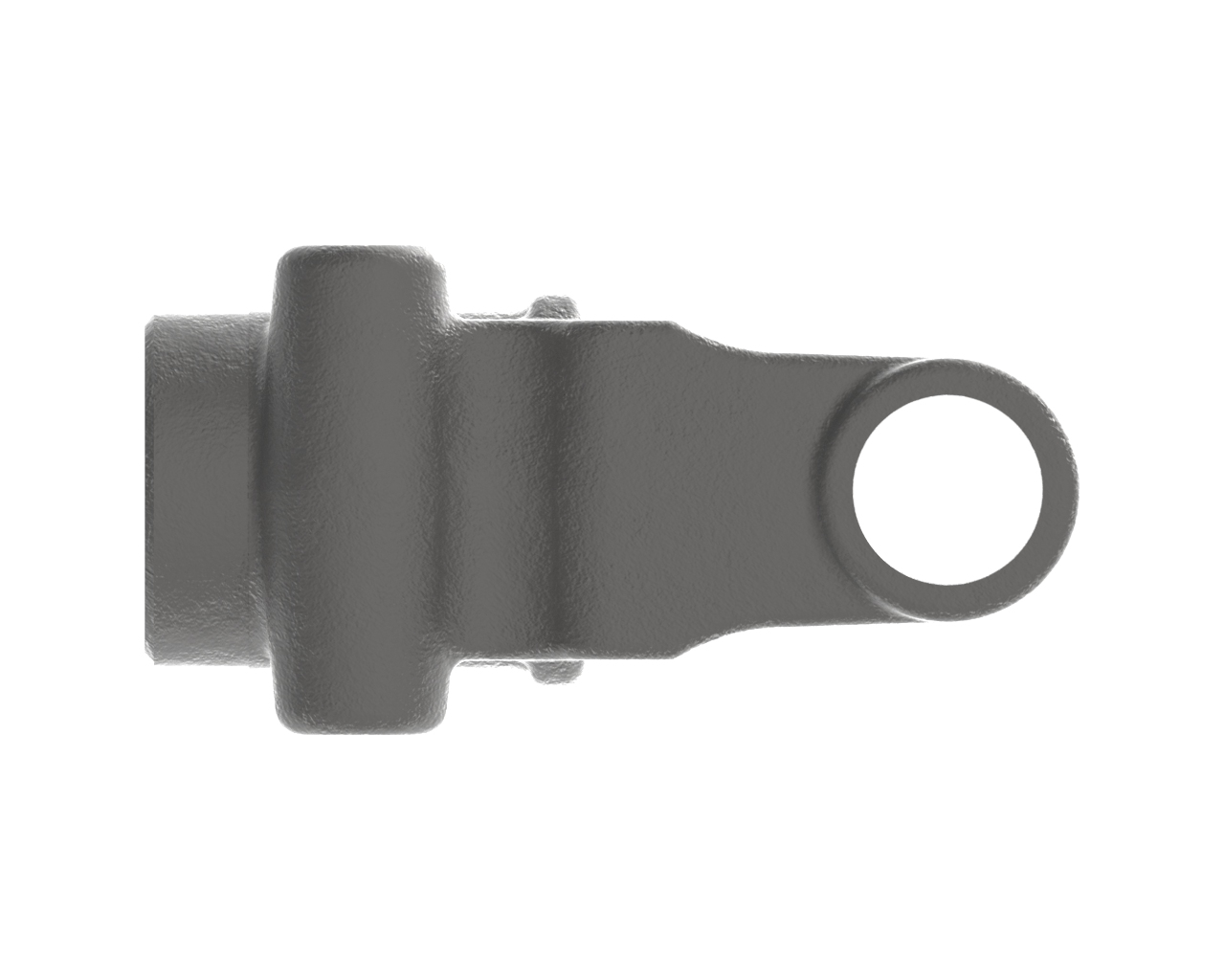

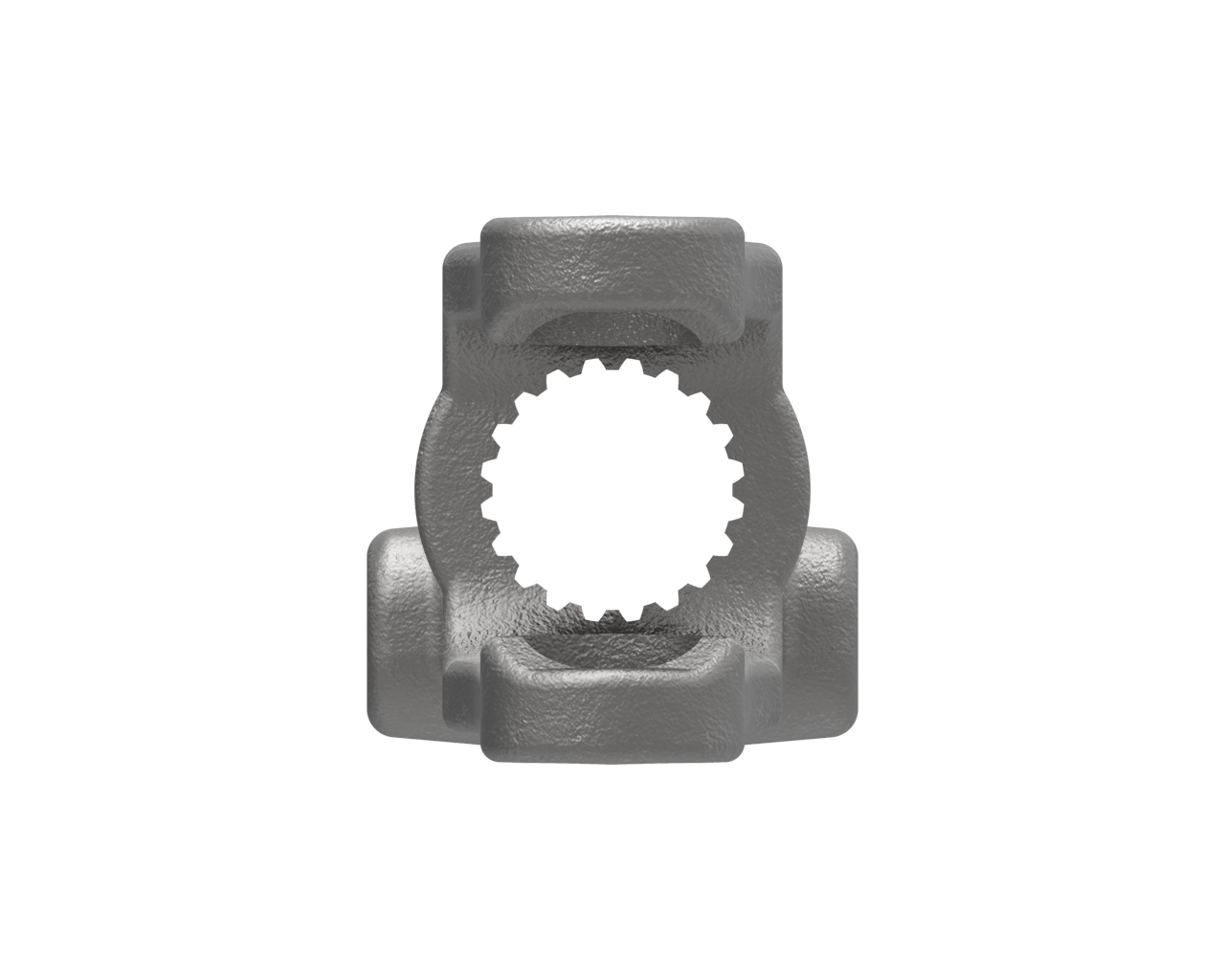

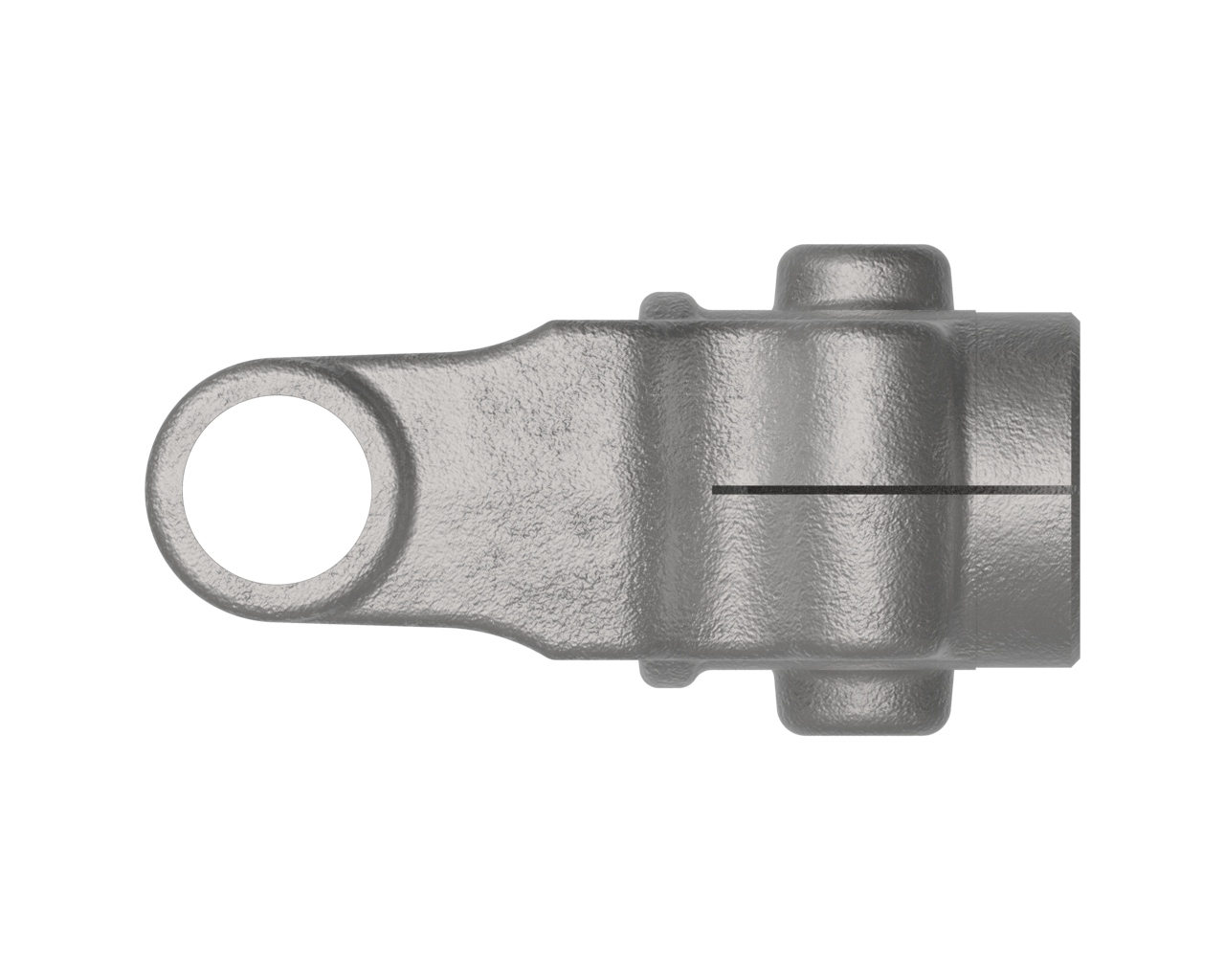

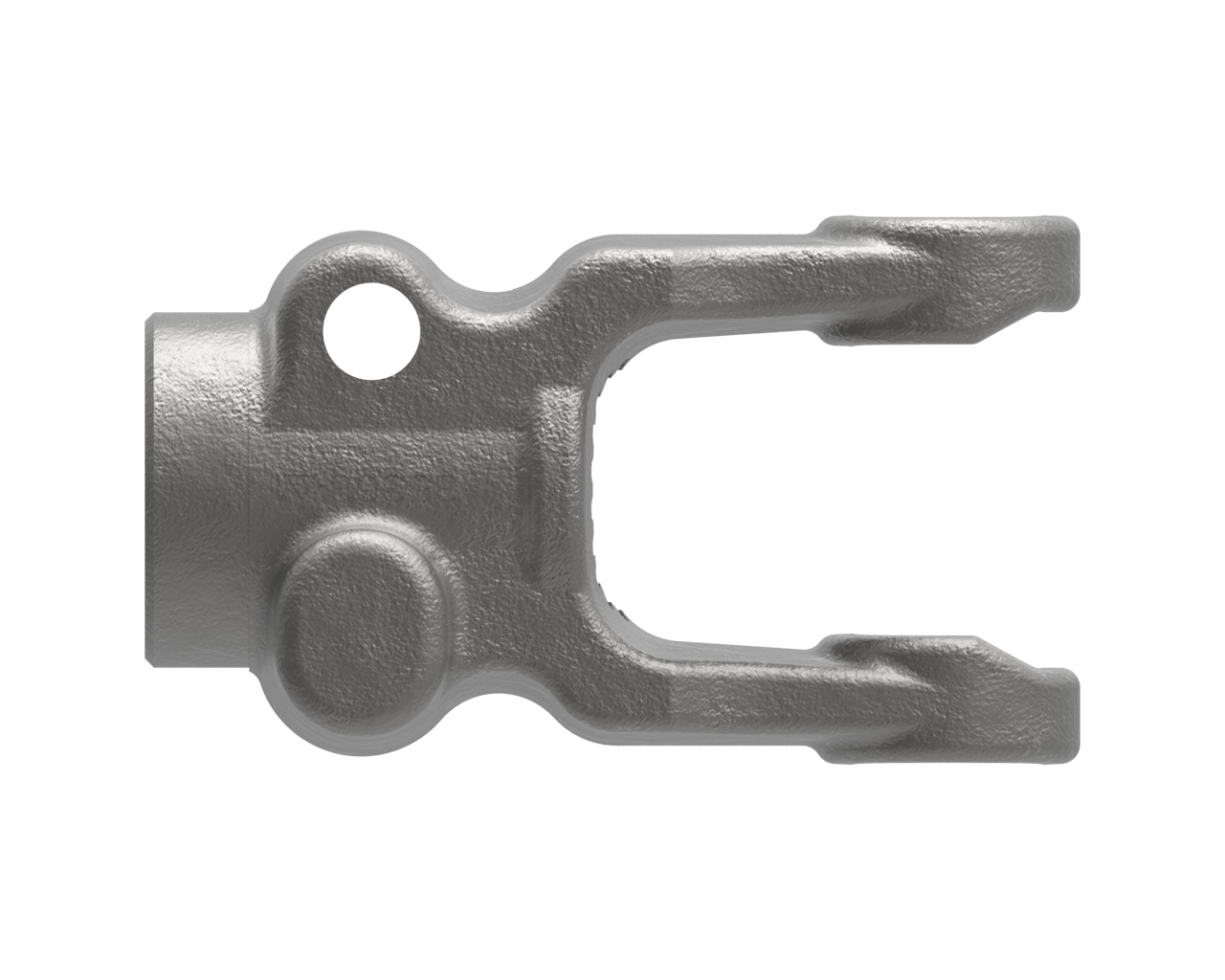

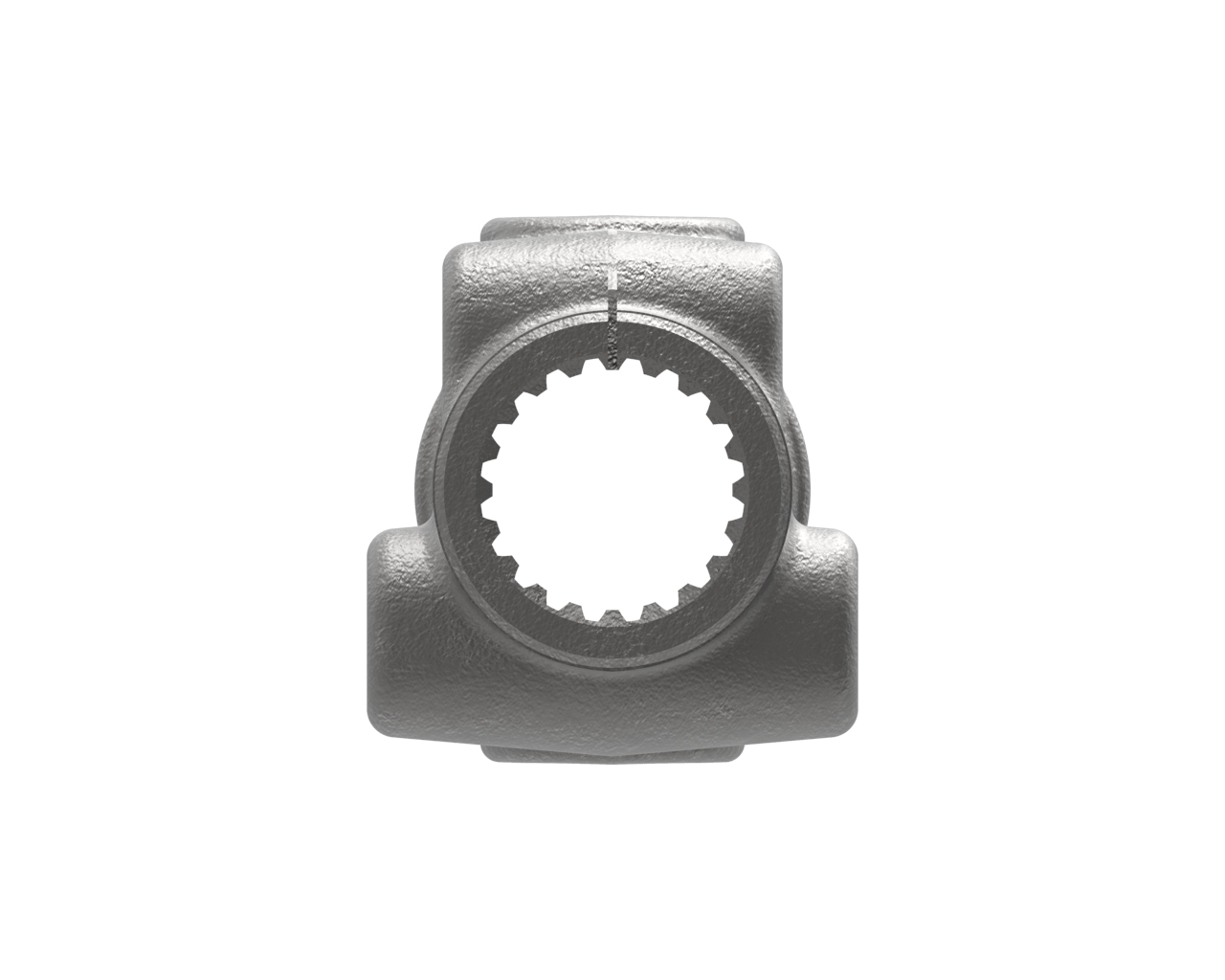

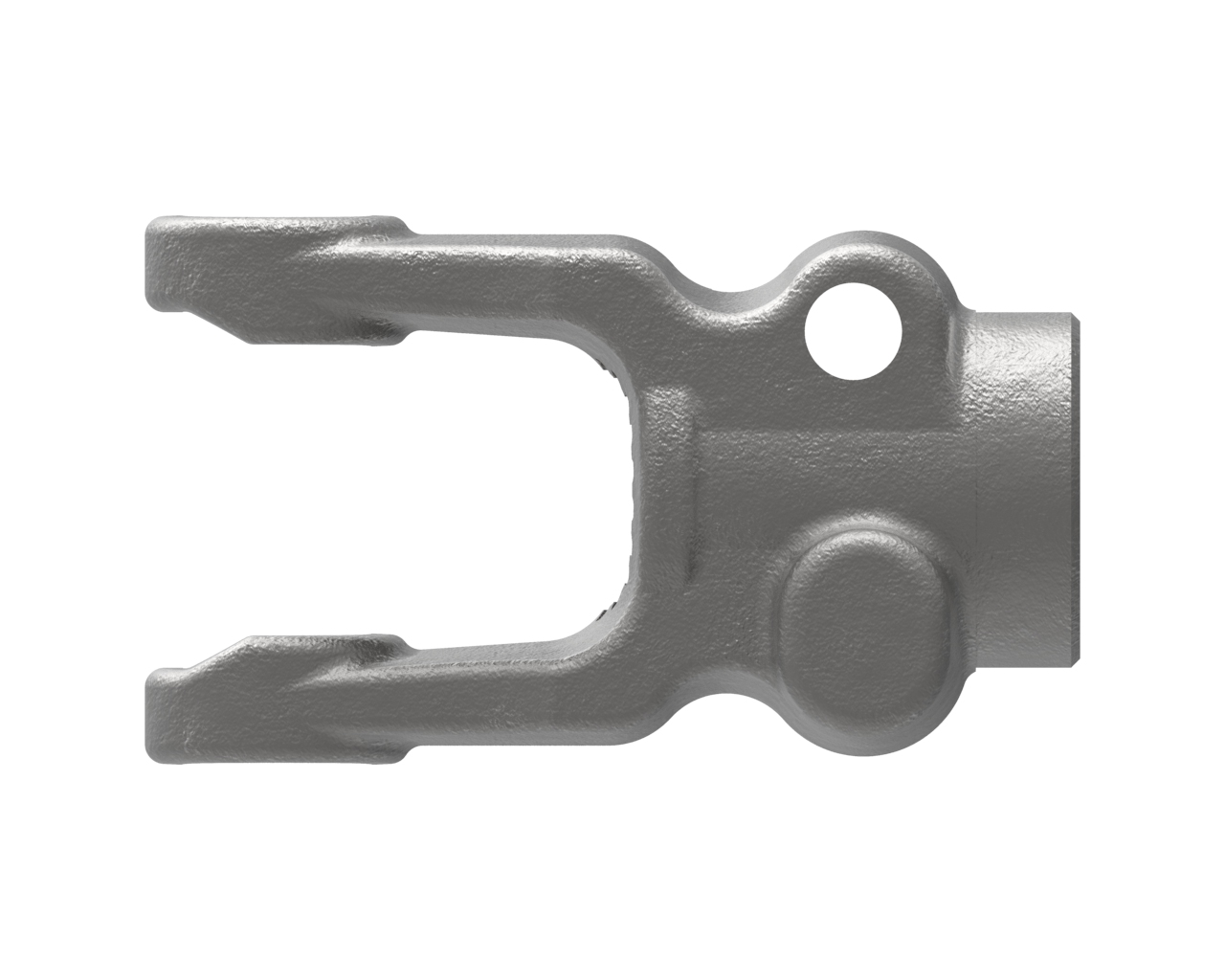

CLAMP YOKE35 Series Clamp Yoke
35 series yoke with 1 3/4-20 spline bore and clamp connection
The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.75 inches | 44 mm |
| Bore 1 | 1 3/4-20 SPLINE | |
| Connection 1 | CLAMP | |
| Height | 4.00 inches | 102 mm |
| HP@1000RPM | 108 HP | 81 kilowatts |
| HP@540RPM | 70 HP | 52 kilowatts |
| Length | 5.31 inches | 135 mm |
| Shipping Dimensions | 6.19" L × 4" H × 3.28" W | 16cm L × 10cm H × 8cm W |
| Shipping Volume | 81.21 in3 | 1331 cm3 |
| Shipping Weight | 5.00 pounds | 2 kilograms |
| Weight | 5.00 pounds | 2 kilograms |
| Width | 3.28 inches | 83 mm |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
