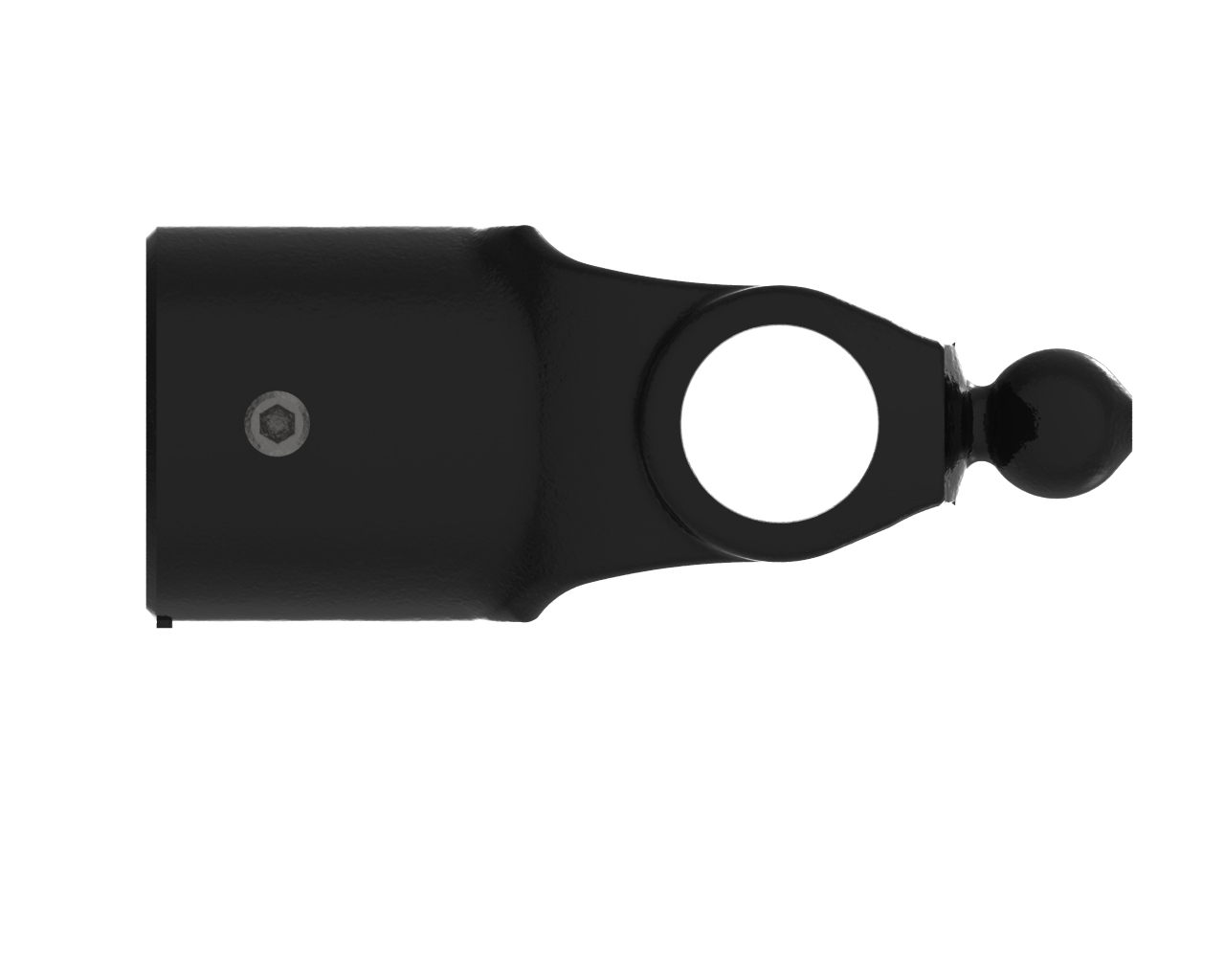

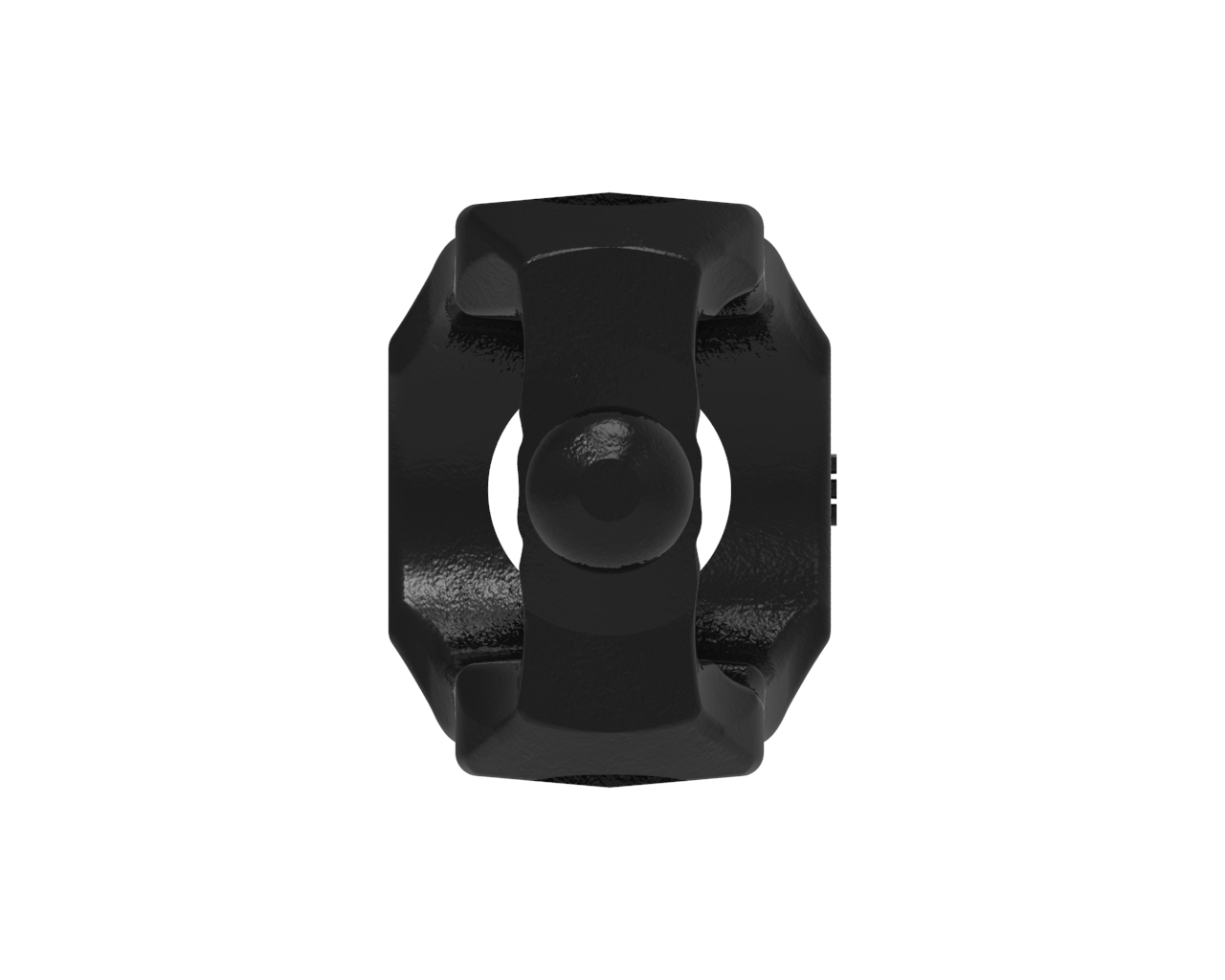

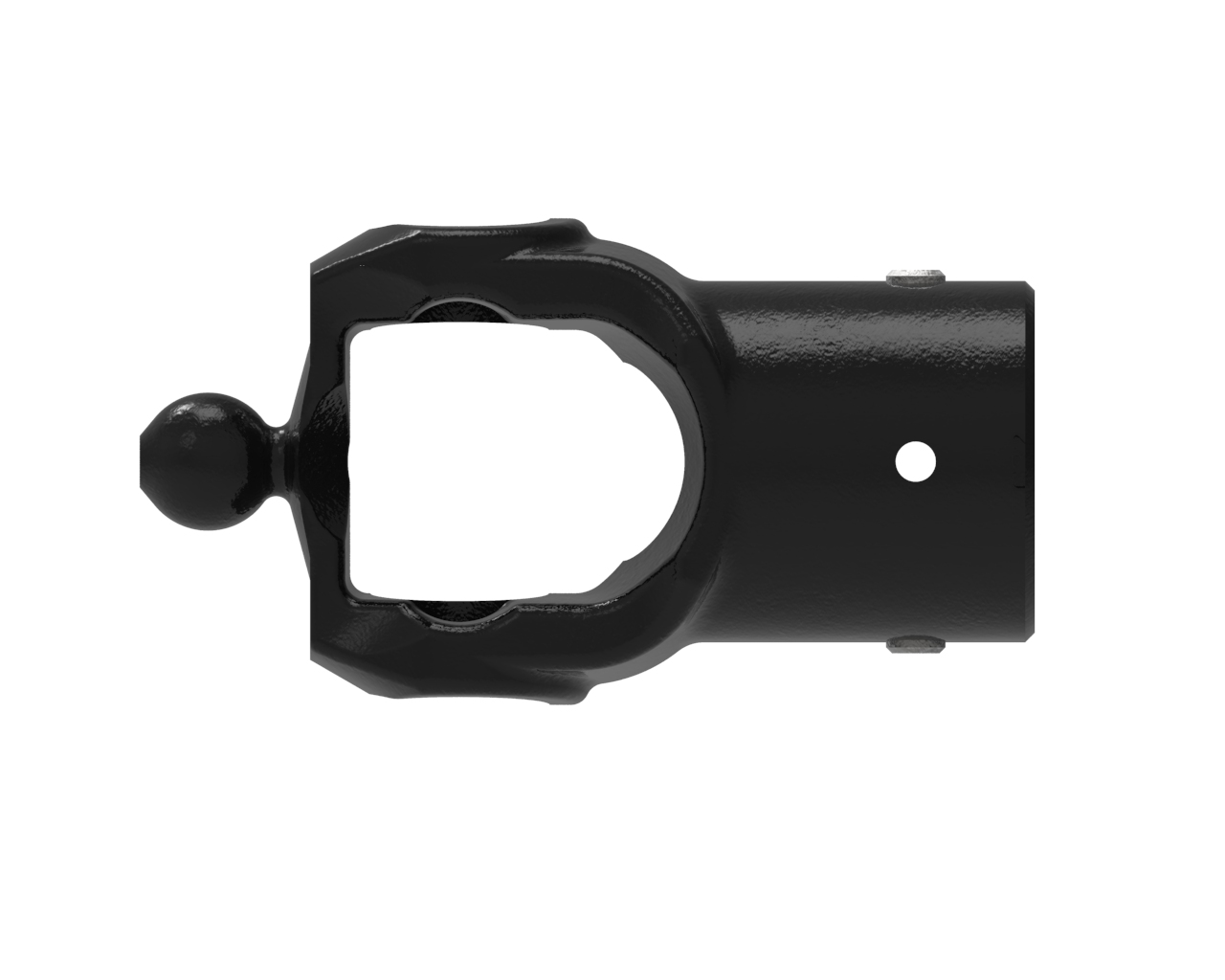

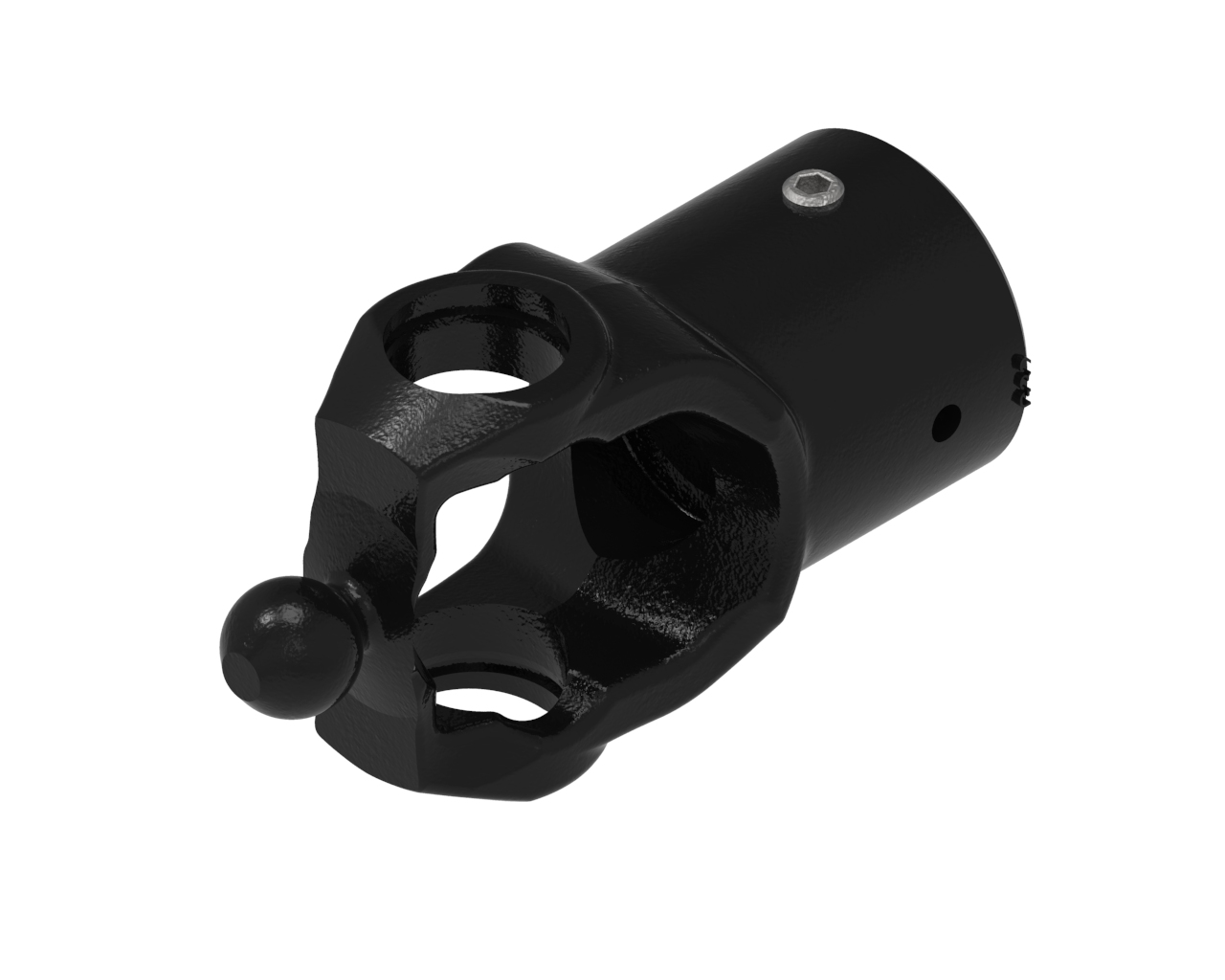

3-50 Series Pin, Setscrew Yoke
3-50 series yoke with round bore and pin, setscrew connection. Note: Image color may not represent actual part.
PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler CV wide angle implement yokes are provided in a variety of bore and mounting options.
PERFORMANCE BENEFITS
Specifications
Product Series: 3-50
| Spec. | Imperial | Metric |
|---|---|---|
| Connection | PIN, SETSCREW | |
| Centerline to End Dim. | 3.63 (3 5/8) in | 92 mm |
| Setscrew | 3/8-16 | |
| Bearing Diameter (Ear Hole) | 1.12 (1 1/8) in | 28 mm |
| Bearing Cap to Cap Span | 2.62 (2 5/8) in | 67 mm |
| Bore | 1.25 (1 1/4) in | 32 mm |
| Bore Description | ROUND | |
| Connection | PIN, SETSCREW | |
| Keyway | 0.25 (1/4) in | 6 mm |
| Weight | 3.00 pounds | 1 kilograms |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service-Instructions-Lubricating-50-Deg-CV | Maintenance Document | English |
| Service-Instructions-CV-Joint | Service Document | English |
| Service-Instructions-Universal-Joint | Service Document | English |
| Lack-of-Grease-Cross-Brg-Kit | Troubleshooting Document | English |
| Lack-of-Grease-50-deg-Ball-Socket | Troubleshooting Document | English |
| 50-deg-CV-Joint-Over-Angle | Troubleshooting Document | English |
| WE0101001_0118_USL_50DegConstantVelocityJoint | Performance Benefits Document | English |
