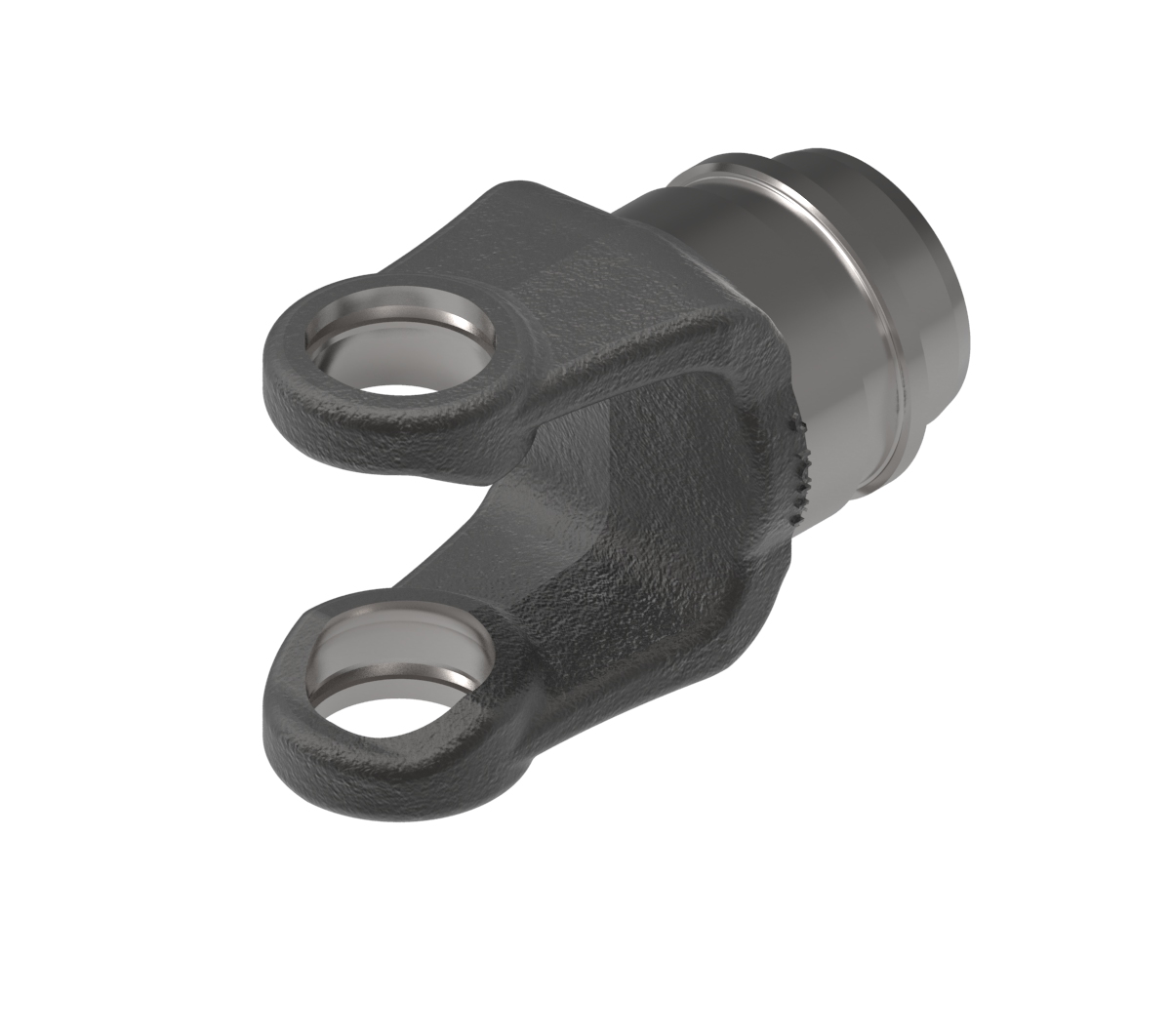

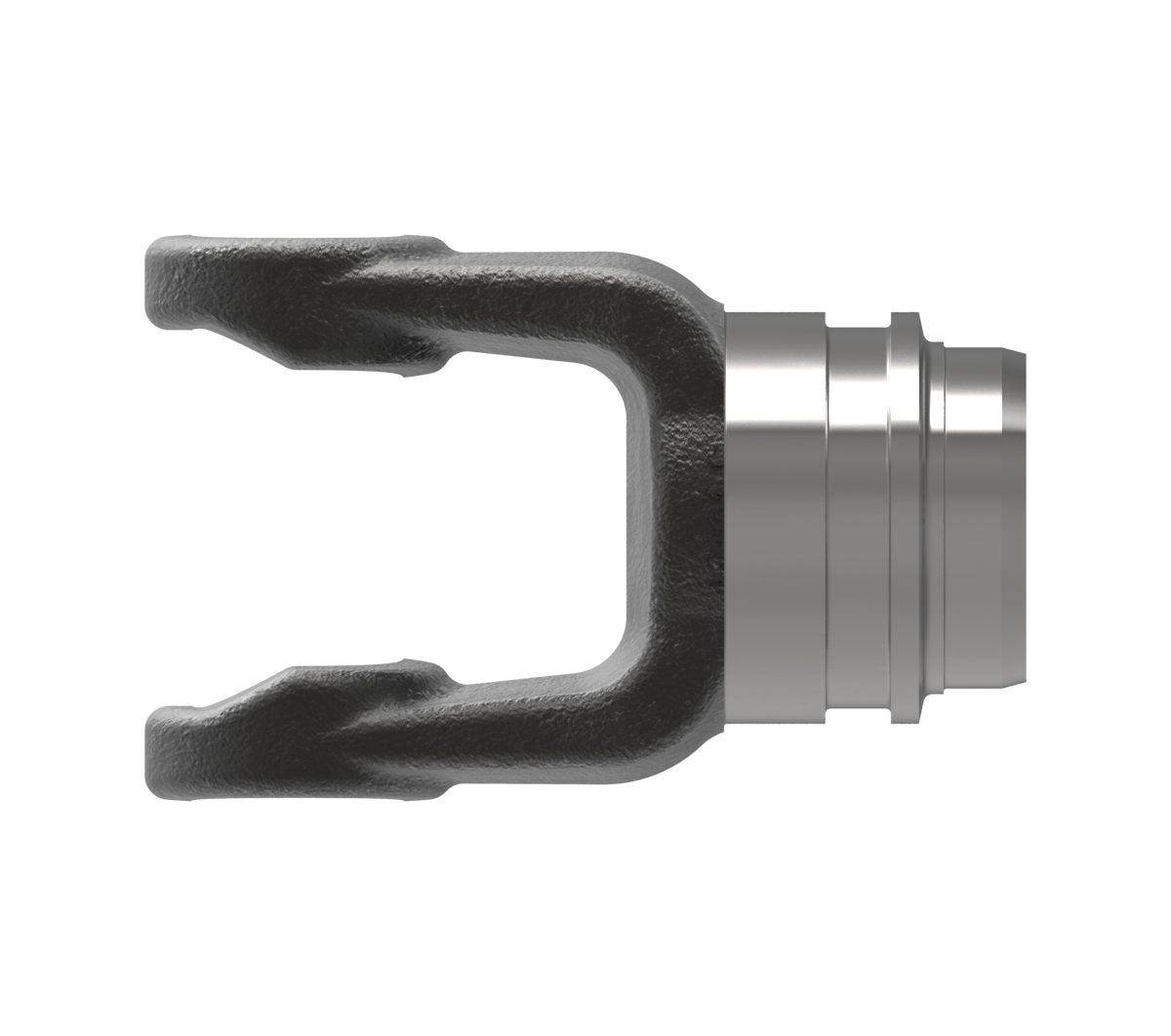

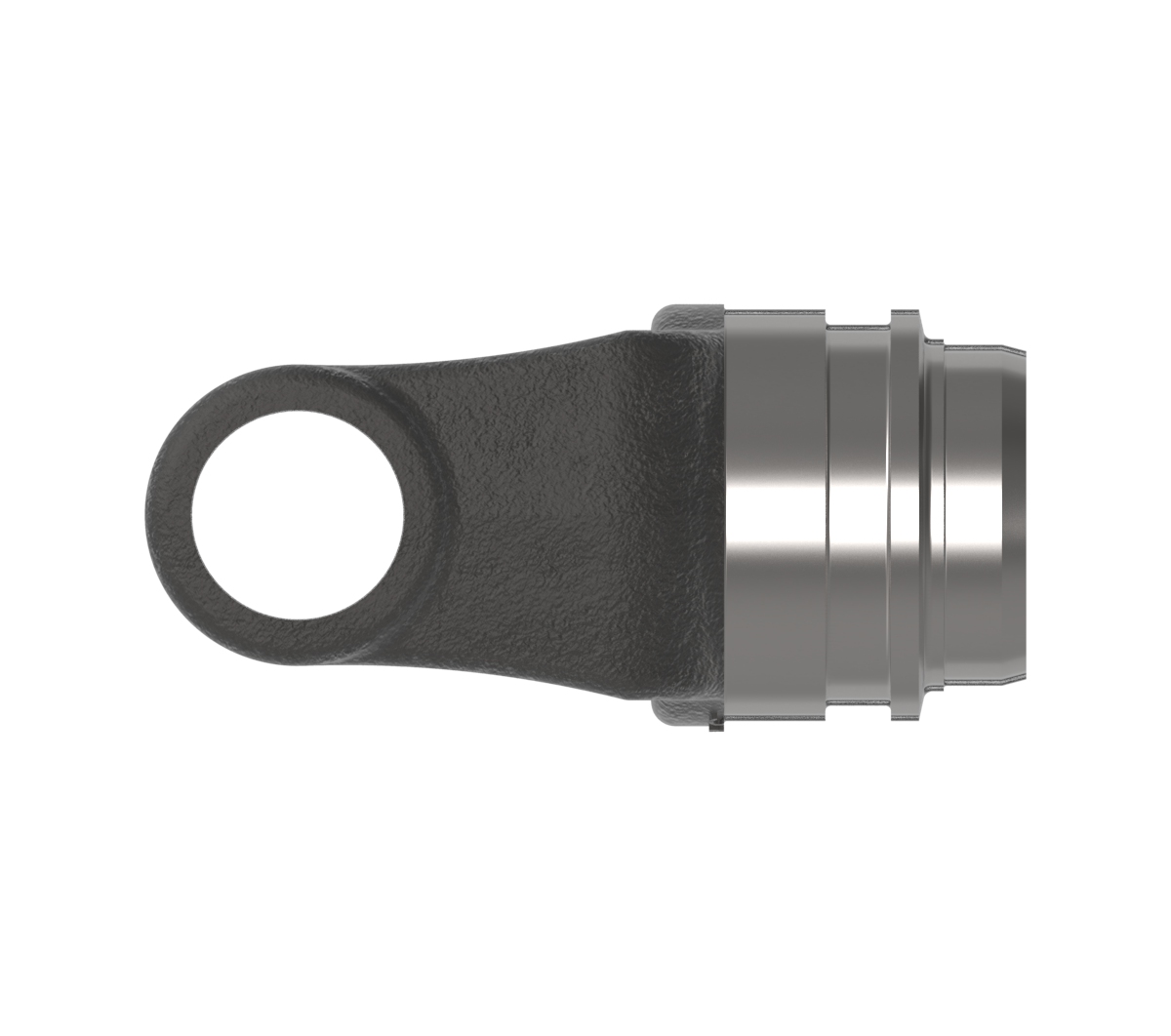

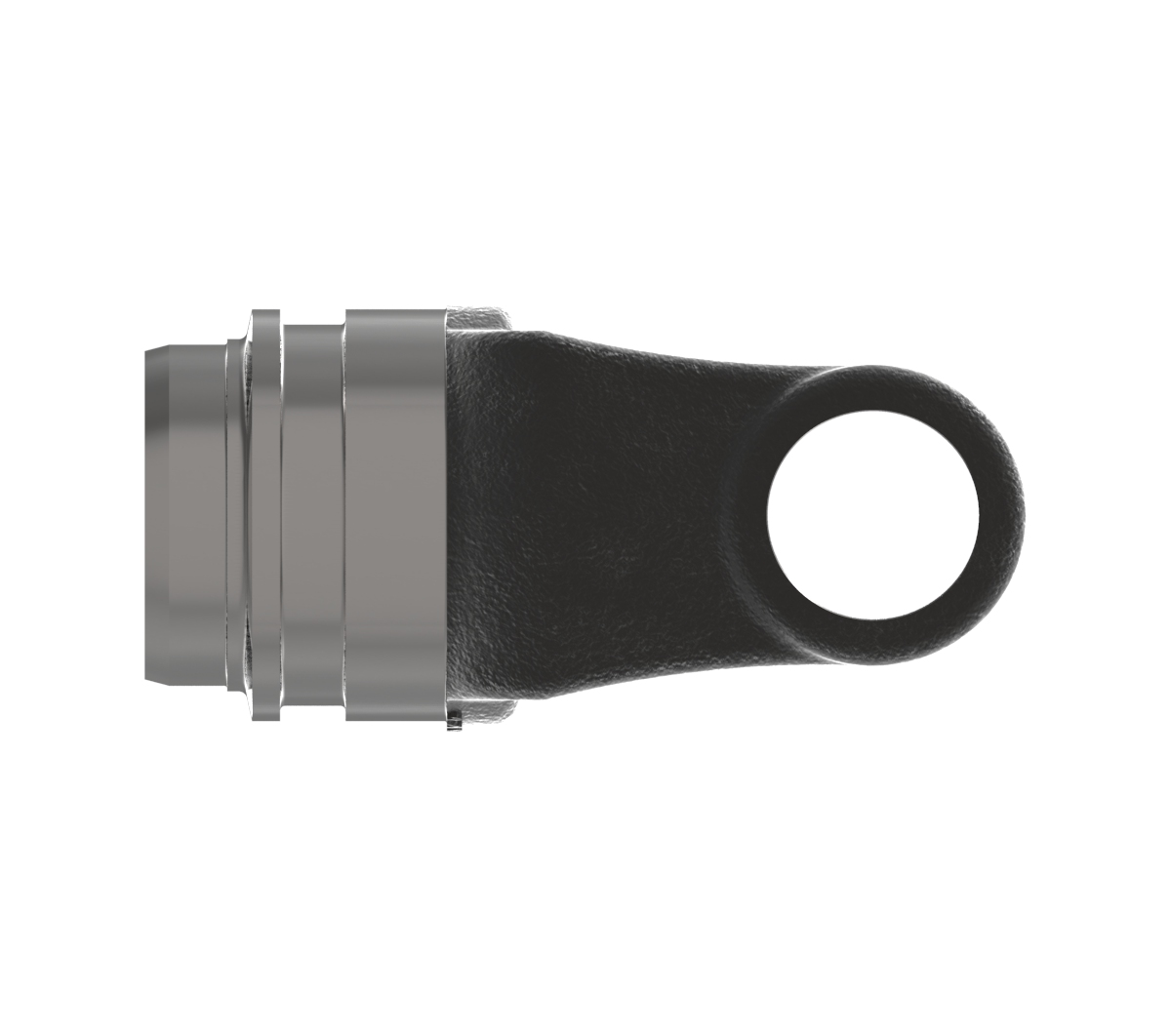

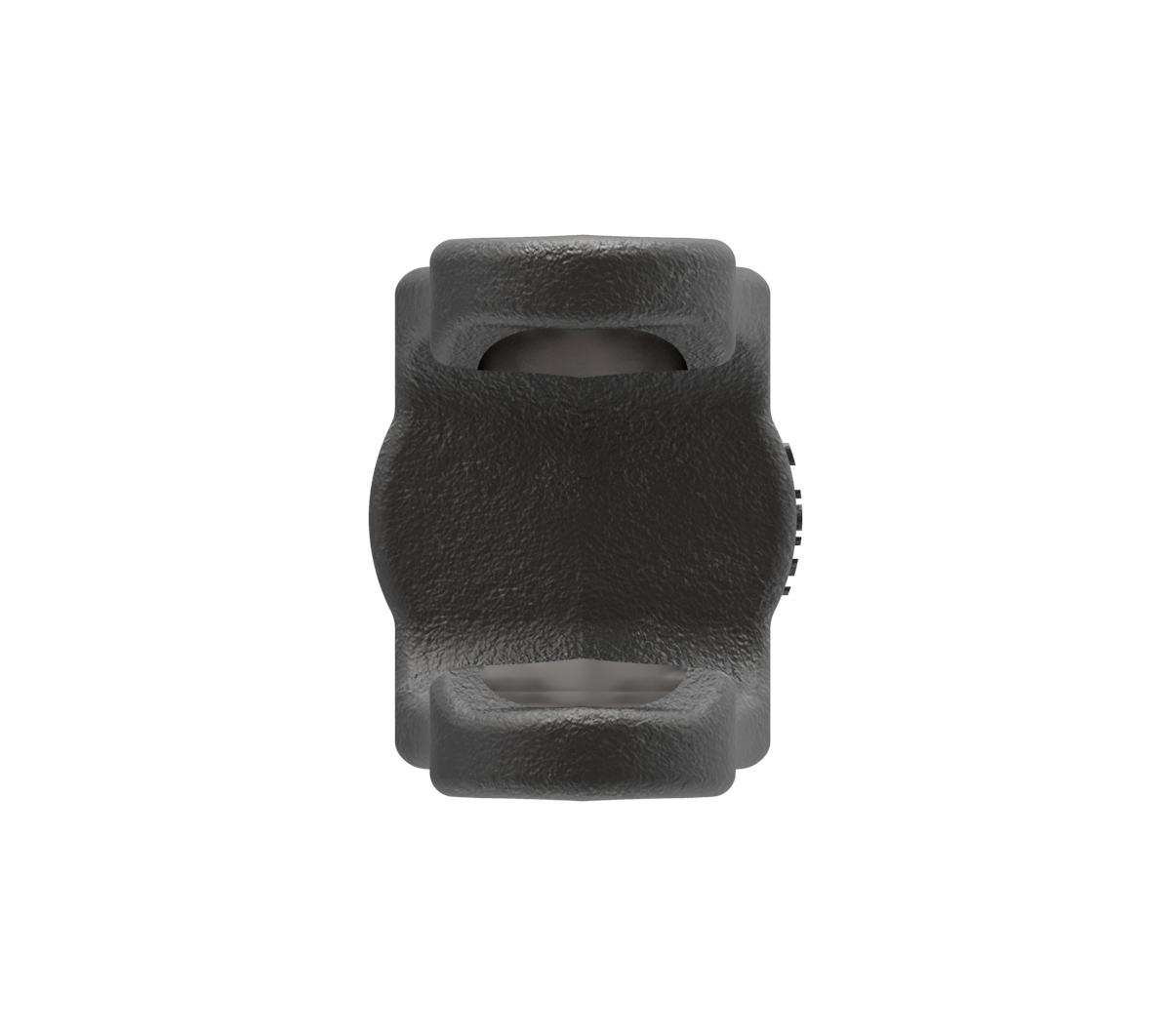

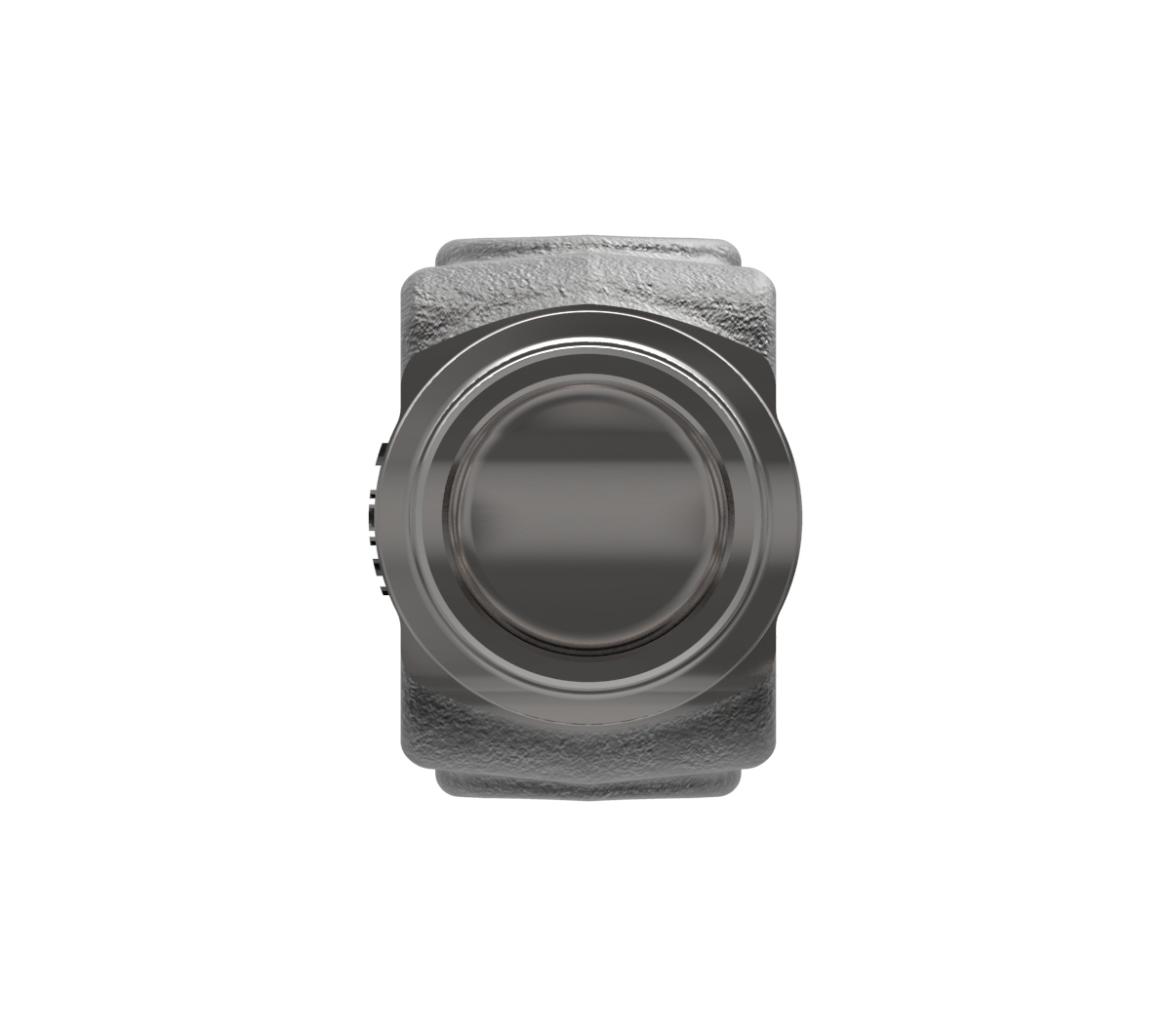

Part Number: 701-1400
TUBE WELD YOKE

14 Series Weld Yoke

14 series yoke with solid bore and weld connection

Region Availability: North America, South America

Weasler yoke weldment assemblies provide yoke to shaft and yoke to tube weldment options that are offered in both North American (domestic) , German, and Italian shaft and tube profiles.

PERFORMANCE BENEFITS

Specifications

Part Number: 701-1400
Product Series: 14

Spec. Imperial Metric
Bearing Diameter (Ear Hole)1.13 (1 1/8) in29 mm
Bearing Cap to Cap Span2.63 (2 5/8) in67 mm
Yoke Bore SOLID
Connection 1 Type WELD
Centerline to End Dim3.87 (3 7/8) in98 mm
Fits Tube ID1.84 (1 27/32) in47 mm
Weight2.40 pounds1 kilograms

Downloads

Document Name Type Language
Service-Instructions-Lubricating-PTO-Drive-Shaft Maintenance Document English
Service-Instructions-Universal-Joint Service Document English
Lack-of-Grease-Cross-Brg-Kit Troubleshooting Document English
