100-1421
TRACTOR YOKE14 Series Spring-lok Yoke

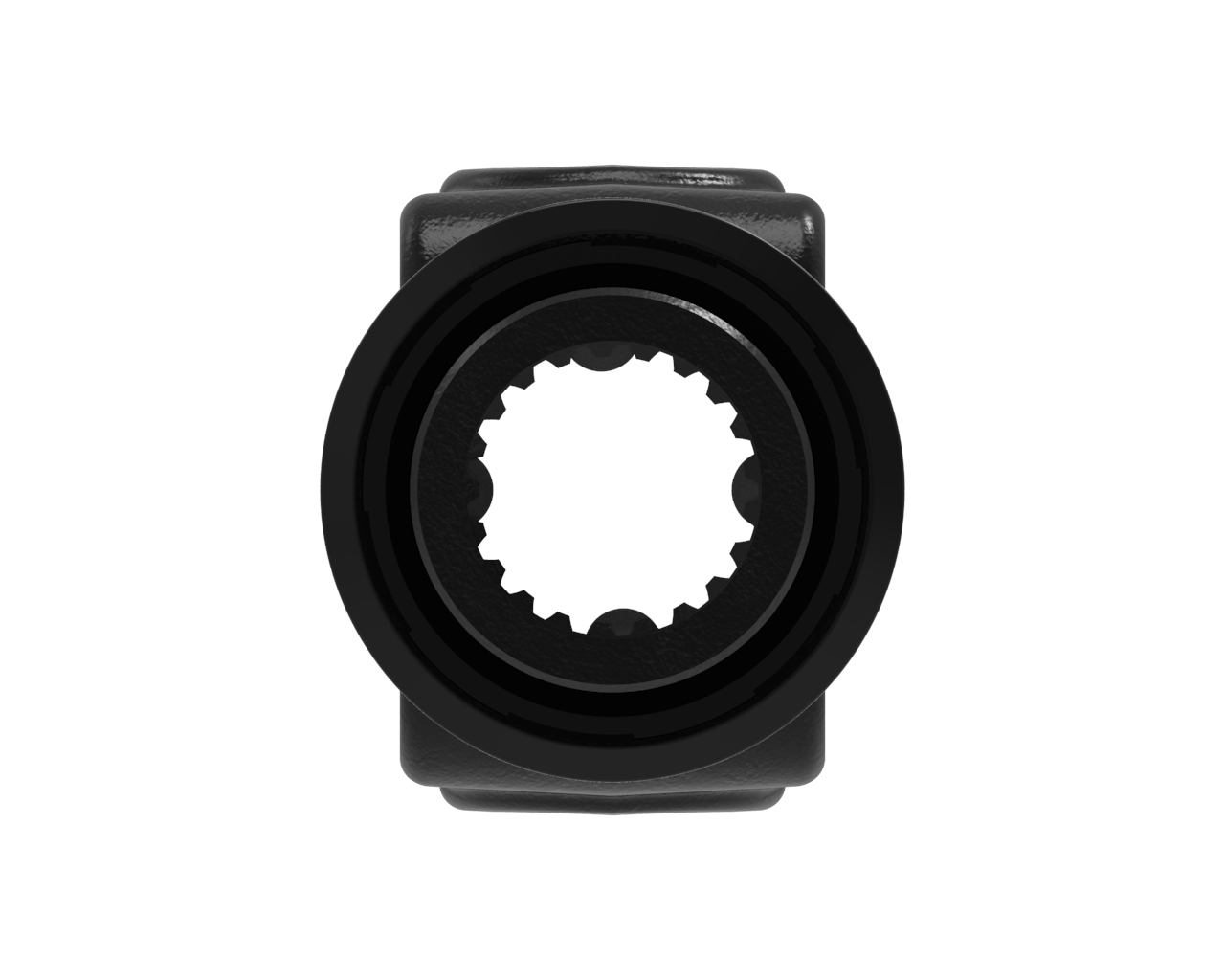

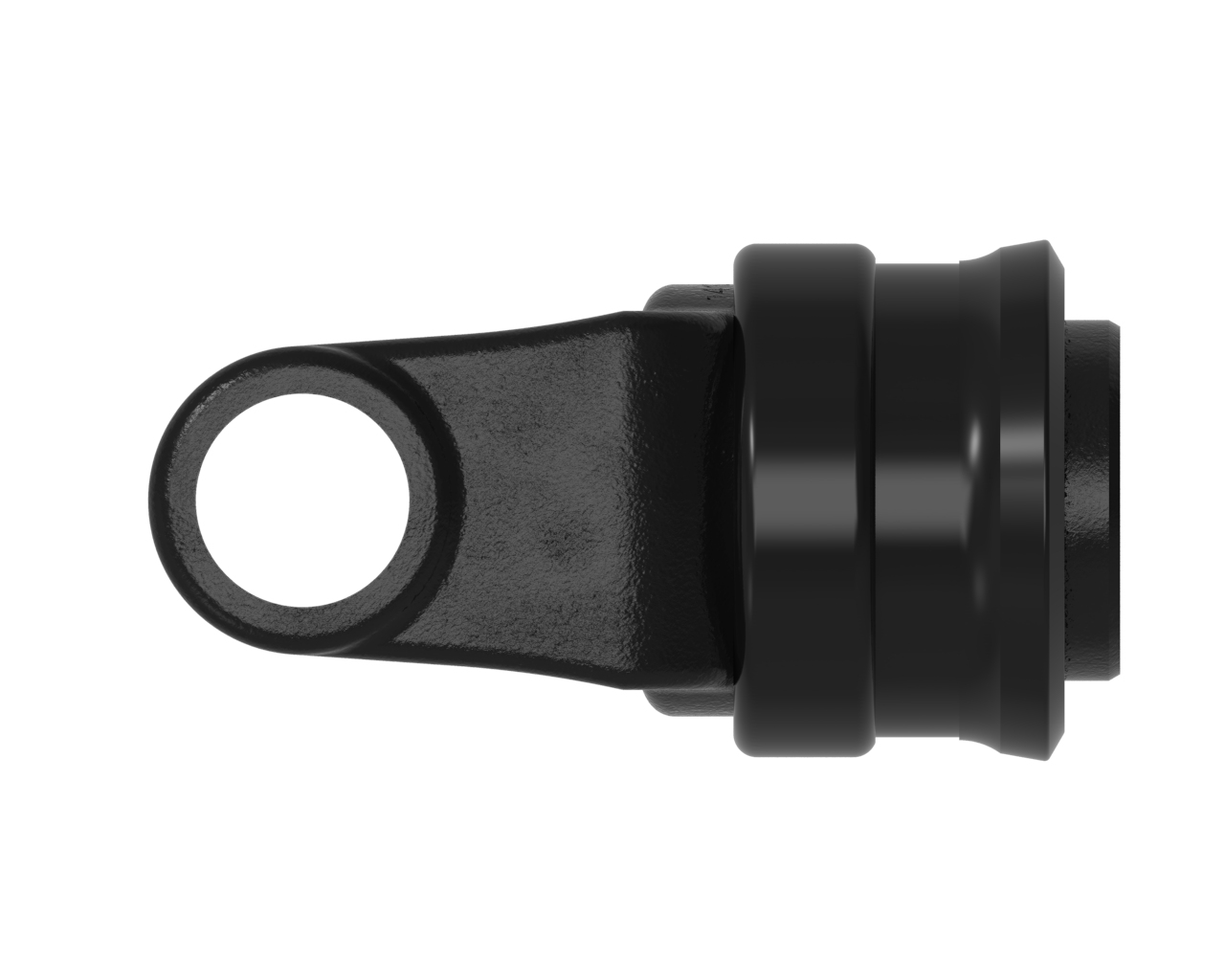

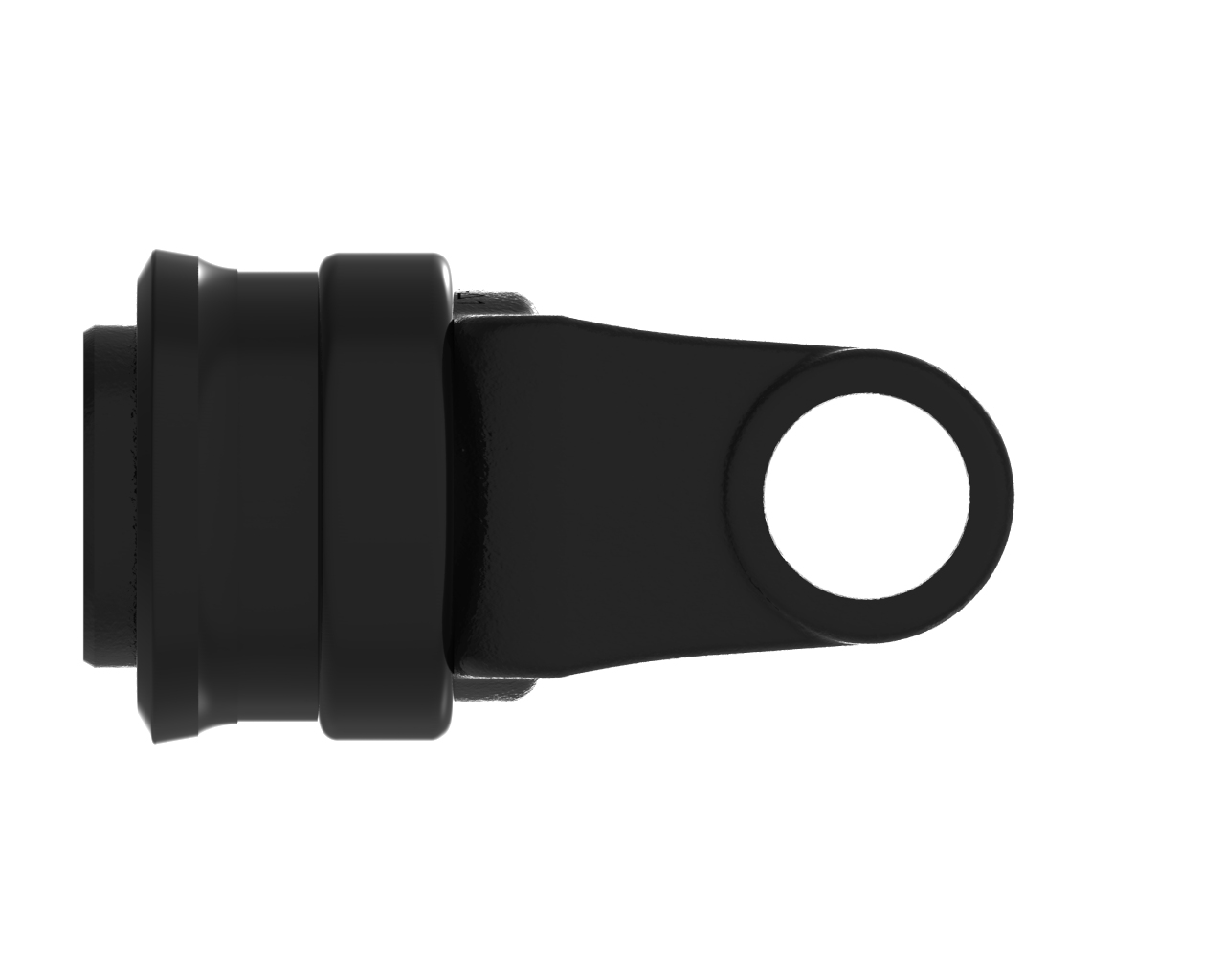

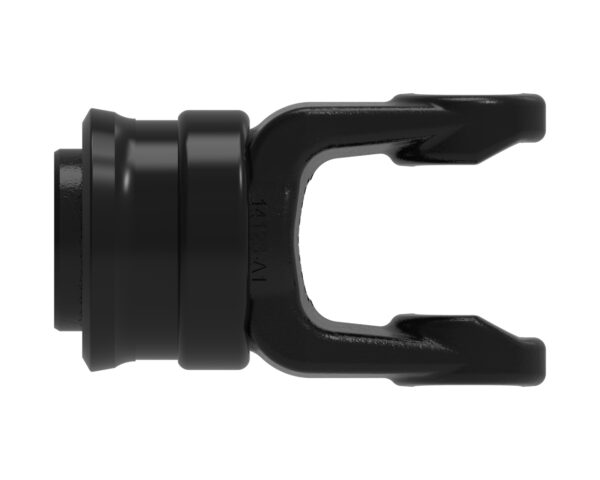

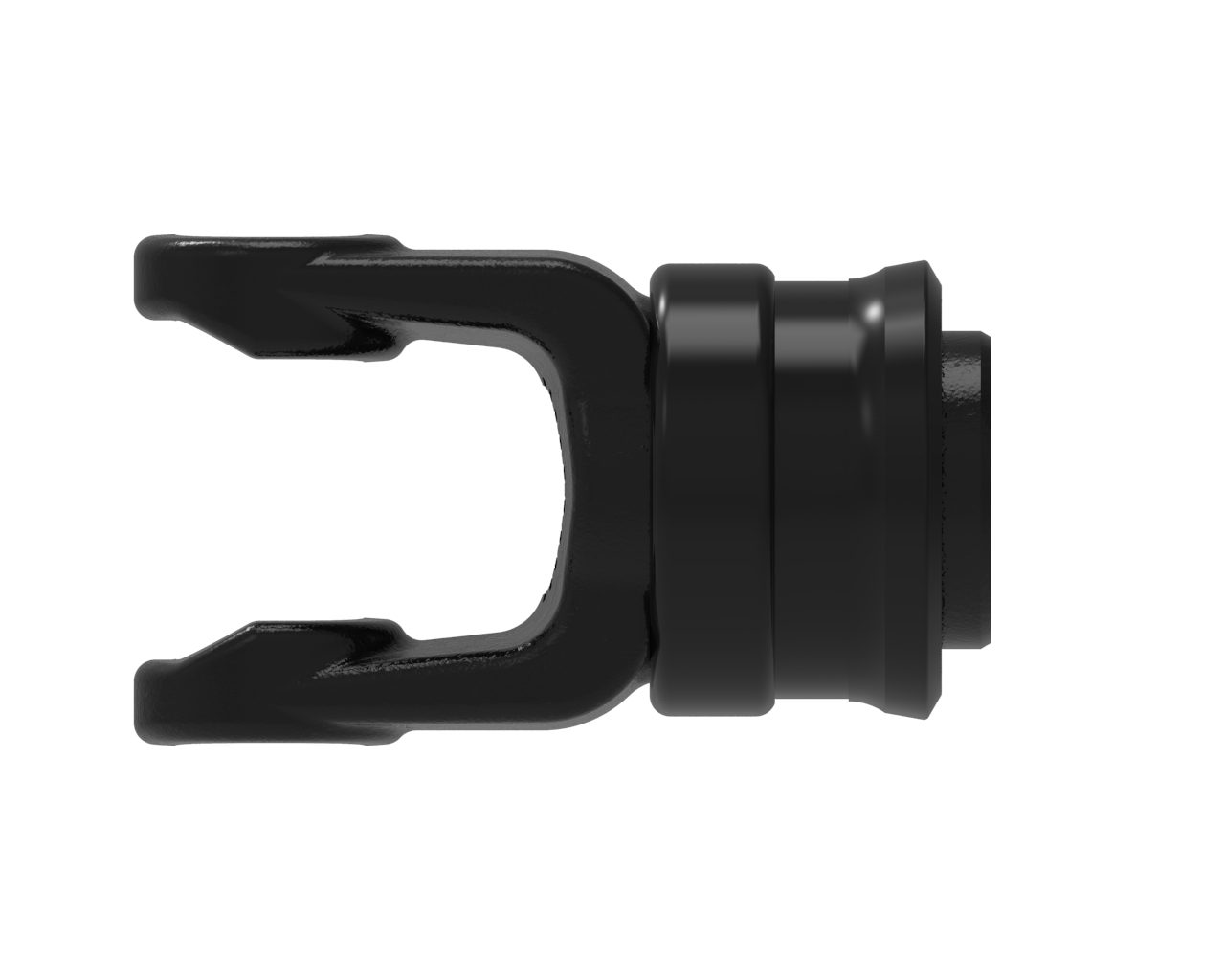

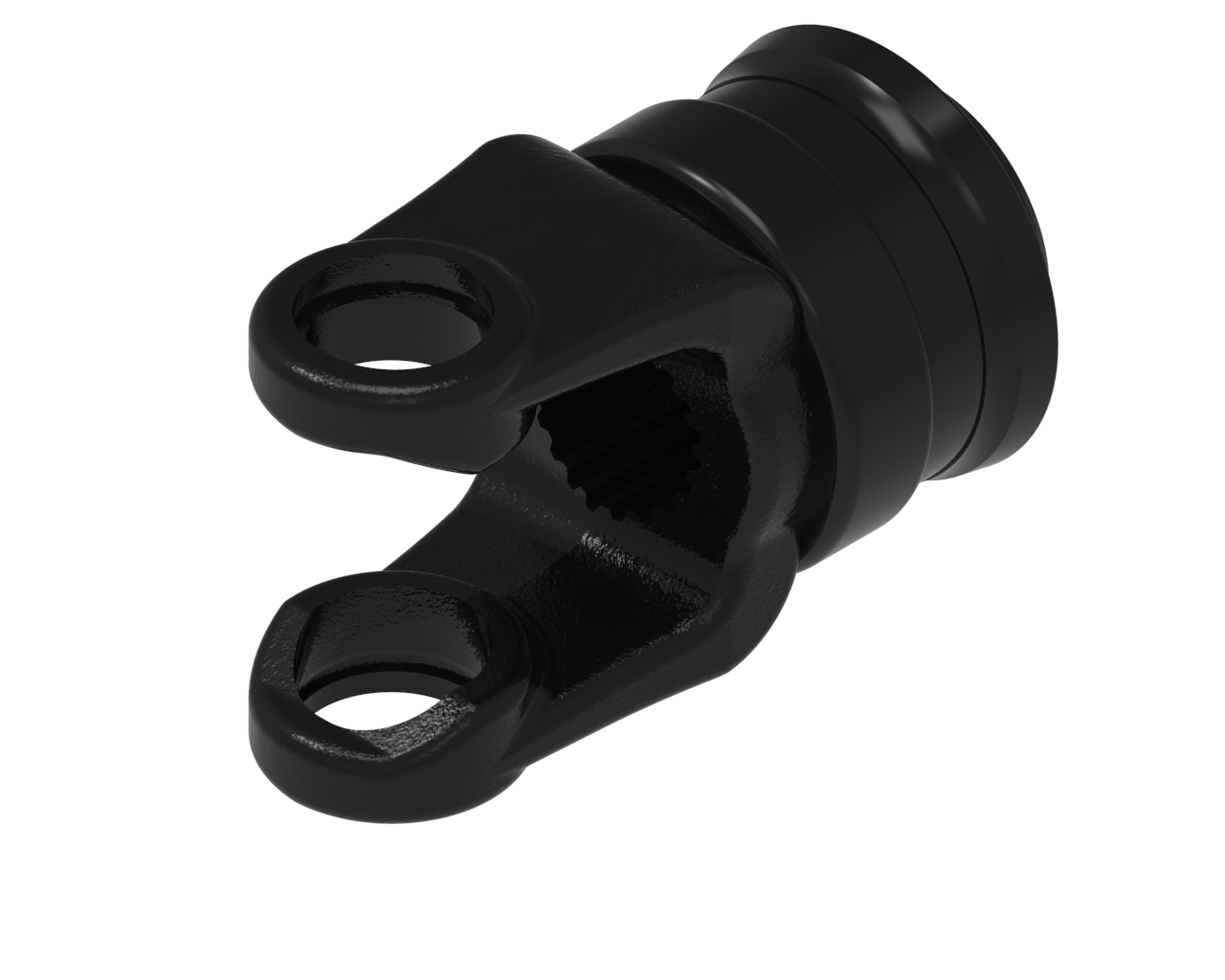

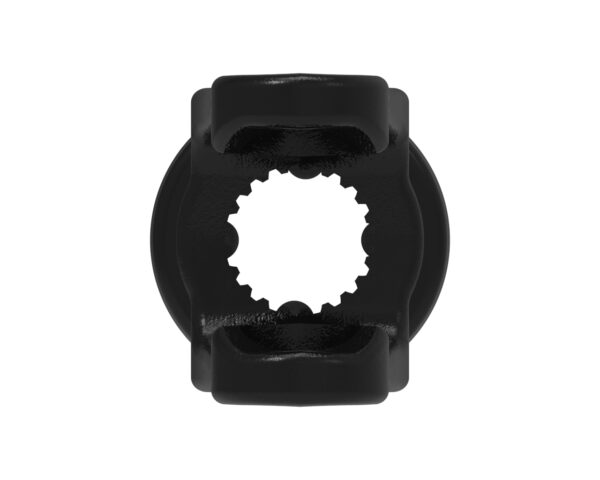

14 series yoke with 1 3/8-21 spline bore and spring-lok connection
PTO drive shafts start with a tractor yoke, the leading connection between the the tractor and the driveline. Weasler provides four types of Tractor Yokes: auto-lok, safety slide lock, spring-lok and quick disconnect. All yokes are compliant with ANSI/ASABE AD5673, ANSI/ASABE AD5674, ANSI/ASABE S604 and EN12965. For lawn and garden applications, specialized auto-lok and spring-lok yokes are available in addition to a male spline yoke. Agricultural tractor yokes are offered in 1 3/8″ 6-spline (type 1), 1 3/8″ 21-spline (type 2), and 1 3/4″ 20-spline (type 3) options to fit the specific tractor connection needed. Optionally 1 1/2″ 8-spline and 1 3/4″ 6-spline options are available. Lawn & Turf tractor yokes are offered in 1″ 10-spline and 1″ 15-spline.
PERFORMANCE BENEFITS
Specifications
Spec. | Imperial | Metric |
---|---|---|
Bore 1 | 1.37 inches | 35 mm |
Bore 1 | 1 3/8-21 SPLINE | |
Connection 1 | SPRING-LOK | |
Height | 3.38 inches | 86 mm |
HP@1000RPM | 58 HP | 43 kilowatts |
HP@540RPM | 38 HP | 28 kilowatts |
Length | 4.31 inches | 109 mm |
Shipping Dimensions | 5.13" L × 3.38" H × 2.75" W | 13cm L × 9cm H × 7cm W |
Shipping Volume | 47.68 in3 | 781 cm3 |
Shipping Weight | 2.42 pounds | 1 kilograms |
Weight | 2.42 pounds | 1 kilograms |
Width | 2.75 inches | 70 mm |
