1630-7602-121STPROFILE PTO DRIVE SHAFT

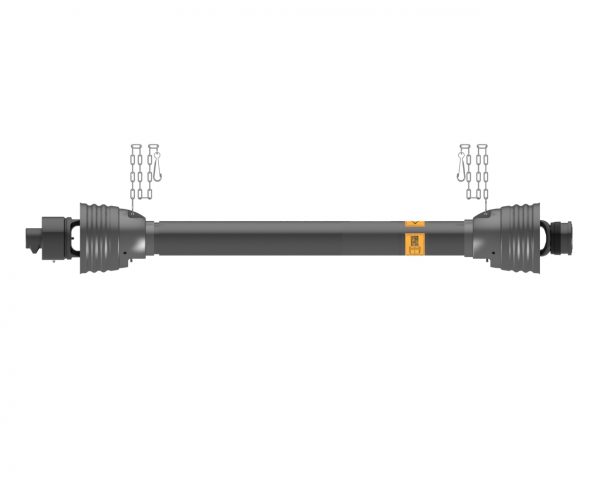

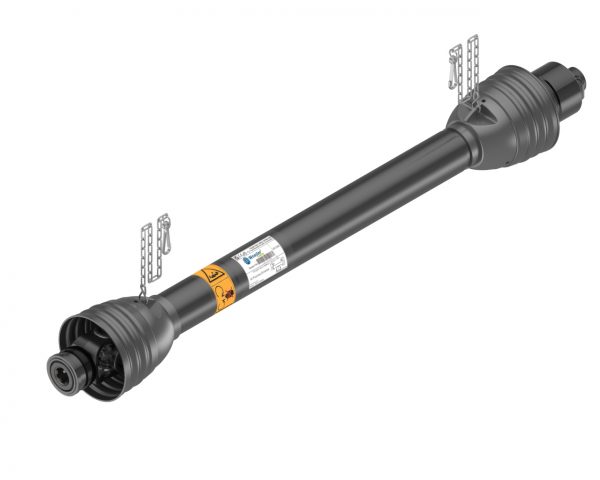

STANDARD AW35 Series Profile PTO Drive Shaft With Overrunning Clutch Yoke
AW35 Series Profile PTO Drive Shaft With A 1 3/8-6 Spline Spring-lok Tractor Connection And Overrunning Clutch Yoke With 1 3/8-6 Spline Spring-lok Implement Connection. Note: Image color may not represent actual part.
Weasler Standard PTO drive shafts are available in the agriculture and lawn & turf industries . Weasler PTO driveshafts are complete assemblies from tractor to implement. They are designed for intermittent or light-duty all purpose use and meet the requirements of small farms and consumers. The metric product line offering of PTO drive shafts meets the power transmission needs of many applications.
Design adjustability (cut-to-length) capabilities.
Interchangeability to fit with most competitor models.
Tri-lobe shaft profiles available.
Standard guard construction without Easy Lock allows assembly or removal with a screwdriver.
Available with Standard bearing kits requiring regular lubrication.
Guard System: Provides full coverage at maximum angles, Black coloring that is durable against ultraviolet light and ozone, meets all applicable safety standards. Does not include our Easy Lock system.
Yokes: Interchangeable with standard yokes available in the market, meet all appicable safety standards.
Cross & Bearing Kits: Standard kits require regular maintenance.
|Bore 1||1.37 inches||35 mm|
|Bore 1||1 3/8-6 SPLINE|
|Bore 2||1.37 inches||35 mm|
|Bore 2||1 3/8-6 SPLINE|
|Compressed (Closed) Length||47.64 inches||1210 mm|
|Compressed Overall Length||58.92 inches||1497 mm|
|Extended Length||70.12 inches||1781 mm|
|Extended Overall Length||81.40 inches||2068 mm|
|HP@1000RPM||80 HP||60 kilowatts|
|HP@540RPM||52 HP||39 kilowatts|
|Length||58.92 inches||1497 mm|
|Outside Diameter||7.28 inches||185 mm|
|Shipping Dimensions||57.562" L × 7.28" H × 7.28" W||146cm L × 18cm H × 18cm W|
|Shipping Volume||3050.69 in3||49992 cm3|
|Shipping Weight||50.13 pounds||23 kilograms|
|Weight||50.13 pounds||23 kilograms|
|Service Instructions - Universal Joint.pdf||Service Document||English|
|Lack of Grease - Cross & Brg Kit.pdf||Troubleshooting Document||English|
|Standard_Product_WeaslerFlyer-Updated.pdf||Performance Benefits Document||English|
