1680-7402-10118ST

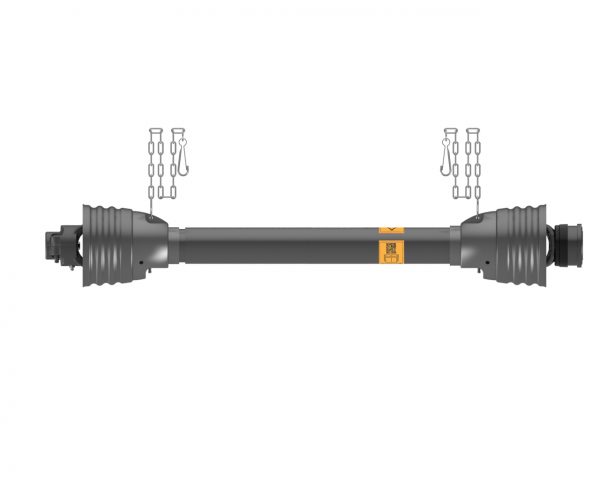

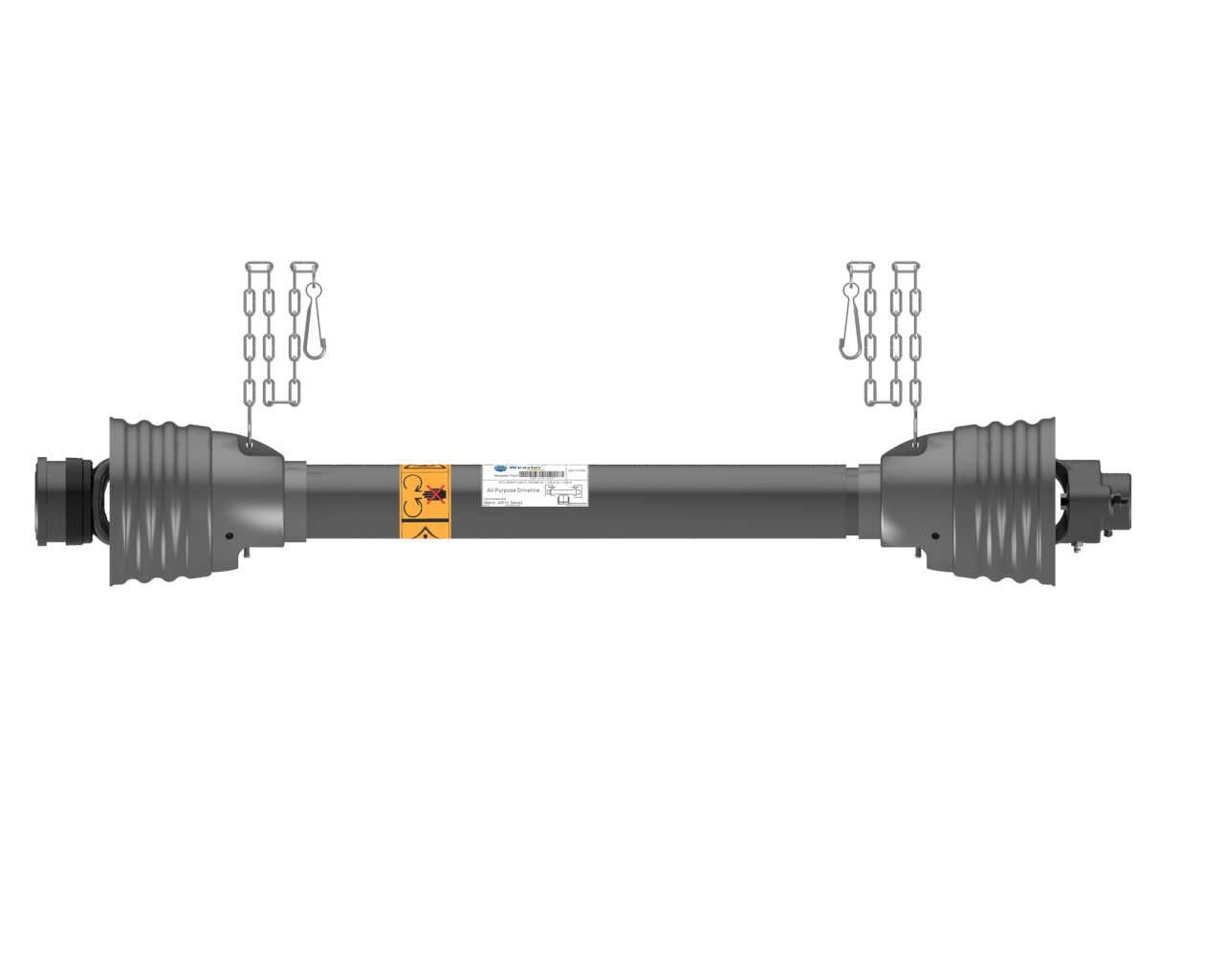

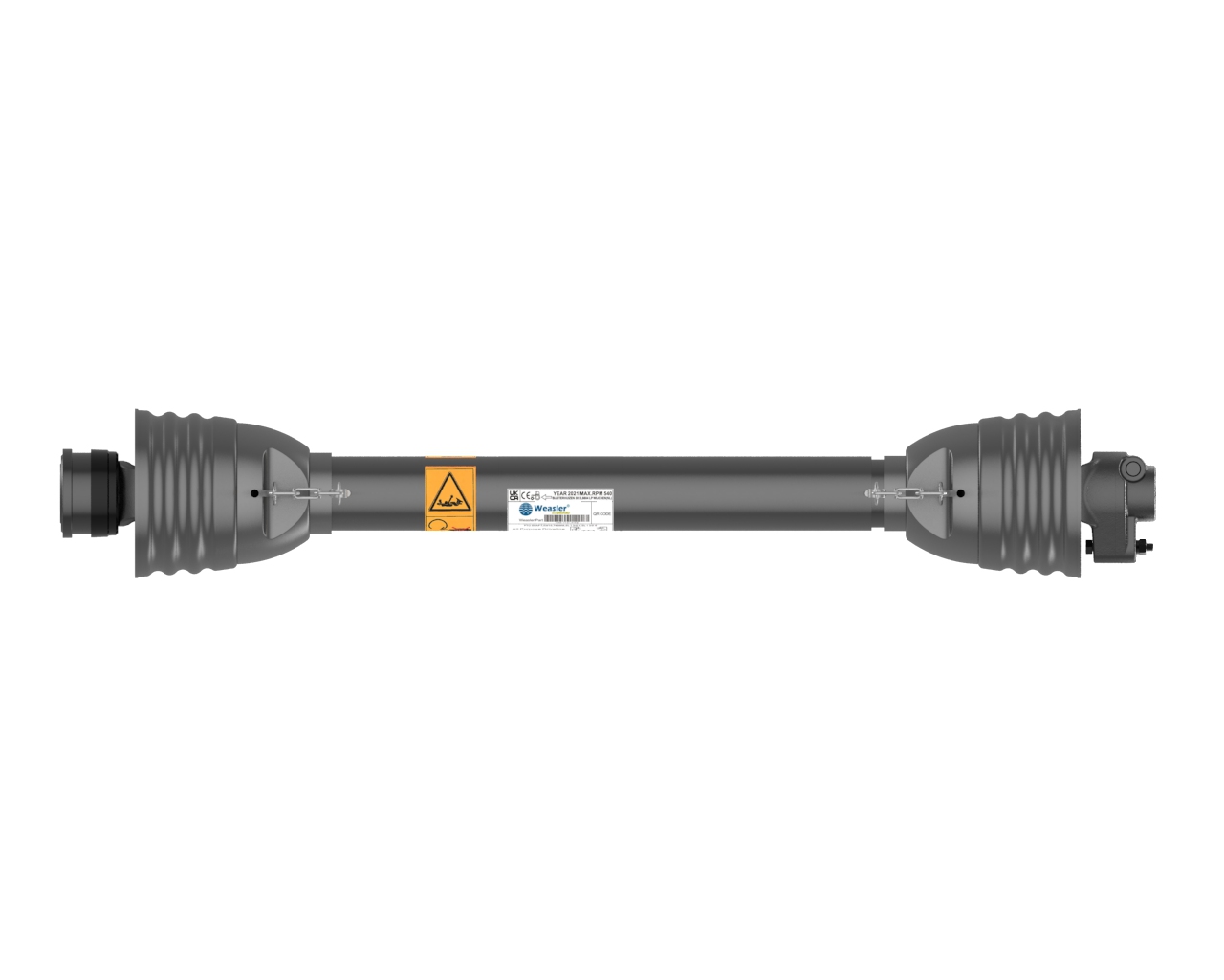

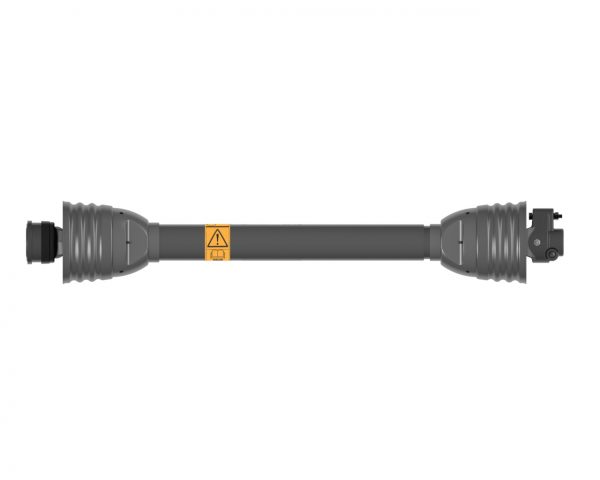

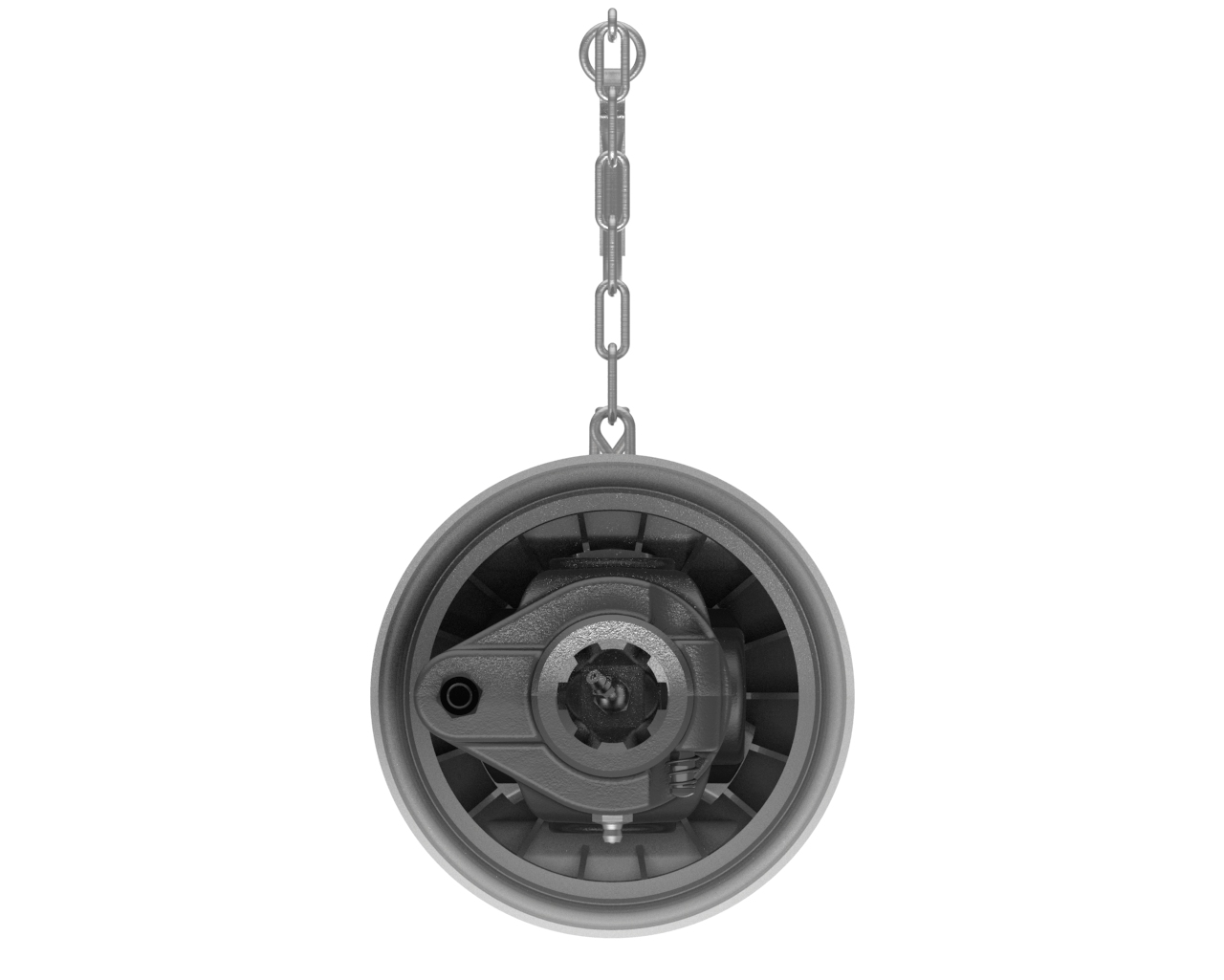

STANDARD AW21 Series Profile PTO Drive Shaft With Ball Shear Clutch Yoke

AW21 Series Profile PTO Drive Shaft With A 1 3/8-6 Spline Spring-lok Tractor Connection And 14200 Inch-pound Ball Shear Clutch Yoke With 1 3/8-6 Spline Quick Disconnect Implement Connection

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

Weasler Standard PTO drive shafts are available in the agriculture and lawn & turf industries . Weasler PTO driveshafts are complete assemblies from tractor to implement. They are designed for intermittent or light-duty all purpose use and meet the requirements of small farms and consumers. The metric product line offering of PTO drive shafts meets the power transmission needs of many applications.

PERFORMANCE BENEFITS
• Design adjustability (cut-to-length) capabilities.
• Interchangeability to fit with most competitor models.
• Tri-lobe shaft profiles available.
• Standard guard construction without Easy Lock allows assembly or removal with a screwdriver.
• Available with Standard bearing kits requiring regular lubrication.

DESIGN FEATURES
• Guard System: Provides full coverage at maximum angles, Black coloring that is durable against ultraviolet light and ozone, meets all applicable safety standards. Does not include our Easy Lock system.
• Yokes: Interchangeable with standard yokes available in the market, meet all appicable safety standards.
• Cross & Bearing Kits: Standard kits require regular maintenance.

Specifications

Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 1 3/8-6 SPLINE
Bore 21.37 inches35 mm
Bore 2 1 3/8-6 SPLINE
Compressed (Closed) Length39.76 inches1010 mm
Compressed Overall Length49.13 inches1248 mm
Connection 1 SPRING-LOK
Connection 2 QUICK DISCONNECT
Extended Length58.37 inches1483 mm
Extended Overall Length67.73 inches1720 mm
HP@1000RPM56 HP42 kilowatts
HP@540RPM36 HP27 kilowatts
Length49.13 inches1248 mm
Outside Diameter7.28 inches185 mm
Shipping Dimensions48.658" L  ×  7.28" H  ×  7.28" W124cm L  ×  18cm H  ×  18cm W
Shipping Volume2578.8 in342259 cm3
Shipping Weight32.72 pounds15 kilograms
Weight32.72 pounds15 kilograms

Downloads

Document Name Type Language
Service-Instructions-Lubricating-PTO-Drive-Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
Standard_Product_WeaslerFlyer-Updated.pdf Performance Benefits Document English
