14006546ST
PROFILE PTO DRIVE SHAFTSTANDARD AB5 Series Profile PTO Drive Shaft

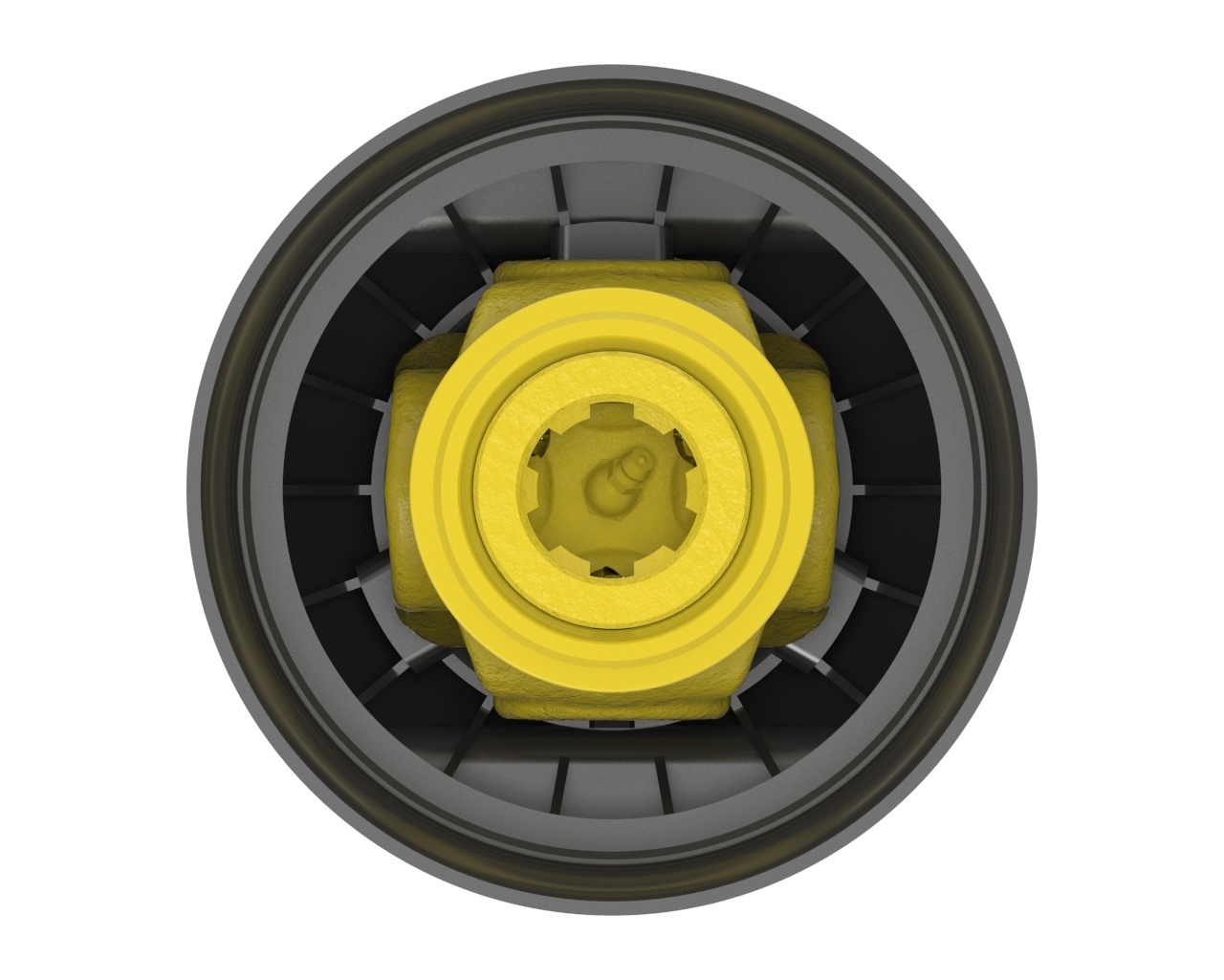

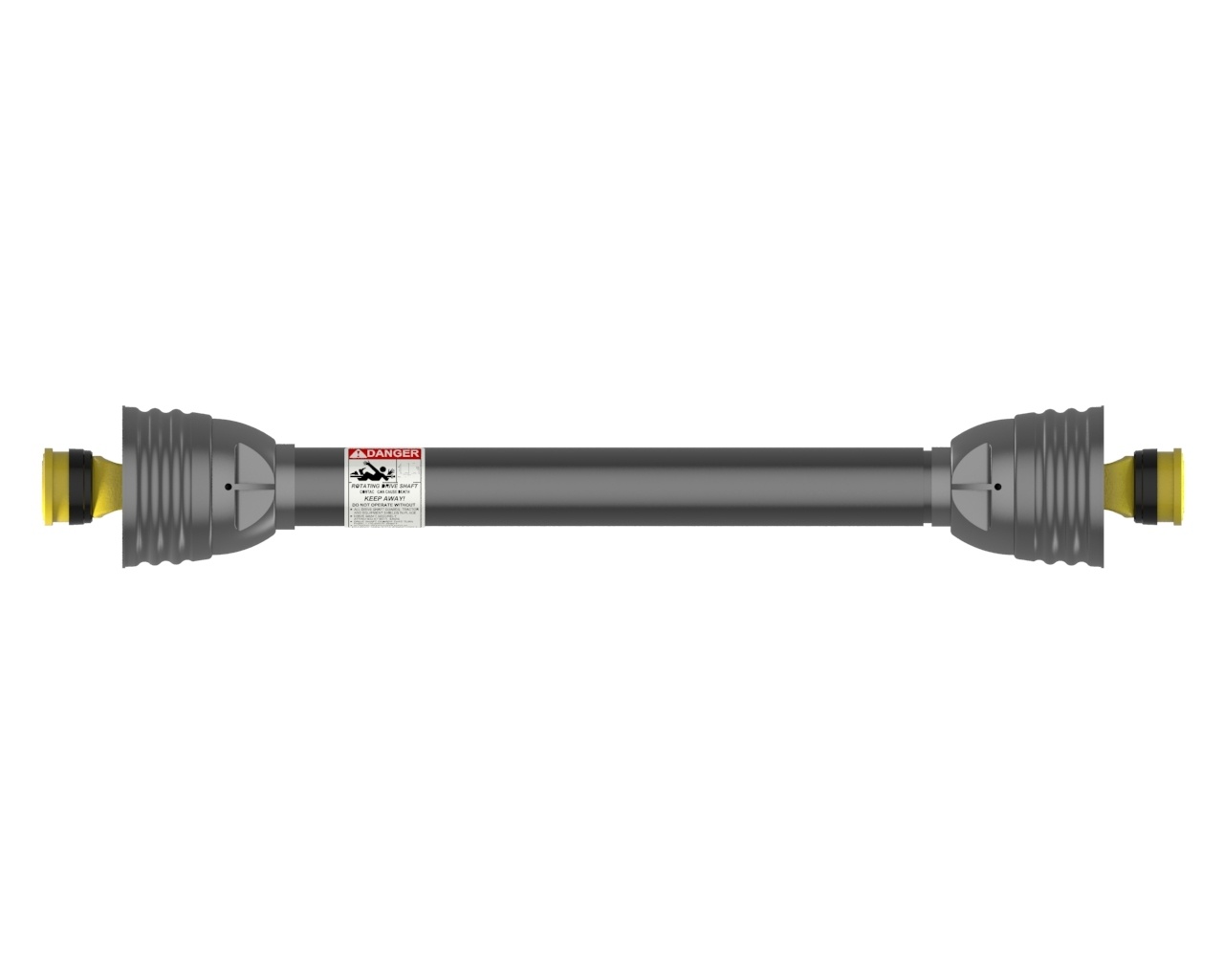

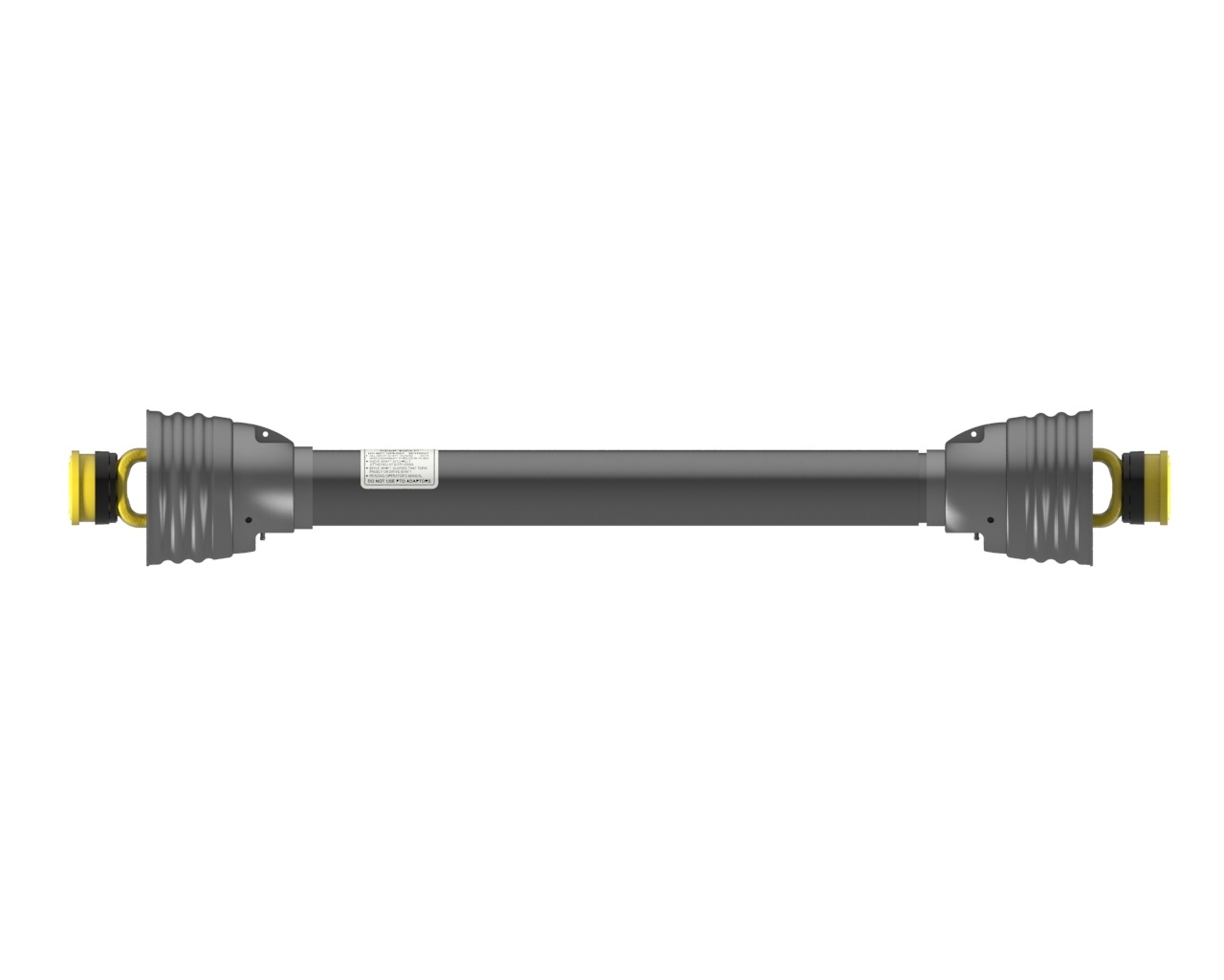

AB5 series profile PTO drive shaft with a 1 3/8-6 spline spring-lok tractor connection and 1 3/8-6 spline spring-lok implement connection. Note: Image color may not represent actual part.
Weasler Standard PTO drive shafts are available in the agriculture and lawn & turf industries . Weasler PTO driveshafts are complete assemblies from tractor to implement. They are designed for intermittent or light-duty all purpose use and meet the requirements of small farms and consumers. The metric product line offering of PTO drive shafts meets the power transmission needs of many applications.
PERFORMANCE BENEFITS
Design adjustability (cut-to-length) capabilities.
Interchangeability to fit with most competitor models.
Tri-lobe shaft profiles available.
Standard guard construction without Easy Lock allows assembly or removal with a screwdriver.
Available with Standard bearing kits requiring regular lubrication.
DESIGN FEATURES
Guard System: Provides full coverage at maximum angles, Black coloring that is durable against ultraviolet light and ozone, meets all applicable safety standards. Does not include our Easy Lock system.
Yokes: Interchangeable with standard yokes available in the market, meet all appicable safety standards.
Cross & Bearing Kits: Standard kits require regular maintenance.
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.37 inches | 35 mm |
| Bore 1 | 1 3/8-6 SPLINE | |
| Bore 2 | 1.37 inches | 35 mm |
| Bore 2 | 1 3/8-6 SPLINE | |
| Compressed (Closed) Length | 37.80 inches | 960 mm |
| Compressed Overall Length | 46.70 inches | 1186 mm |
| Connection 1 | SPRING-LOK | |
| Connection 2 | SPRING-LOK | |
| Extended Length | 57.83 inches | 1469 mm |
| Extended Overall Length | 66.73 inches | 1695 mm |
| HP@1000RPM | 81 HP | 60 kilowatts |
| HP@540RPM | 52 HP | 39 kilowatts |
| Length | 46.70 inches | 1186 mm |
| Outside Diameter | 7.28 inches | 185 mm |
| Shipping Dimensions | 46.7" L × 7.28" H × 7.28" W | 119cm L × 18cm H × 18cm W |
| Shipping Volume | 2475.03 in3 | 40559 cm3 |
| Shipping Weight | 35.00 pounds | 16 kilograms |
| Weight | 35.00 pounds | 16 kilograms |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service-Instructions-Lubricating-PTO-Drive-Shaft.pdf | Maintenance Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
| Standard_Product_WeaslerFlyer-Updated.pdf | Performance Benefits Document | English |
