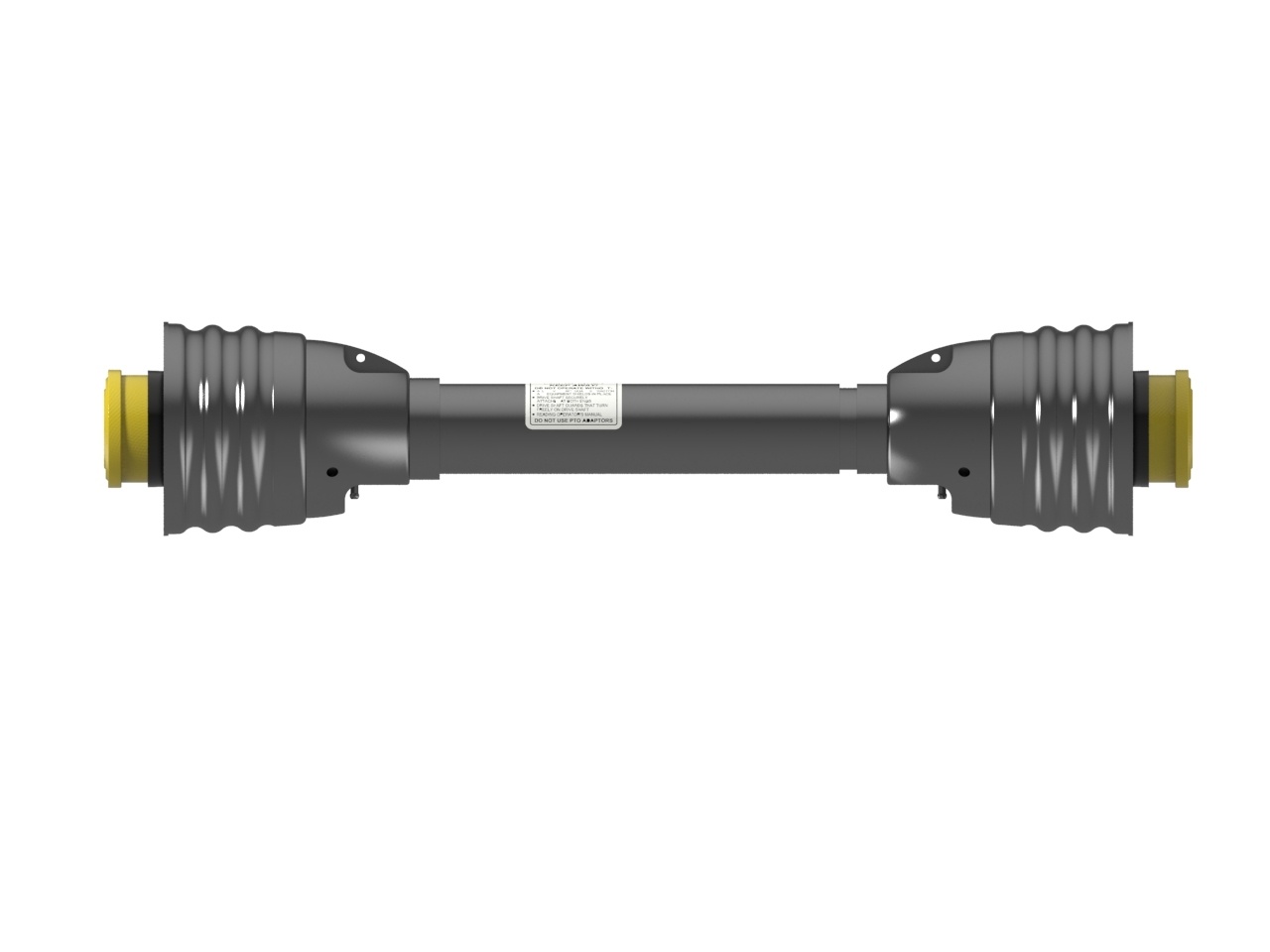

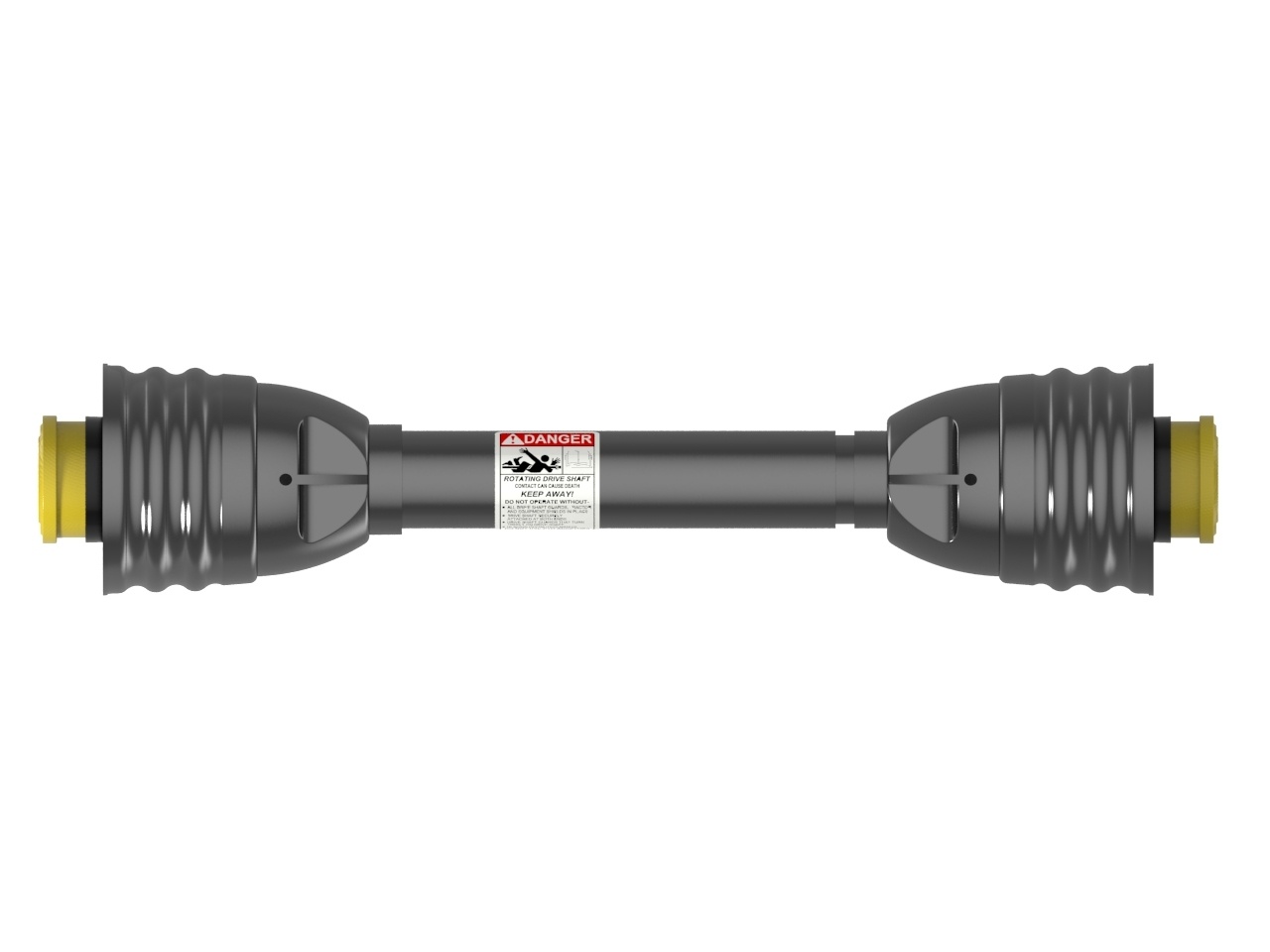

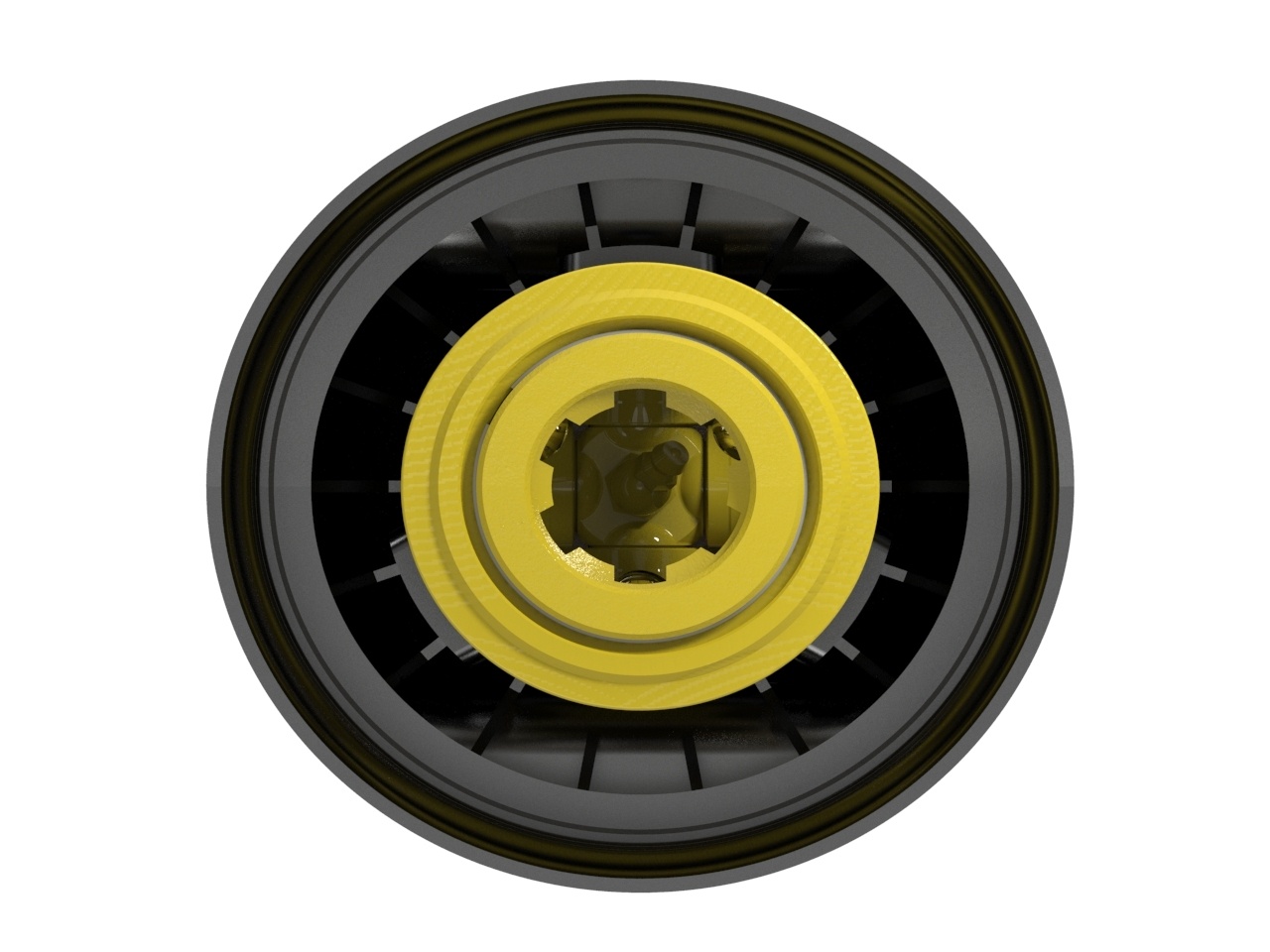

STANDARD AB1 Series Profile PTO Drive Shaft
AB1 series profile PTO drive shaft with a 1 3/8-6 spline spring-lok tractor connection and 1 3/8-6 spline spring-lok implement connection
Weasler Standard PTO drive shafts are available in the agriculture and lawn & turf industries . Weasler PTO driveshafts are complete assemblies from tractor to implement. They are designed for intermittent or light-duty all purpose use and meet the requirements of small farms and consumers. The metric product line offering of PTO drive shafts meets the power transmission needs of many applications.
Design adjustability (cut-to-length) capabilities.
Interchangeability to fit with most competitor models.
Tri-lobe shaft profiles available.
Standard guard construction without Easy Lock allows assembly or removal with a screwdriver.
Available with Standard bearing kits requiring regular lubrication.
Guard System: Provides full coverage at maximum angles, Black coloring that is durable against ultraviolet light and ozone, meets all applicable safety standards. Does not include our Easy Lock system.
Yokes: Interchangeable with standard yokes available in the market, meet all appicable safety standards.
Cross & Bearing Kits: Standard kits require regular maintenance.
|Bore 1||1.37 inches||35 mm|
|Bore 1||1 3/8-6 SPLINE|
|Bore 2||1.37 inches||35 mm|
|Bore 2||1 3/8-6 SPLINE|
|Compressed (Closed) Length||27.00 inches||686 mm|
|Compressed Overall Length||34.08 inches||866 mm|
|Extended Length||30.00 inches||762 mm|
|Extended Overall Length||37.08 inches||942 mm|
|HP@1000RPM||23 HP||17 kilowatts|
|HP@540RPM||15 HP||11 kilowatts|
|Length||34.08 inches||866 mm|
|Outside Diameter||6.00 inches||152 mm|
|Shipping Dimensions||34.086" L × 6" H × 6" W||87cm L × 15cm H × 15cm W|
|Shipping Volume||1227.10 in3||20109 cm3|
|Shipping Weight||11.40 pounds||5 kilograms|
|Weight||11.40 pounds||5 kilograms|
|Service Instructions - Universal Joint.pdf||Service Document||English|
|Lack of Grease - Cross & Brg Kit.pdf||Troubleshooting Document||English|
|Standard_Product_WeaslerFlyer-Updated.pdf||Performance Benefits Document||English|
