3001-7906-00
UNIVERSAL JOINTAW36 Series Universal Joint

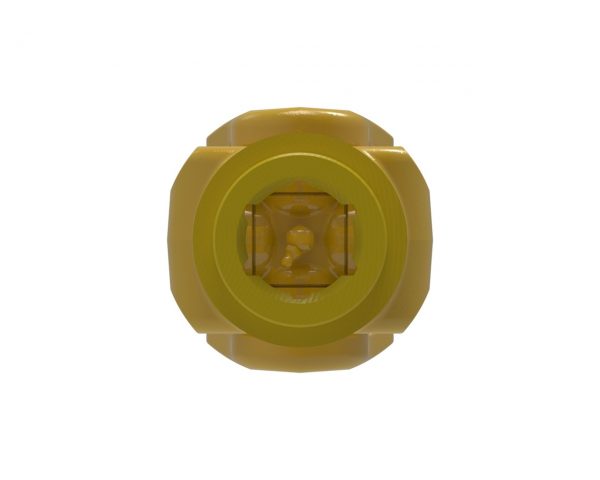

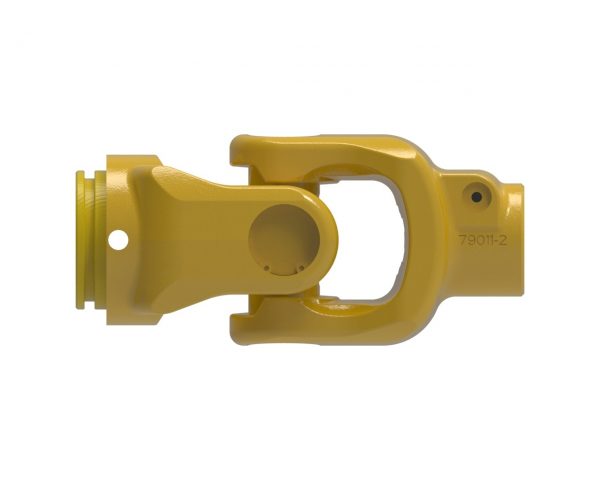

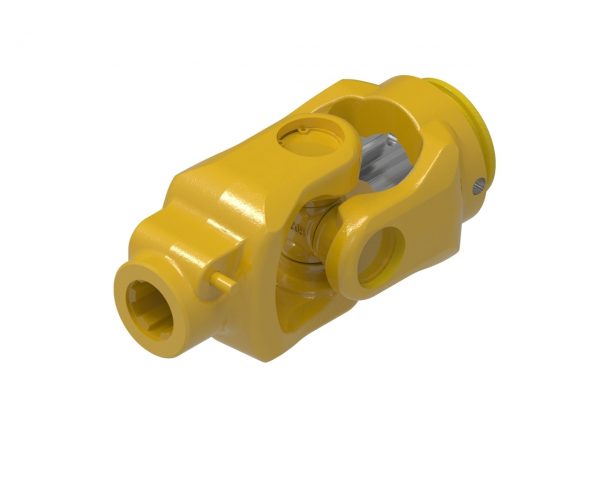

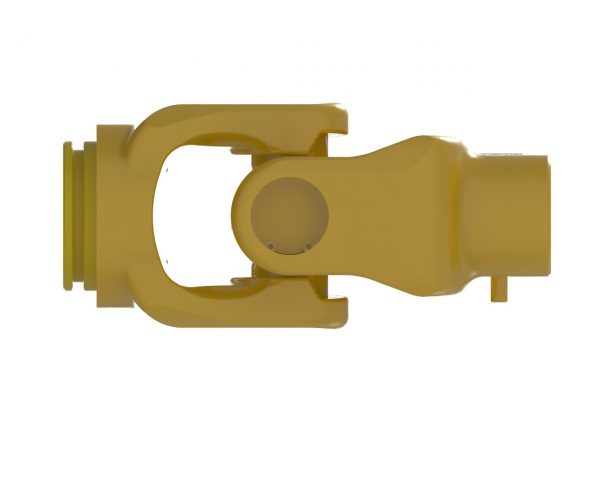

AW36 series universal joint with 1 3/8-6 spline, quick disconnect connection and 51 mm star, telescoping connection. Note: Image color may not represent actual part.
The Weasler Cardan type Universal Joints are robust, engineered and produced for high power density and long life. Produced to exact tolerances they provide for simple, easy service and tight bearing fits. The universal joints can be used alone, or as a component of a drive shaft system.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.37 inches | 35 mm |
| Bore 1 | 1 3/8-6 SPLINE | |
| Bore 2 | 2.08 inches | 53 mm |
| Bore 2 | 51 MM STAR | |
| Connection 1 | QUICK DISCONNECT | |
| Connection 2 | TELESCOPING | |
| HP@1000RPM | 124 HP | 92 kilowatts |
| HP@540RPM | 80 HP | 60 kilowatts |
| Length | 9.26 inches | 235 mm |
| Shipping Dimensions | 9.265" L × 4.72" H × 4.72" W | 24cm L × 12cm H × 12cm W |
| Shipping Volume | 206.41 in3 | 3382 cm3 |
| Shipping Weight | 14.65 pounds | 7 kilograms |
| Weight | 14.65 pounds | 7 kilograms |
