583-7928-23

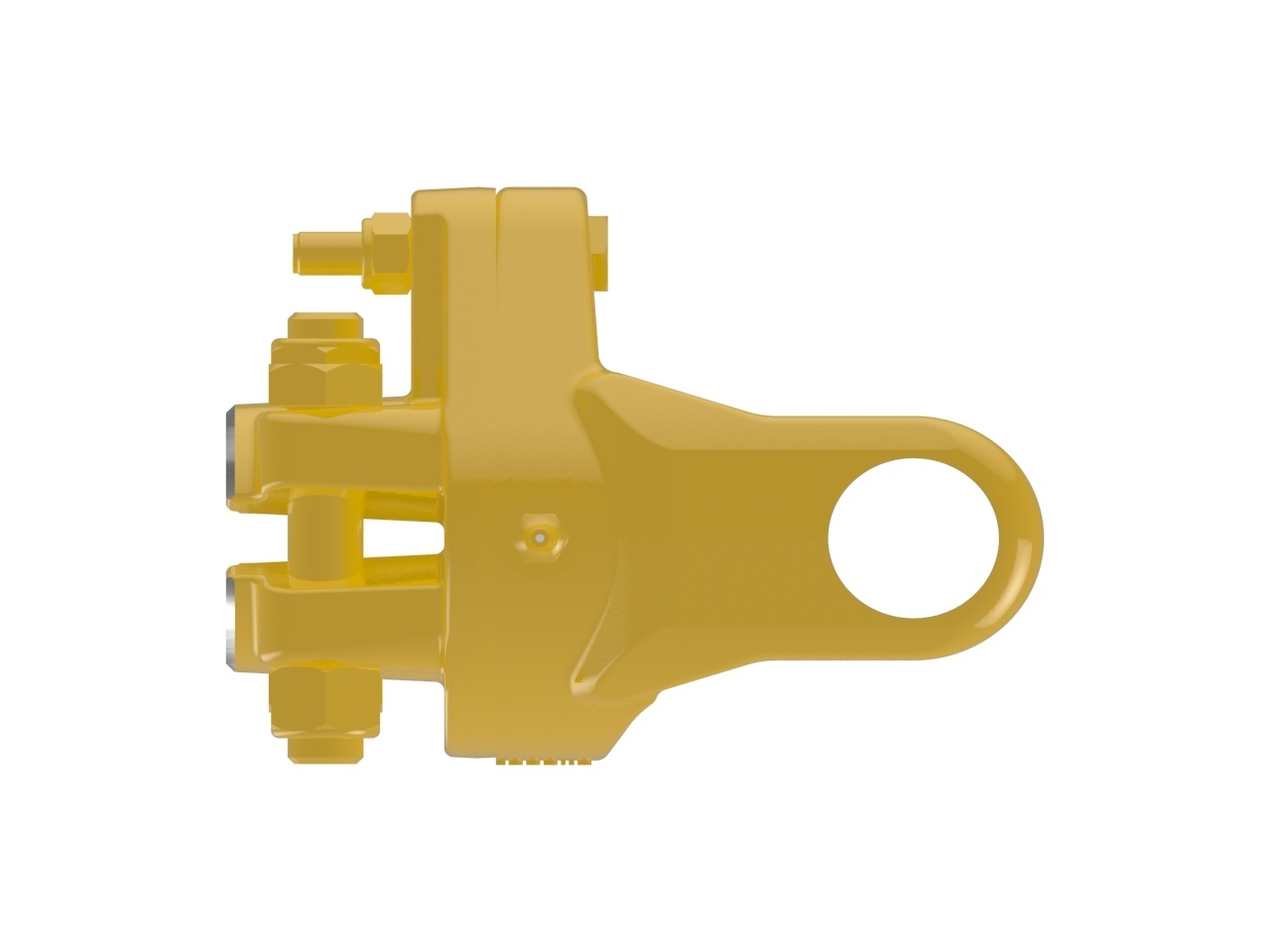

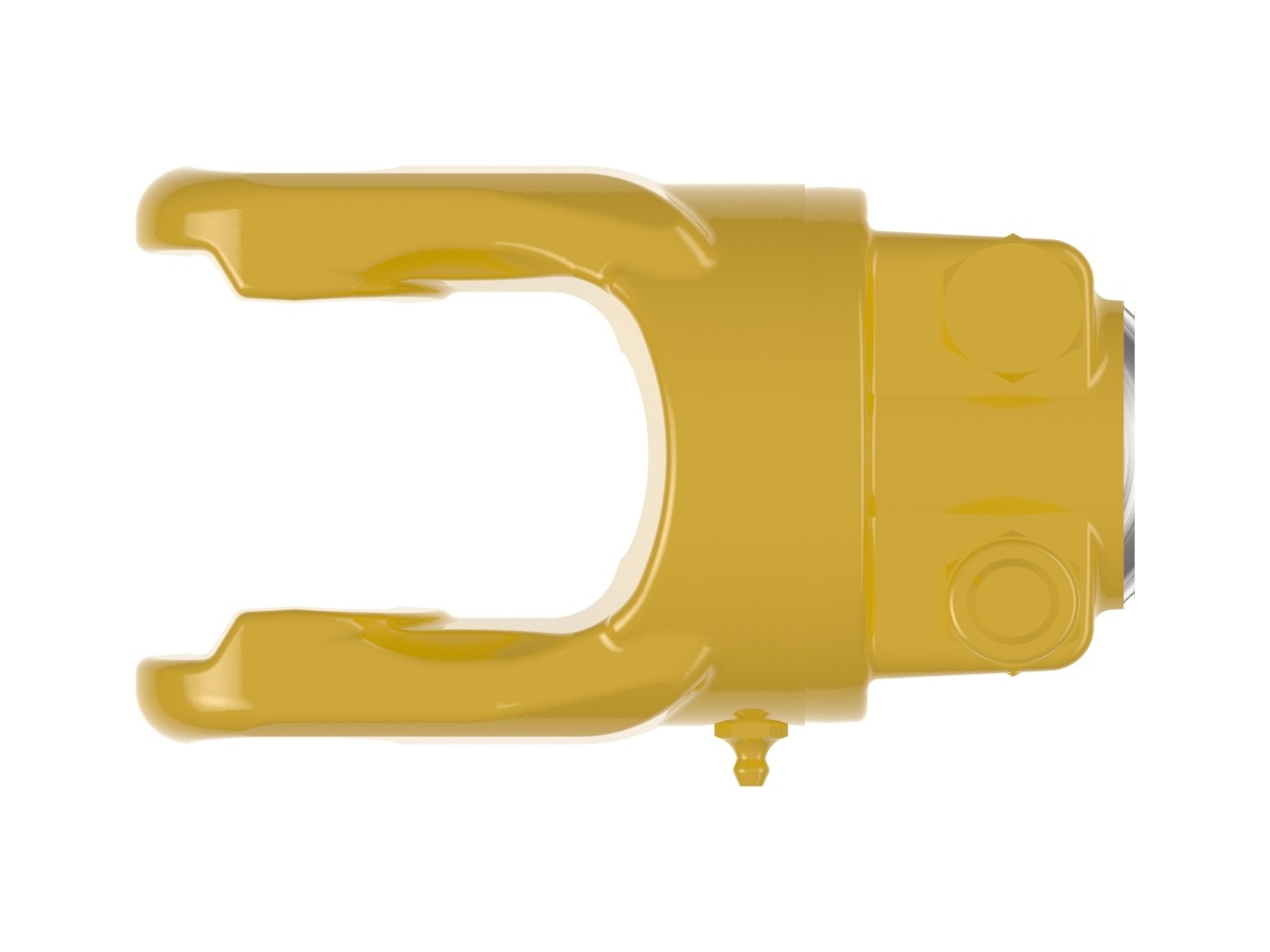

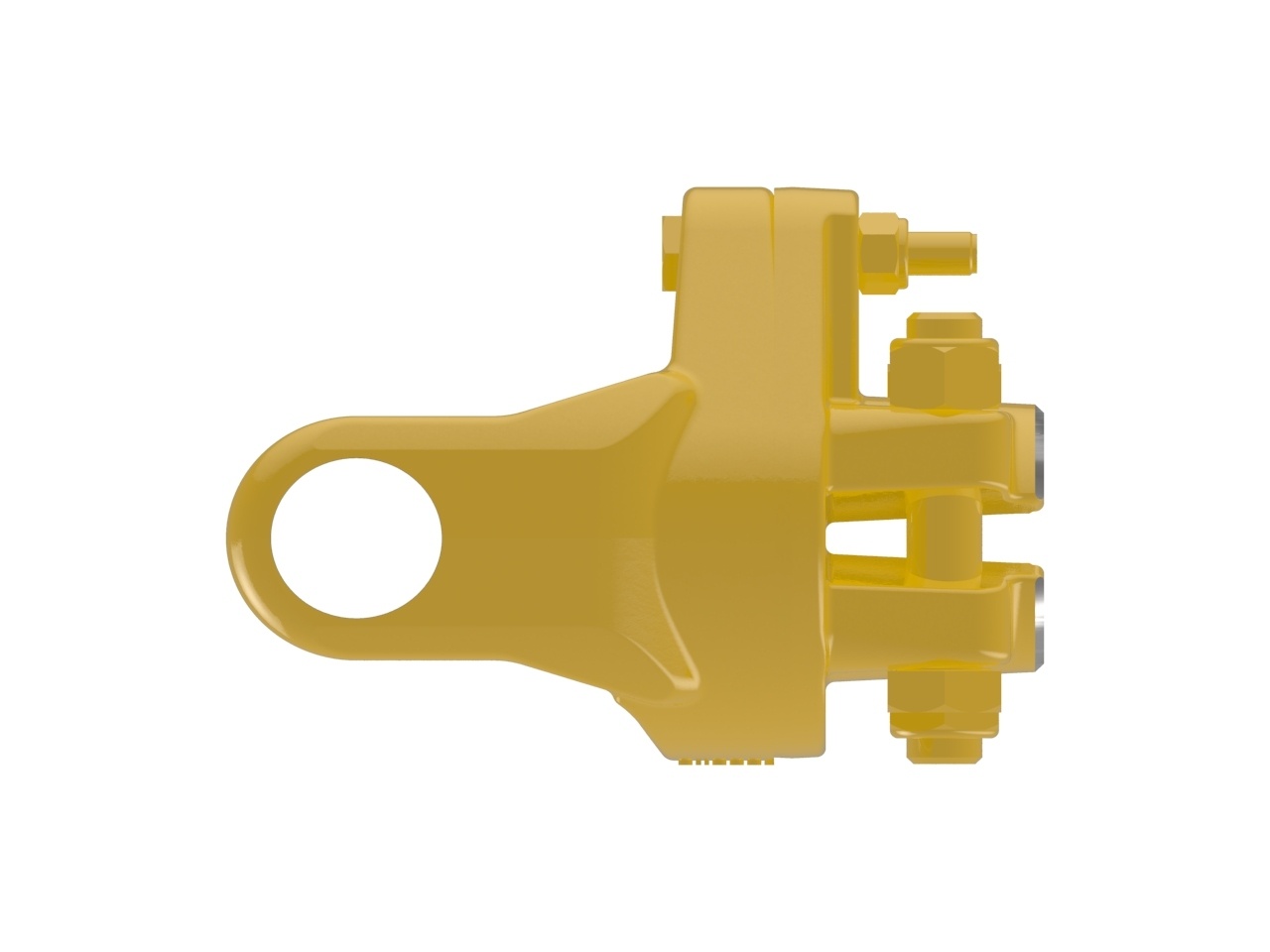

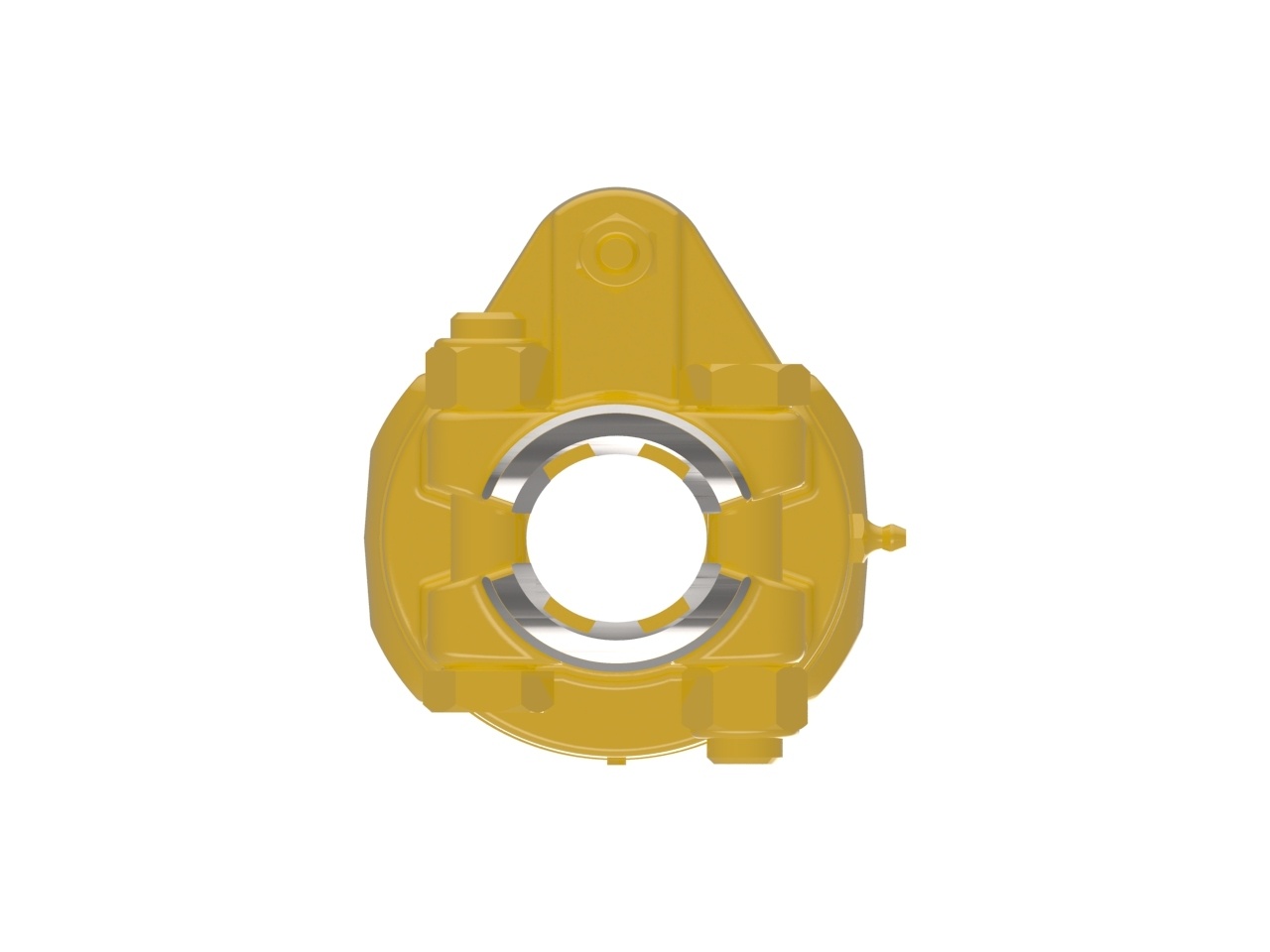

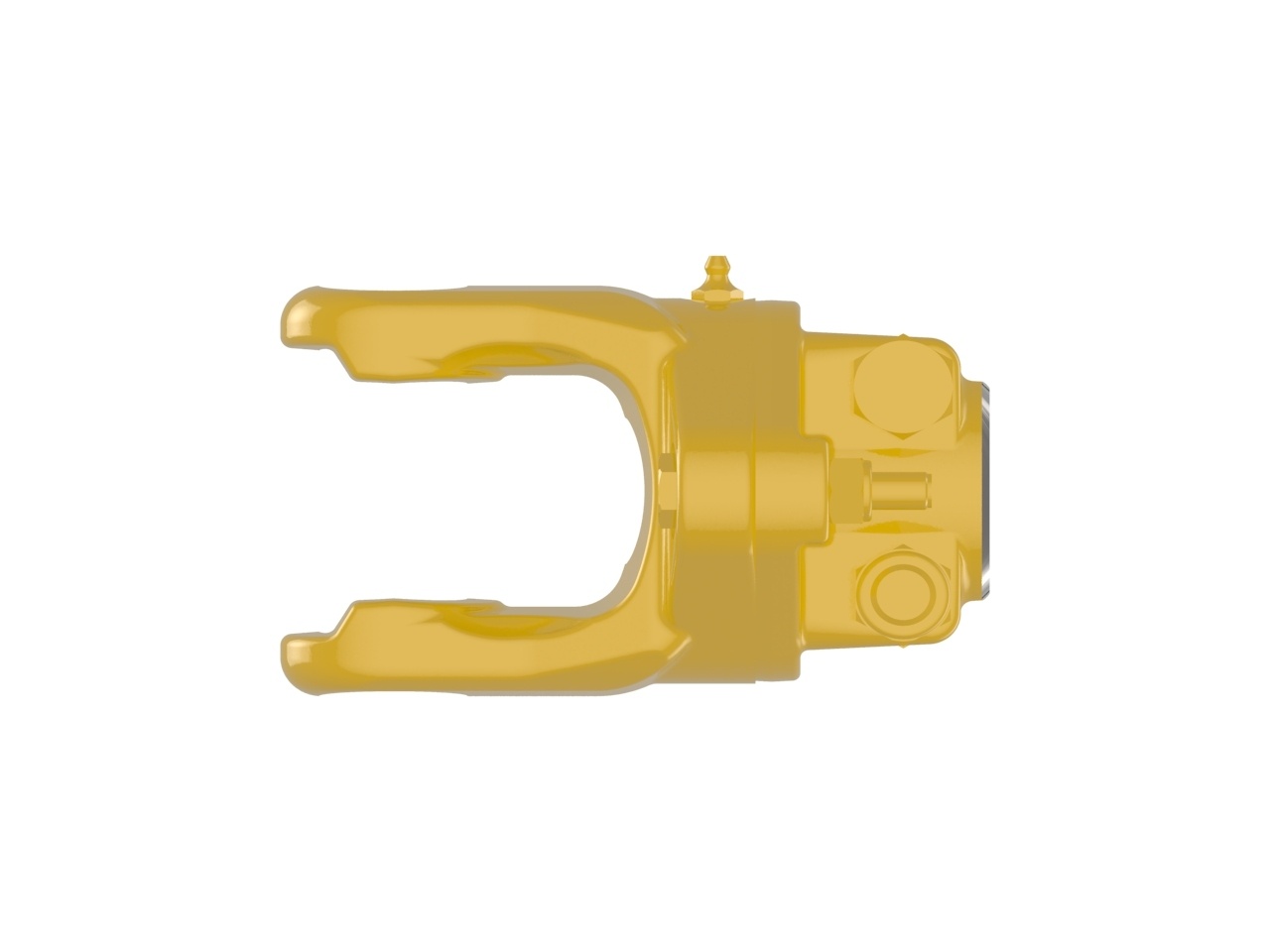

AW36 Series Ball Shear Clutch Clamp Yoke

AW36 series ball shear clutch yoke with 1 3/4-6 spline bore and clamp connection

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

The ball shear yoke clutch offers implement overload protection. In addition to the traditional implement mounted configuration, the free motion and hidden bolt tractor shaft mounted options make hook-up and service more user friendly. The compact, efficient design disconnects the power source from the drivetrain when overload occurs and helps prevent the generatation of damaging torque spikes or heat. Once the operator replaces the bolt, the machine can be restarted.

PERFORMANCE BENEFITS
• Implement overload protection.
• Minimal maintenance.
• No damaging heat generation for higher productivity.
• Repeatable overload disengagement setting.
• Tamper resistant.
• Smooth disengaged operation, no damaging torque spikes.
• Offered with or without free motion, overrunning and tractor mount options.
• Induction hardened bolt holes provide good edge for consistent, repeatable shear.
• Internal ball bearing with induction hardened races.
• Reduces possibility of damage.

DESIGN FEATURES
• Tractor yoke: Hidden shear bolt, Complies with asabe and ISO standards, Slide collar style for 1-3/8 x 6, 1-3/8 x 21 and 1-3/4 x 20 PTO shafts.
• Implement yoke contains shear bolt accessible for easy change out.
• Free motion yoke: Shear bolt accessible for easy change out, 60° free movement for easy hookup of tractor yoke.
• Auto-lok attachment available (patented).
• Speeds to 2000 rpm.
• Broad range of shear torque settings.

Specifications

Spec. Imperial Metric
Bearing Diameter1.41 inches36 mm
Bearing Span3.49 inches89 mm
Bore 11.75 inches44 mm
Bore 1 1 3/4-6 SPLINE
Connection 1 CLAMP
HP@1000RPM144 HP107 kilowatts
HP@540RPM94 HP70 kilowatts
Length5.71 inches145 mm
Outside Diameter6.14 inches156 mm
Shear Bolt (1) M10 Class 8.8
Shipping Dimensions6.793" L  ×  6.14" H  ×  6.14" W17cm L  ×  16cm H  ×  16cm W
Shipping Volume256.09 in34197 cm3
Shipping Weight8.37 pounds4 kilograms
Torque2950029500
Weight8.37 pounds4 kilograms

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English

Support Videos

Performance Benefits Video
