830-7635

AW35 Series Pin Yoke

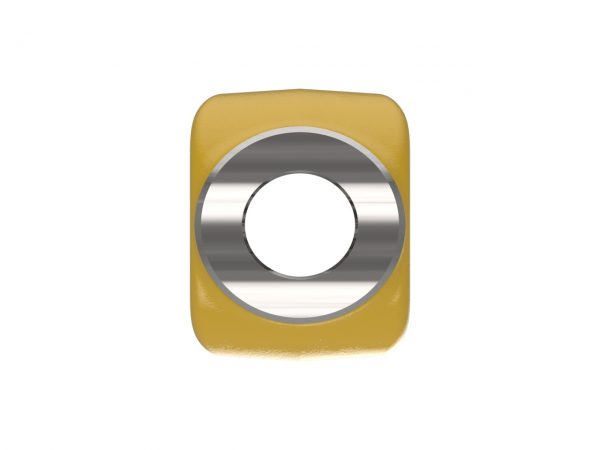

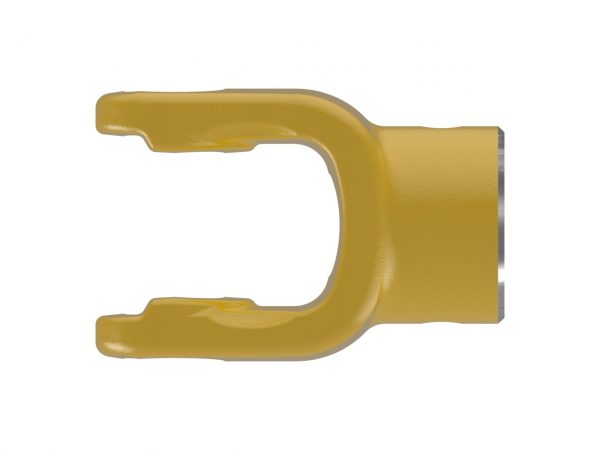

AW35 series yoke with round bore and pin connection

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler implement yokes are provided in a variety of bore and mounting options. Bore options include square, rectangle, hexagon, round and spline. Standard yoke connection options are set screws and pins. Additional implement yoke connection options include torque limiter flage yokes, telescoping yokes (square, round, and hexagon), and clamp yokes.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 ROUND
Connection 1 PIN
Height4.09 inches104 mm
HP@1000RPM102 HP76 kilowatts
HP@540RPM66 HP49 kilowatts
Length4.13 inches105 mm
Pin Hole0.51 inches13 mm
Shipping Dimensions5.09" L  ×  4.09" H  ×  2.76" W13cm L  ×  10cm H  ×  7cm W
Shipping Volume57.46 in3942 cm3
Shipping Weight4.45 pounds2 kilograms
Weight4.45 pounds2 kilograms
Width2.76 inches70 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
