3002-7006-00
UNIVERSAL JOINTAW26 Series Universal Joint

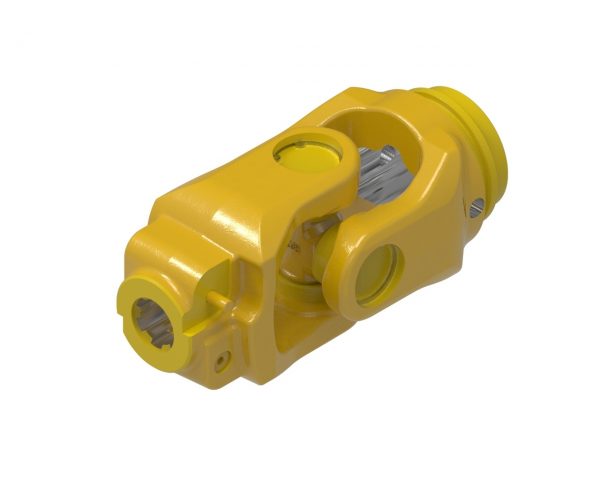

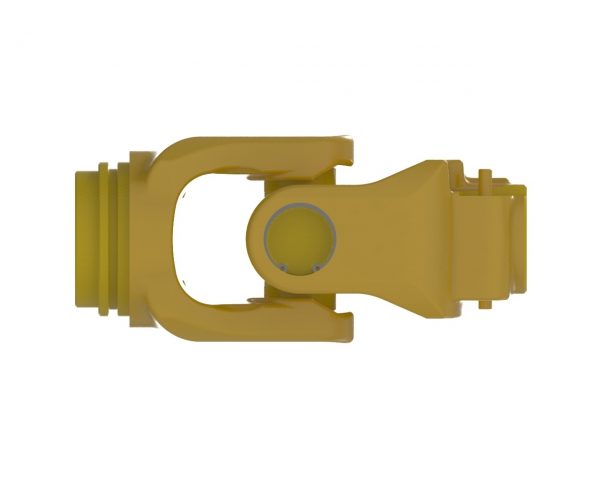

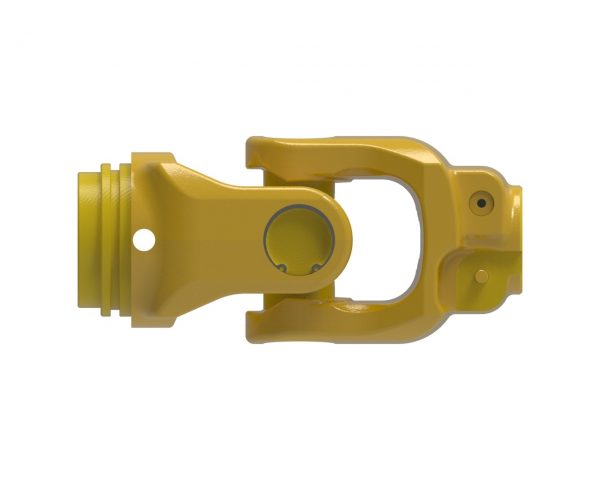

AW26 series universal joint with 1 3/8-6 spline, quick disconnect connection and 71 mm star, telescoping connection. Note: Image color may not represent actual part.
The Weasler Cardan type Universal Joints are robust, engineered and produced for high power density and long life. Produced to exact tolerances they provide for simple, easy service and tight bearing fits. The universal joints can be used alone, or as a component of a drive shaft system.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.37 inches | 35 mm |
| Bore 1 | 1 3/8-6 SPLINE | |
| Bore 2 | 2.89 inches | 73 mm |
| Bore 2 | 71 MM STAR | |
| Connection 1 | QUICK DISCONNECT | |
| Connection 2 | TELESCOPING | |
| HP@1000RPM | 175 HP | 130 kilowatts |
| HP@540RPM | 113 HP | 84 kilowatts |
| Length | 10.65 inches | 271 mm |
| Shipping Dimensions | 10.653" L × 5.04" H × 5.04" W | 27cm L × 13cm H × 13cm W |
| Shipping Volume | 270.60 in3 | 4434 cm3 |
| Shipping Weight | 18.61 pounds | 8 kilograms |
| Weight | 18.61 pounds | 8 kilograms |
