1604-7402-101

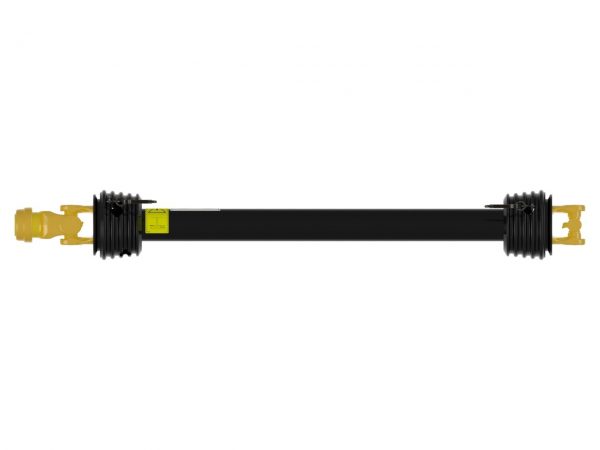

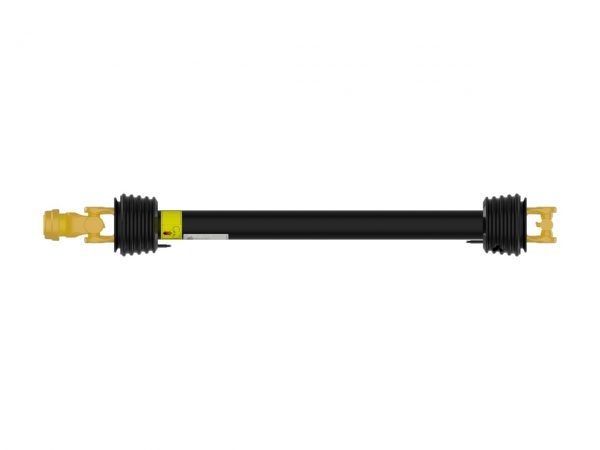

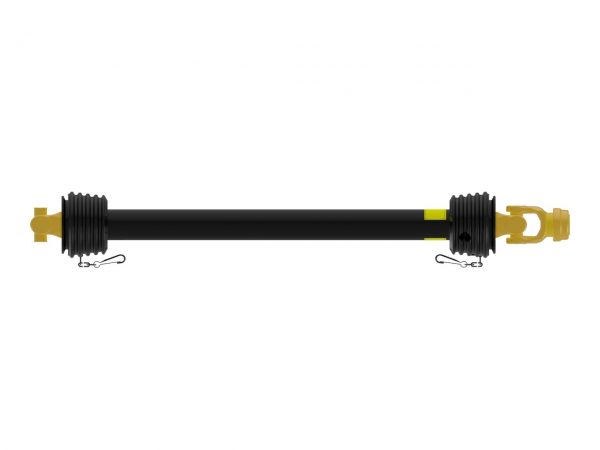

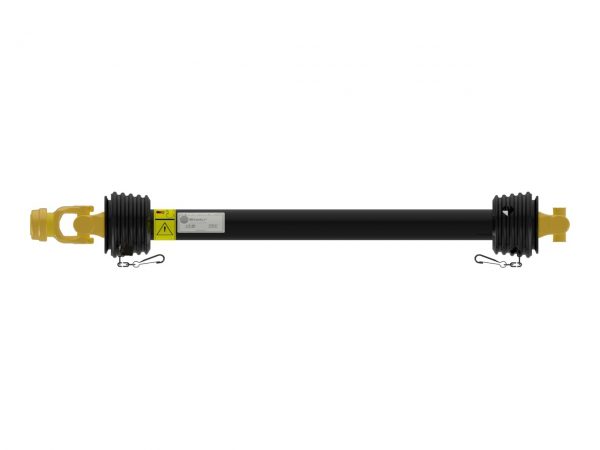

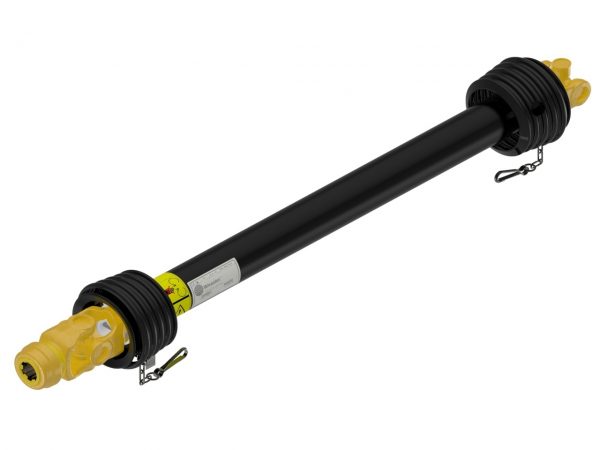

AW21 Series Profile PTO Drive Shaft

AW21 series profile PTO drive shaft with a 1 3/8-6 spline spring-lok tractor connection and minus end yoke, cross and bearing kit needed for implement connection. Note: Image color may not represent actual part.

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

The Weasler high performance PTO drive shafts are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all purpose use and meet the requirements of large farms and contractors. The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.

PERFORMANCE BENEFITS
• Design adjustability (cut-to-length) capabilities.
• Interchangeability to fit with most competitor models.
• Tri-lobe, lemon, and star shaft profiles available.
• Easy lock guard construction allows quick and easy assembly or removal with a simple tool such as a key, coin or screwdriver.
• Available Extended lubrication E-kits reduce downtime with lubrication intervals of 50-250
hours and the high temperature triple lip seal retains grease better.
• Customer dedicated engineering and sales support.

DESIGN FEATURES
• Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
• Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
• Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
• Same component designs used for Weasler’s domestic and metric product lines.

Specifications

Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 1 3/8-6 SPLINE
Bore 21.37 inches35 mm
Bore 2 Minus End Yoke
Compressed (Closed) Length39.76 inches1010 mm
Compressed Overall Length48.65 inches1236 mm
Connection 1 SPRING-LOK
Connection 2 YOKE ARMS
Extended Length58.37 inches1483 mm
Extended Overall Length67.26 inches1708 mm
HP@1000RPM56 HP42 kilowatts
HP@540RPM36 HP27 kilowatts
Length48.65 inches1236 mm
Outside Diameter7.28 inches185 mm
Shipping Dimensions48.658" L  ×  7.28" H  ×  7.28" W124cm L  ×  18cm H  ×  18cm W
Shipping Volume2578.80 in342259 cm3
Shipping Weight25.56 pounds12 kilograms
Weight25.56 pounds12 kilograms

Downloads

Document Name Type Language
Service-Instructions-Lubricating-PTO-Drive-Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Service Instructions - Easy Lock Guards.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
WE0101032_1217_USL_MetricProfile.pdf Performance Benefits Document English
