3003-7206-00

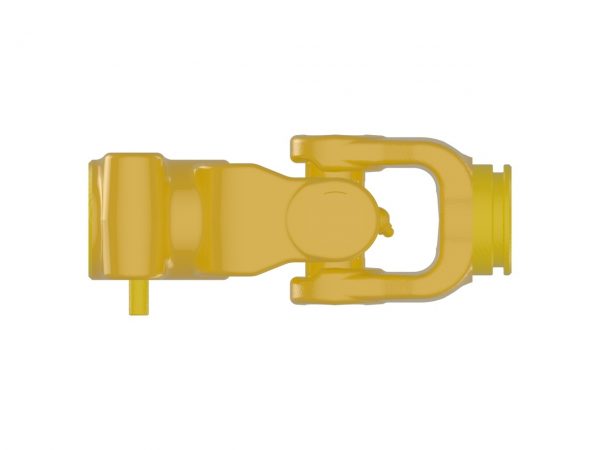

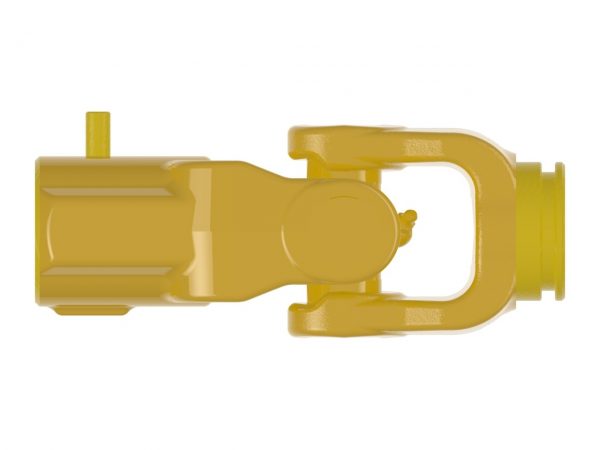

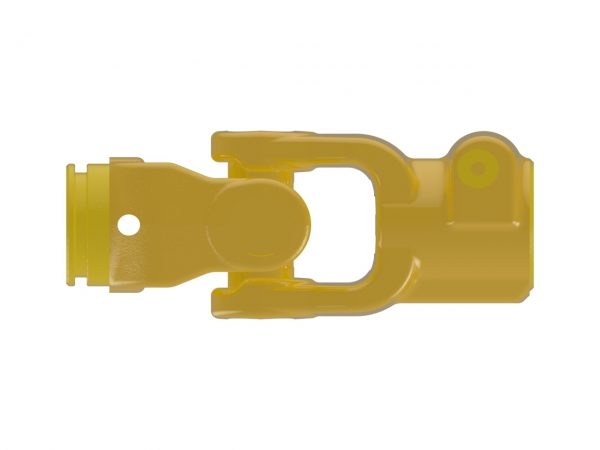

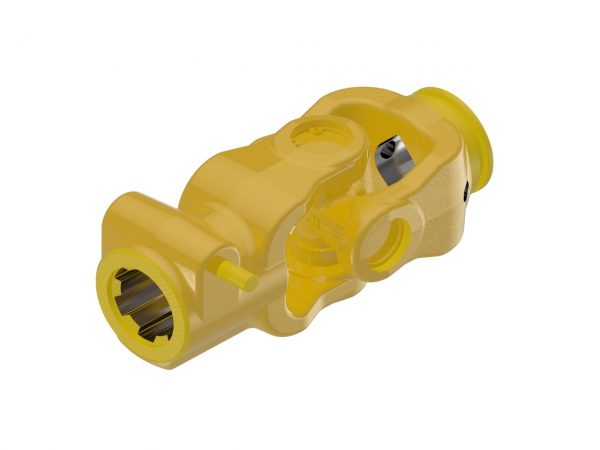

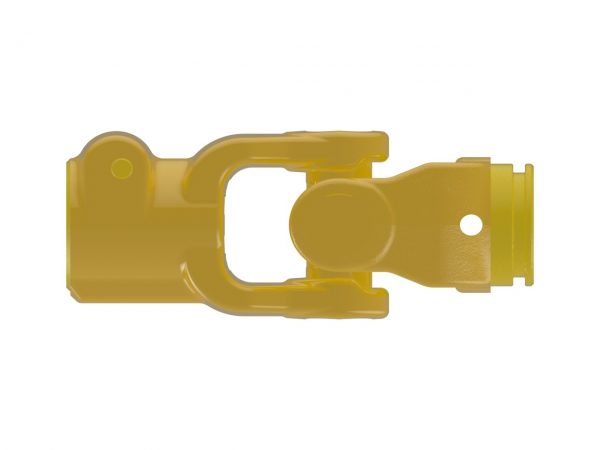

AW20 Series Universal Joint

AW20 series universal joint with 1 3/8-6 spline, quick disconnect connection and 23 mm lemon, telescoping connection

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

The Weasler Cardan type Universal Joints are robust, engineered and produced for high power density and long life. Produced to exact tolerances they provide for simple, easy service and tight bearing fits. The universal joints can be used alone, or as a component of a drive shaft system.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 1 3/8-6 SPLINE
Bore 20.93 inches24 mm
Bore 2 23 MM LEMON
Connection 1 QUICK DISCONNECT
Connection 2 TELESCOPING
HP@1000RPM33 HP25 kilowatts
HP@540RPM21 HP16 kilowatts
Length6.85 inches174 mm
Shipping Dimensions6.857" L  ×  3.35" H  ×  3.35" W17cm L  ×  9cm H  ×  9cm W
Shipping Volume76.95 in31261 cm3
Shipping Weight4.26 pounds2 kilograms
Weight4.26 pounds2 kilograms

Downloads

Document Name Type Language
Service-Instructions-Lubricating-PTO-Drive-Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
WE0101011_0817_USL_EasyLockGuard.pdf Performance Benefits Document English
