3014-7130-00

AW10 Series Universal Joint

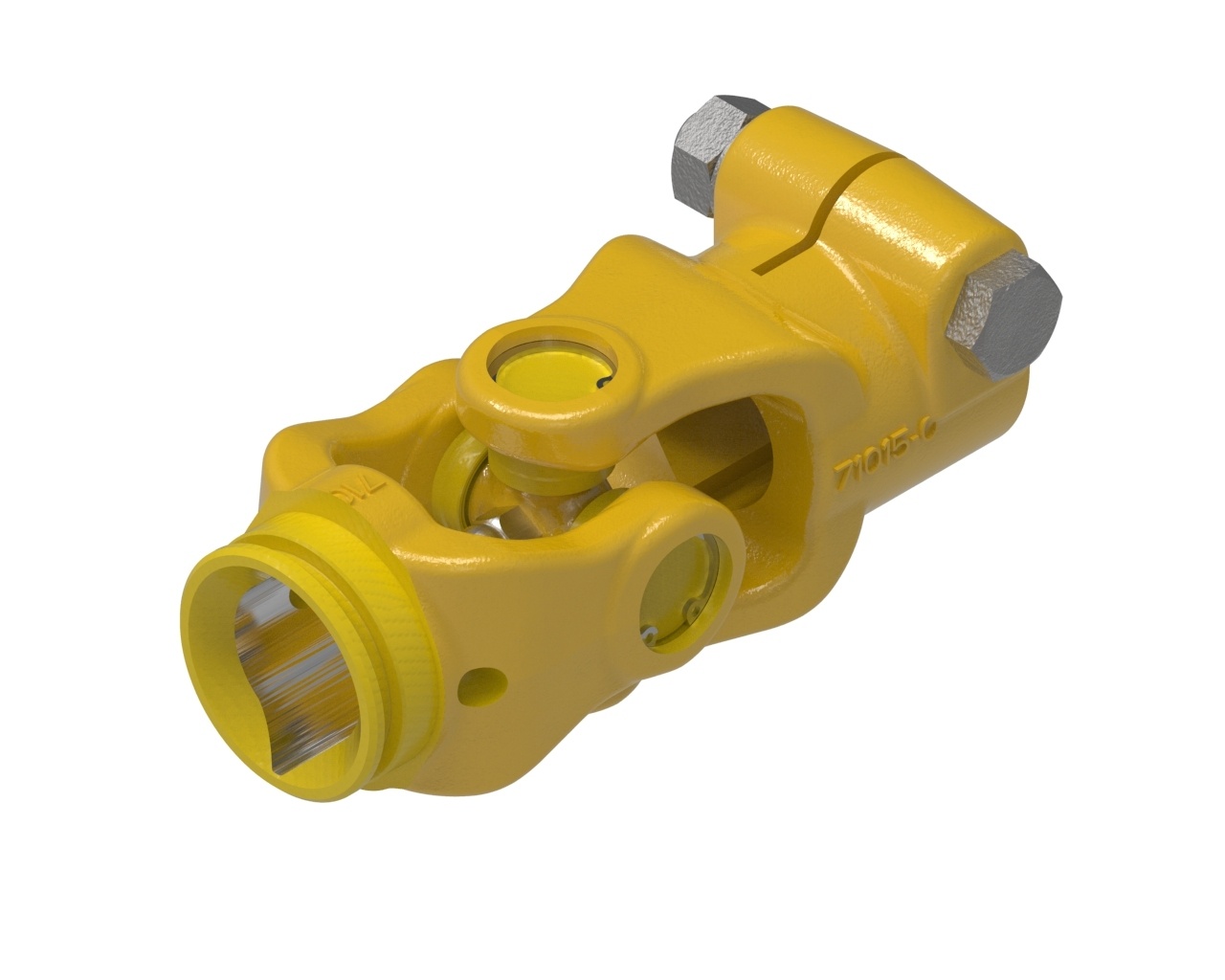

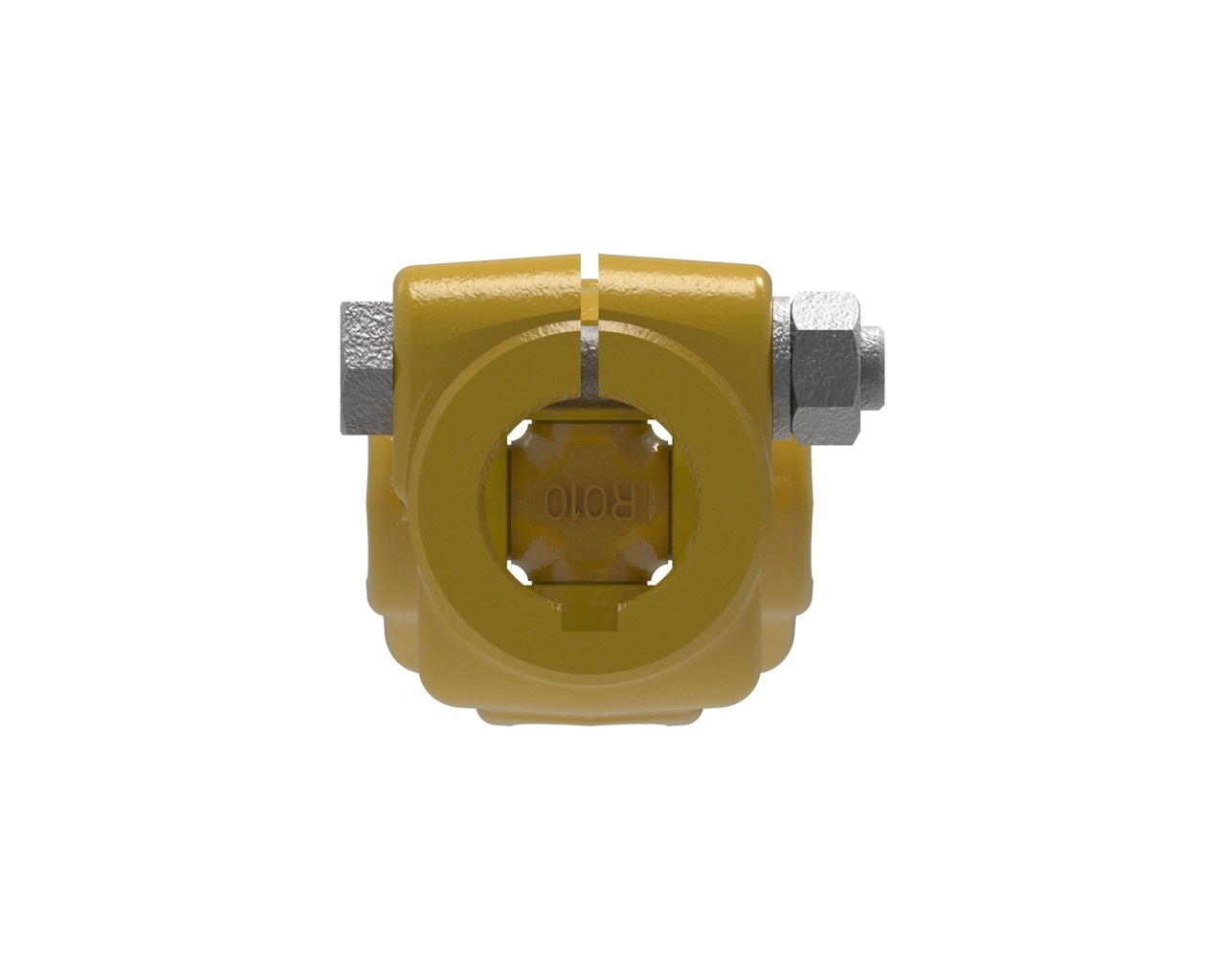

AW10 series universal joint with round with keyway, clamp connection and 30 mm lemon, telescoping connection. Note: Image color may not represent actual part.

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

The Weasler Cardan type Universal Joints are robust, engineered and produced for high power density and long life. Produced to exact tolerances they provide for simple, easy service and tight bearing fits. The universal joints can be used alone, or as a component of a drive shaft system.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.12 inches28 mm
Bore 1 ROUND WITH KEYWAY
Bore 21.22 inches31 mm
Bore 2 30 MM LEMON
Connection 1 CLAMP
Connection 2 TELESCOPING
HP@1000RPM23 HP17 kilowatts
HP@540RPM15 HP11 kilowatts
Keyway 10.37 inches9 mm
Length6.32 inches161 mm
Shipping Dimensions6.327" L  ×  2.8" H  ×  2.8" W16cm L  ×  7cm H  ×  7cm W
Shipping Volume49.60 in3813 cm3
Shipping Weight3.84 pounds2 kilograms
Weight3.84 pounds2 kilograms

Downloads

Document Name Type Language
Service-Instructions-Lubricating-PTO-Drive-Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
WE0101011_0817_USL_EasyLockGuard.pdf Performance Benefits Document English
