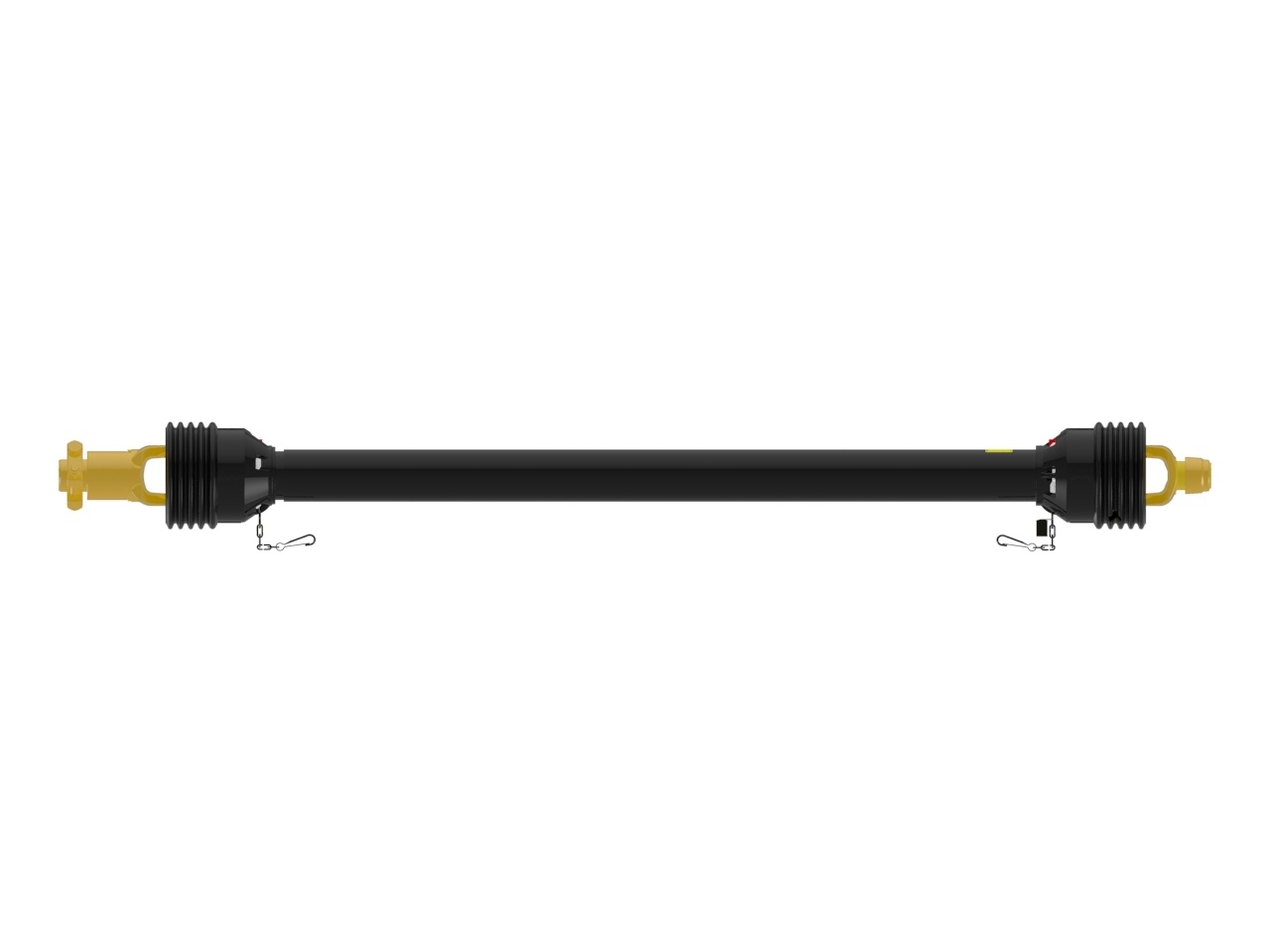

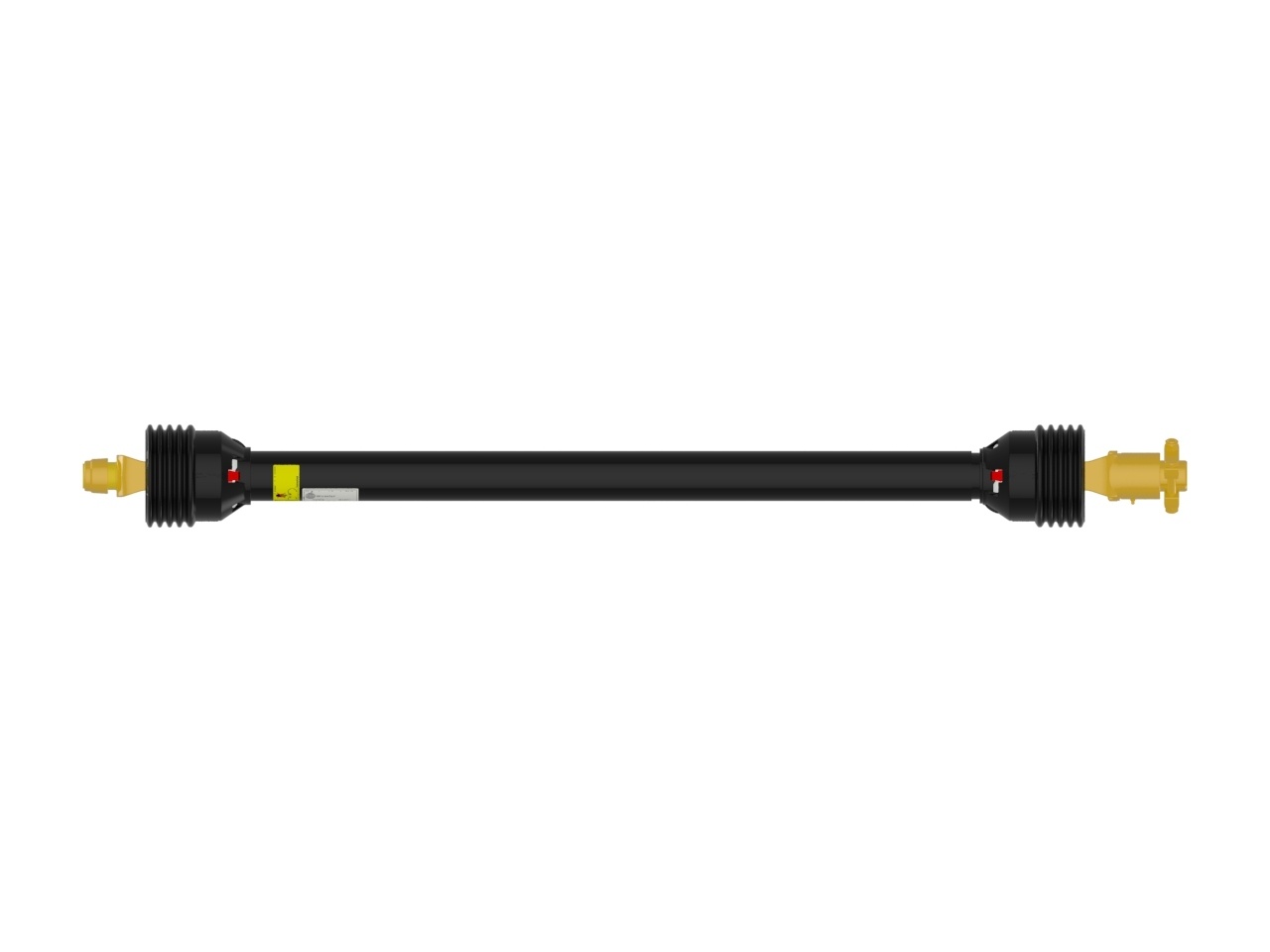

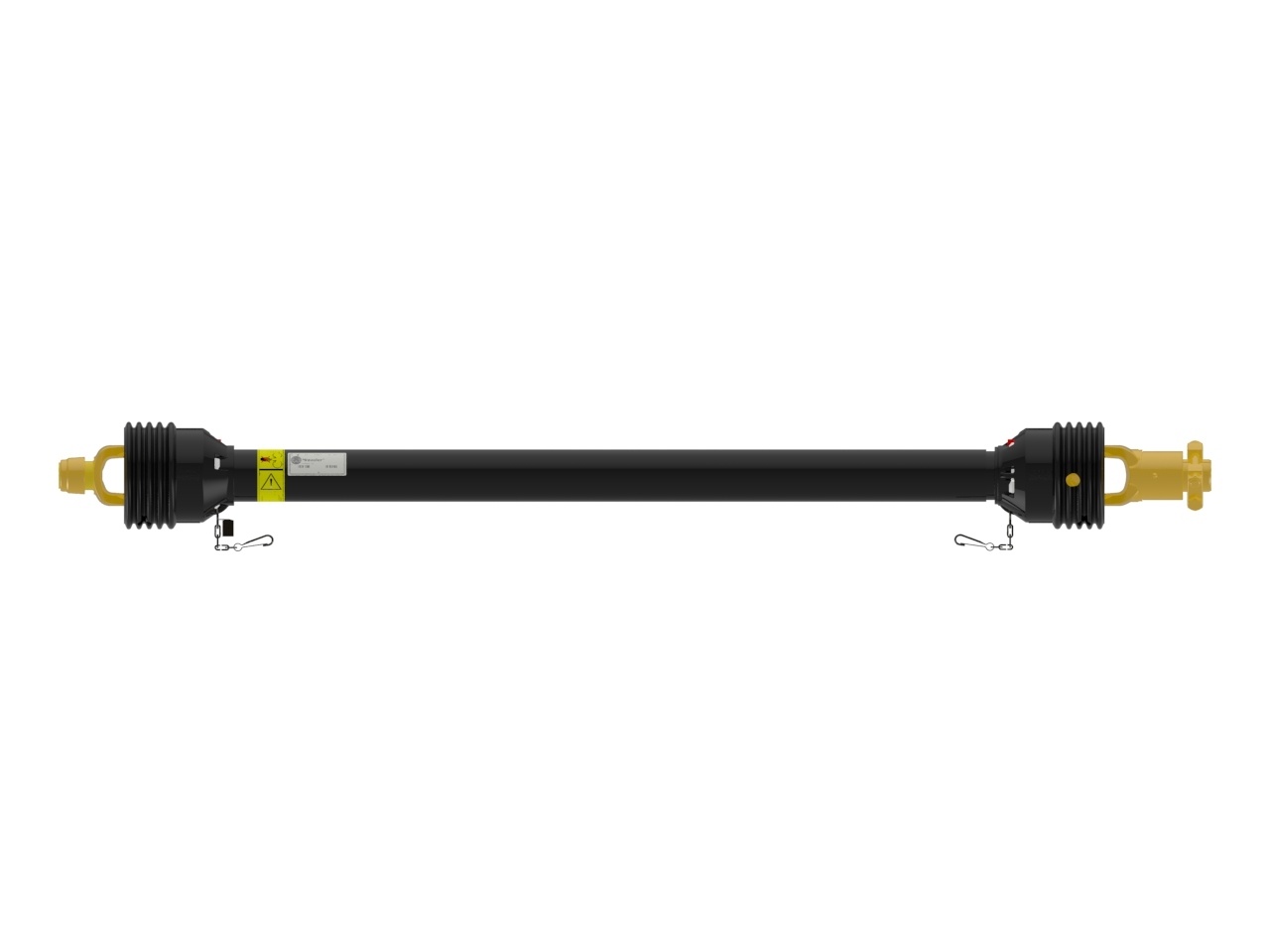

1630-6817-161PROFILE PTO DRIVE SHAFT
AB8 Series Profile PTO Drive Shaft With Overrunning Clutch Yoke
AB8 Series Profile PTO Drive Shaft With A 1 3/8-6 Spline Safety Slide Lock Tractor Connection And Overrunning Clutch Yoke With 1 3/4-6 Spline Clamp Implement Connection
The Weasler high performance PTO drive shafts are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all purpose use and meet the requirements of large farms and contractors. The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.
Design adjustability (cut-to-length) capabilities.
Interchangeability to fit with most competitor models.
Tri-lobe, lemon, and star shaft profiles available.
Easy lock guard construction allows quick and easy assembly or removal with a simple tool such as a key, coin or screwdriver.
Available Extended lubrication E-kits reduce downtime with lubrication intervals of 50-250
hours and the high temperature triple lip seal retains grease better.
Customer dedicated engineering and sales support.
Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
Same component designs used for Weasler’s domestic and metric product lines.
|Bore 1||1.37 inches||35 mm|
|Bore 1||1 3/8-6 SPLINE|
|Bore 2||1.75 inches||44 mm|
|Bore 2||1 3/4-6 SPLINE|
|Compressed (Closed) Length||63.39 inches||1610 mm|
|Compressed Overall Length||77.49 inches||1968 mm|
|Connection 1||SAFETY SLIDE LOCK|
|Extended Length||102.98 inches||2616 mm|
|Extended Overall Length||117.08 inches||2974 mm|
|HP@1000RPM||154 HP||115 kilowatts|
|HP@540RPM||100 HP||75 kilowatts|
|Length||77.49 inches||1968 mm|
|Outside Diameter||7.75 inches||197 mm|
|Shipping Dimensions||77.499" L × 0" H × 0" W||197cm L × 0cm H × 0cm W|
