580-6706-23

AB7N Series Ball Shear Clutch Quick Disconnect Yoke

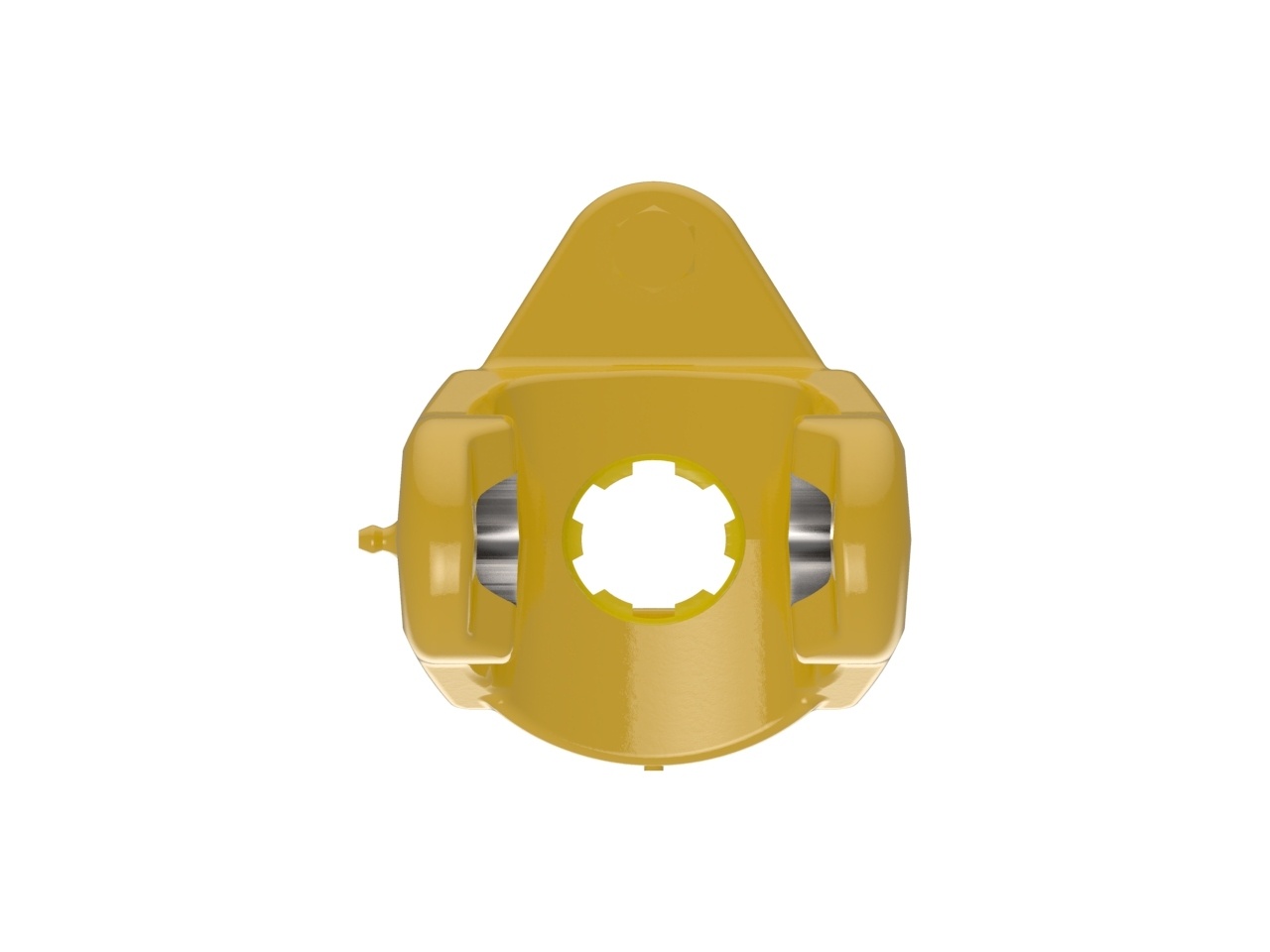

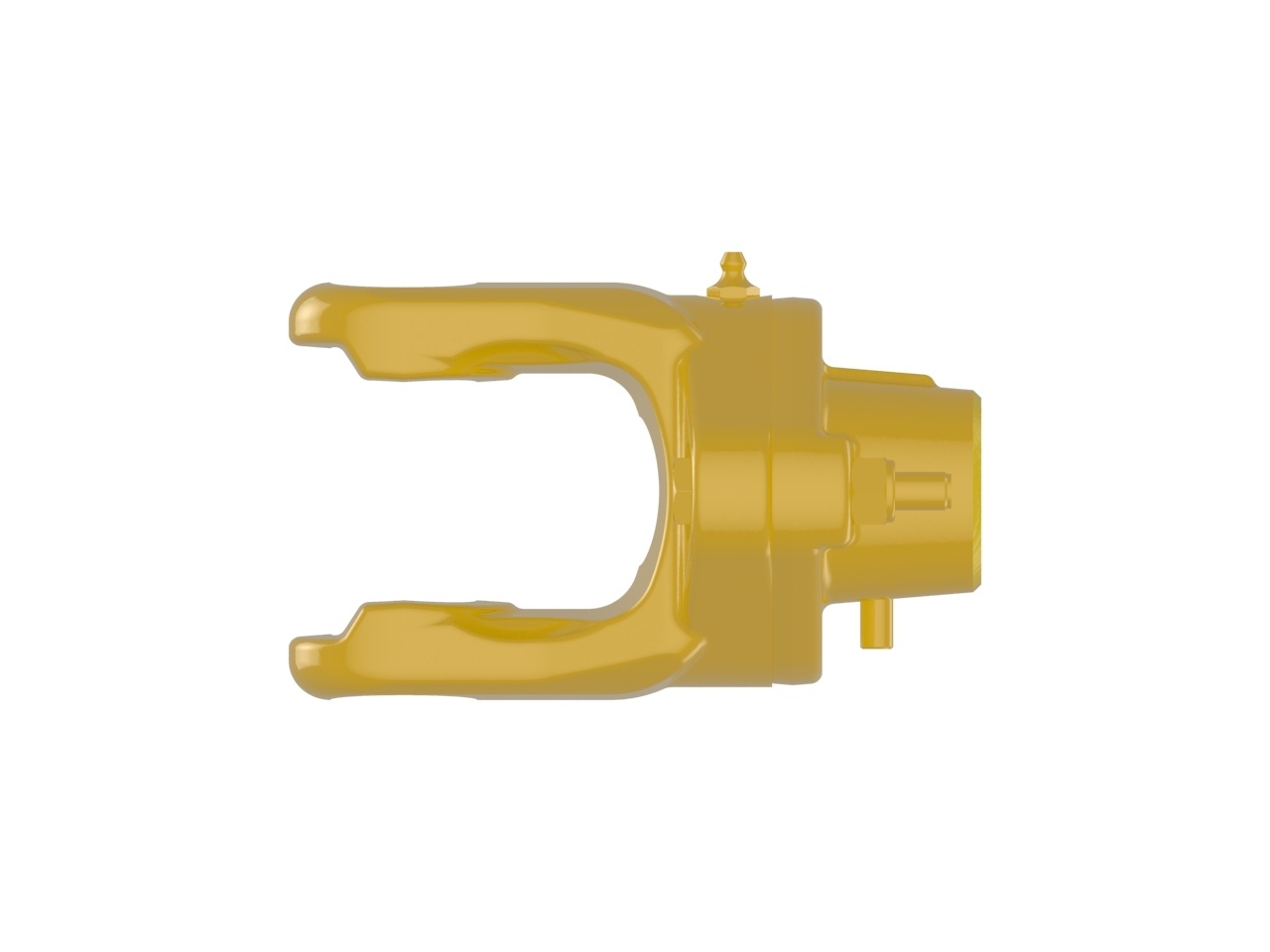

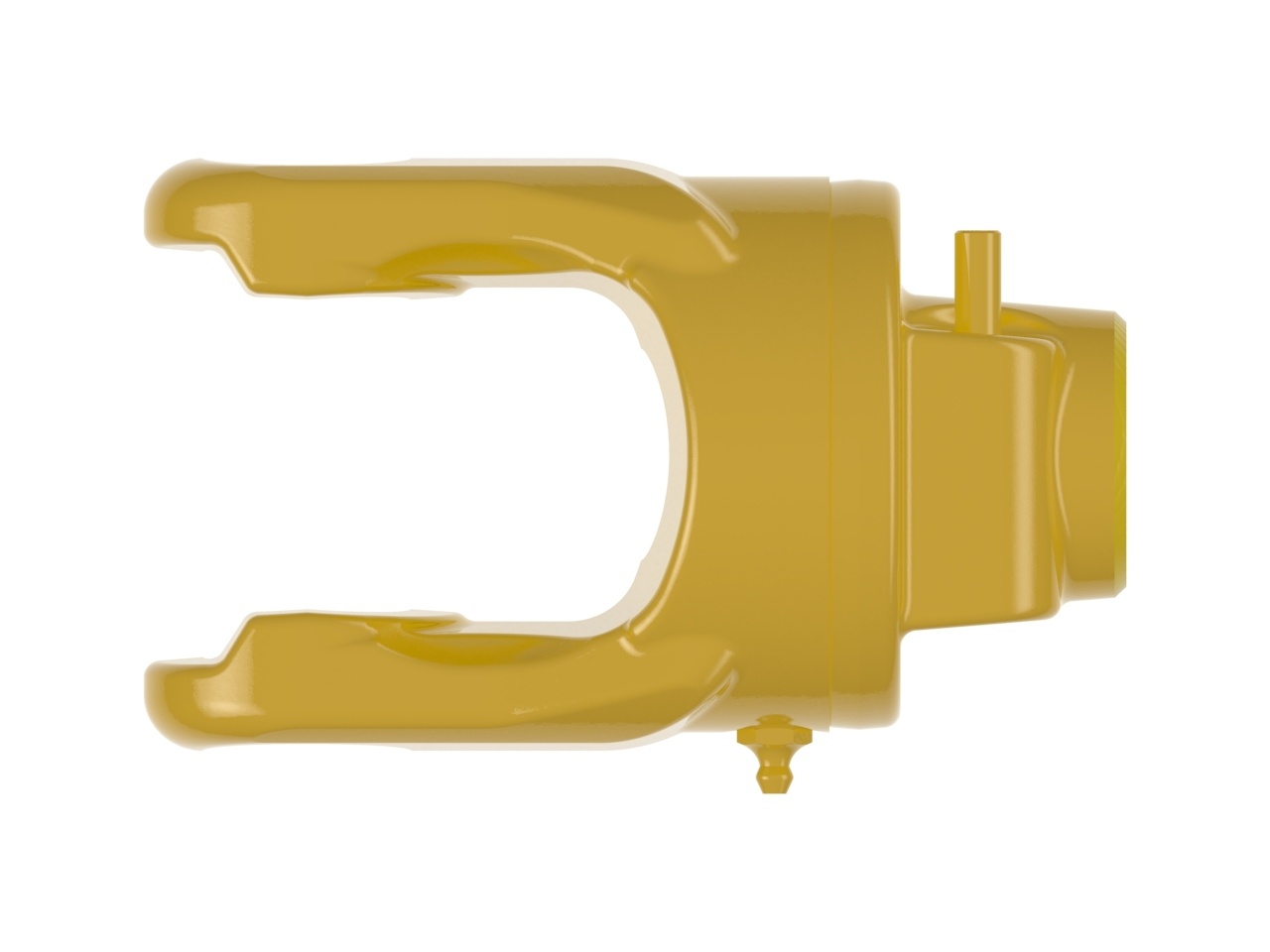

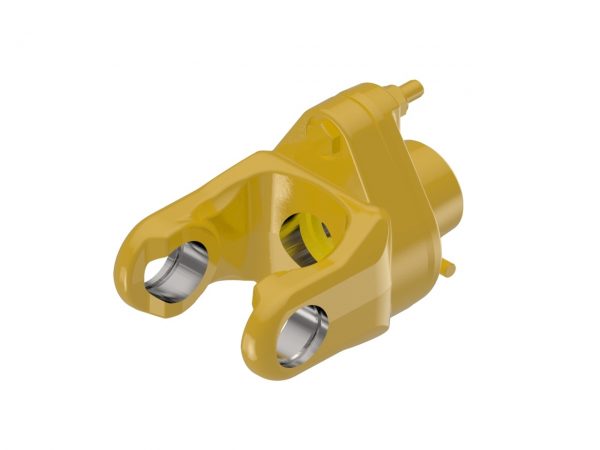

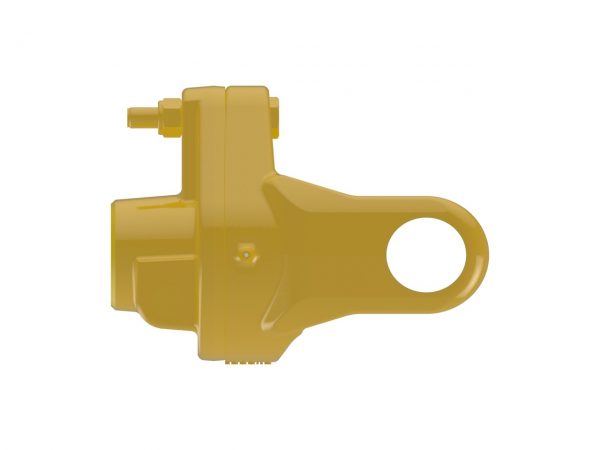

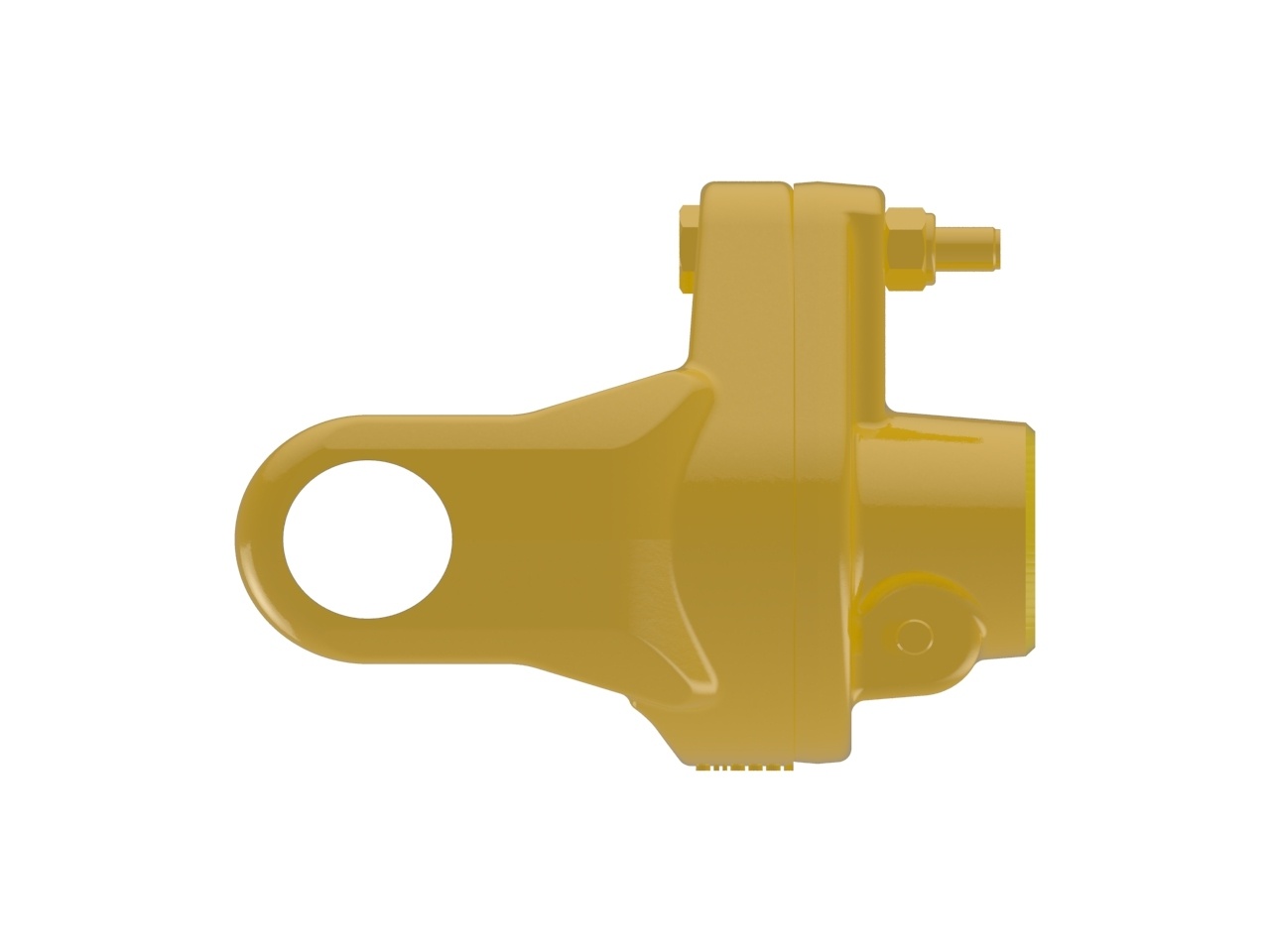

AB7N series ball shear clutch yoke with 1 3/8-6 spline bore and quick disconnect connection. Note: Image color may not represent actual part.

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

The ball shear yoke clutch offers implement overload protection. In addition to the traditional implement mounted configuration, the free motion and hidden bolt tractor shaft mounted options make hook-up and service more user friendly. The compact, efficient design disconnects the power source from the drivetrain when overload occurs and helps prevent the generatation of damaging torque spikes or heat. Once the operator replaces the bolt, the machine can be restarted.

PERFORMANCE BENEFITS
• Implement overload protection.
• Minimal maintenance.
• No damaging heat generation for higher productivity.
• Repeatable overload disengagement setting.
• Tamper resistant.
• Smooth disengaged operation, no damaging torque spikes.
• Offered with or without free motion, overrunning and tractor mount options.
• Induction hardened bolt holes provide good edge for consistent, repeatable shear.
• Internal ball bearing with induction hardened races.
• Reduces possibility of damage.

DESIGN FEATURES
• Tractor yoke: Hidden shear bolt, Complies with asabe and ISO standards, Slide collar style for 1-3/8 x 6, 1-3/8 x 21 and 1-3/4 x 20 PTO shafts.
• Implement yoke contains shear bolt accessible for easy change out.
• Free motion yoke: Shear bolt accessible for easy change out, 60° free movement for easy hookup of tractor yoke.
• Auto-lok attachment available (patented).
• Speeds to 2000 rpm.
• Broad range of shear torque settings.

Specifications

Spec. Imperial Metric
Bearing Diameter1.37 inches35 mm
Bearing Span3.69 inches94 mm
Bore 11.37 inches35 mm
Bore 1 1 3/8-6 SPLINE
Connection 1 QUICK DISCONNECT
HP@1000RPM145 HP108 kilowatts
HP@540RPM94 HP70 kilowatts
Length5.43 inches138 mm
Outside Diameter6.14 inches156 mm
Shear Bolt (1) M10 Class 8.8
Shipping Dimensions6.513" L  ×  6.14" H  ×  6.14" W17cm L  ×  16cm H  ×  16cm W
Shipping Volume245.54 in34024 cm3
Shipping Weight9.27 pounds4 kilograms
Torque2950029500
Weight9.27 pounds4 kilograms
