3001-8706-00
UNIVERSAL JOINTAB7 Series Universal Joint

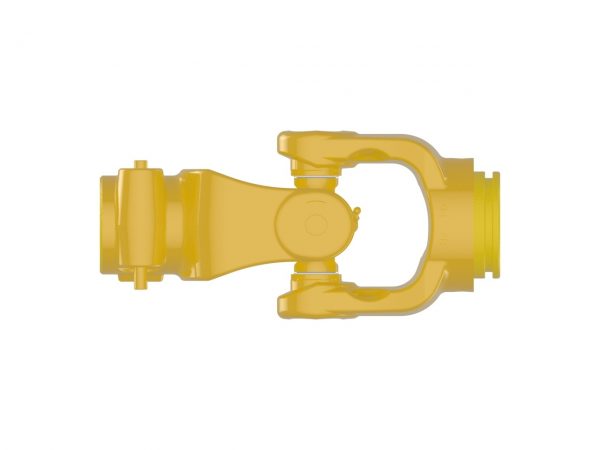

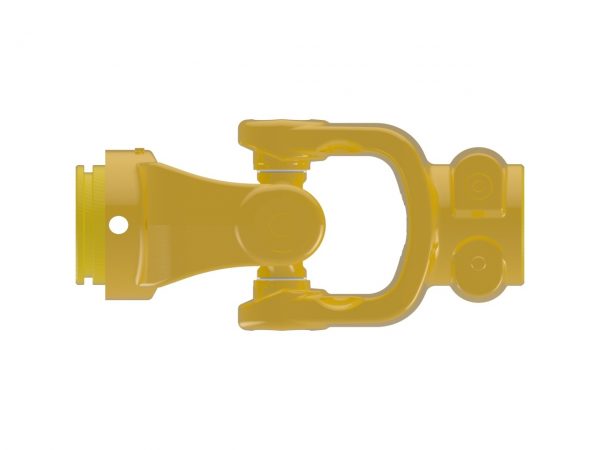

AB7 series universal joint with 1 3/8-6 spline, quick disconnect connection and 45 mm trilobe, telescoping connection. Note: Image color may not represent actual part.
The Weasler Cardan type Universal Joints are robust, engineered and produced for high power density and long life. Produced to exact tolerances they provide for simple, easy service and tight bearing fits. The universal joints can be used alone, or as a component of a drive shaft system.
PERFORMANCE BENEFITS
Specifications
Spec. | Imperial | Metric |
---|---|---|
Bore 1 | 1.37 inches | 35 mm |
Bore 1 | 1 3/8-6 SPLINE | |
Bore 2 | 1.83 inches | 46 mm |
Bore 2 | 45 MM TRILOBE | |
Connection 1 | QUICK DISCONNECT | |
Connection 2 | TELESCOPING | |
HP@1000RPM | 118 HP | 88 kilowatts |
HP@540RPM | 77 HP | 57 kilowatts |
Length | 9.59 inches | 244 mm |
Shipping Dimensions | 9.592" L × 4.88" H × 4.88" W | 24cm L × 12cm H × 12cm W |
Shipping Volume | 228.43 in3 | 3743 cm3 |
Shipping Weight | 12.25 pounds | 6 kilograms |
Weight | 12.25 pounds | 6 kilograms |
