1680-6602-08622PROFILE PTO DRIVE SHAFT

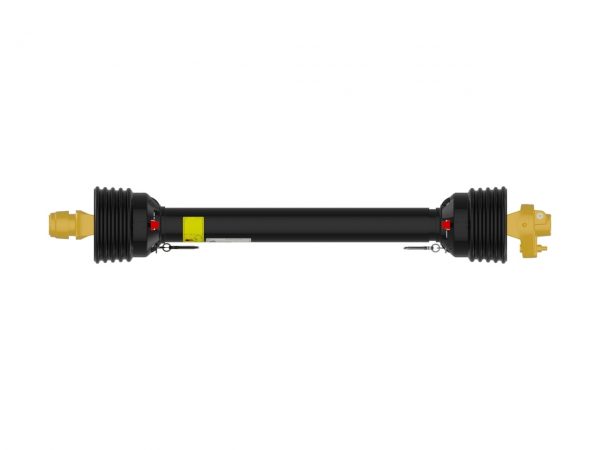

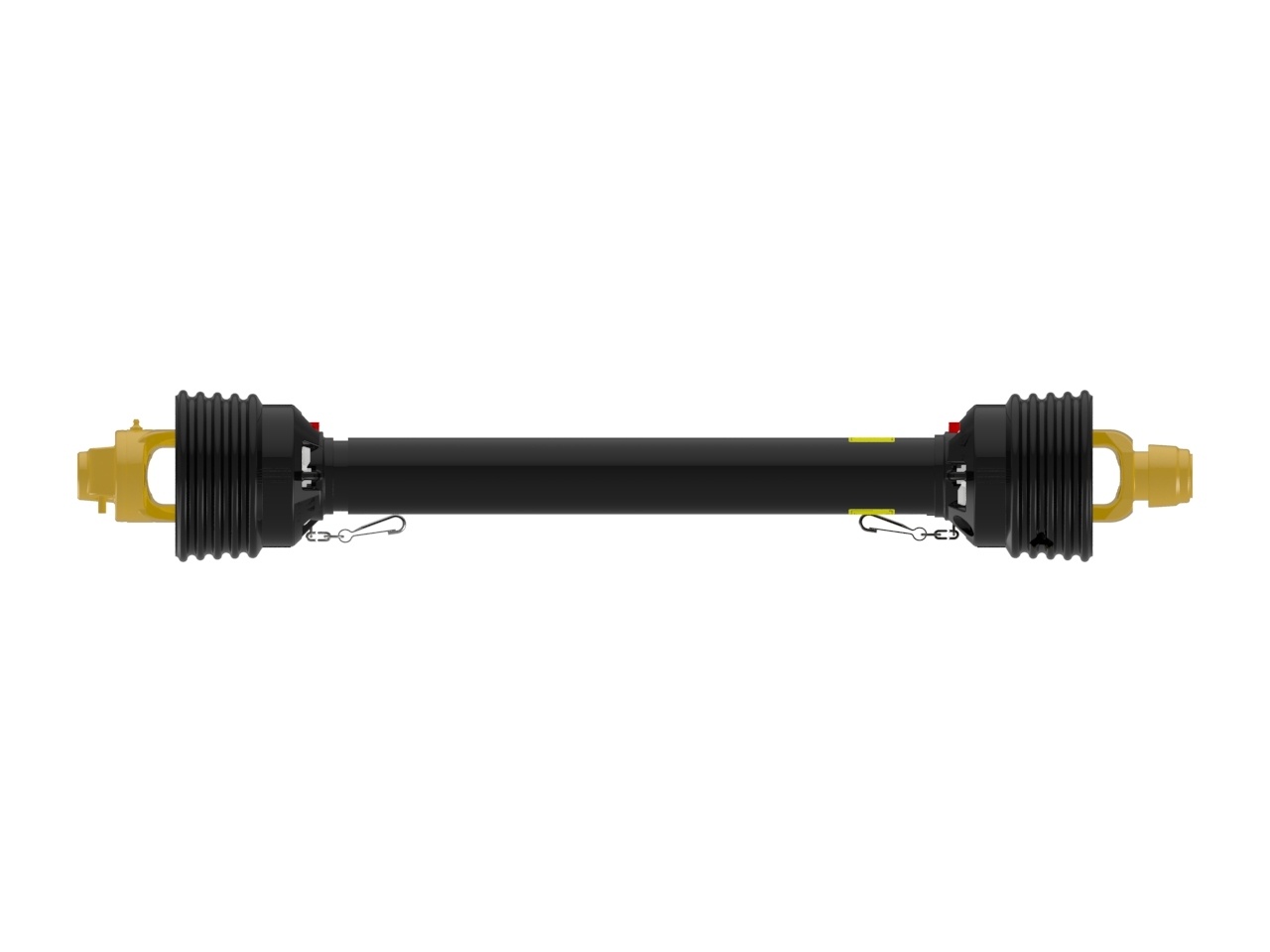

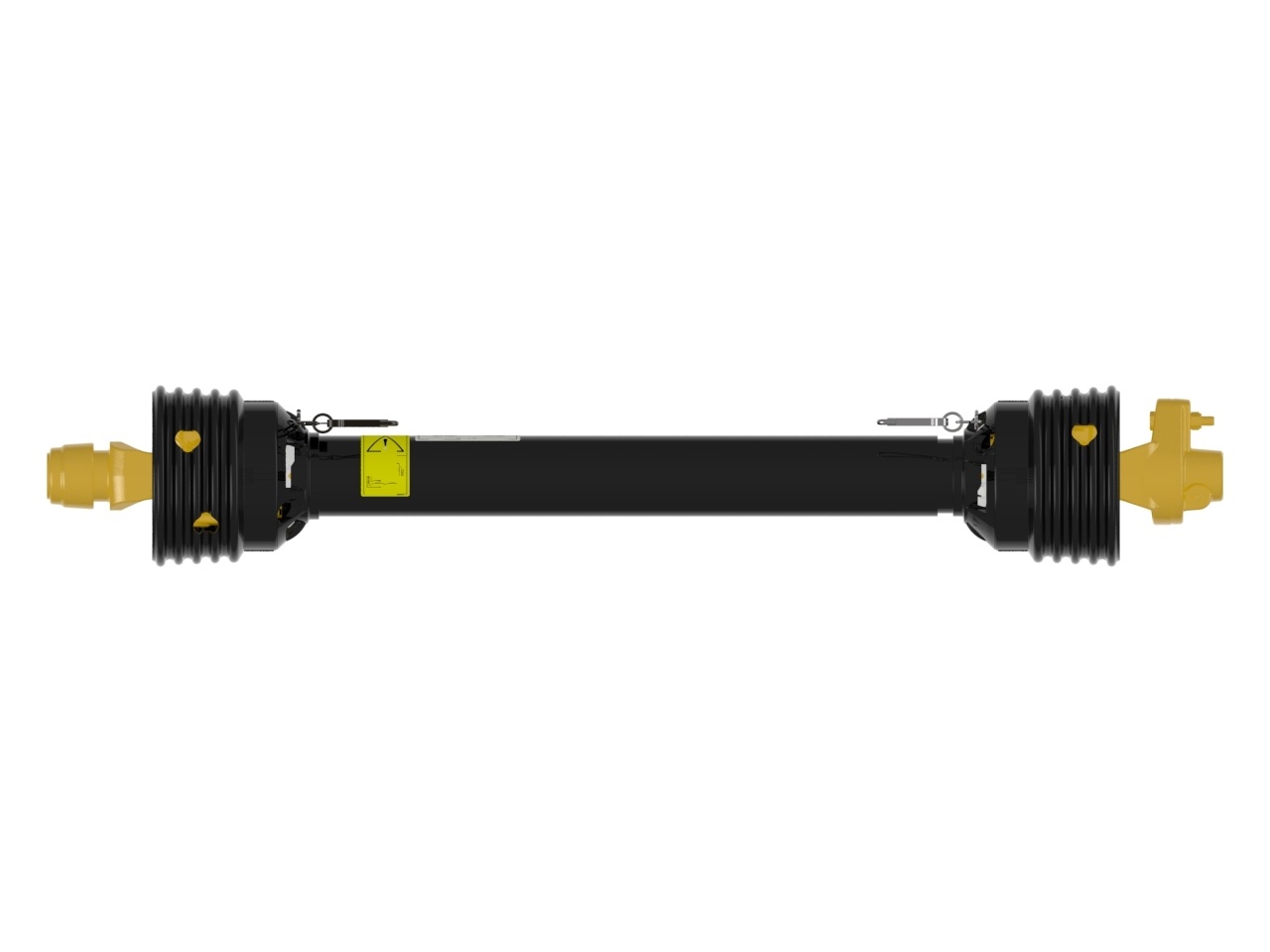

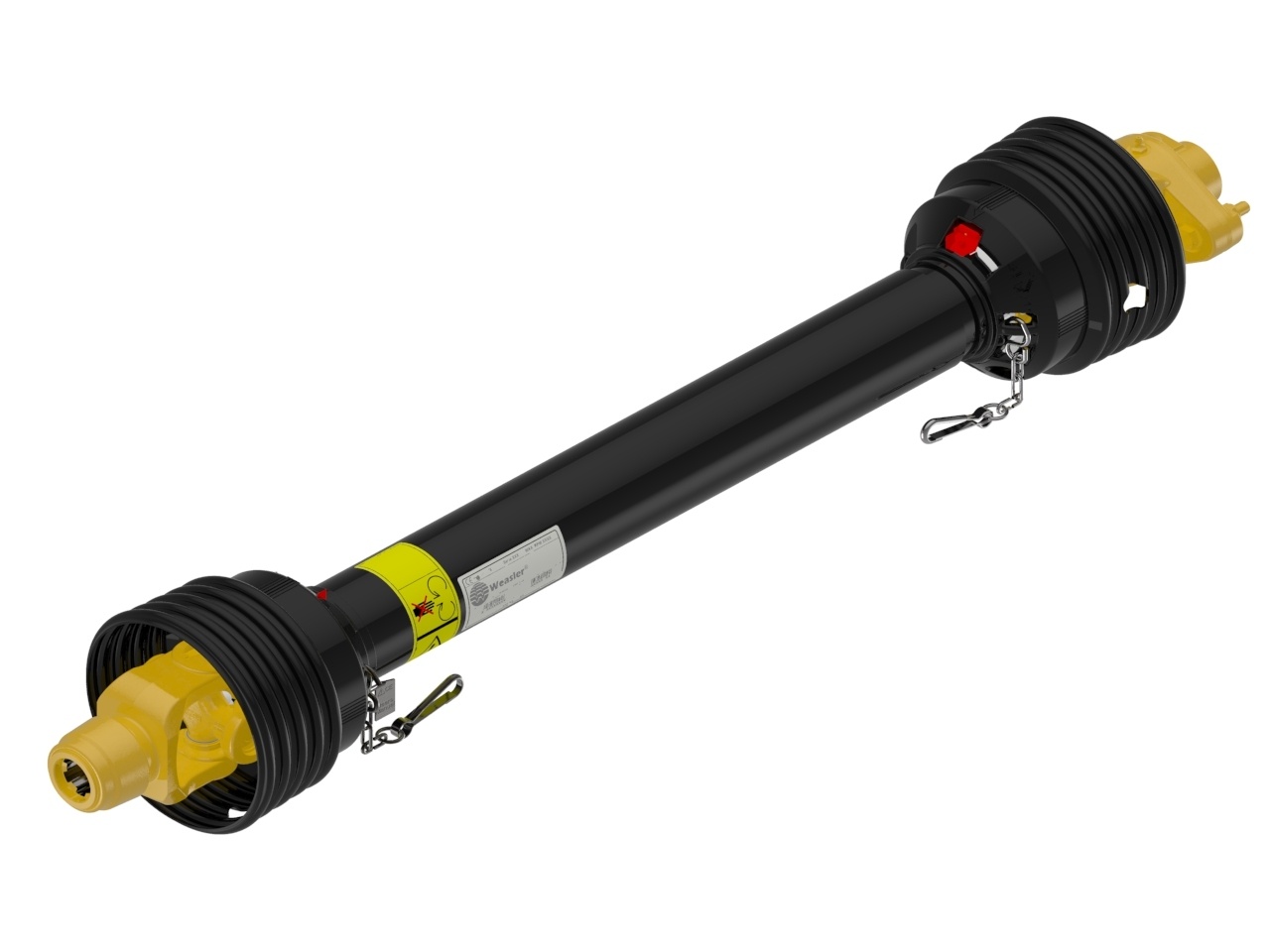

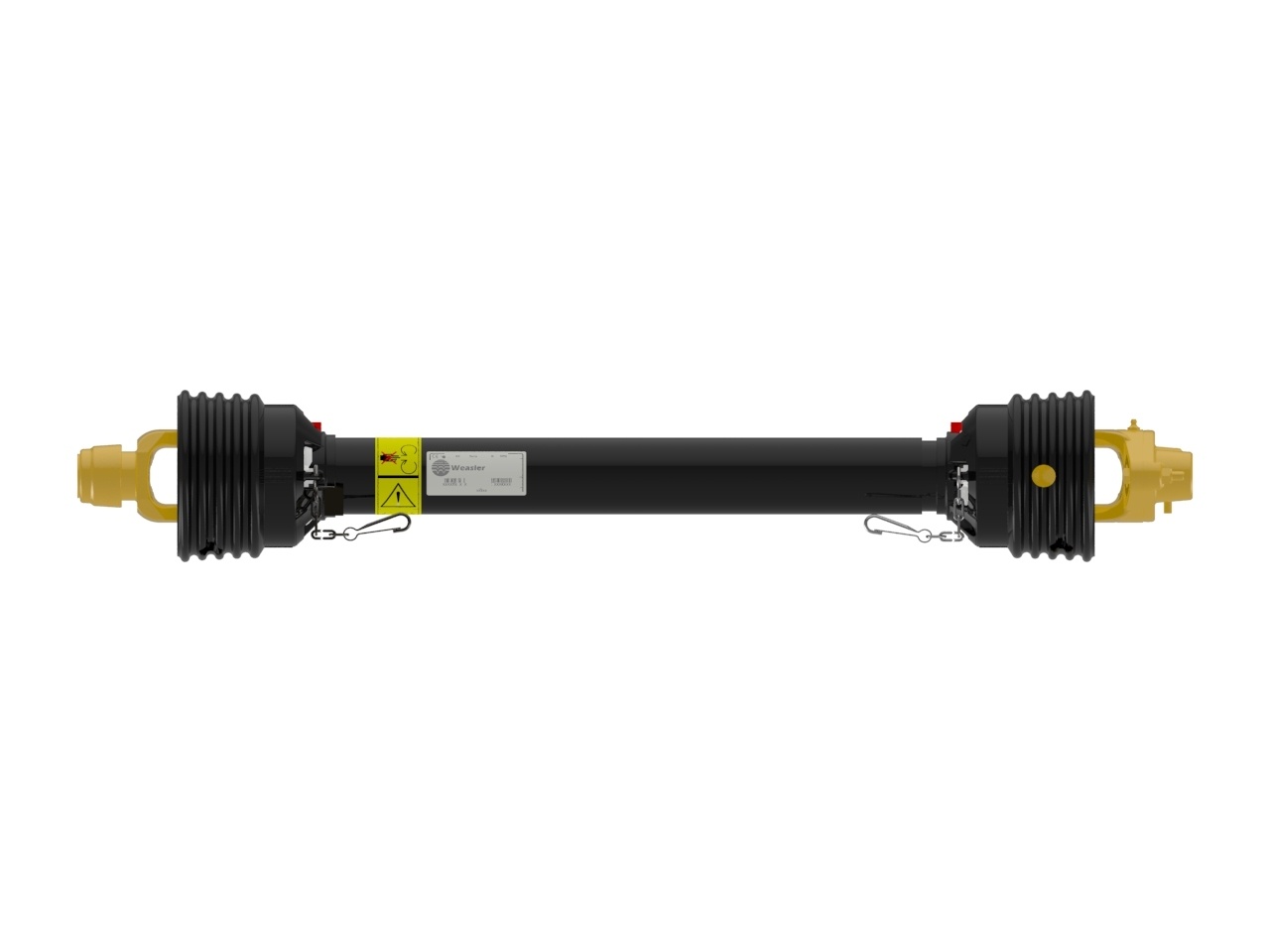

AB6 Series Profile PTO Drive Shaft With Ball Shear Clutch Yoke
AB6 Series Profile PTO Drive Shaft With A 1 3/8-6 Spline Safety Slide Lock Tractor Connection And 25800 Inch-pound Ball Shear Clutch Yoke With 1 3/8-6 Spline Quick Disconnect Implement Connection
The Weasler high performance PTO drive shafts are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all purpose use and meet the requirements of large farms and contractors. The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.
Design adjustability (cut-to-length) capabilities.
Interchangeability to fit with most competitor models.
Tri-lobe, lemon, and star shaft profiles available.
Easy lock guard construction allows quick and easy assembly or removal with a simple tool such as a key, coin or screwdriver.
Available Extended lubrication E-kits reduce downtime with lubrication intervals of 50-250
hours and the high temperature triple lip seal retains grease better.
Customer dedicated engineering and sales support.
Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
Same component designs used for Weasler’s domestic and metric product lines.
|Bore 1||1.37 inches||35 mm|
|Bore 1||1 3/8-6 SPLINE|
|Bore 2||1.37 inches||35 mm|
|Bore 2||1 3/8-6 SPLINE|
|Compressed (Closed) Length||33.86 inches||860 mm|
|Compressed Overall Length||44.16 inches||1122 mm|
|Connection 1||SAFETY SLIDE LOCK|
|Connection 2||QUICK DISCONNECT|
|Extended Length||52.78 inches||1341 mm|
|Extended Overall Length||63.08 inches||1602 mm|
|HP@1000RPM||99 HP||74 kilowatts|
|HP@540RPM||64 HP||48 kilowatts|
|Length||44.16 inches||1122 mm|
|Outside Diameter||7.28 inches||185 mm|
|Shipping Dimensions||44.2" L × 7.28" H × 7.28" W||112cm L × 18cm H × 18cm W|
|Shipping Volume||1794.53 in3||29407 cm3|
|Shipping Weight||42.97 pounds||19 kilograms|
|Weight||42.97 pounds||19 kilograms|
|Service Instructions - Universal Joint.pdf||Service Document||English|
|Service Instructions - Easy Lock Guards.pdf||Service Document||English|
|Lack of Grease - Cross & Brg Kit.pdf||Troubleshooting Document||English|
|WE0101032_1217_USL_MetricProfile.pdf||Performance Benefits Document||English|
