AB5 Series Universal Joint

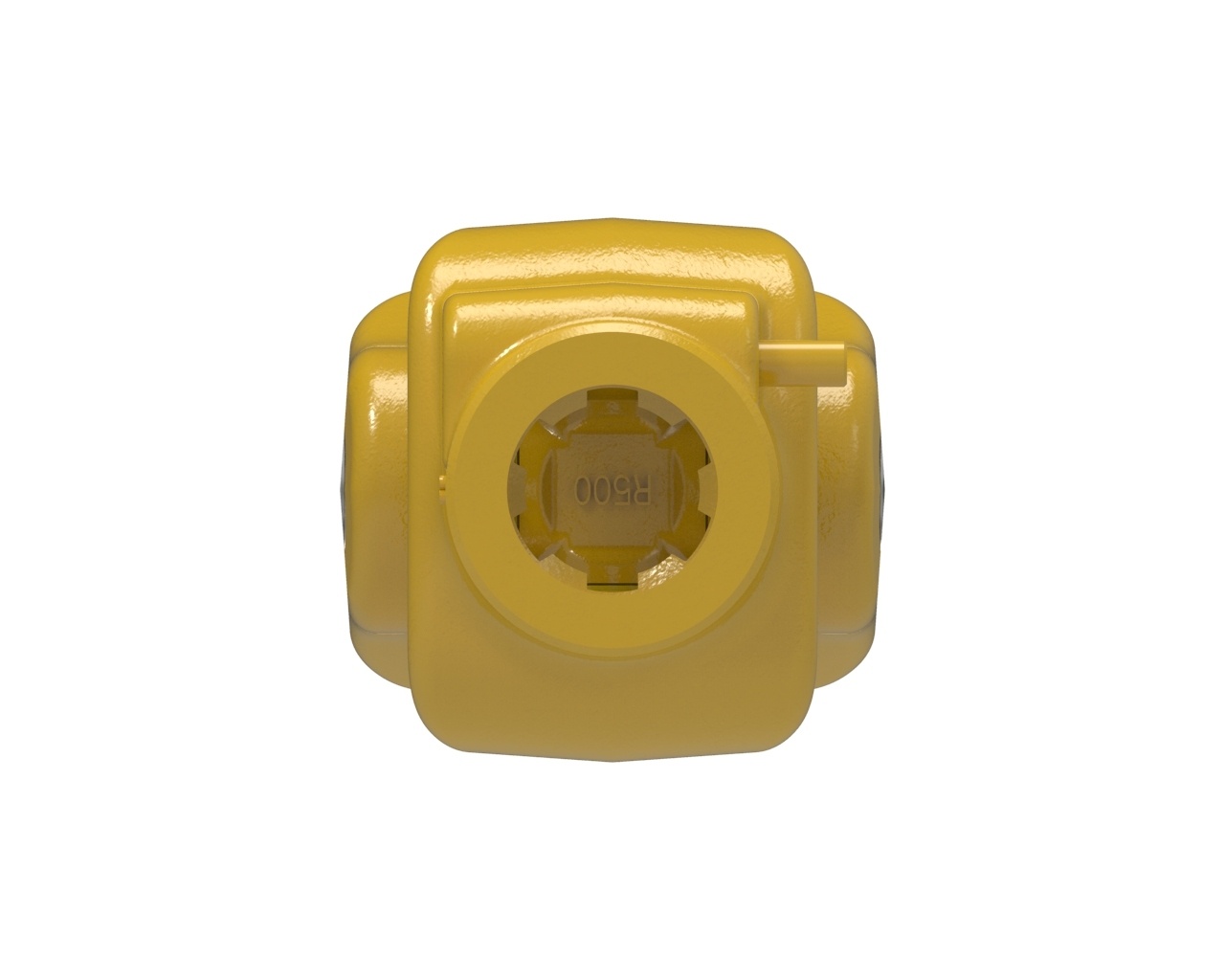

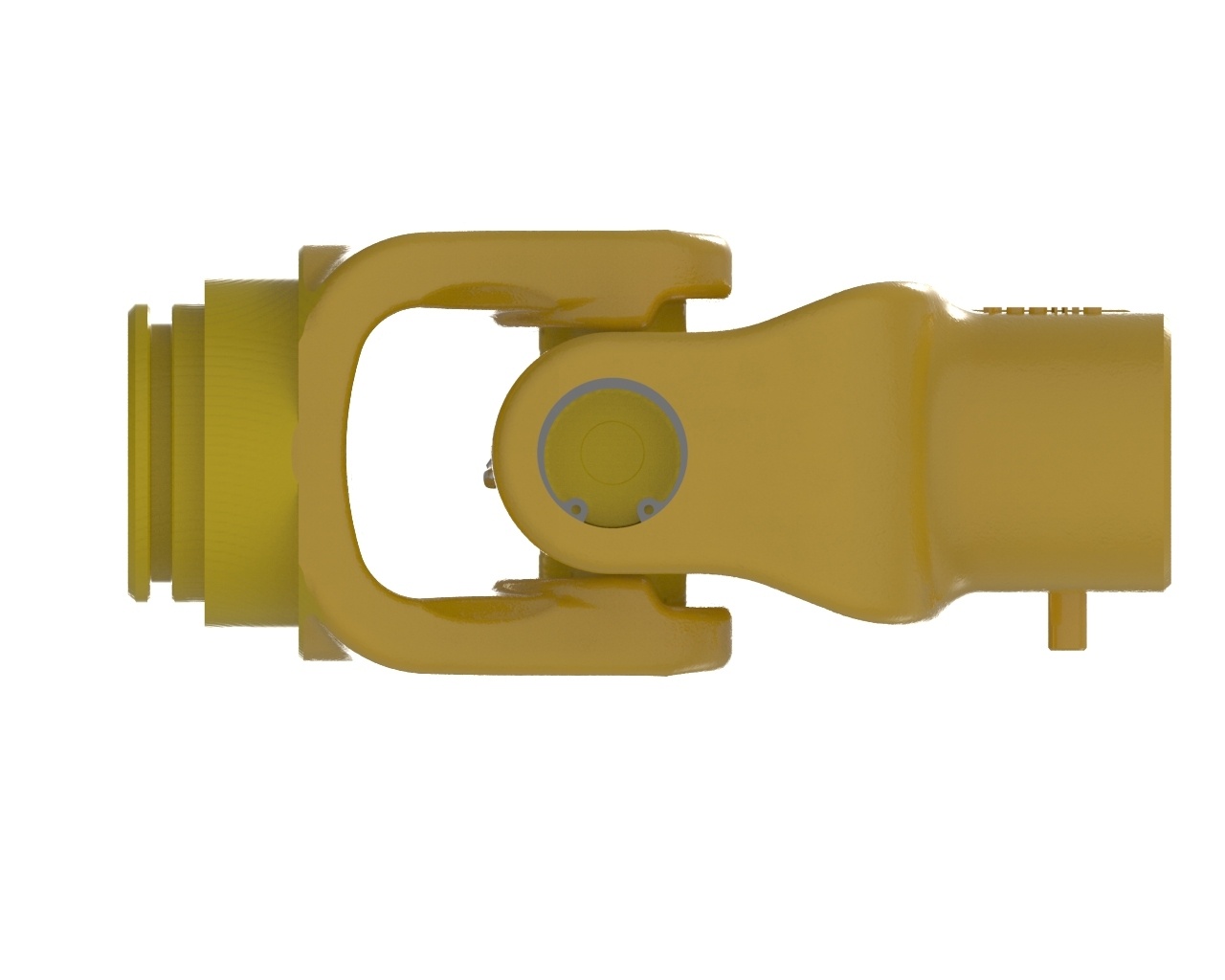

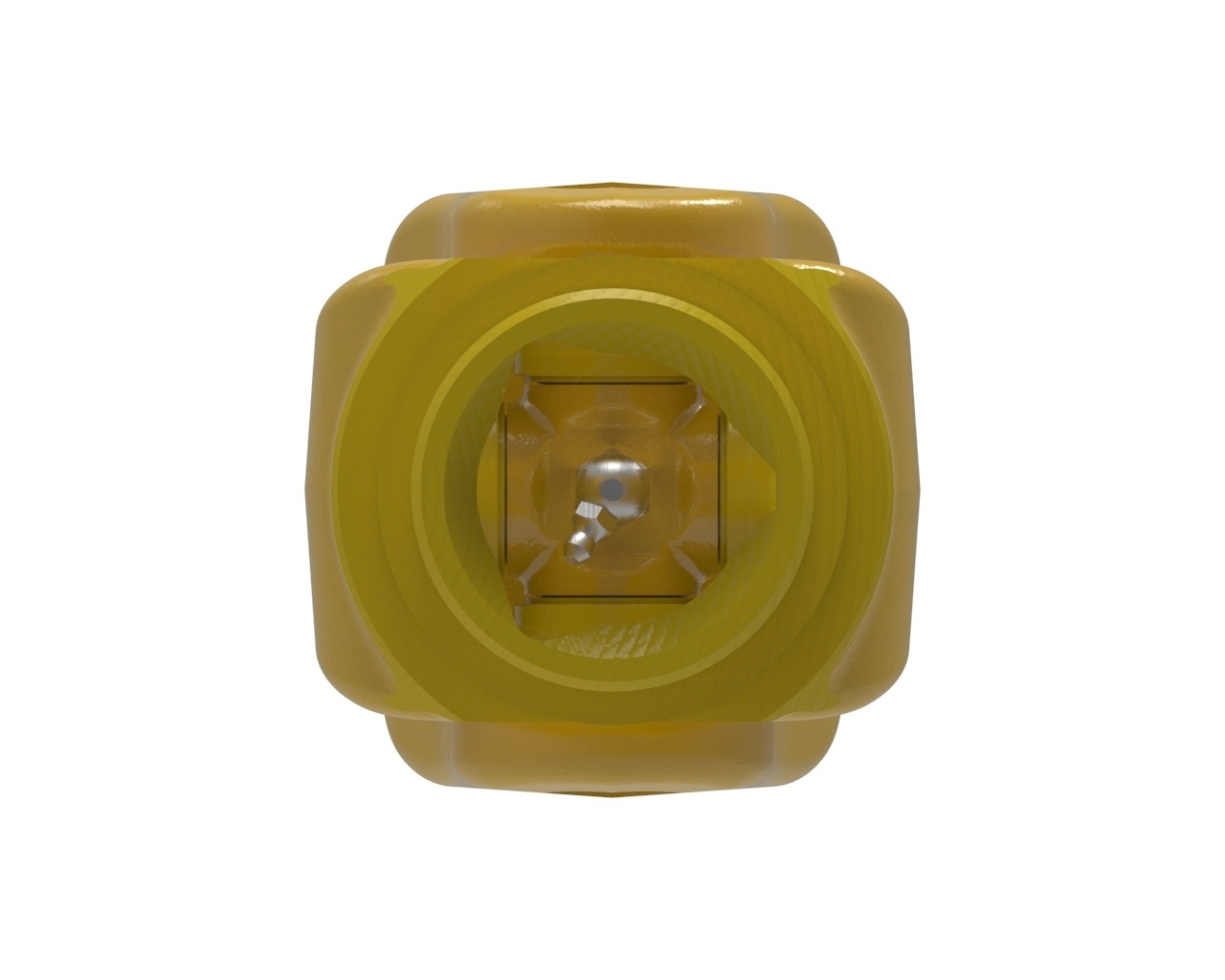

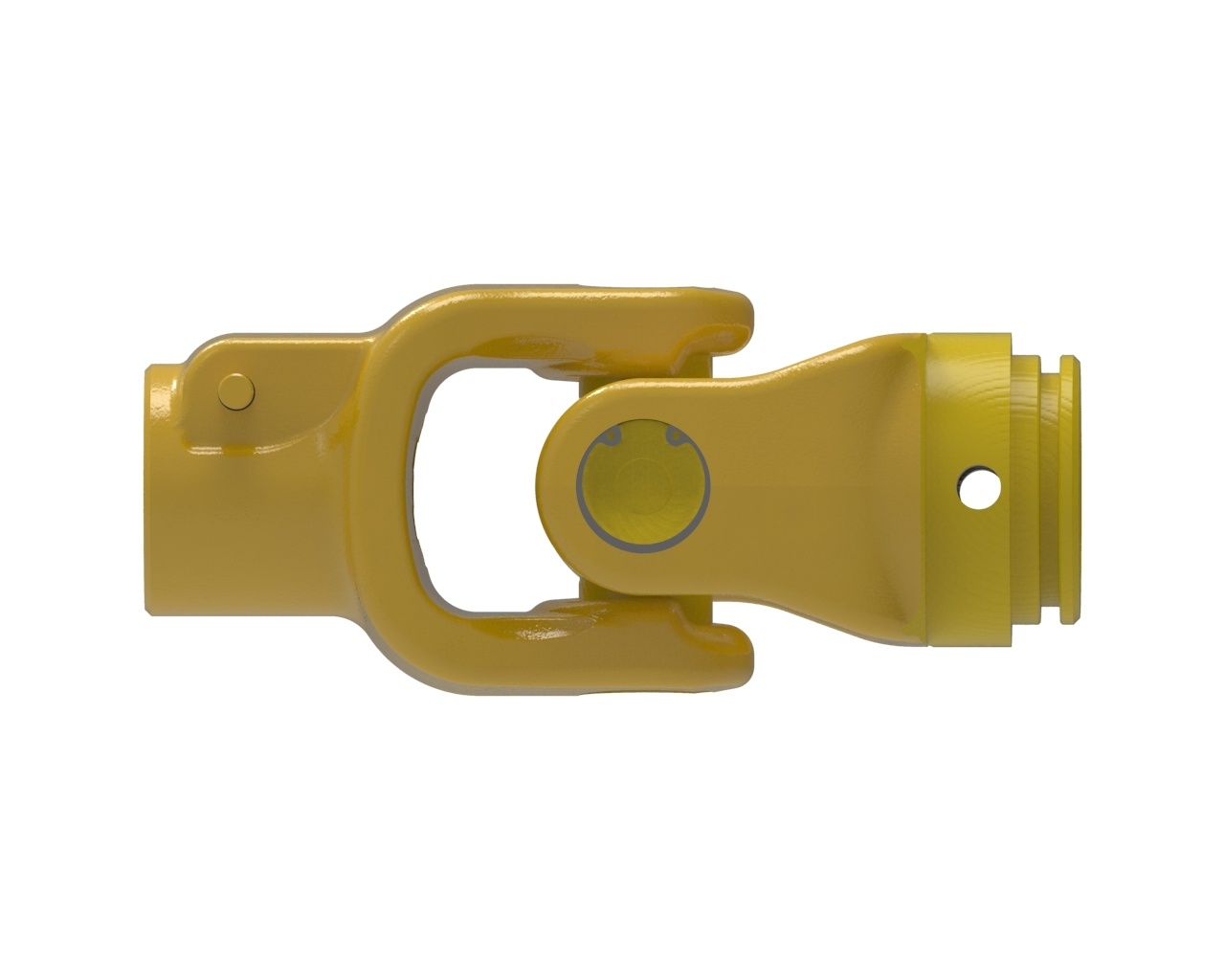

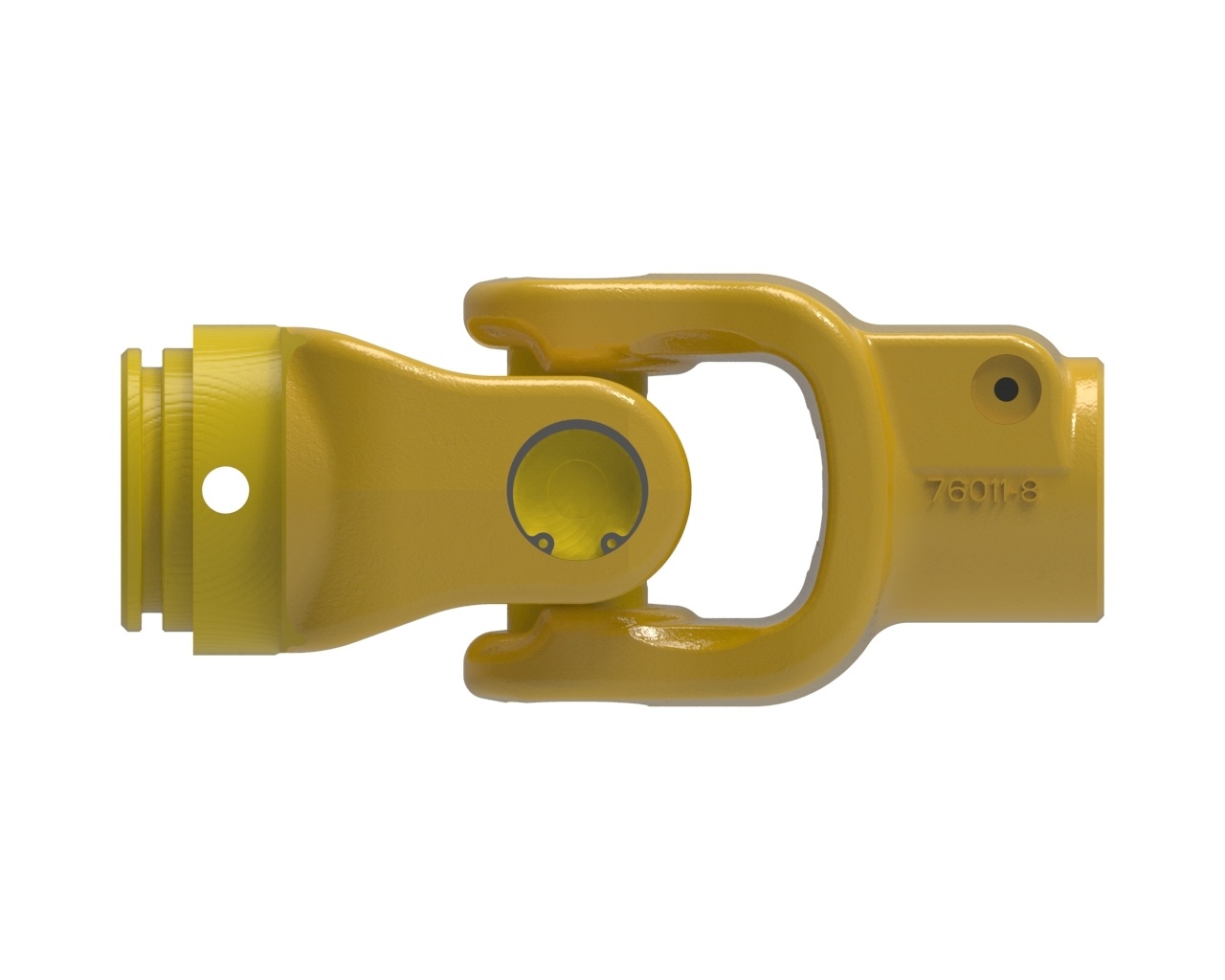

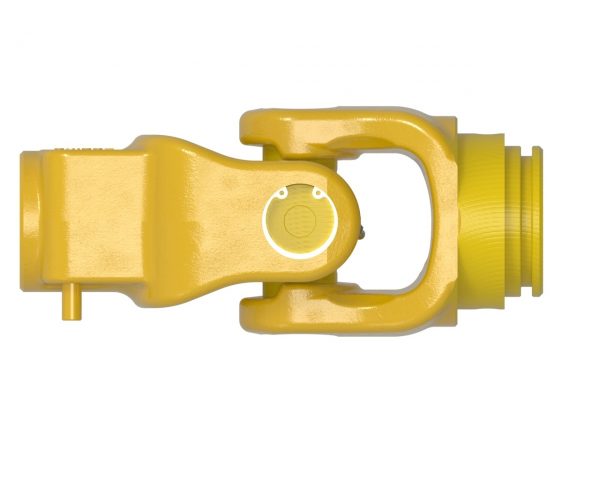

AB5 series universal joint with 1 3/8-6 spline, quick disconnect connection and 45 mm trilobe, telescoping connection. Note: Image color may not represent actual part.

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

The Weasler Cardan type Universal Joints are robust, engineered and produced for high power density and long life. Produced to exact tolerances they provide for simple, easy service and tight bearing fits. The universal joints can be used alone, or as a component of a drive shaft system.



Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 1 3/8-6 SPLINE
Bore 21.83 inches46 mm
Bore 2 45 MM TRILOBE
Connection 2 TELESCOPING
HP@1000RPM81 HP60 kilowatts
HP@540RPM52 HP39 kilowatts
Length8.61 inches219 mm
Shipping Dimensions8.612" L  ×  4.09" H  ×  4.09" W22cm L  ×  10cm H  ×  10cm W
Shipping Volume144.06 in32361 cm3
Shipping Weight10.13 pounds5 kilograms
Weight10.13 pounds5 kilograms


Document Name Type Language
Service-Instructions-Lubricating-PTO-Drive-Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
WE0101011_0817_USL_EasyLockGuard.pdf Performance Benefits Document English
