300-6443

AB4 Series Roll Pin Yoke

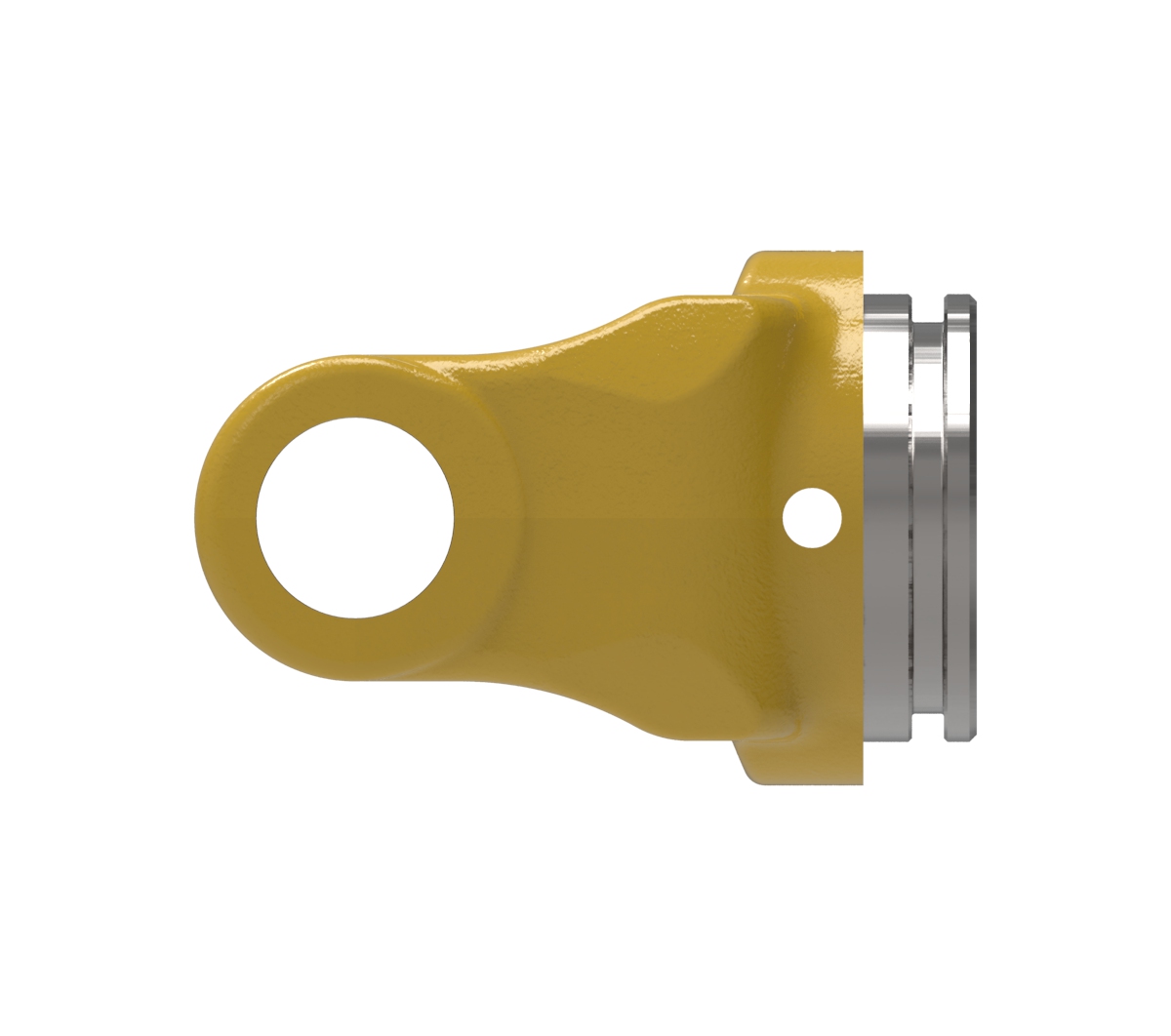

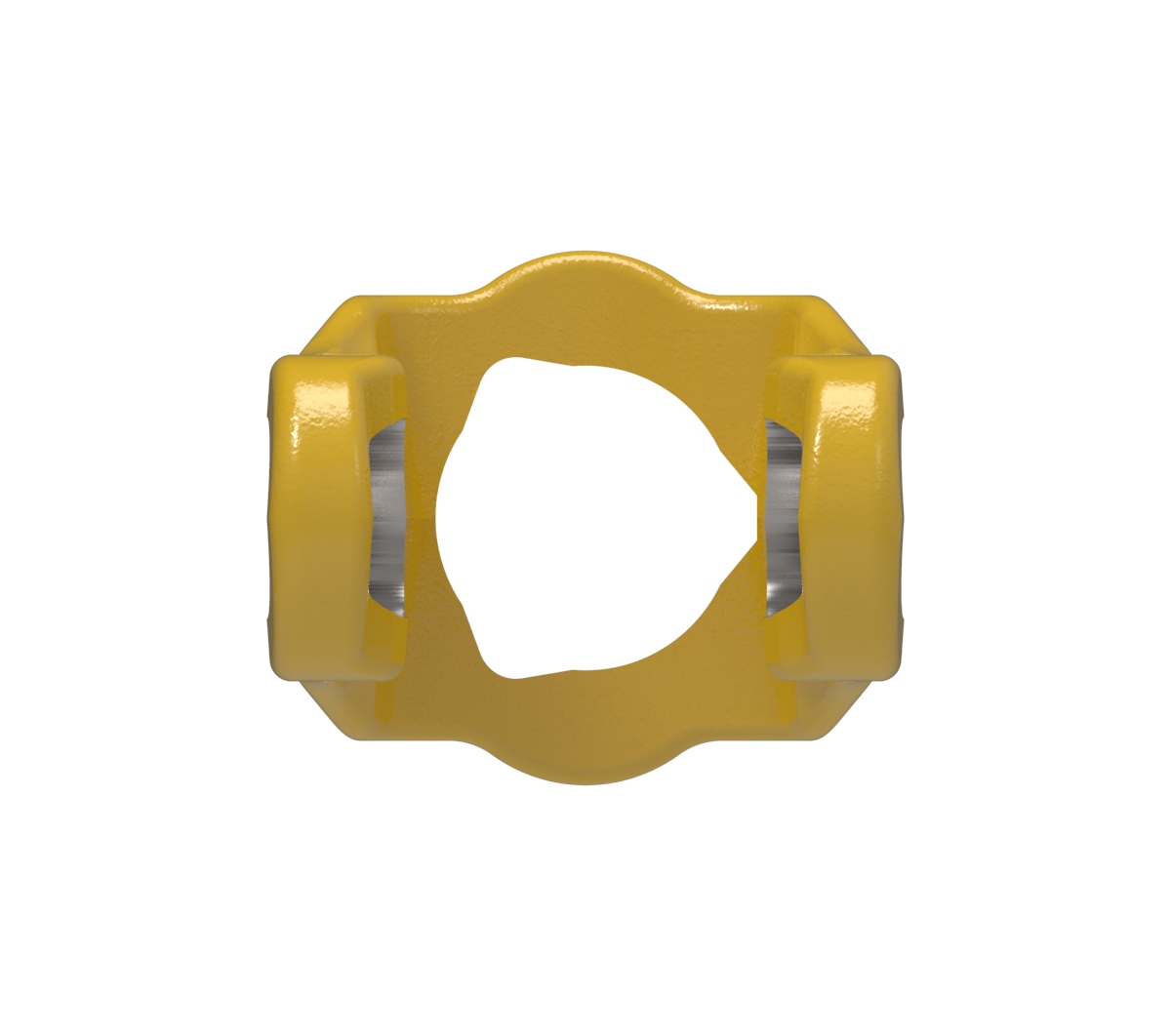

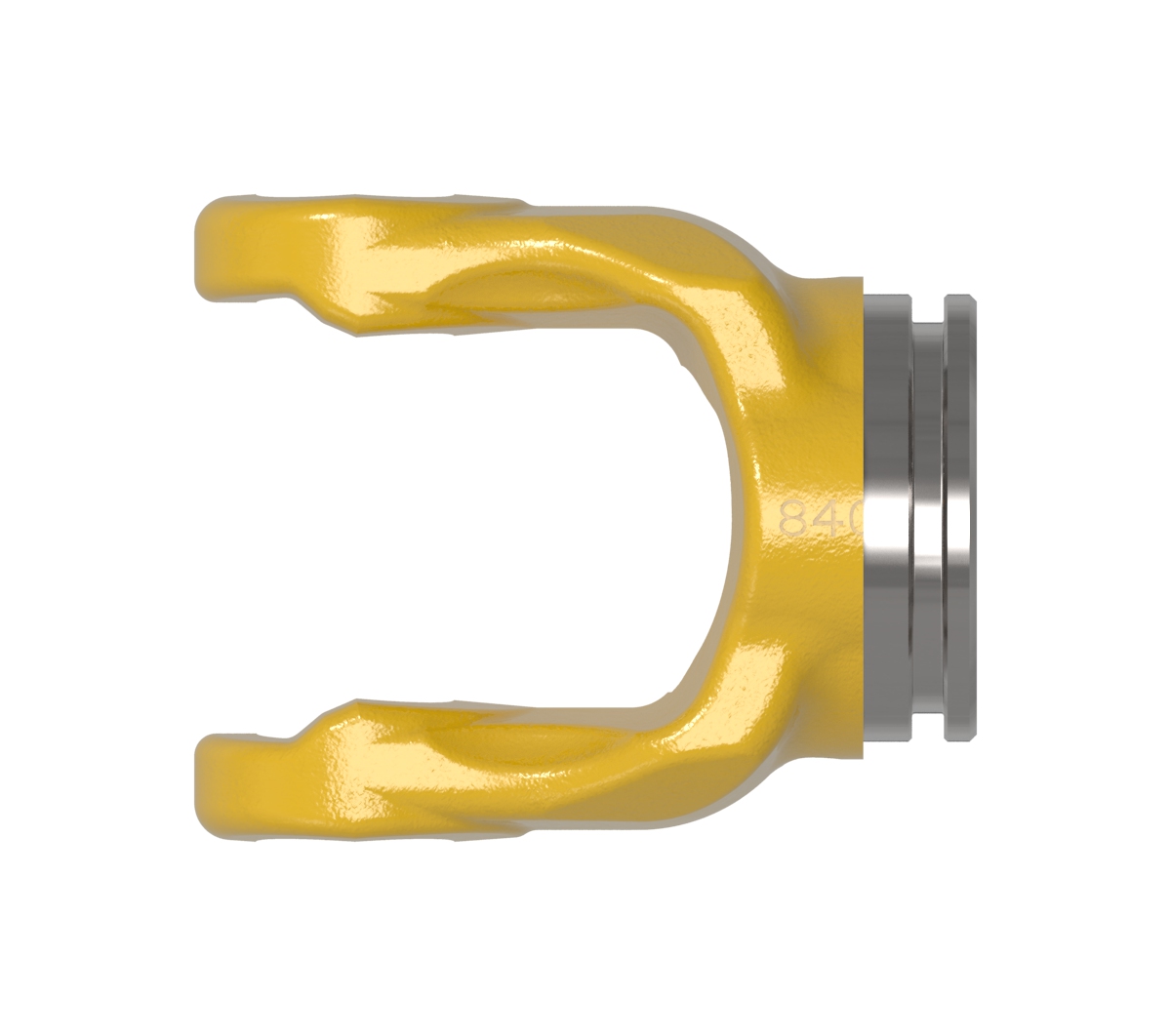

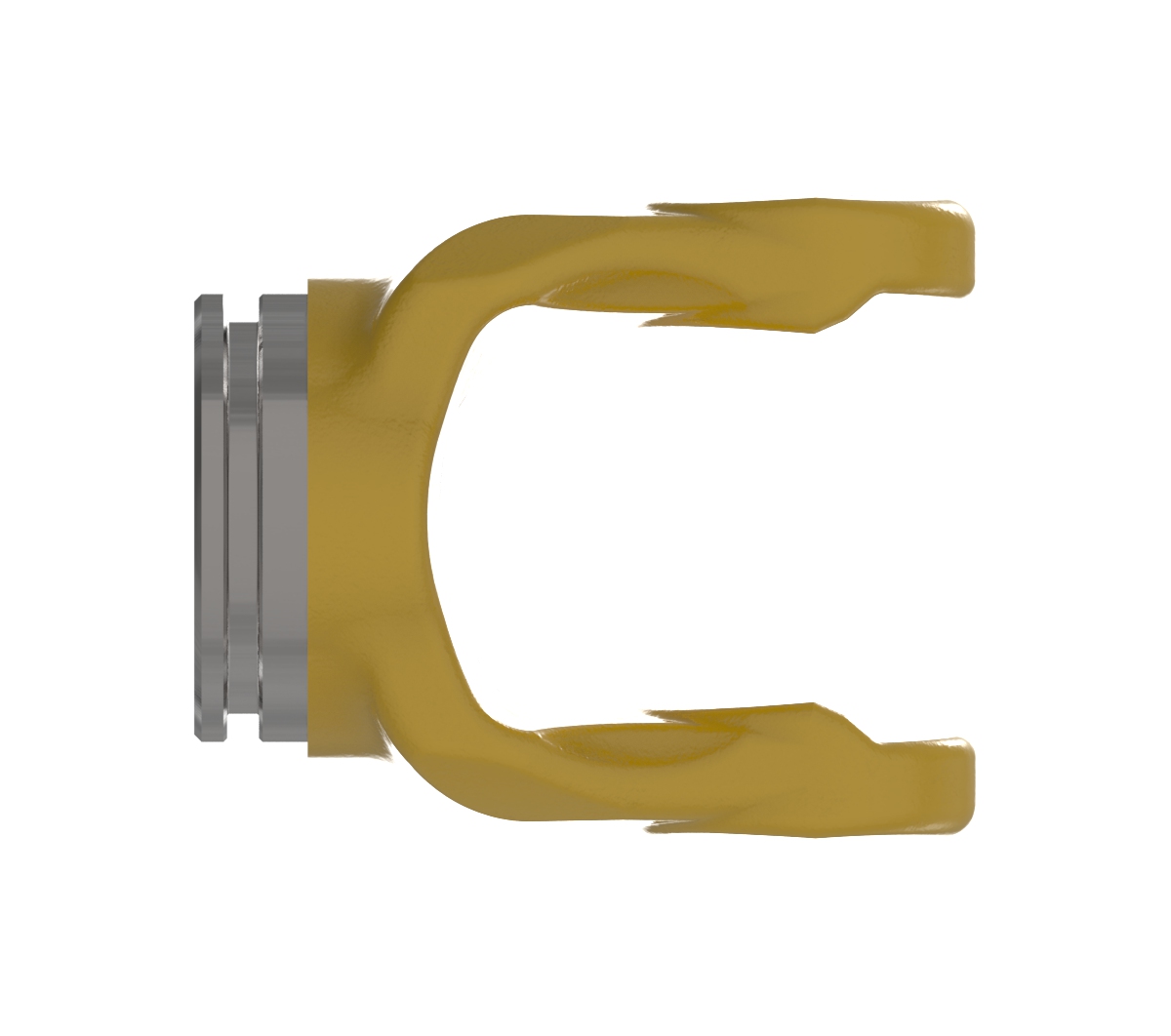

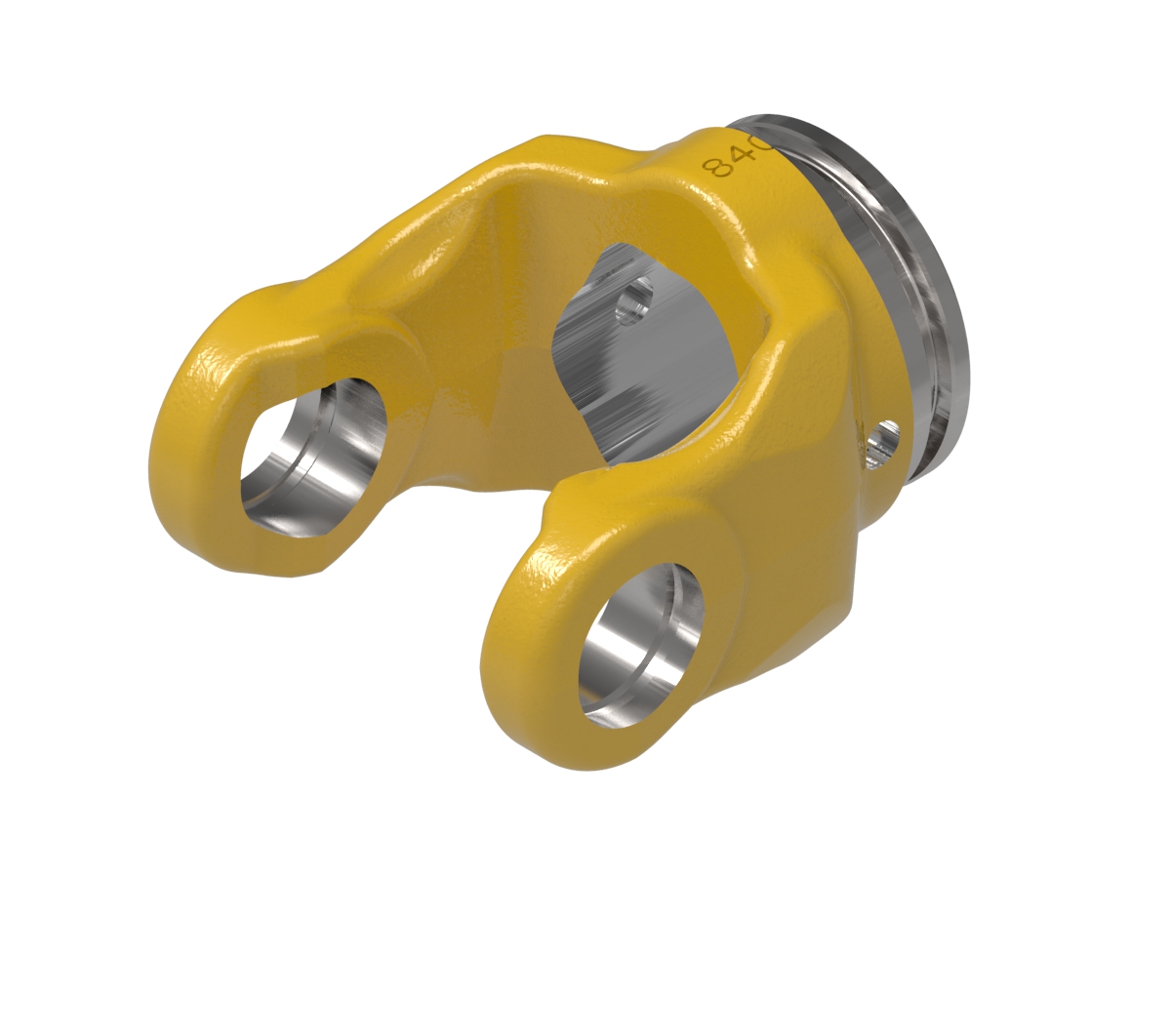

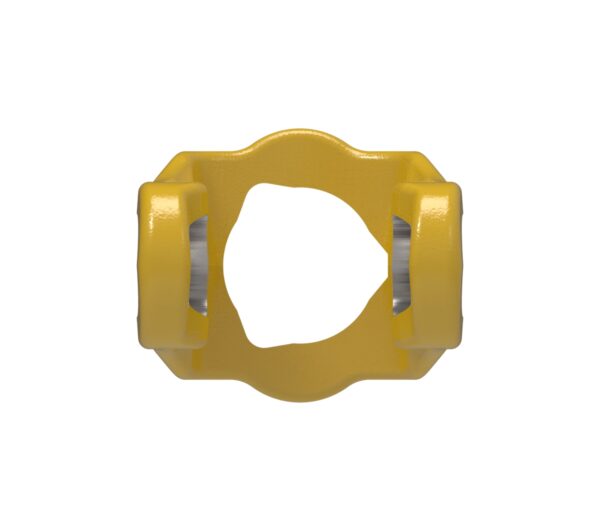

AB4 series yoke with 43 mm trilobe bore and roll pin connection. Note: Image color may not represent actual part.

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

Shaft yokes (or inner profile yokes) connect the cross and bearing kits to the telescoping shaft or inner tube. Tube yokes (or outer profile yokes), connect the other cross and bearing kits to the opposite side of the telescoping shaft or outer tube. Weasler provides both domestic (North American) and Weasler Profile metric shaft and tube yoke connection options. Domestic yokes are provided as square, rectangle, hexagon or splined in shape. Weasler Profile metric yokes are provided as lemon, star, or trilobe in shape.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.69 inches43 mm
Bore 1 43 MM TRILOBE
Connection 1 ROLL PIN
Height3.82 inches97 mm
HP@1000RPM70 HP52 kilowatts
HP@540RPM45 HP34 kilowatts
Length3.34 inches85 mm
Shipping Dimensions4.21" L  ×  3.82" H  ×  2.36" W11cm L  ×  10cm H  ×  6cm W
Shipping Volume37.95 in3622 cm3
Shipping Weight0.00 pounds0 kilograms
Weight0.00 pounds0 kilograms
Width2.36 inches60 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
