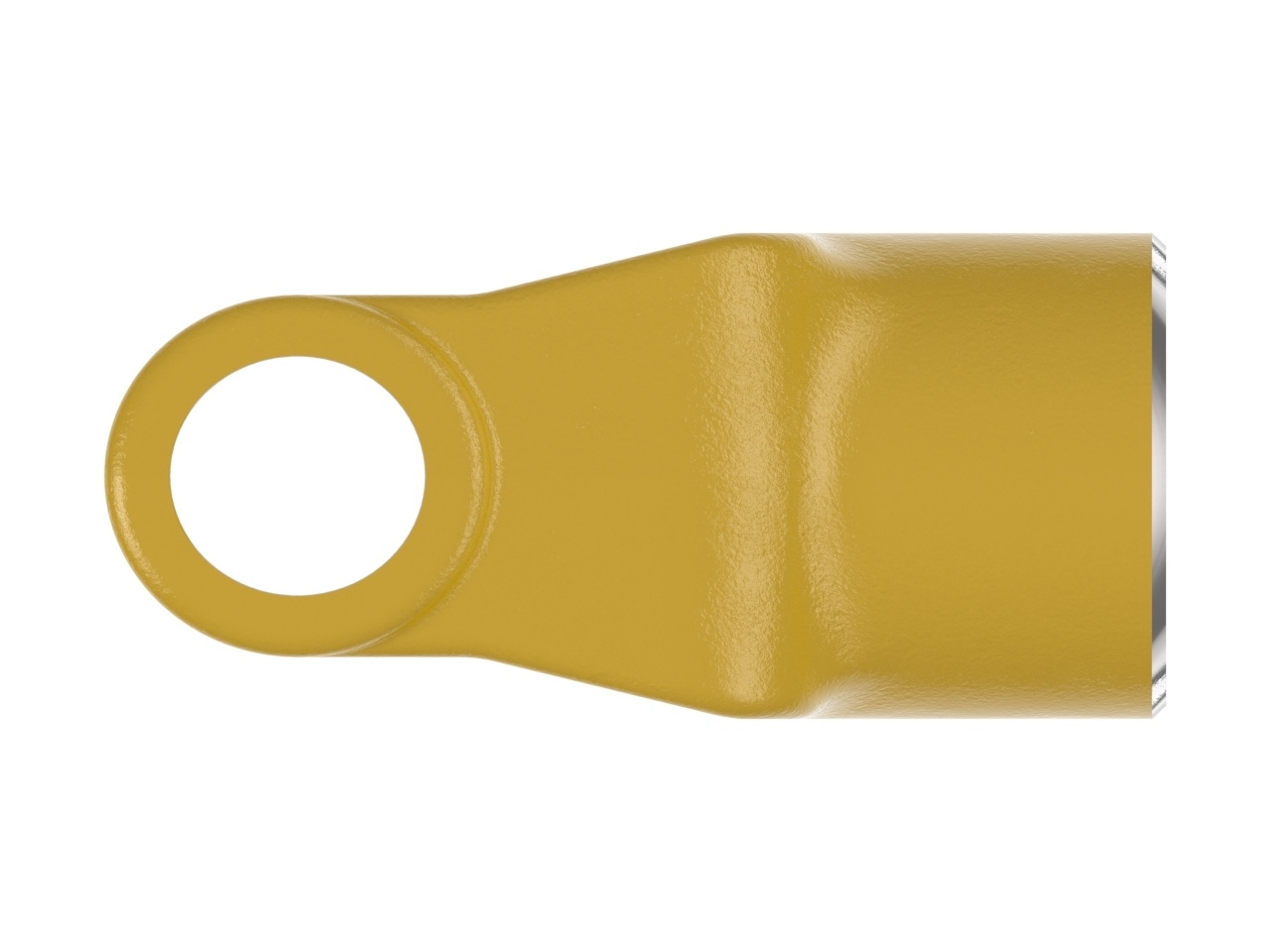

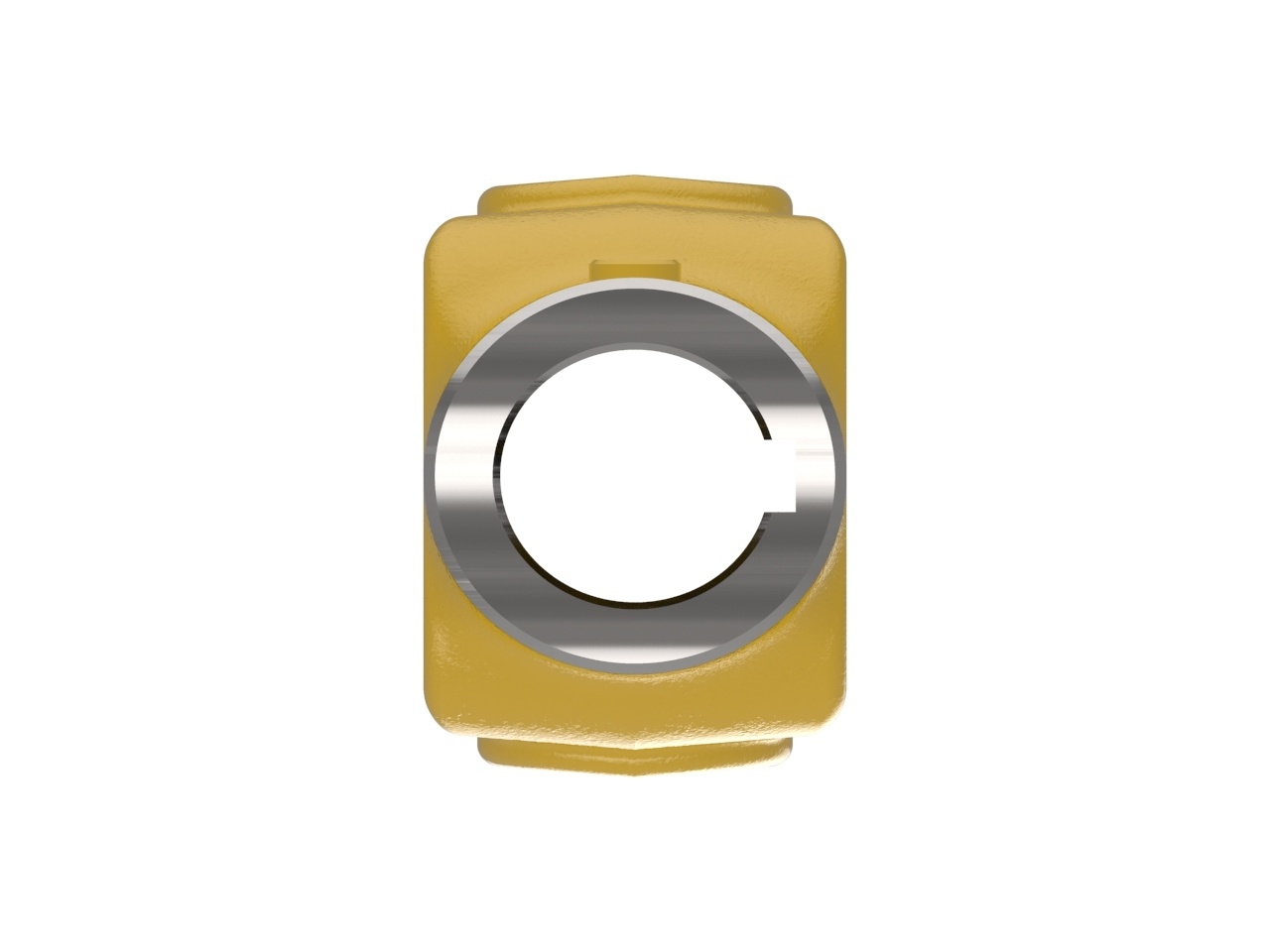

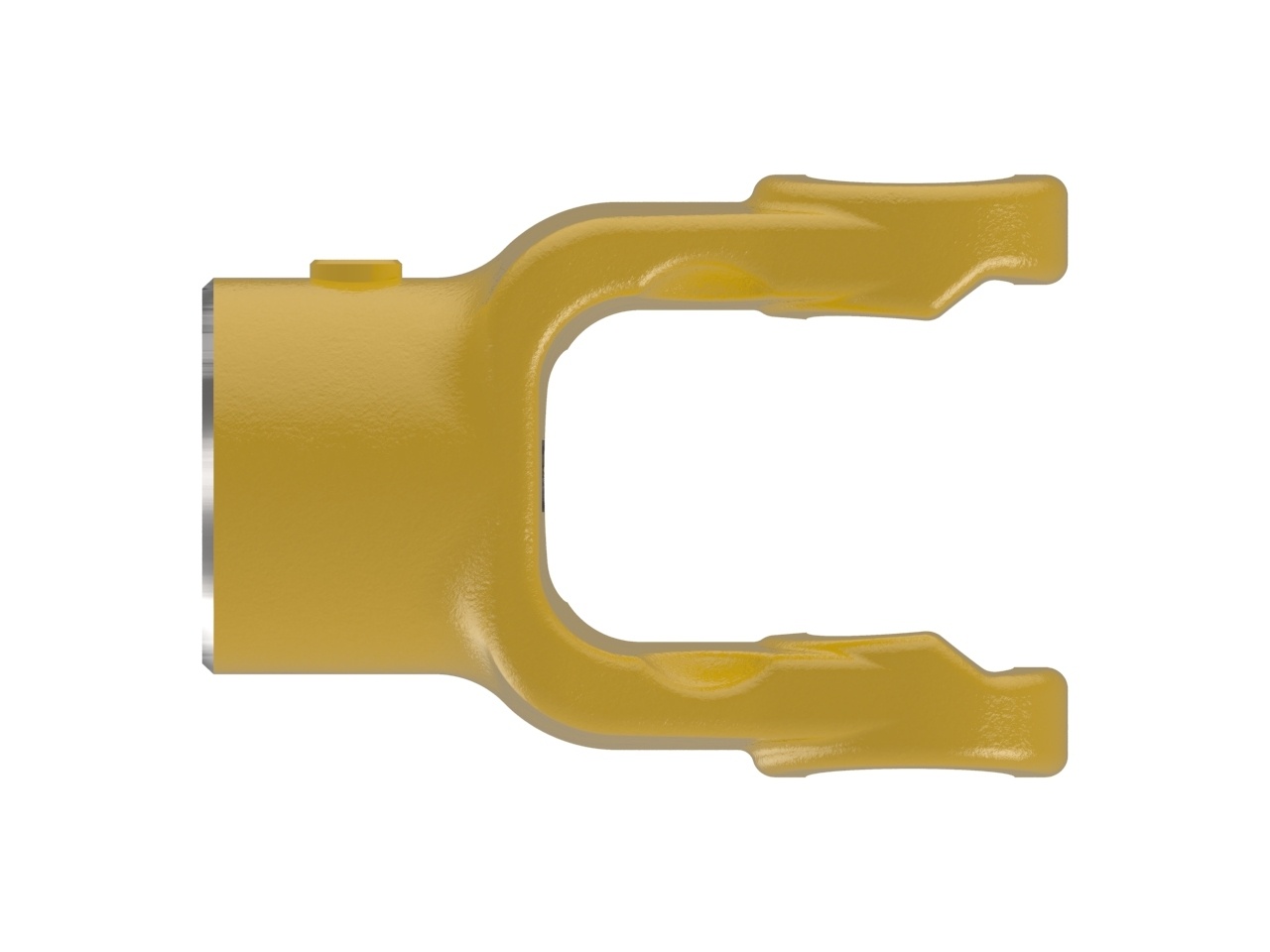

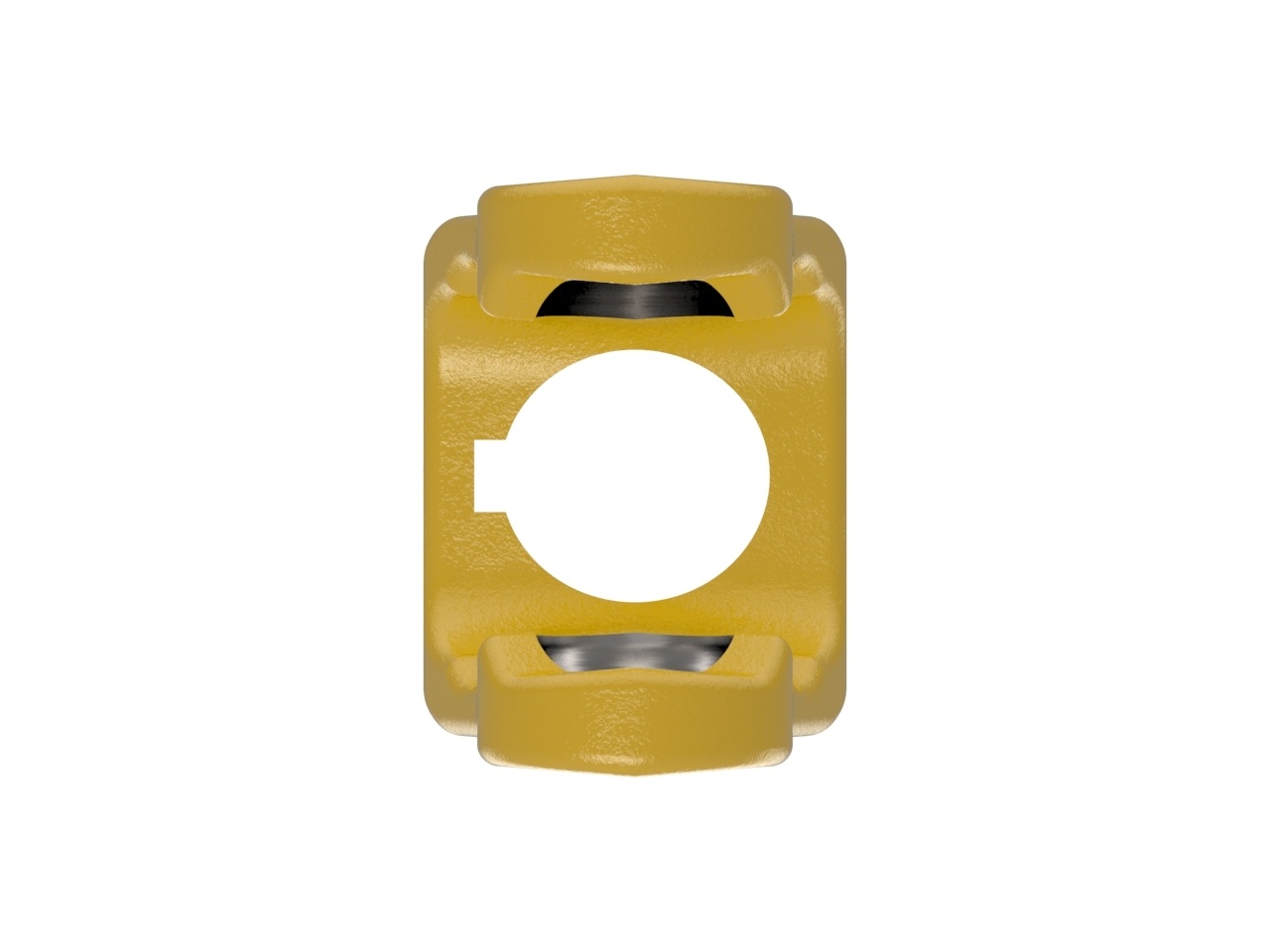

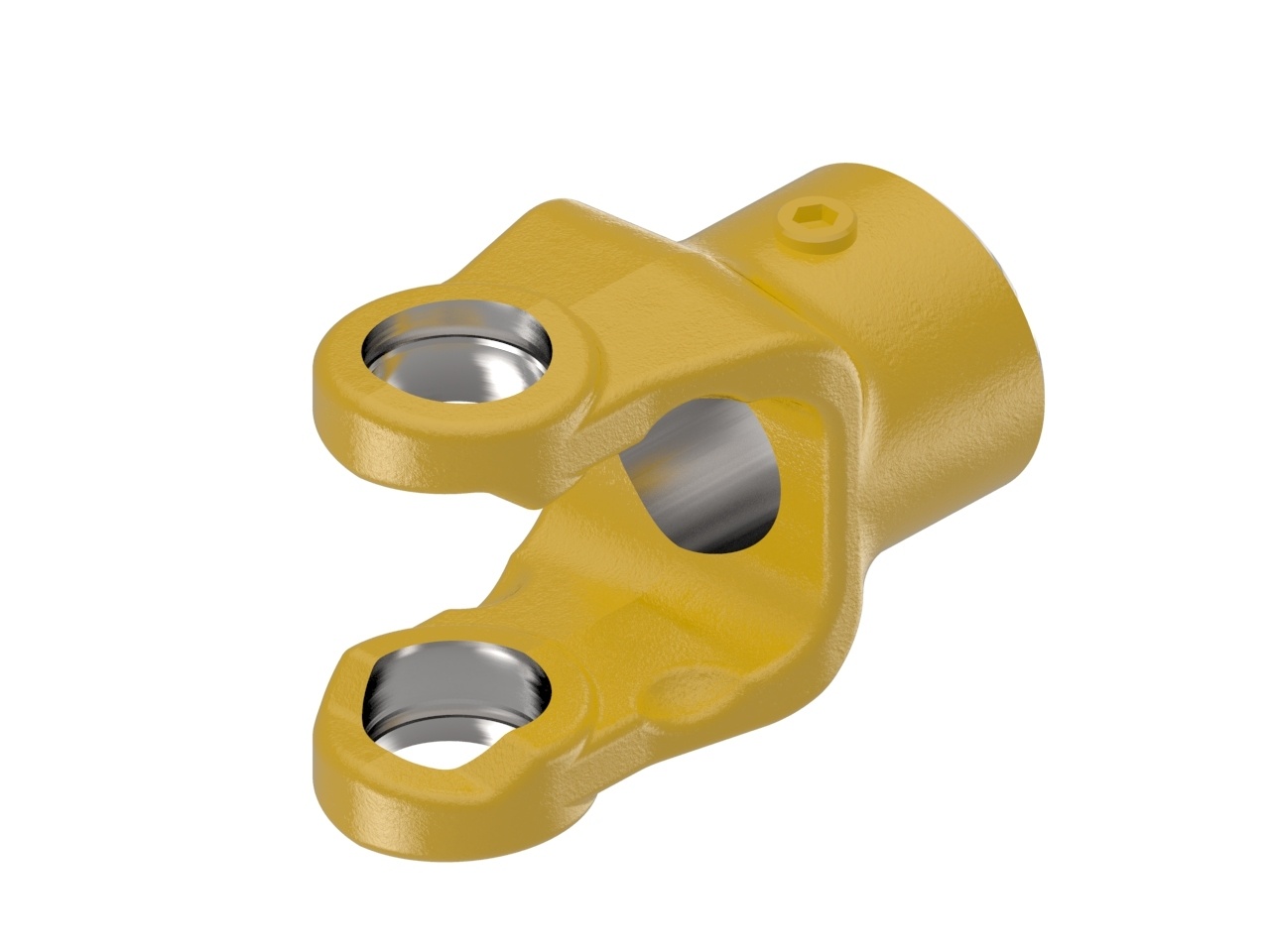

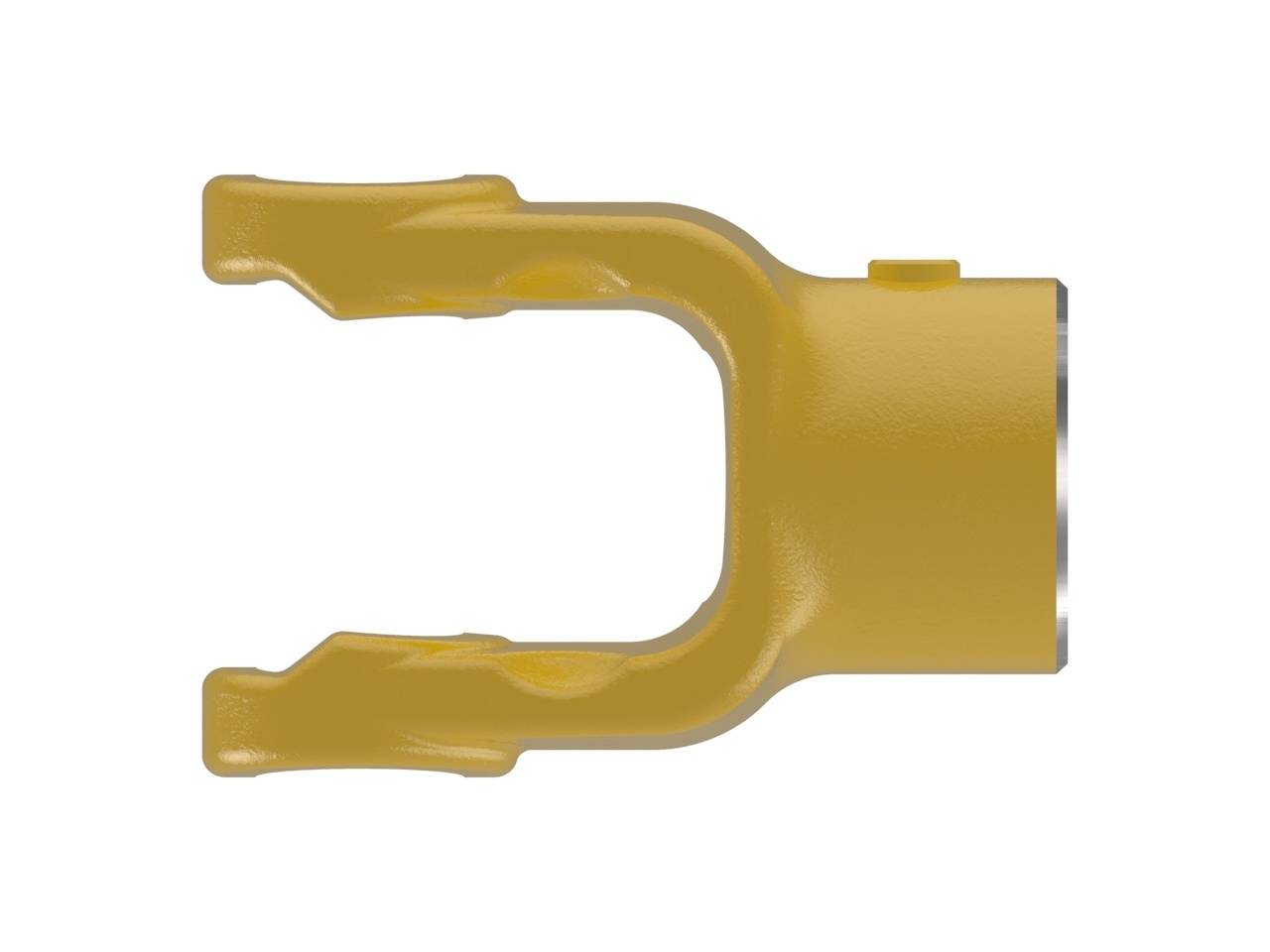

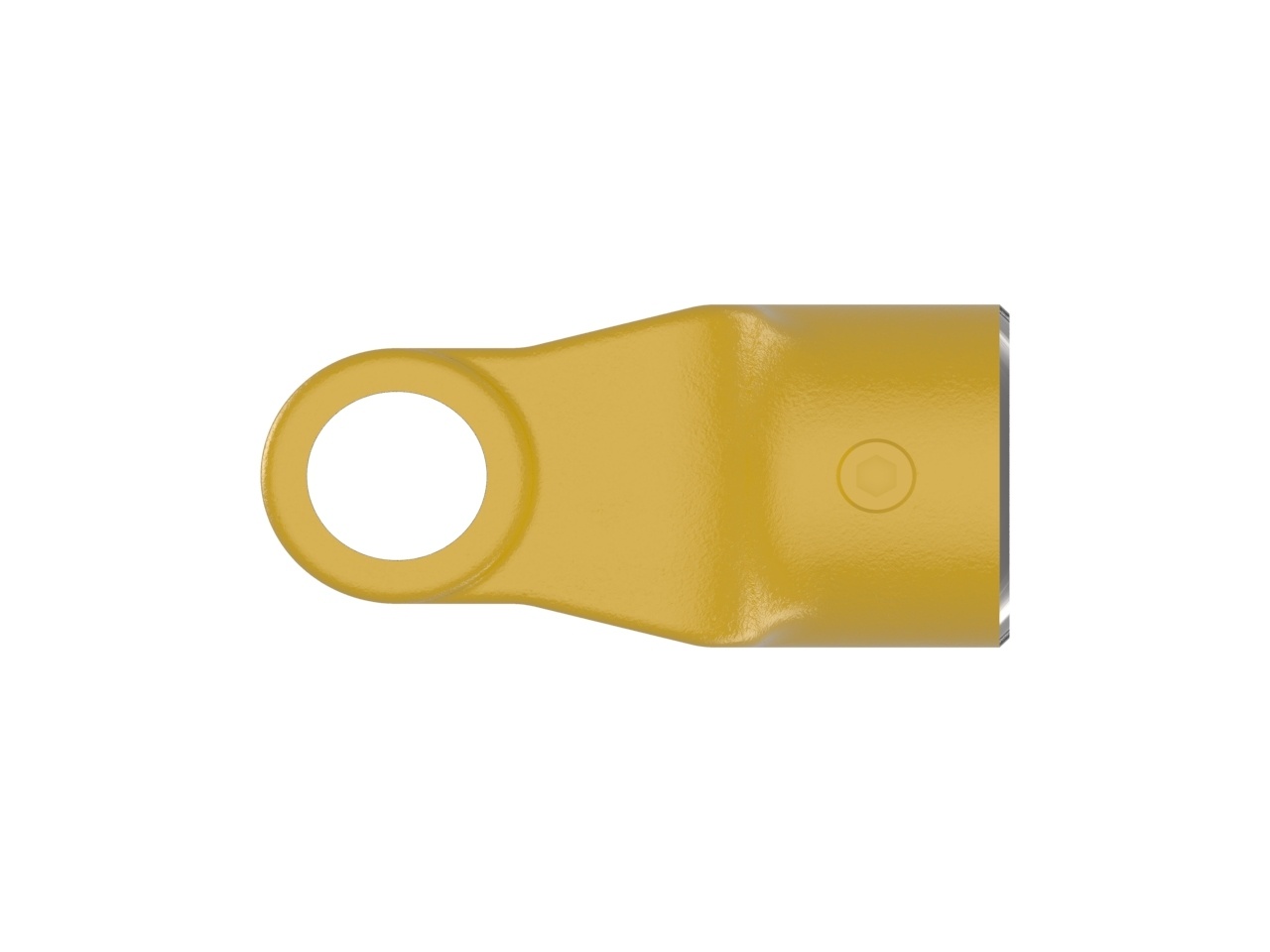

AB3,AW11 Series Setscrew Yoke

AB3,AW11 series yoke with round with keyway bore and setscrew connection. Note: Image color may not represent actual part.

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler implement yokes are provided in a variety of bore and mounting options. Bore options include square, rectangle, hexagon, round and spline. Standard yoke connection options are set screws and pins. Additional implement yoke connection options include torque limiter flage yokes, telescoping yokes (square, round, and hexagon), and clamp yokes.



Spec. Imperial Metric
Bore 11.37 inches35 mm
Connection 1 SETSCREW
Height3.48 inches88 mm
HP@1000RPM58 HP43 kilowatts
HP@540RPM38 HP28 kilowatts
Keyway 10.39 inches10 mm
Length3.62 inches92 mm
Setscrew M10x12
Shipping Dimensions4.43" L  ×  3.48" H  ×  2.17" W11cm L  ×  9cm H  ×  6cm W
Shipping Volume33.45 in3548 cm3
Shipping Weight2.55 pounds1 kilograms
Weight2.55 pounds1 kilograms
Width2.17 inches55 mm


Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
