830-8225

AB2,AW20 Series Pin Yoke

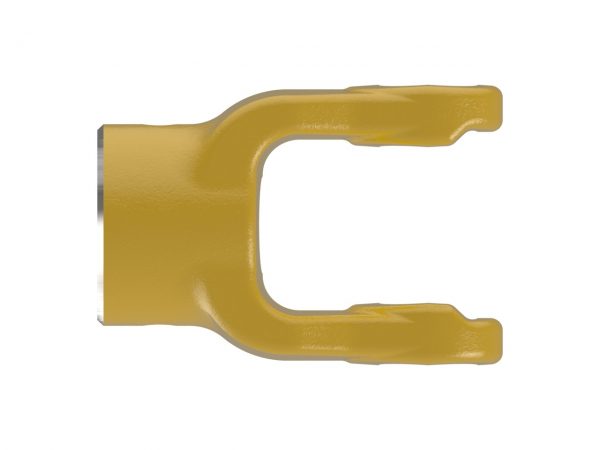

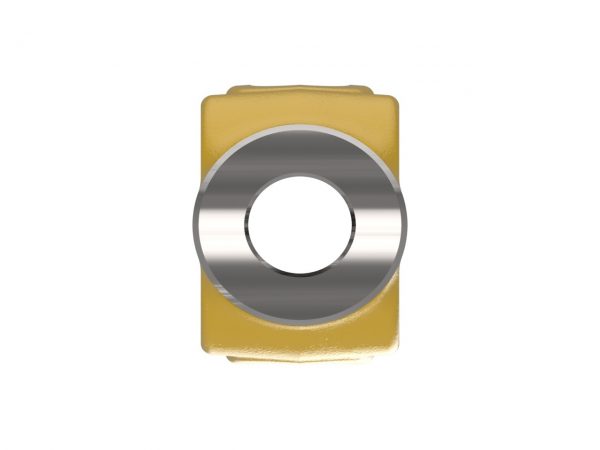

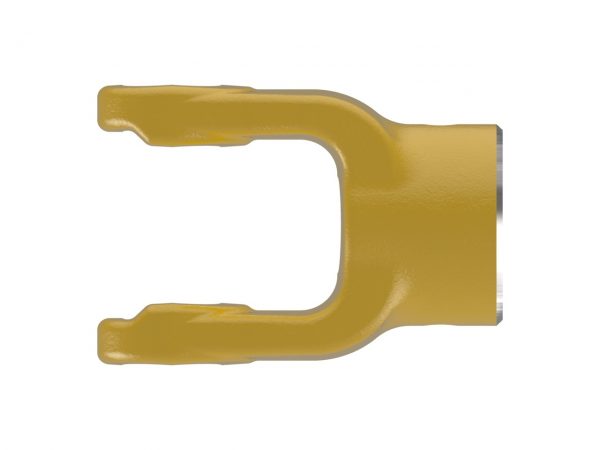

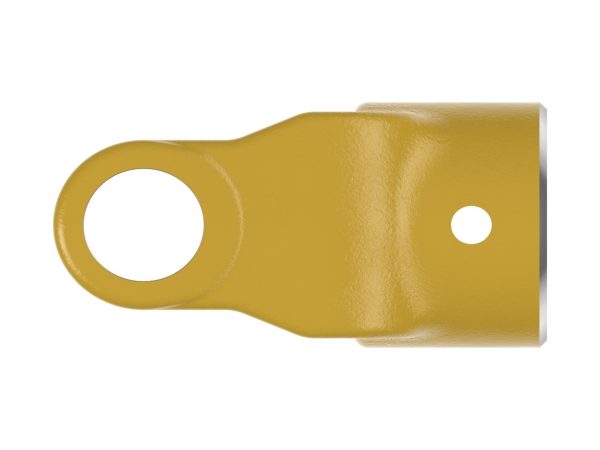

AB2,AW20 series yoke with round bore and pin connection

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler implement yokes are provided in a variety of bore and mounting options. Bore options include square, rectangle, hexagon, round and spline. Standard yoke connection options are set screws and pins. Additional implement yoke connection options include torque limiter flage yokes, telescoping yokes (square, round, and hexagon), and clamp yokes.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 10.98 inches25 mm
Bore 1 ROUND
Connection 1 PIN
Height3.35 inches85 mm
HP@1000RPM38 HP28 kilowatts
HP@540RPM25 HP19 kilowatts
Length3.15 inches80 mm
Pin Hole0.31 inches8 mm
Shipping Dimensions3.86" L  ×  3.35" H  ×  2" W10cm L  ×  9cm H  ×  5cm W
Shipping Volume25.86 in3424 cm3
Shipping Weight2.15 pounds1 kilograms
Weight2.15 pounds1 kilograms
Width2.00 inches51 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
