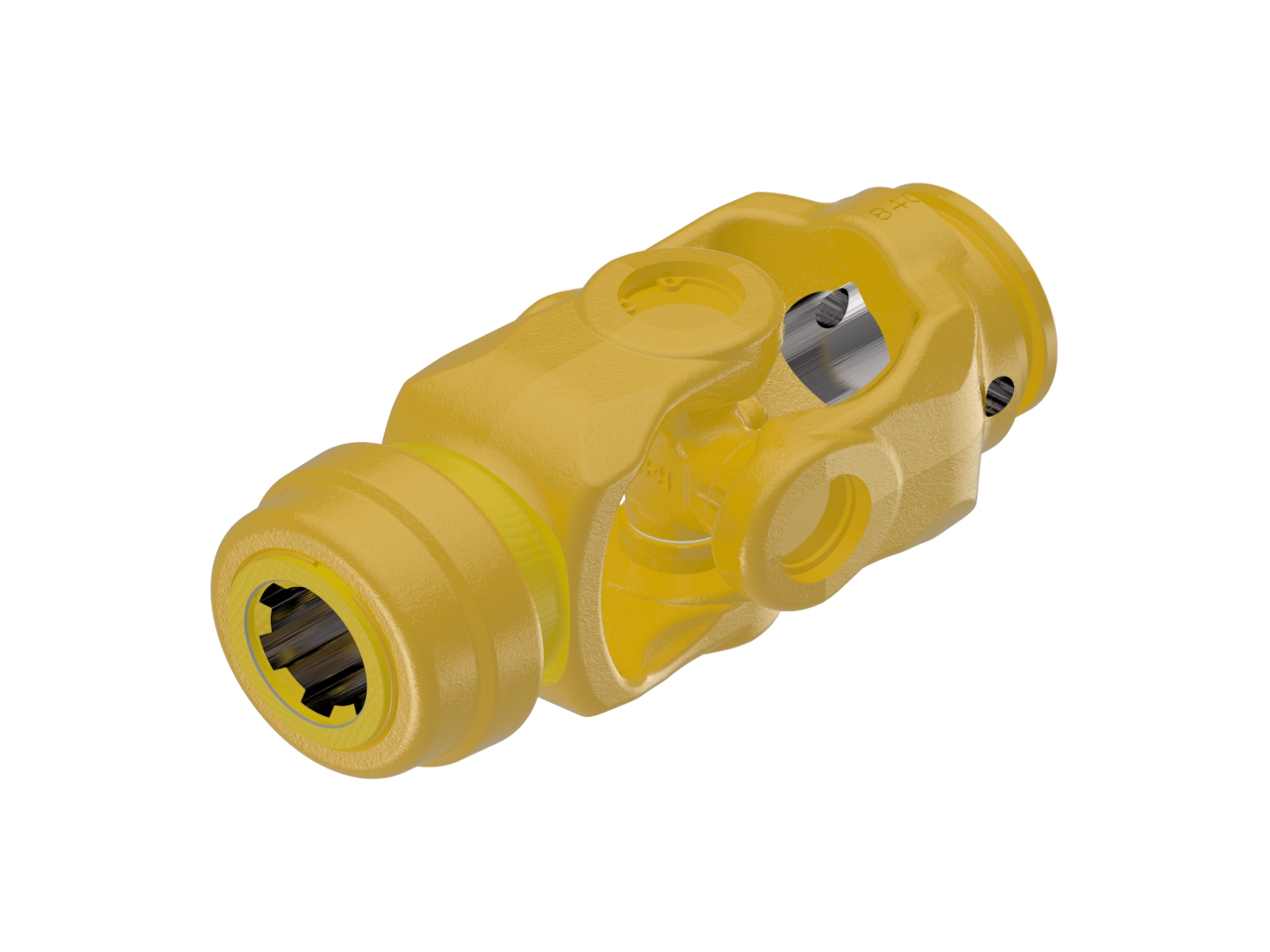

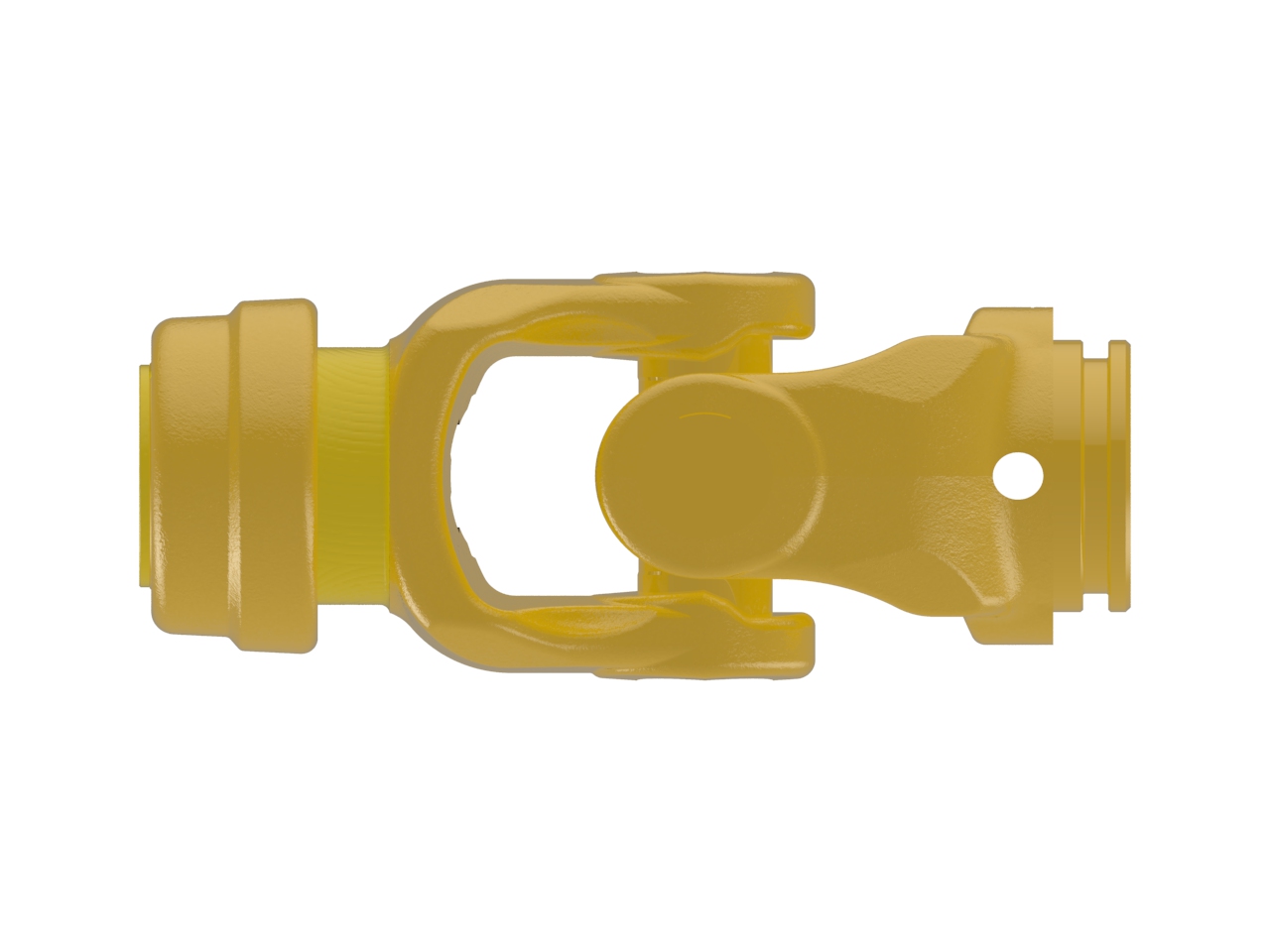

AB1 Series Universal Joint

AB1 series universal joint with 1 3/8-6 spline, spring-lok connection and 26 mm trilobe, telescoping connection. Note: Image color may not represent actual part.

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

The Weasler Cardan type Universal Joints are robust, engineered and produced for high power density and long life. Produced to exact tolerances they provide for simple, easy service and tight bearing fits. The universal joints can be used alone, or as a component of a drive shaft system.



Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 1 3/8-6 SPLINE
Bore 21.06 inches27 mm
Bore 2 26 MM TRILOBE
Connection 1 SPRING-LOK
Connection 2 TELESCOPING
HP@1000RPM23 HP17 kilowatts
HP@540RPM15 HP11 kilowatts
Length6.69 inches170 mm
Shipping Dimensions6.694" L  ×  2.8" H  ×  2.8" W17cm L  ×  7cm H  ×  7cm W
Shipping Volume52.48 in3860 cm3
Shipping Weight4.30 pounds2 kilograms
Weight4.30 pounds2 kilograms


Document Name Type Language
Service-Instructions-Lubricating-PTO-Drive-Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
WE0101011_0817_USL_EasyLockGuard.pdf Performance Benefits Document English
