14003524PTO DRIVE SHAFT

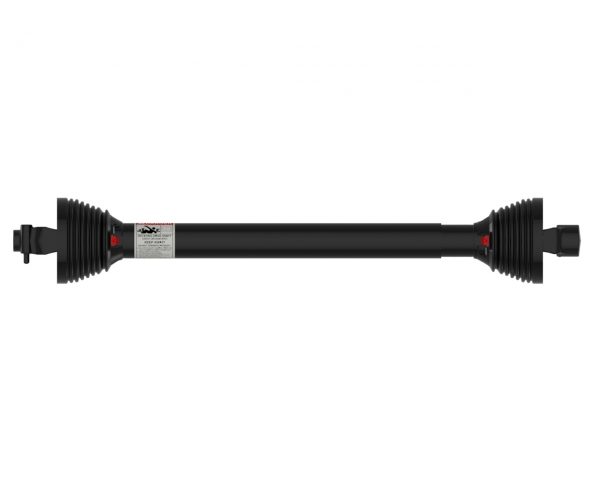

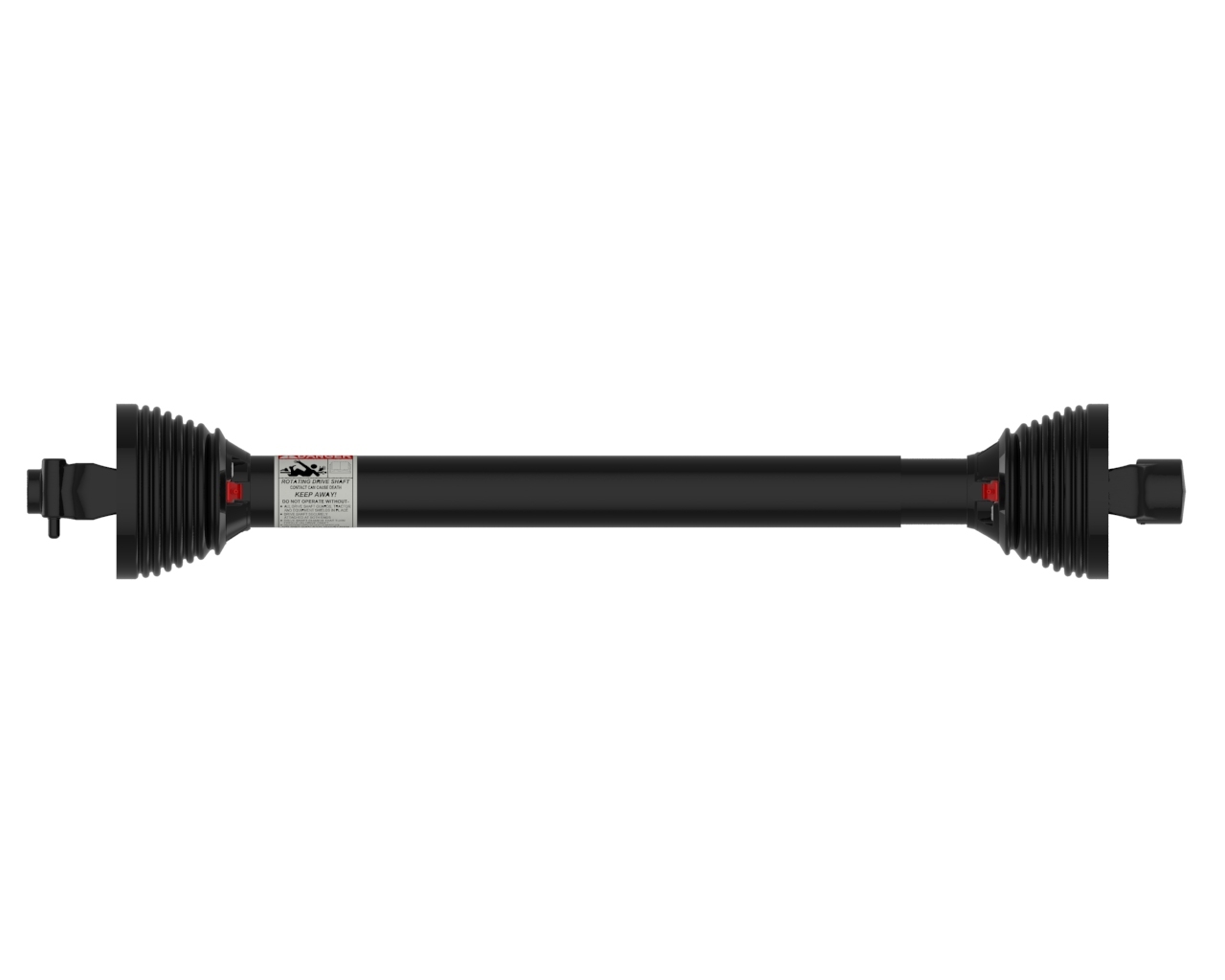

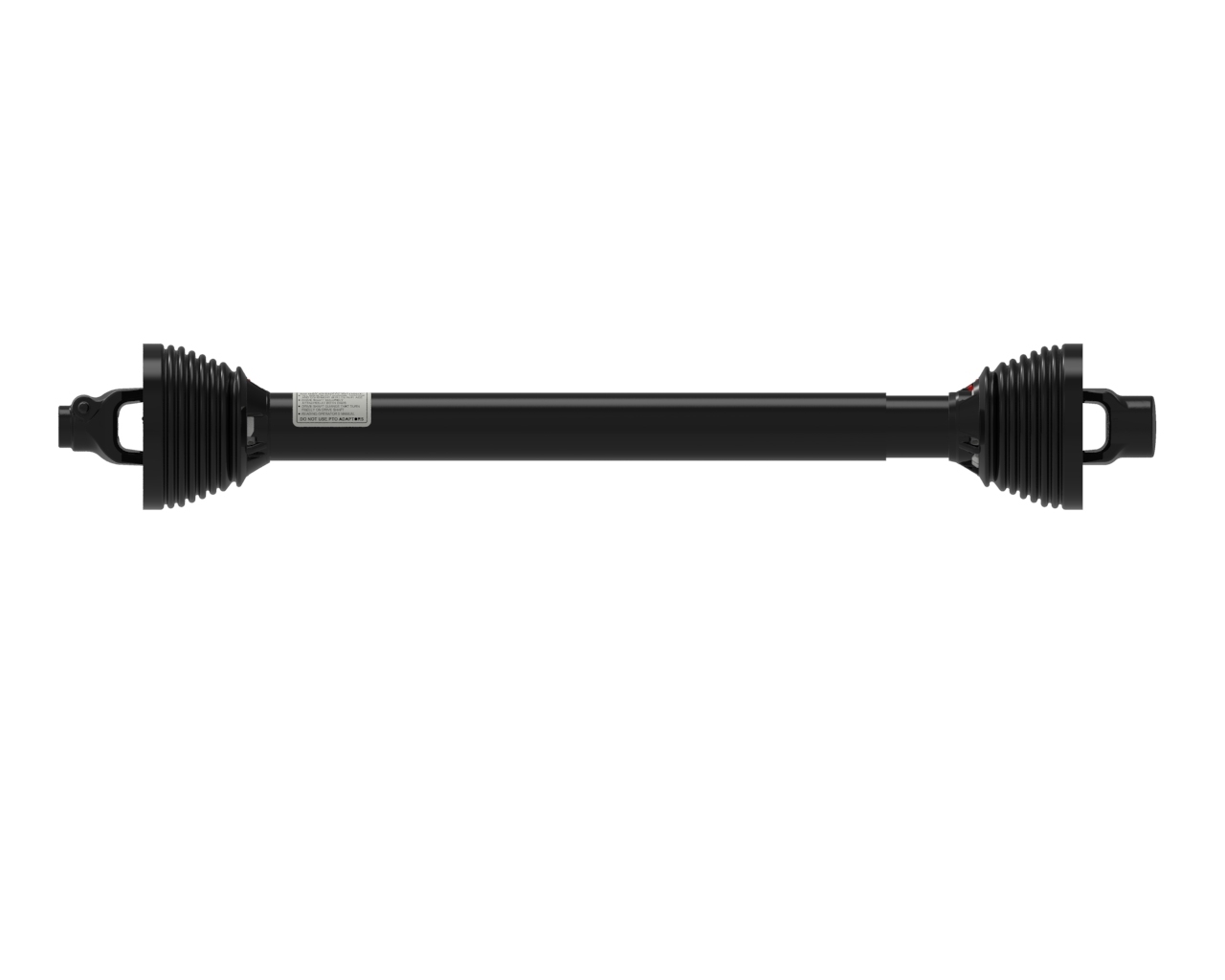

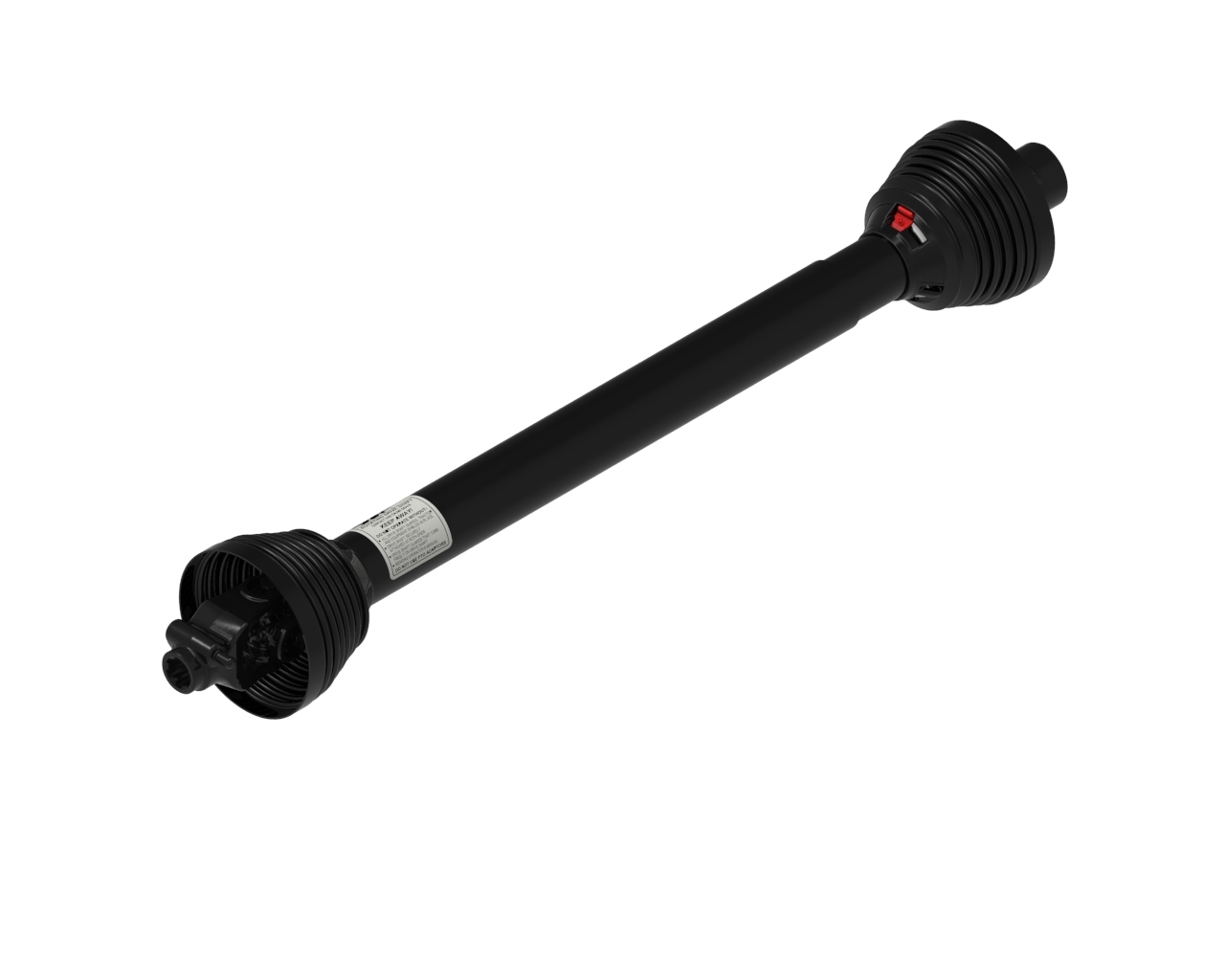

35 Series PTO Drive Shaft
35 series PTO drive shaft with a 1 3/8-6 spline quick disconnect tractor connection and 1 1/2 round 3/8 keyway keyway implement connection
The Weasler high performance PTO drive shafts are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler PTO driveshafts are complete assemblies that from tractor to implement. They are designed for continuous heavy-duty use and meet the requirements of large farms and contractors. Weasler PTO driveshafts and CV wide angle PTO drive shafts are interchangeable with standard PTO driveshafts available in the market.
Design adjustability (cut-to-length) capabilities.
Interchangeability to fit with most competitor models.
Spline and square shaft profiles available.
Easy lock guard construction allows quick and easy assembly or removal with a simple tool such as a key, coin or screwdriver.
Available Extended lubrication E-kits reduce downtime with lubrication intervals of 50-250
hours and the high temperature triple lip seal retains grease better.
Customer dedicated engineering and sales support.
Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
Same component designs used for Weasler’s domestic and metric product lines.
|Bore 1||1.37 inches||35 mm|
|Bore 1||1 3/8-6 SPLINE|
|Bore 2||1.50 inches||38 mm|
|Bore 2||1 1/2 ROUND 3/8 KEYWAY|
|Compressed (Closed) Length||39.13 inches||994 mm|
|Compressed Overall Length||48.01 inches||1219 mm|
|Connection 1||QUICK DISCONNECT|
|Extended Length||62.88 inches||1597 mm|
|Extended Overall Length||71.76 inches||1823 mm|
|HP@1000RPM||79 HP||59 kilowatts|
|HP@540RPM||51 HP||38 kilowatts|
|Keyway 2||0.37 inches||9 mm|
|Length||48.01 inches||1219 mm|
|Outside Diameter||7.31 inches||186 mm|
|Shipping Dimensions||48.01" L × 7.31" H × 7.31" W||122cm L × 19cm H × 19cm W|
|Shipping Volume||2565.47 in3||42041 cm3|
|Shipping Weight||40.56 pounds||18 kilograms|
|Weight||40.56 pounds||18 kilograms|
|Service Instructions - Universal Joint.pdf||Service Document||English|
|Service Instructions - Easy Lock Guards.pdf||Service Document||English|
|Lack of Grease - Cross & Brg Kit.pdf||Troubleshooting Document||English|
|WE0101011_0817_USL_EasyLockGuard.pdf||Performance Benefits Document||English|
