3-80 Series CV Wide Angle Universal Joint And Shaft

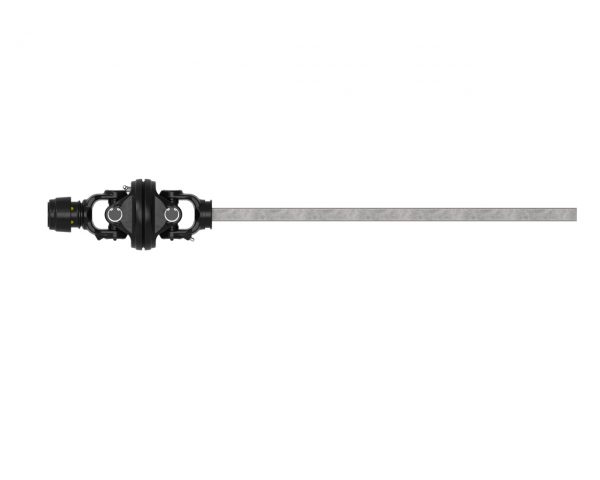

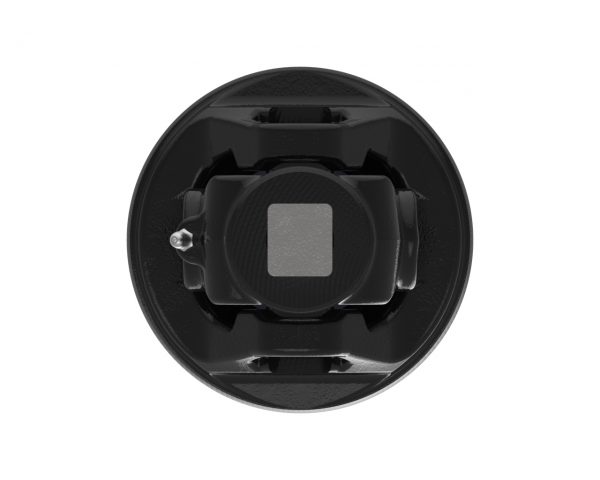

3-80 series CV wide angle universal joint and shaft with 1 3/8-21 spline, auto-lok connection and 1 x 1 1/8 rectangle, telescoping connection

View My List

Constant velocity (CV) wide angle universal joint assemblies allow for smooth machine operation through a broad range of motion. The universal joints included allow the machine to be designed with the input shaft in the best operating position and yet allow the operator to maneuver as needed. The CV delivers constant power by self-canceling torque and speed fluctuations typically found in single cardan-type universal joints.

PERFORMANCE BENEFITS

DESIGN FEATURES
• Fits Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
• Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
• Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
• Same component designs used for Weasler’s domestic and metric product lines.

Specifications

Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 1 3/8-21 SPLINE
Bore 21.12 inches28 mm
Bore 2 1 X 1 1/8 RECTANGLE
Connection 1 AUTO-LOK
Connection 2 TELESCOPING
HP@1000RPM54 HP40 kilowatts
HP@540RPM31 HP23 kilowatts
Outside Diameter5.50 inches140 mm
Shipping Dimensions39.59" L  ×  5.5" H  ×  5.5" W101cm L  ×  14cm H  ×  14cm W
Shipping Volume1197.60 in319625 cm3
Shipping Weight25.80 pounds12 kilograms
Weight25.80 pounds12 kilograms

Downloads

Document Name Type Language
Service Instructions - Lubricating 80 Deg CV.pdf Maintenance Document English
Service Instructions - CV Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
80 deg CV Joint - Over Angle Operating.pdf Troubleshooting Document English
80 deg CV Joint - Over Angle NonOperating.pdf Troubleshooting Document English
WE0101003_1019_USL_80DegConstantVelocityJoint.pdf Performance Benefits Document English
WE0101011_0817_USL_EasyLockGuard.pdf Performance Benefits Document English
