3-50 Series CV Wide Angle Universal Joint And Shaft With Guard

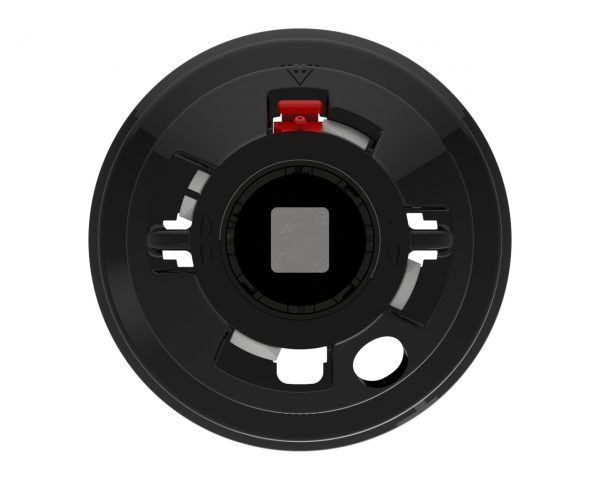

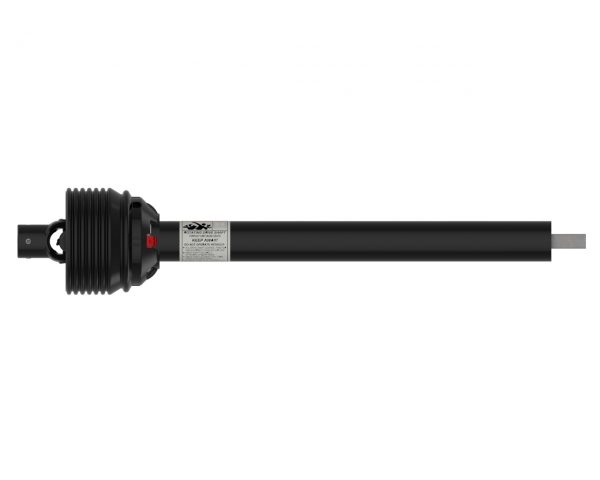

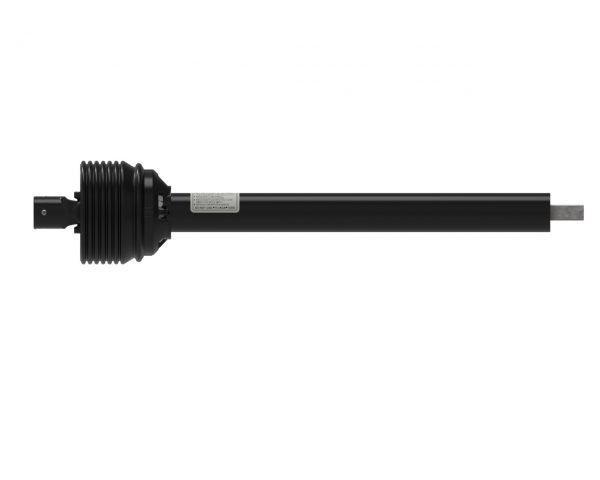

3-50 series CV wide angle universal joint and shaft with guard with round with keyway, pin, setscrew connection and 1 x 1 1/8 rectangle, telescoping connection

View My List

Constant velocity (CV) wide angle universal joint assemblies allow for smooth machine operation through a broad range of motion. The universal joints included allow the machine to be designed with the input shaft in the best operating position and yet allow the operator to maneuver as needed. The CV delivers constant power by self-canceling torque and speed fluctuations typically found in single cardan-type universal joints.

PERFORMANCE BENEFITS

DESIGN FEATURES
• Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
• Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
• Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
• Same component designs used for Weasler’s domestic and metric product lines.

Specifications

Spec. Imperial Metric
Bore 11.25 inches32 mm
Bore 1 ROUND WITH KEYWAY
Bore 21.12 inches28 mm
Bore 2 1 X 1 1/8 RECTANGLE
Connection 1 PIN, SETSCREW
Connection 2 TELESCOPING
HP@1000RPM48 HP36 kilowatts
HP@540RPM31 HP23 kilowatts
Keyway 10.25 inches6 mm
Outside Diameter7.28 inches185 mm
Shipping Dimensions38.63" L  ×  7.28" H  ×  7.28" W98cm L  ×  18cm H  ×  18cm W
Shipping Volume2047.33 in333550 cm3
Shipping Weight20.20 pounds9 kilograms
Weight20.20 pounds9 kilograms
