14001200

12 Series PTO Drive Shaft

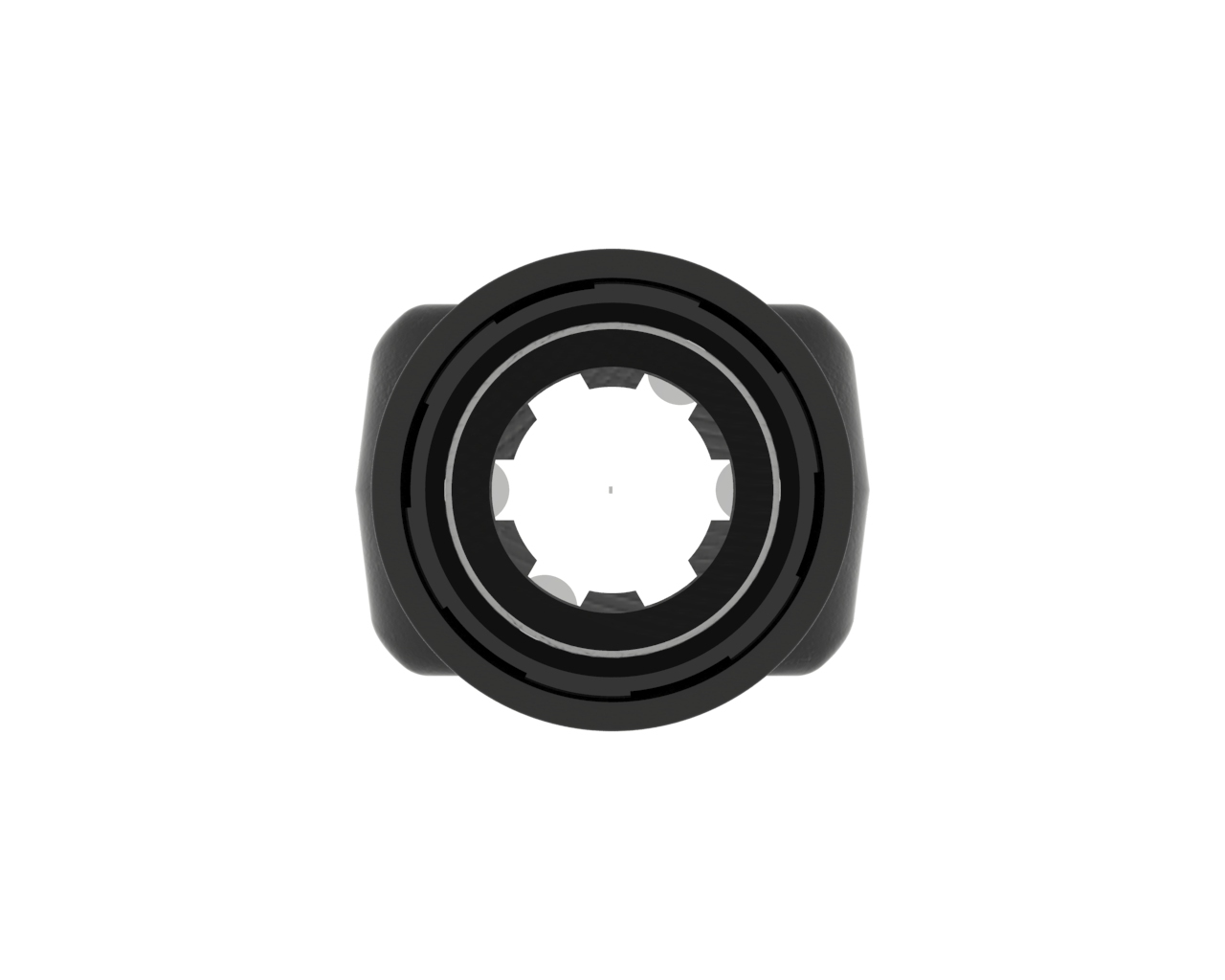

12 series PTO drive shaft with a 1 3/8-6 spline quick disconnect tractor connection and 1 1/4 round 1/4 keyway keyway implement connection

View My List

The Weasler high performance PTO drive shafts are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler PTO driveshafts are complete assemblies that from tractor to implement. They are designed for continuous heavy-duty use and meet the requirements of large farms and contractors. Weasler PTO driveshafts and CV wide angle PTO drive shafts are interchangeable with standard PTO driveshafts available in the market.

PERFORMANCE BENEFITS
• Design adjustability (cut-to-length) capabilities.
• Interchangeability to fit with most competitor models.
• Spline and square shaft profiles available.
• Easy lock guard construction allows quick and easy assembly or removal with a simple tool such as a key, coin or screwdriver.
• Available Extended lubrication E-kits reduce downtime with lubrication intervals of 50-250
hours and the high temperature triple lip seal retains grease better.
• Customer dedicated engineering and sales support.

DESIGN FEATURES
• Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
• Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
• Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
• Same component designs used for Weasler’s domestic and metric product lines.

Specifications

Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 1 3/8-6 SPLINE
Bore 21.25 inches32 mm
Bore 2 1 1/4 ROUND 1/4 KEYWAY
Compressed (Closed) Length41.25 inches1048 mm
Compressed Overall Length48.06 inches1221 mm
Connection 1 QUICK DISCONNECT
Connection 2 KEYWAY
Extended Length71.50 inches1816 mm
Extended Overall Length78.31 inches1989 mm
HP@1000RPM29 HP22 kilowatts
HP@540RPM19 HP14 kilowatts
Keyway 20.25 inches6 mm
Outside Diameter5.70 inches145 mm
Shipping Dimensions48.06" L  ×  5.7" H  ×  5.7" W122cm L  ×  14cm H  ×  14cm W
Shipping Volume1561.47 in325588 cm3
Shipping Weight25.08 pounds11 kilograms
Weight25.08 pounds11 kilograms

Downloads

Document Name Type Language
Service-Instructions-Lubricating-PTO-Drive-Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Service Instructions - Easy Lock Guards.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
WE0101011_0817_USL_EasyLockGuard.pdf Performance Benefits Document English
