20010008

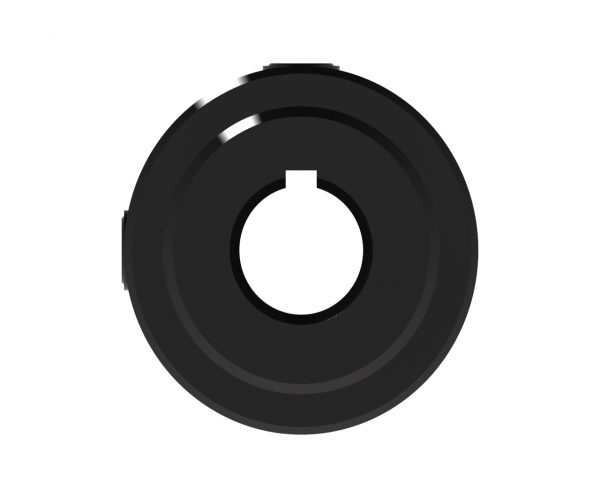

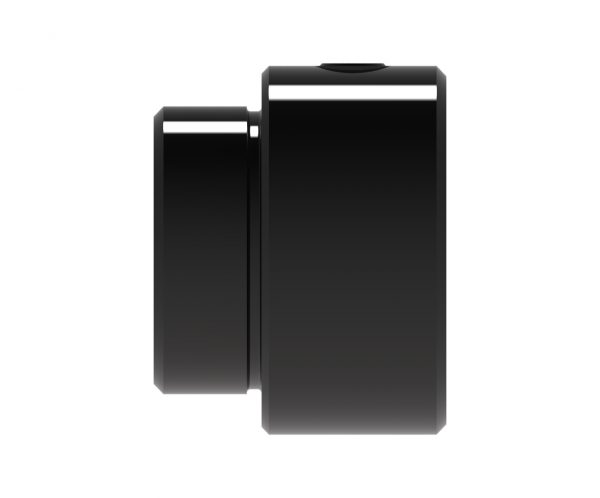

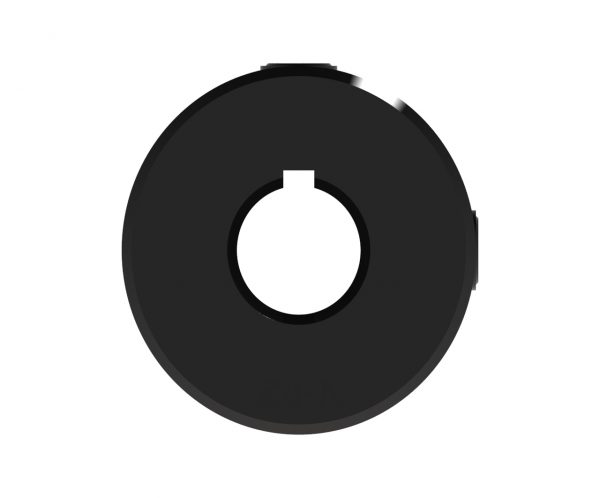

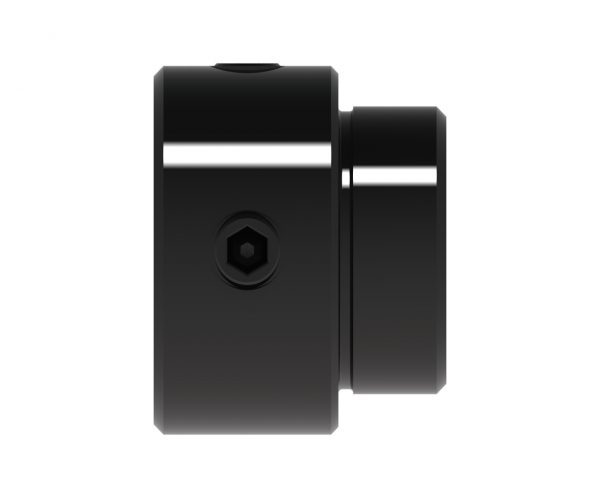

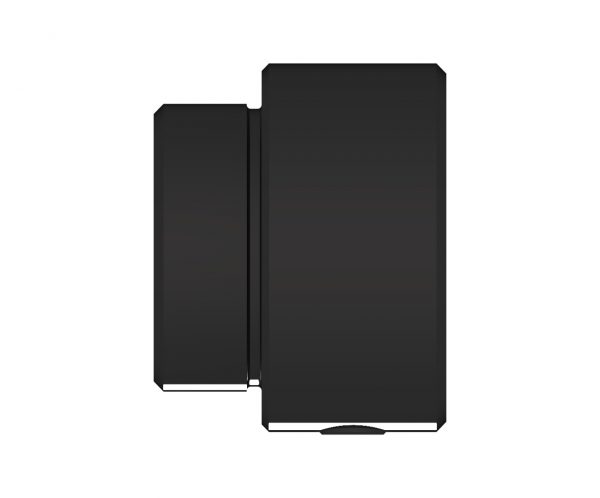

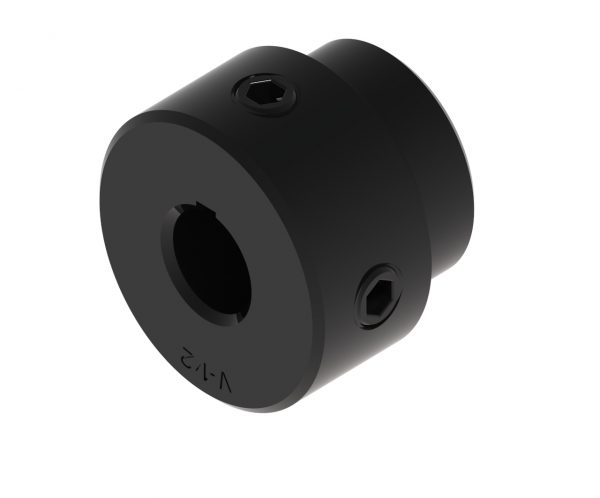

V Series Hub For Use With Sprocket Or Pulley

V series hub with .5 inch round with keyway bore, setscrew

View My List

Weasler hubs are available in the bore options spline, square, round, and hexagon. All Weasler hubs are referenced by their series letter V, W, X, or XX. Sprockets and pulleys fit the hubs with the corresponding series letter.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 10.50 inches13 mm
Bore 1 ROUND WITH KEYWAY
Connection 1 SETSCREW
Keyway 10.13 inches3 mm
Length1.18 inches30 mm
Outside Diameter1.44 inches37 mm
Setscrew 5/16-18
Shipping Dimensions1.1875" L  ×  1.44" H  ×  0.4375" W3cm L  ×  4cm H  ×  1cm W
Shipping Volume0.75 in312 cm3
Shipping Weight0.40 pounds0 kilograms
Weight0.40 pounds0 kilograms
Weld Diameter1.12 inches28 mm
Width0.43 inches11 mm
