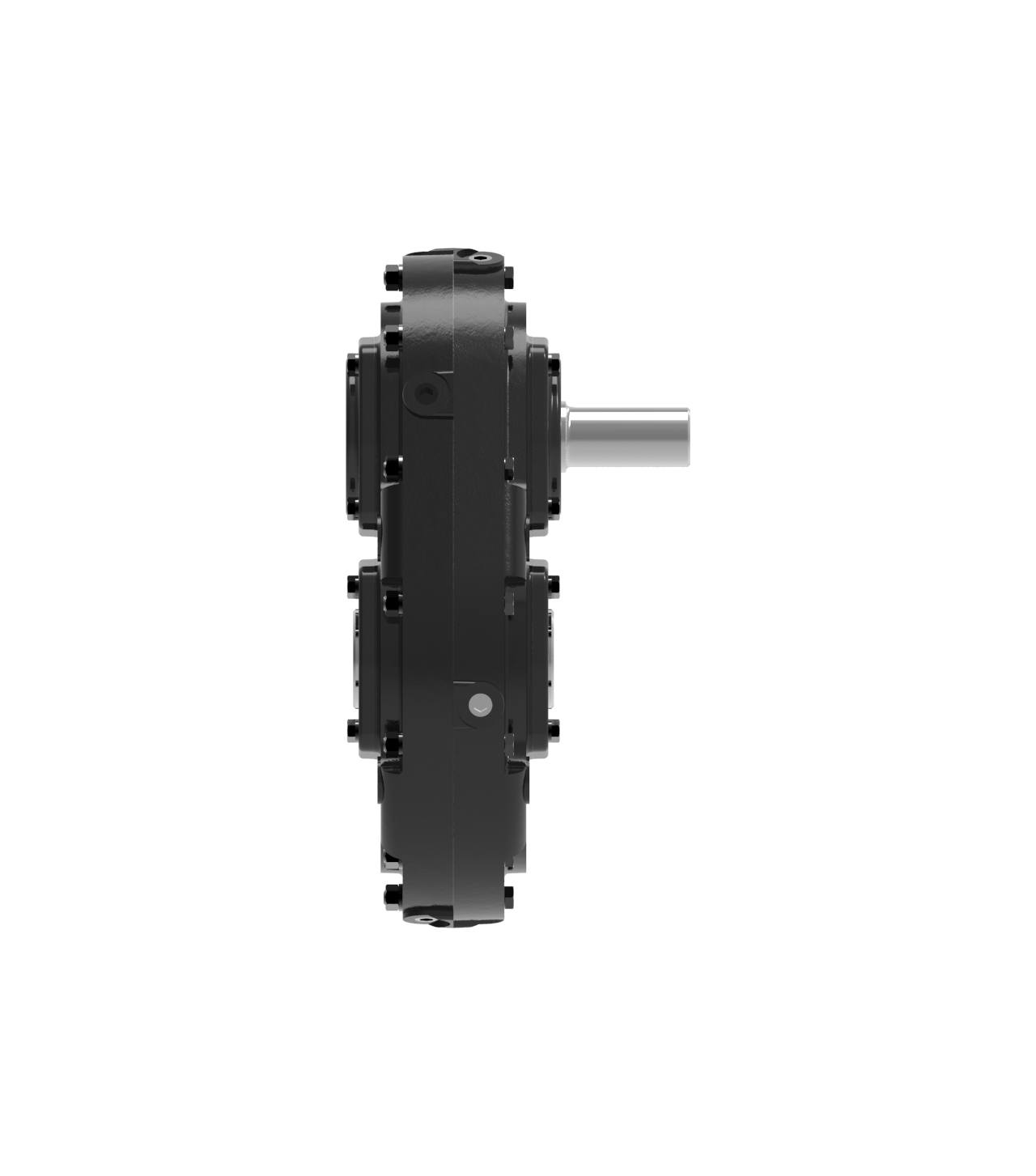

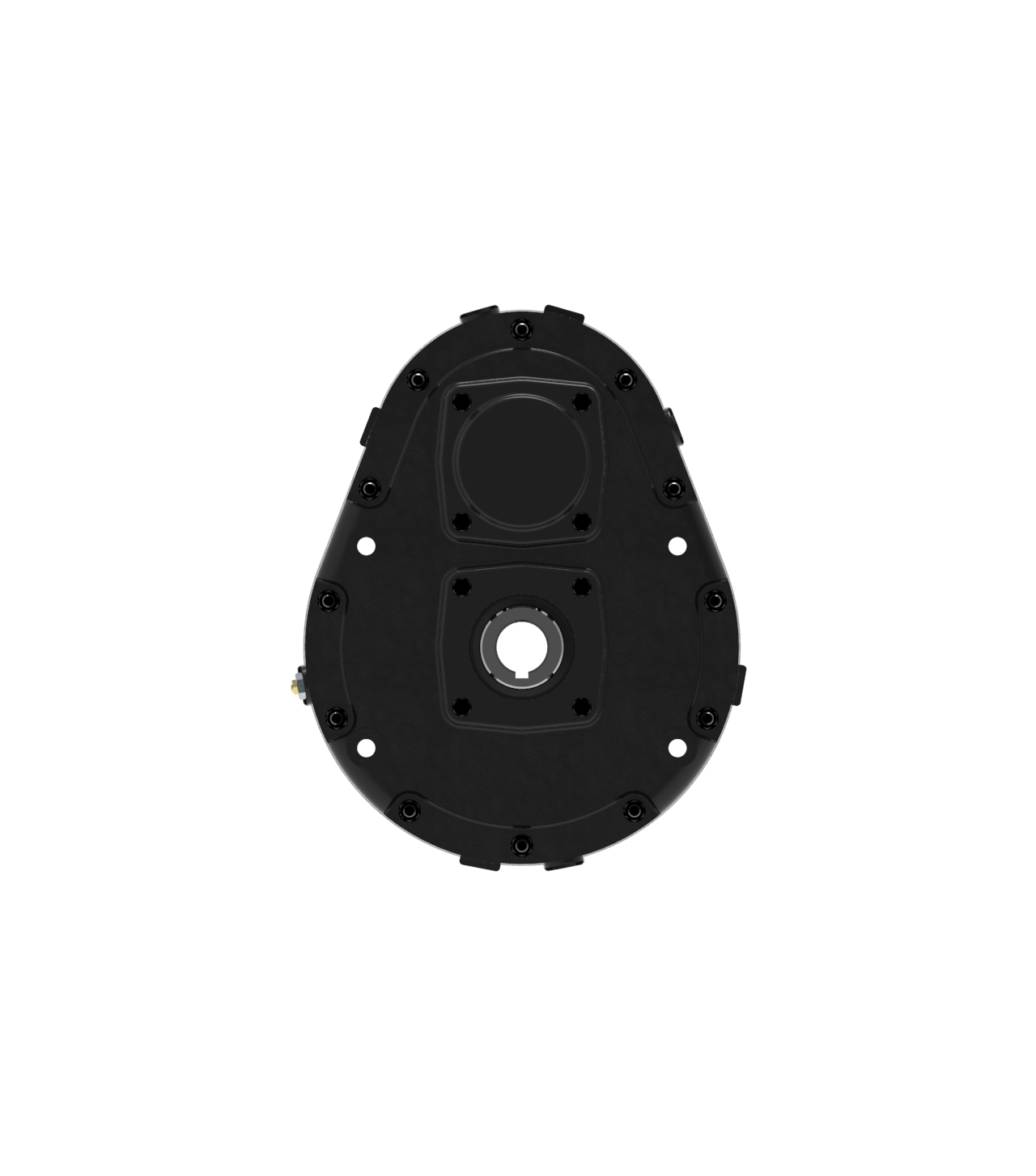

STANDARD PARALLEL SHAFT GEARBOX – 6600 SERIES
6600 series parallel shaft gearbox available in ratios up to 4:1
Weasler Engineering’s rugged parallel shaft gearboxes are designed to meet a wide range of torque requirements in agriculture and other demanding markets. Choose from existing ratios and shaft configurations or customize them to meet your application needs. Our Application Engineers will work with you to understand your application requirements and size the appropriate gearbox for your application. If your application requires a custom drive solution, our engineers will work you to design a parallel shaft gearbox that meets your exact application to minimize stress and wear on your equipment and extend service life.
DESIGN FEATURES:
• Customizable shaft configurations up to 1.75” [45 mm] diameter on input shaft and 2.48” [63 mm] on output shaft.
• Available ratios – 2:1, 2.5:1, 3:1, 4:1
(other ratios available upon request)
• Max HP rating
• 540 rpm = 60 HP
• 1000 rpm = 106 HP
• Rugged cast iron housings
• Helical gears
• Double lip spring loaded seals
Available Options:
• Hollow shaft – up to 1.50” [38 mm] max diameter
• Viton seals
• C-Face pump attachments
Application examples:
• Pump Applications
• Combines
• Grain Conveyors
• Conveying Equipment
Specifications
Part Number: STANDARD PARALLEL SHAFT GEARBOX - 6600 SERIES
Product Series: 6600
